SparkFun QwiicBus - EndPoint

SparkfunSKU: COM-16988
Price:
Sale price £11.30
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

SparkFun QwiicBus - MidPoint - The Pi HutSparkFun QwiicBus - MidPoint - The Pi Hut
SparkfunSparkFun QwiicBus - MidPoint
Sale price £21.50 incl. VAT excl. VAT
SparkFun QwiicBus Kit - The Pi HutSparkFun QwiicBus Kit - The Pi Hut
SparkfunSparkFun QwiicBus Kit
Sale price £45.80 incl. VAT excl. VAT
SparkFun Qwiic pHAT v2.0 for Raspberry Pi - The Pi HutSparkFun Qwiic pHAT v2.0 for Raspberry Pi - The Pi Hut
SparkfunSparkFun Qwiic pHAT v2.0 for Raspberry Pi
Sale price £7.20 incl. VAT excl. VAT

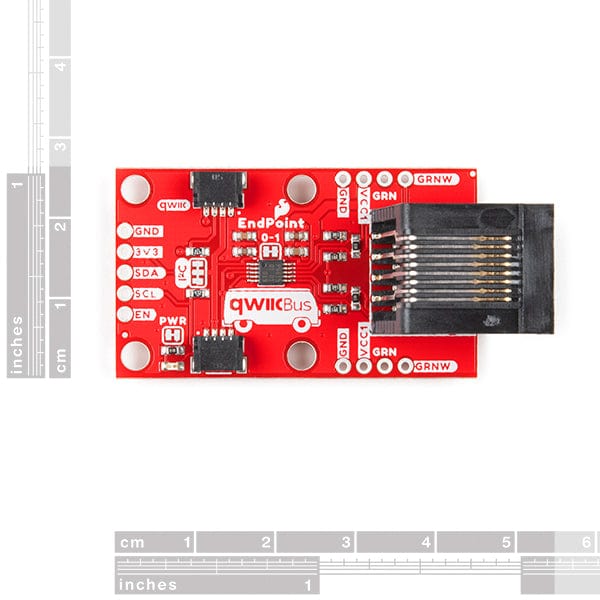

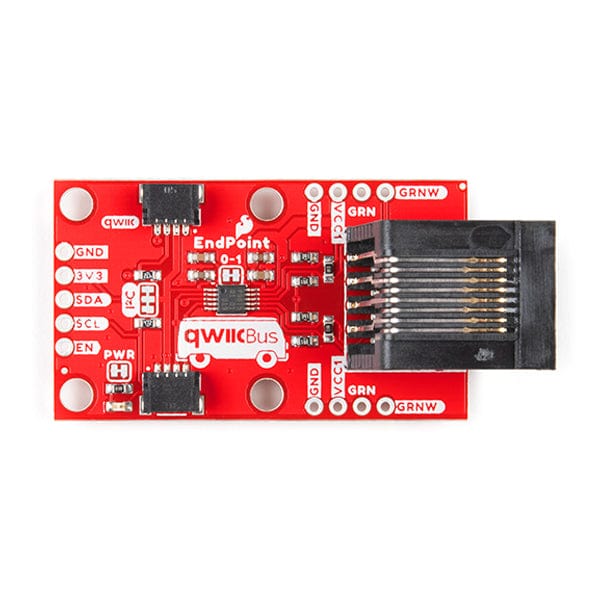

The SparkFun QwiicBus EndPoint is the fastest and easiest way to extend the range of your I2C communication bus. The breakout uses NXP’s PCA9615 IC, which converts the two default I2C signals into four differential signals, two for SCL and two for SDA. The differential signals are sent over an Ethernet cable, which attaches to the breakout through the onboard RJ-45 connectors. The differential signalling allows the I2C signals to reach distances of up to 100ft. while still maintaining their signal integrity! To make it even easier to get your readings, all communication is enacted exclusively via I2C, utilizing our handy Qwiic system so no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.

The simplicity of the QwiicBus EndPoint is one of its biggest appeals. Other I2C communication methods require packetizing I2C communication into another protocol, be it RS-485 or 1-Wire. However, the PCA9615 keeps the I2C protocol by utilizing a differential transceiver.

This updated version of the Differential I2C Breakout adds two 0.1" spaced pins connected to the unused pair of wires on the RJ-45 connectors so users can easily take advantage of the unused pair for whatever they would like.

Whether you need to extend the range of an I2C sensor on an autonomous vehicle plagued with noise from motors or want to create a vast sensor network in your home or office, the QwiicBus EndPoint is a great solution to extend distance and reduce noise susceptibility.

Get Started with the Sparkfun QwiicBus Guide

Features

  • Uses the PCA9615 buffer IC
  • I2C Supply voltage range: 2.3-5.5V
  • Differential Supply voltage range: 3-5.5V
  • Multiple power configurations depending on application needs
  • Extends I2C bus up to 100 feet
  • 2x Qwiic Connectors
