SparkFun Qwiic Shield for Teensy

SparkfunSKU: DEV-17119
Price:
Sale price £4
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

PJRCTeensy 4.0
Sale price £22.60 incl. VAT excl. VAT

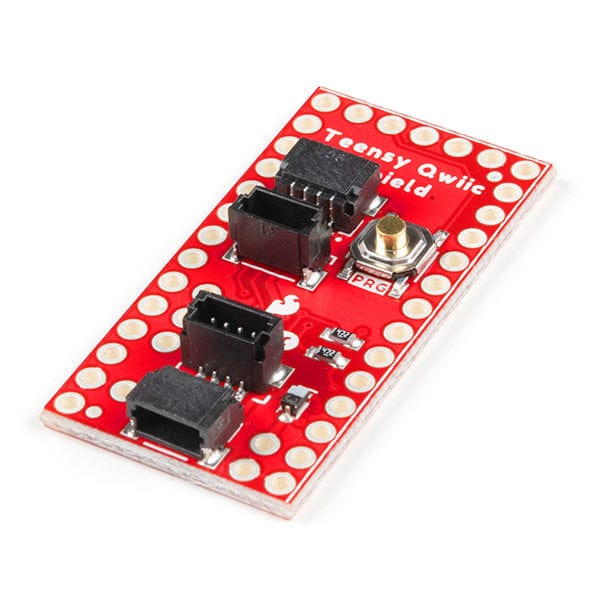

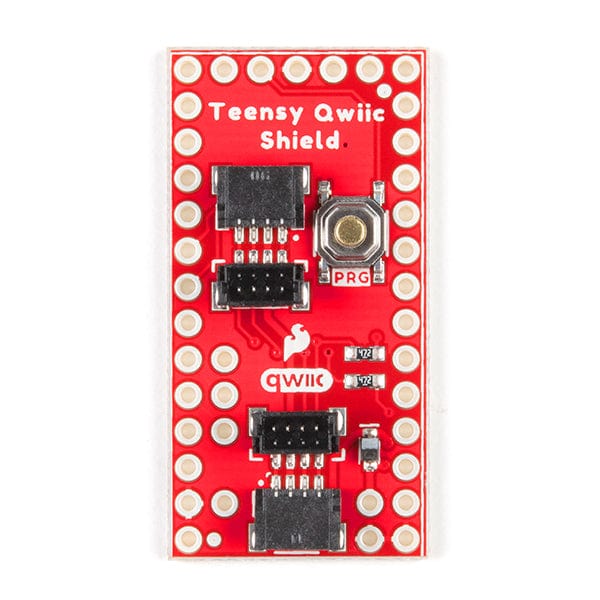

The SparkFun Qwiic Shield for Teensy provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Teensy boards. This shield is sized to work with the footprint of Teensy 4.0, Teensy 3.2, and Teensy LC. This shield connects the I2C bus (GND, 3.3V, SDA, and SCL) on your Teensy to four SparkFun Qwiic connectors (two horizontally and two vertically mounted). The Qwiic ecosystem allows for easy daisy-chaining so, as long as your devices are on different addresses, you can connect as many Qwiic devices as you'd like.

We have also added a "PROG" button on this shield that is electrically parallel with the "PROG" button on the Teensy Boards so you can choose to enter Programming mode using either the button on your Teensy or the button on the shield.

The Qwiic Shield for Teensy comes with the Teensy Header Kit and you will need to solder the headers to the shield and, if necessary, to your Teensy board. Take care to match the markings on the Qwiic Shield to the appropriate pins on your Teensy to avoid possibly damaging your boards.

Get Started with the Sparkfun Qwiic Shield for Teensy Hookup Guide

Features

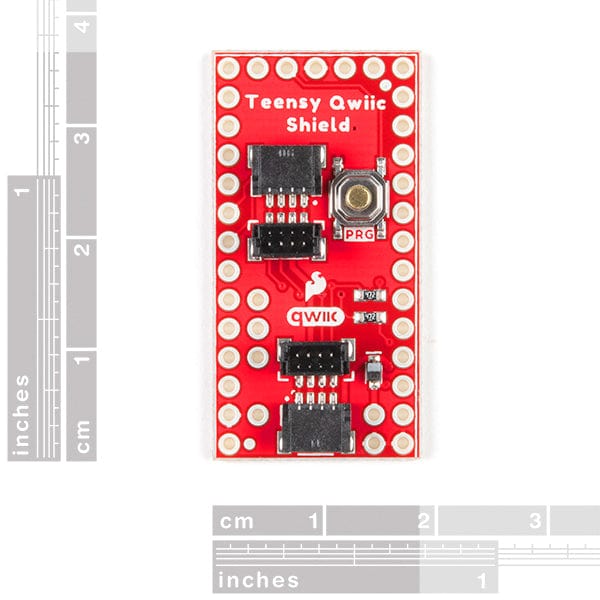

  • Teensy 4.0, 3.2, or LC Footprint Compatible
  • 4x Qwiic Connection Ports
  • "PROG" Button w/ satisfying tactile feedback

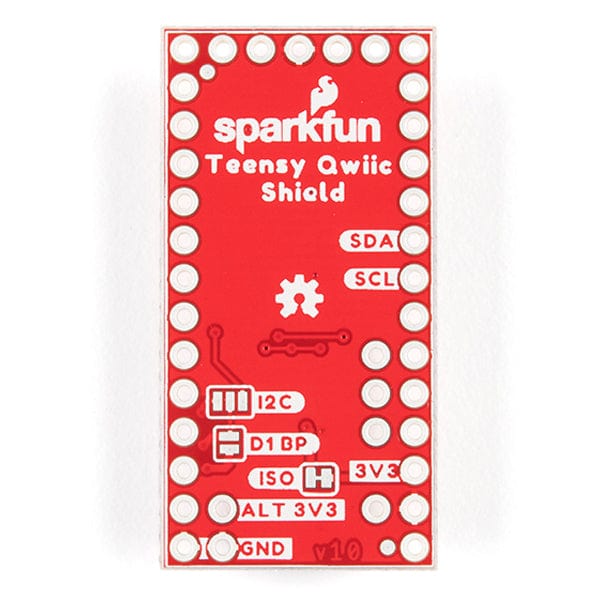

  • I2C Jumper
  • 3.3V and GND Buses

Resources

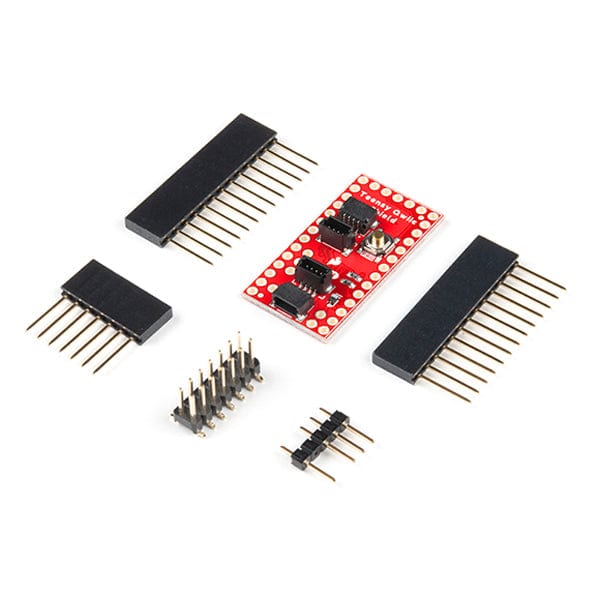

Package Contents

  • SparkFun Qwiic Shield for Teensy
  • Teensy Header Kit
