SparkFun Opto-isolator Breakout

SparkfunSKU: BOB-09118
Price:
Sale price £5.20
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Awesome Extras

Break-away 0.1" 36-pin male headers (Black 10-pack) - The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack) - The Pi Hut
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut

This is a board designed for opto-isolation. The board is helpful for connecting digital systems (like a 5V microcontroller) to a high-voltage or noisy system. This board electrically isolates a controller from the high-power system by use of an opto-isolator IC. This IC has two LEDs and two photodiodes built-in. This allows the low-voltage side to control a high voltage side.

We often use this board to allow a microcontroller control servos or other motors that use a higher voltage than the TTL logic on the (3.3V or 5V) micro, and may cause electromagnetic interference with our system as the motors turn on and off. This board will isolate the systems, creating a type of electrical noise barrier between devices.

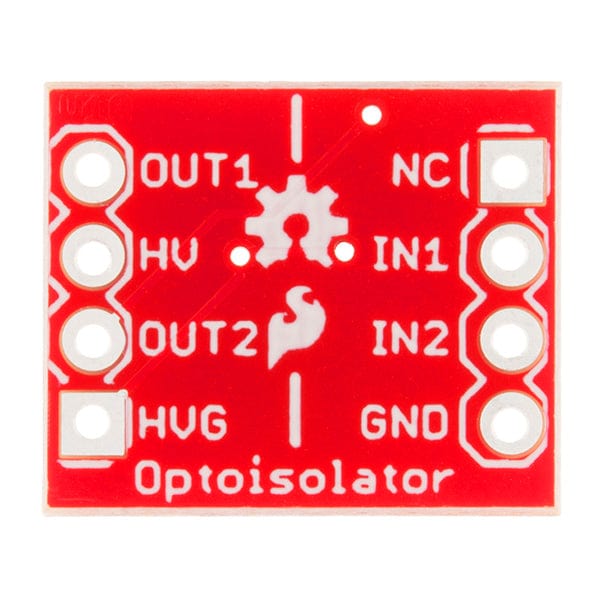

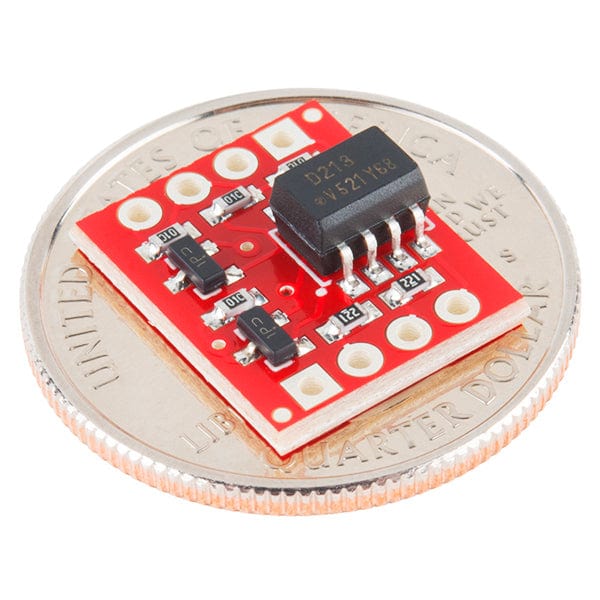

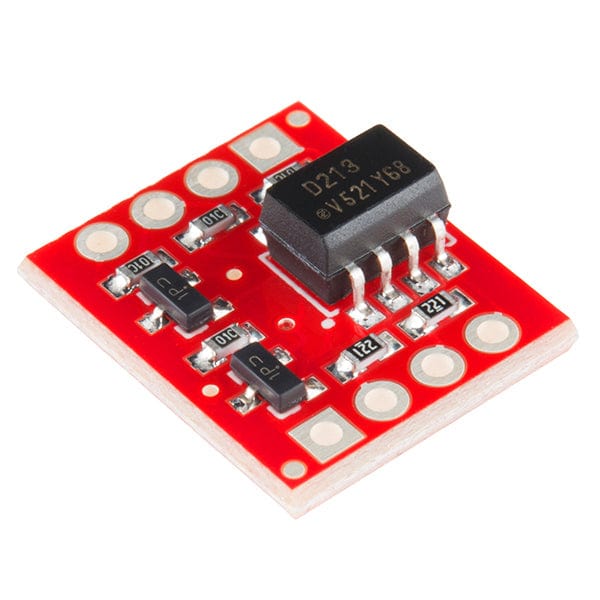

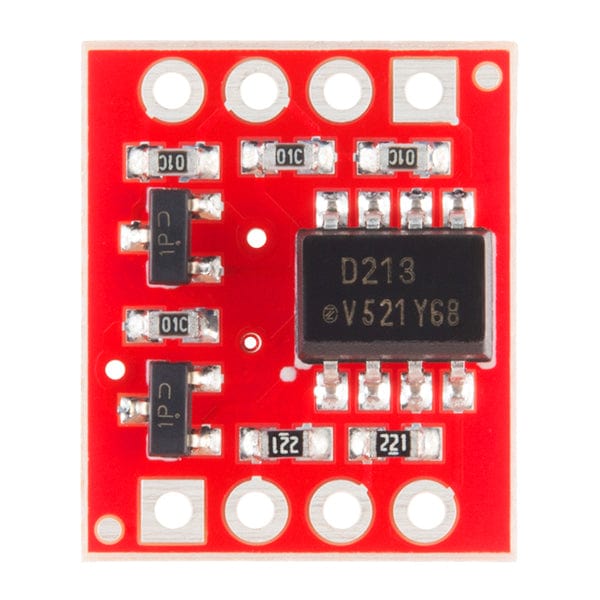

This breakout board uses the ILD213T optoisolator and discrete transistors to correct the logic. Comes with two channels. Great for use in noisy circuits where signal lines require electrical isolation.

A normal LED opto-isolator will invert the logic of a signal. We threw some transistors on this compact board to correct the inversion. What you put into the IN pins, will be replicated on the the OUT pins, but at the higher voltage (HV). This optoisolator is configured for data rates up to 9600bps. For MIDI applications (31250bps) consider our MIDI Arduino Shield.
