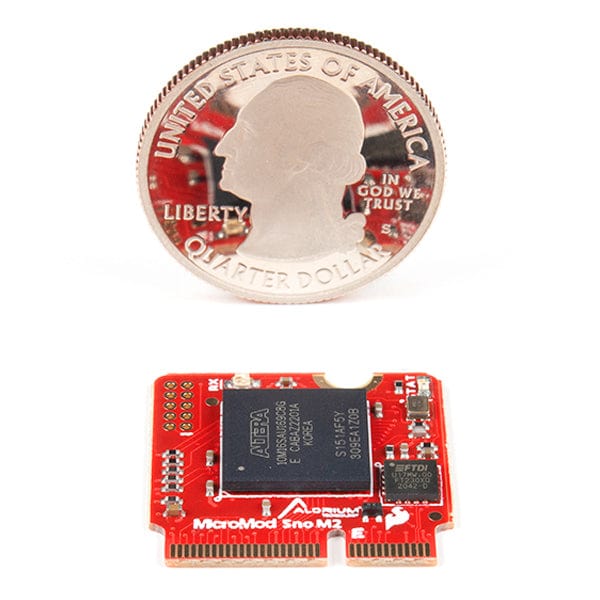

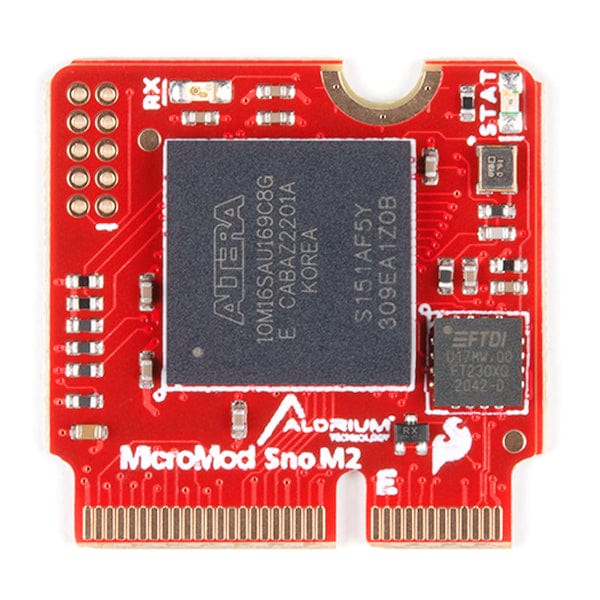

The SparkFun MicroMod Alorium Sno M2 Processor features the Snō System on Module (SoM) adapted to the MicroMod M.2 processor form factor. Snō's FPGA provides a reconfigurable hardware platform that hosts an 8-bit AVR instruction set, compatible with the ATmega328, making Snō fully compatible with the Arduino IDE. Snō SoM has a compact footprint, making it ideal for space-constrained applications and an obvious addition to our MicroMod form factor for prototyping.

Alorium Technology provides a library of custom logic called Xcelerator Blocks (XBs) through the Arduino IDE that accelerates specific functionalities that are slow, problematic, or even impossible for an 8-bit microcontroller. This library includes XBs such as Servo Control, Quadrature, Floating Point Math, NeoPixel, and Enhanced Analog-to-Digital Converter. Alorium also notes a XB roadmap where future XBs will be implemented based on feedback from early adopters and new potential customers.

For advanced users, there is a JTAG footprint on the board allowing a JTAG programmer to talk to the FPGA directly. The microcontroller core has been designed to be easily extendable, and Alorium Technology has developed a support model for users who want to create their own XBs and interface to the on-chip microcontroller.

Get started with the MicroMod Alorium Sno M2 processor guide

Features

Alorium Sno Processor General Features:

  • Intel® MAX® 10 FPGA (16K LEs)
    • 10M16SAU169C8G
  • Programmable with Arduino IDE
  • Embedded 8-bit AVR instruction set compatible microcontroller (ATmega328 compatible)
  • Configurable with custom Xcelerator Blocks (XBs) on the FPGA
  • Programming interface: USB Serial
  • Operating voltage: 3.3V
  • Clock Speed 16/32MHz

Digital I/O

  • 32 Dedicated Digital Pins
  • 6 Shared Digital with Analog Pins
  • 3.3V Inputs
  • 3.3V Outputs

Analog Inputs

  • 6 Analog Pins
  • 3.3V Analog Reference
  • ADC Performance: 1MHz
  • Resolution: 12-bit sustained
  • Sample Rate: 254k samples/second

Memory

  • Program FLASH 32KB
  • Data memory SRAM: 2KB

Specific Peripherals available on MicroMod Alorium Sno M2 Processor:

  • JTAG footprint for direct FPGA programming
  • M.2 keyed interface for integration with SparkFun MicroMod carrier boards

Resources

MicroMod Alorium Sno Processor Documentation:

MicroMod Documentation:

Alorium Sno Documentation:
