SparkFun HSTX PTH Breakout

SparkfunSKU: BOB-28467
Price:
Sale price £2.40
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Compatible with:

Awesome Extras

SparkFun IoT RedBoard - RP2350 by Sparkfun - The Pi HutSparkFun IoT RedBoard - RP2350 by Sparkfun - The Pi Hut
SparkfunSparkFun IoT RedBoard - RP2350
Sale price £38.80 incl. VAT excl. VAT
Raspberry Pi 5 by Raspberry Pi - The Pi HutRaspberry Pi 5 by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £48 incl. VAT excl. VAT
22-pin 0.5mm Pitch FPC Flex Cable for Raspberry Pi 5 and HSTX by Adafruit - The Pi Hut22-pin 0.5mm Pitch FPC Flex Cable for Raspberry Pi 5 and HSTX by Adafruit - The Pi Hut
Break-away 0.1" 36-pin male headers (10-pack) by The Pi Hut - The Pi HutBreak-away 0.1" 36-pin male headers (10-pack) by The Pi Hut - The Pi Hut
The Pi HutBreak-away 0.1" 36-pin male headers (10-pack)
Sale price £3.50 incl. VAT excl. VAT
Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi HutAutosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut

Simplify HSTX connections! Break out those tricky 22-pin connectors for easy prototyping with this essential board.

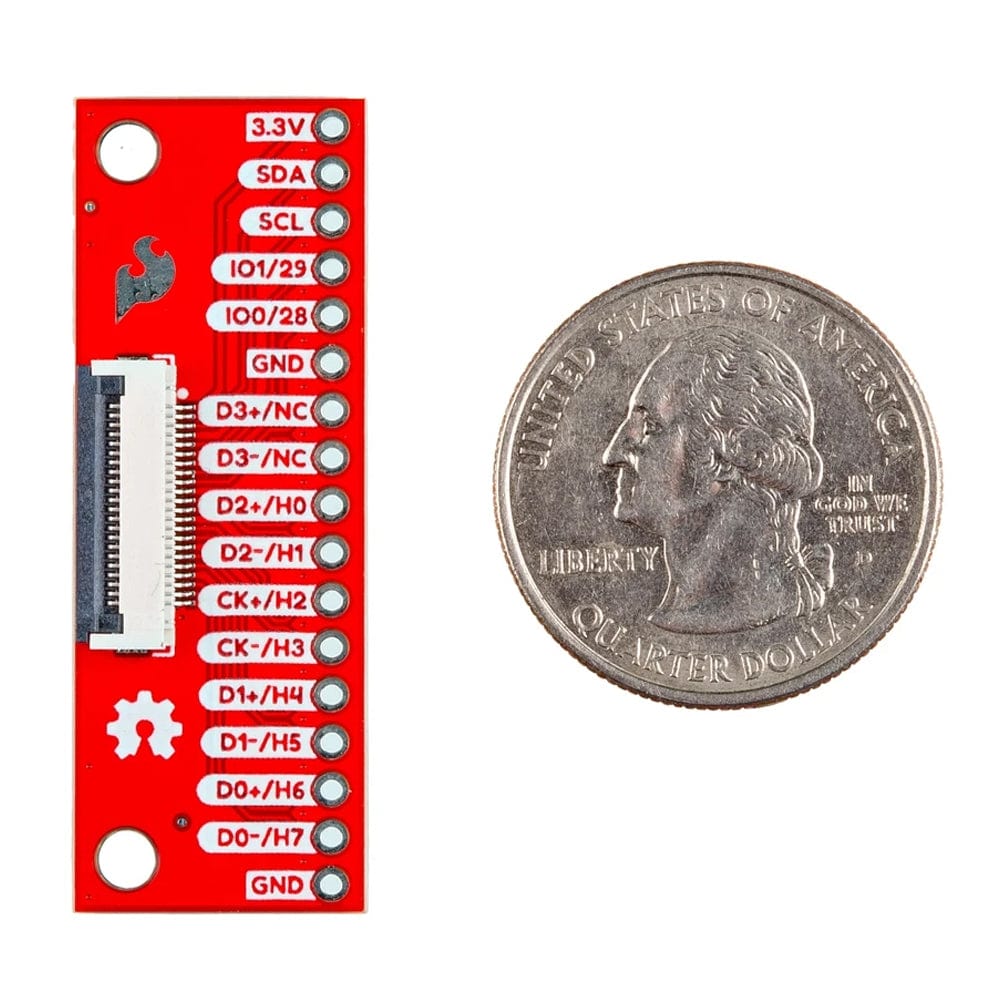

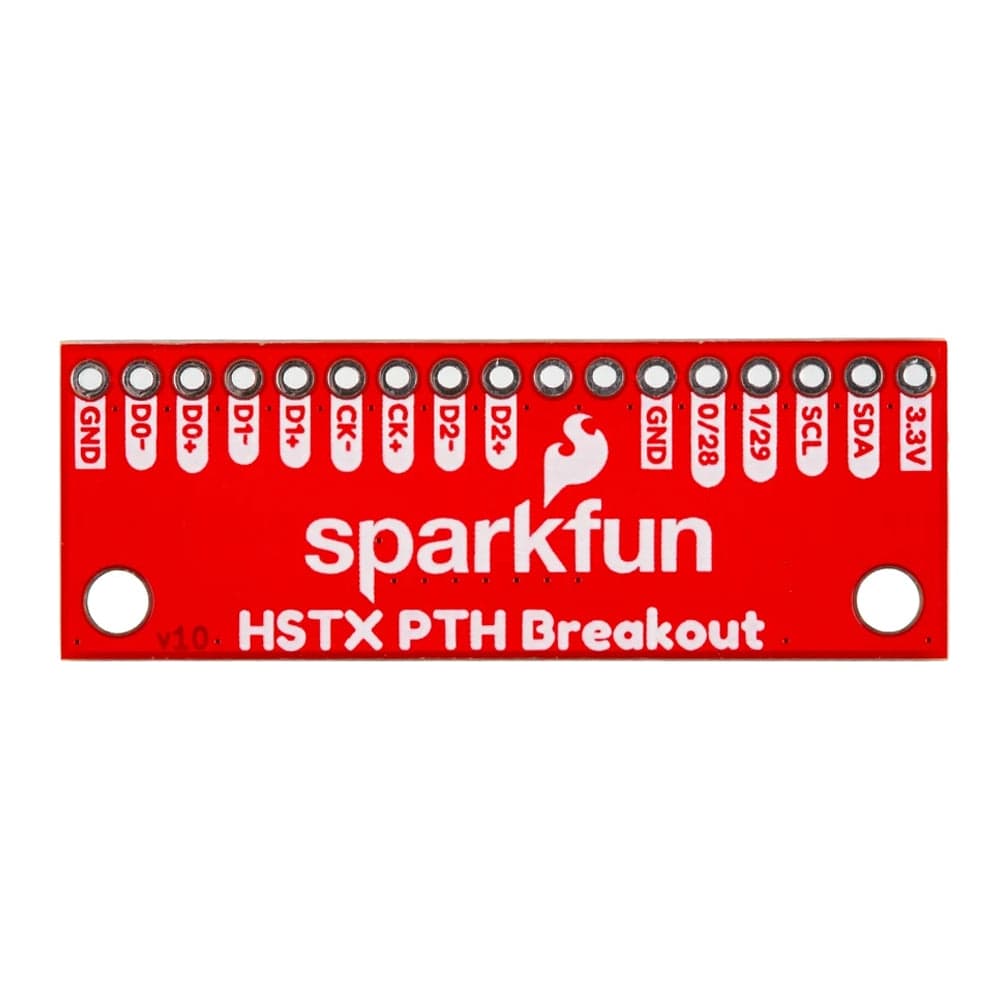

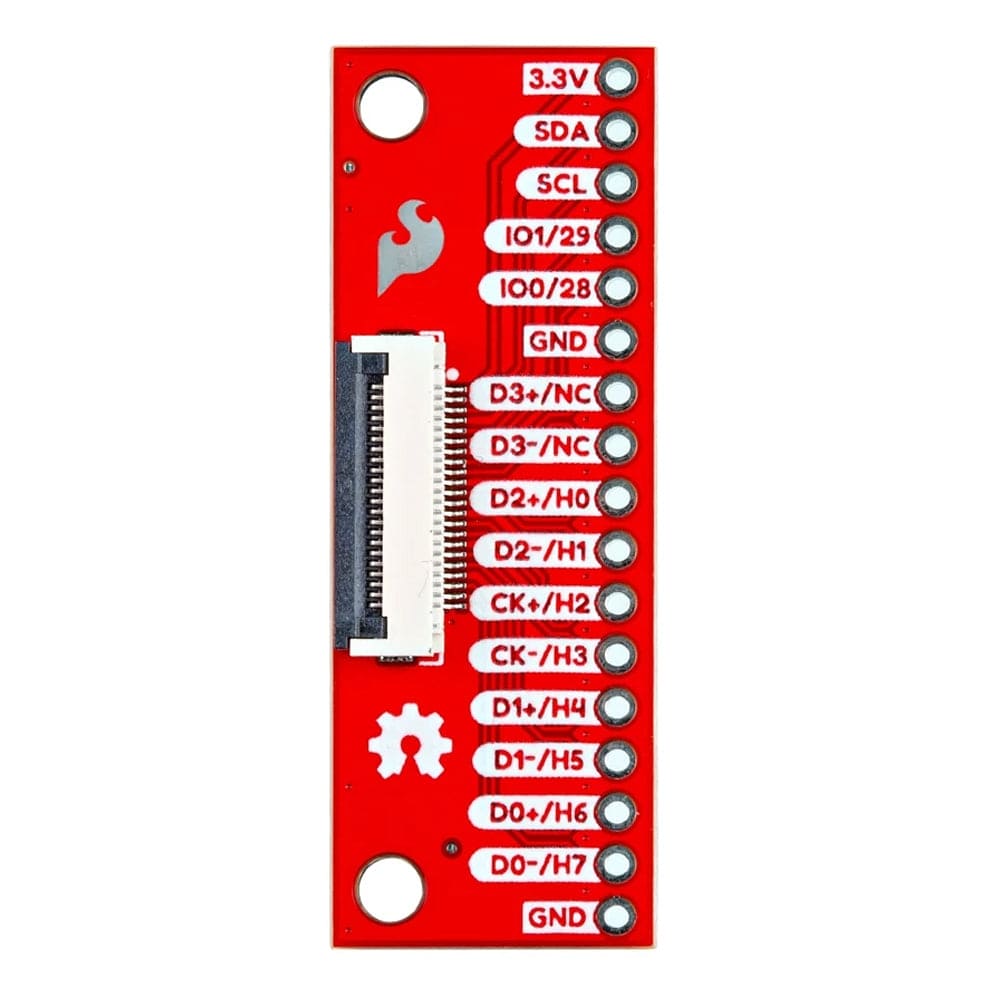

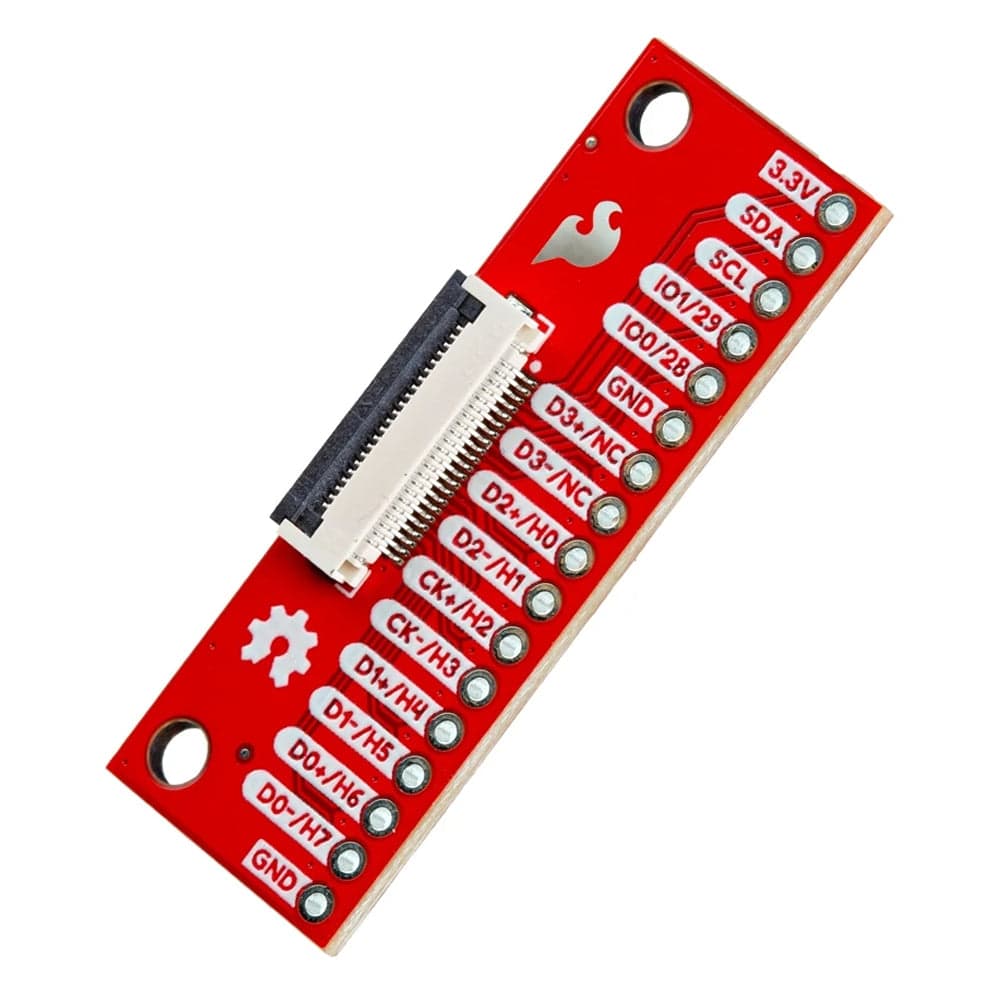

The SparkFun HSTX PTH Breakout is a simple board designed to work with the HSTX connector on the RP2350 IoT RedBoard and the camera and display connectors on a Raspberry Pi 5.

It breaks out all 22 pins used on these connectors to a standard 0.1"-spaced plated through-hole header. These 22-pin connectors interface with a matching flexible cable and normally connect directly to other peripherals (cameras, displays, etc.).

This board, intended for prototyping with the RP2350 IoT RedBoard, breaks out all four differential pairs on the connector along with I2C signals (data/clock) and power (3.3V & Ground).

Features & Specifications

  • 1x 22-pin Flex Cable Connector
  • 0.1"-spaced Plated Through-Hole header

Resources

Package Contents

  • 1x SparkFun HSTX PTH Breakout
