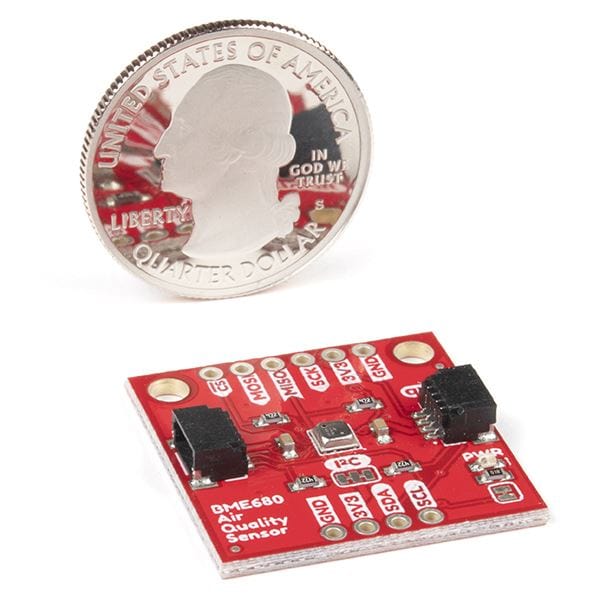

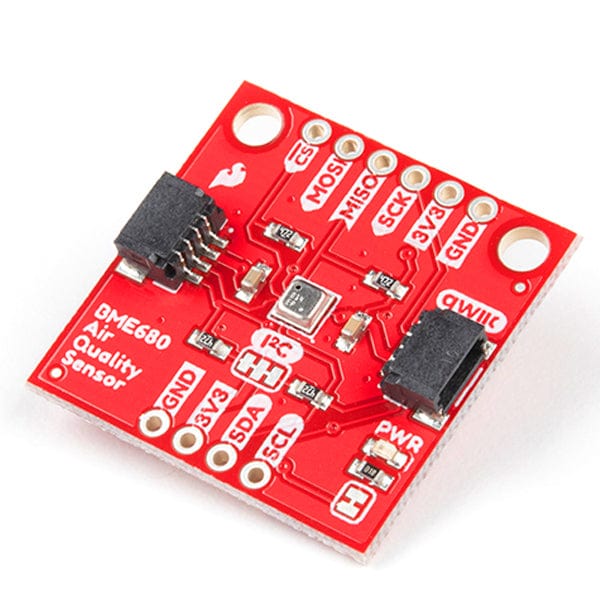

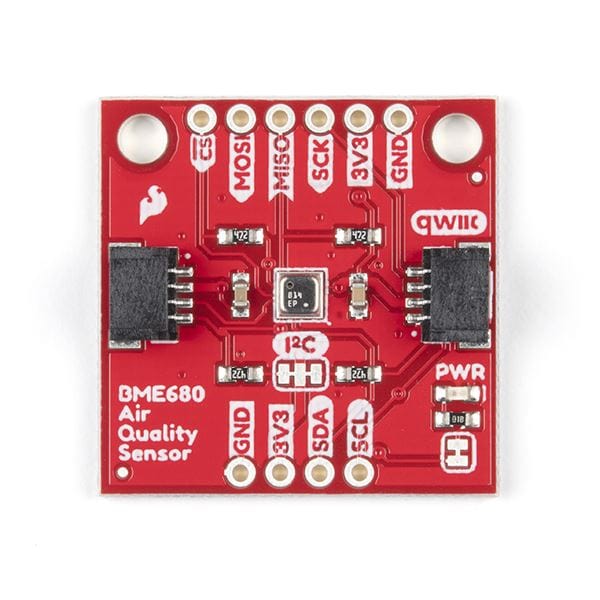

The SparkFun BME680 Environmental Sensor is a breakout that combines a gas sensor with temperature, humidity and barometric pressure sensing for a complete environmental sensor in a single package. The gas sensor on the BME680 can detect a wide variety of volatile organic compounds (or VOC for short) to monitor indoor air quality. Combine that with precise temperature, humidity, and barometric pressure and the BME680 can work as a completely standalone environmental sensor all in a 1in. x 1in. breakout!

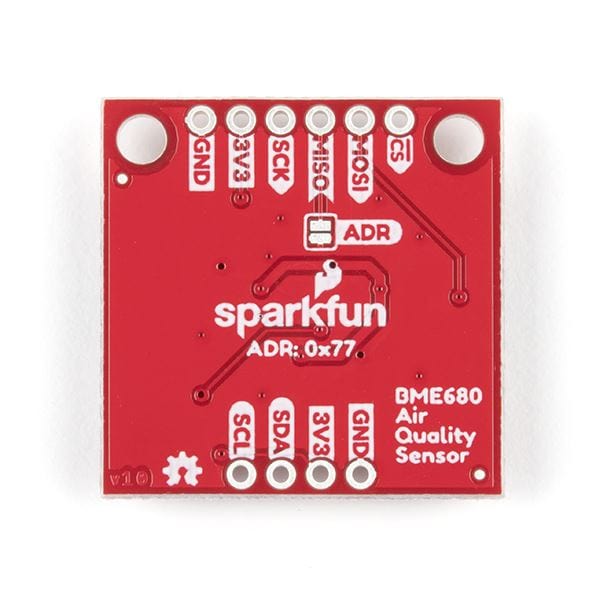

The sensor communicates via either I2C or SPI. We've broken out the I2C pins to our Qwiic system so no soldering is required to connect it to the rest of your system but if you would prefer, both the I2C and SPI pins are also broken out to standard 0.1in.-spaced pins.
Note: Getting actual indoor air quality (IAQ) from the BME680 can be difficult. If you would like to use the BME680 for precise IAQ measurements, we recommend using Bosch's BSEC Software.
The SparkFun Qwiic connect system is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
- Uses I2C interface (Qwiic-enabled)
- I2C Addresses: 0x77 (Default) or 0x76
- 2x Qwiic Connectors
- Operating voltage range
- 1.71V - 3.6V
- Typically 3.3V if using the Qwiic cable
- Relative humidity
- Operating range: 0% to 100%
- Absolute Accuracy: ±3%RH
- Resolution: ±0.008%RH
- Operating range: -40°C to +85 °C
- Absolute Accuracy: ±0.5°C to ±1.0°C
- Resolution: 0.01°C
- Operating range: 300hPa - 1100hPa
- Relative accuracy: ±12Pa (25°C to 40°C @ constant RH)
- Absolute accuracy: ±60Pa (0°C to 65°C)
- Resolution: 0.18PA, highest oversampling
- Resolution of gas sensor resistance: 0.05% to 0.11%
- Typical current consumption (varies based on mode and active sensor)
- 2.1µA to 18mA
- 0.15 µA (sleep mode)
- Eagle Files
- Hookup Guide
- Datasheet (BME680)
- Layout Considerations (BME680)
- Qwiic Connect System
- Arduino Library
- Hardware GitHub Repo
