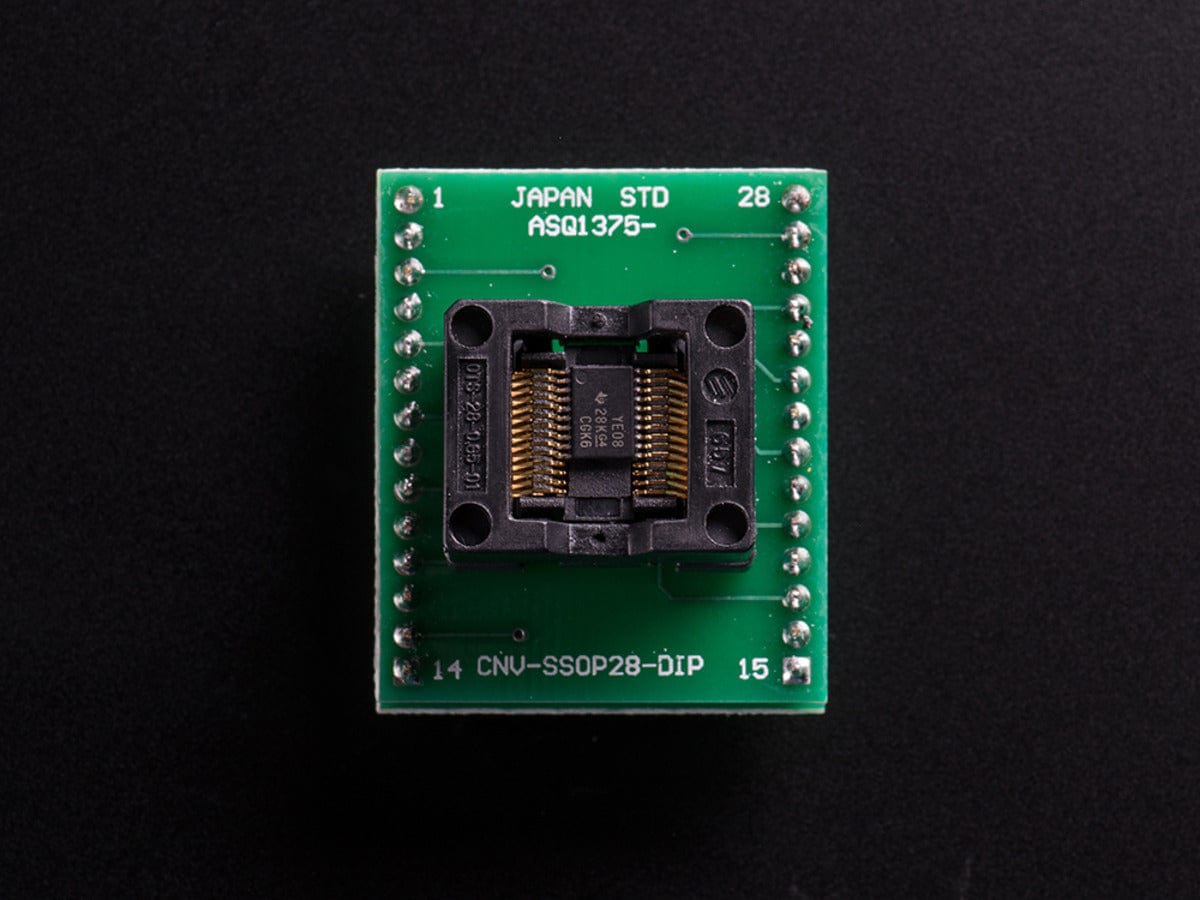

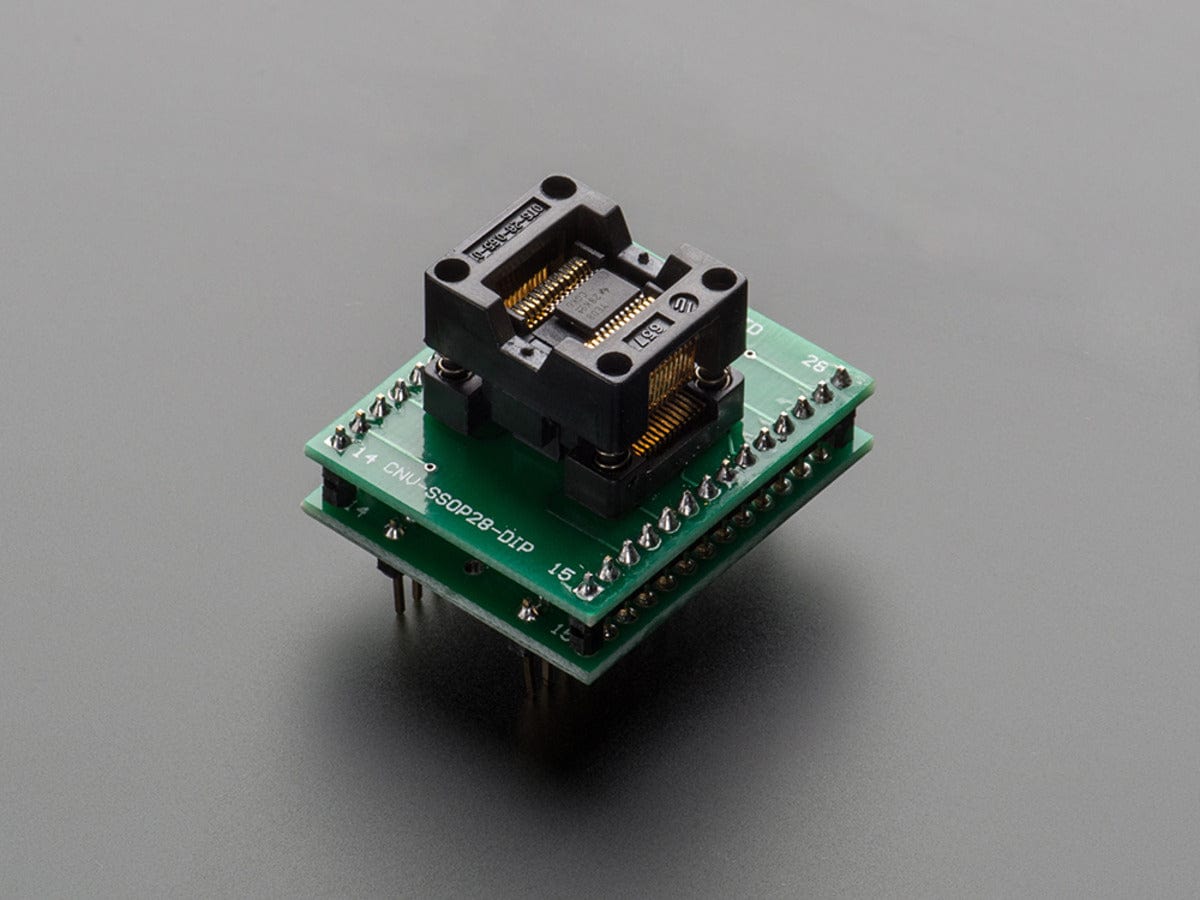

You know those ZIF sockets we have for DIP chips? Well these are just like that but for SMT parts! Yeah, that's right, now you can program and test out your favorite new parts in TSSOP packages. This test sockets is good for any 4.4mm / 0.147" wide TSSOP/SSOP with up to 28 pins. Simply press down on the top, place the chip in carefully and then release to latch the chip in. The chip is held securely against gold 'fingers' in the socket. Please note the body of the chip you're trying to use, for example the FT232RL has a 5.3mm wide body, and will not fit!

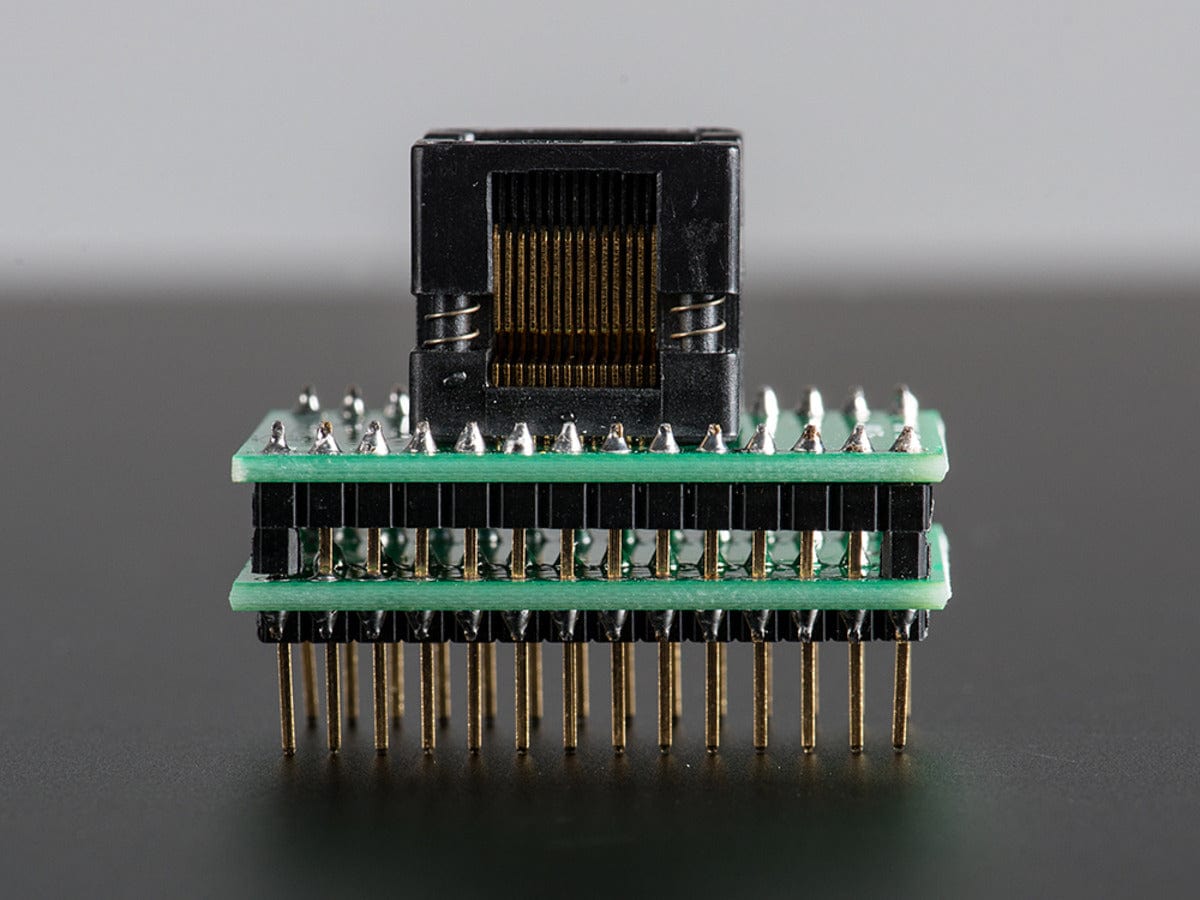

The socket is soldered onto a pair of PCBs that turn it into, essentially, a 28 pin DIP with 0.6" spacing that can be breadboarded fairly easily.
The test socket is a high quality, Japanese construction from4:40)
- 32mm/1.3" wide x 37.85mm/1.5" long x 32mm/1.3" high (closed w/header pins)
- Fits TSSOP/SSOP with 4.4mm wide body, up to 28 pins
- Broken out into 0.6" wide 28 pin breadboard spacing
