You know those ZIF sockets we have for DIP chips? Well these are just like that but for SMT parts! Yeah, that's right, now you can program and test out your favorite new parts in SOIC-16 or smaller packages. This test socket is good for any SOIC/SOP "Narrow" chip in a 150mil wide body that has 16 pins or fewer. Simply press down on the top, place the chip in carefully and then release to latch the chip in. The chip is held securely against gold 'fingers' in the socket. 200mil or wider chips will not fit, but we do have other sockets for medium/wide SOIC chips.

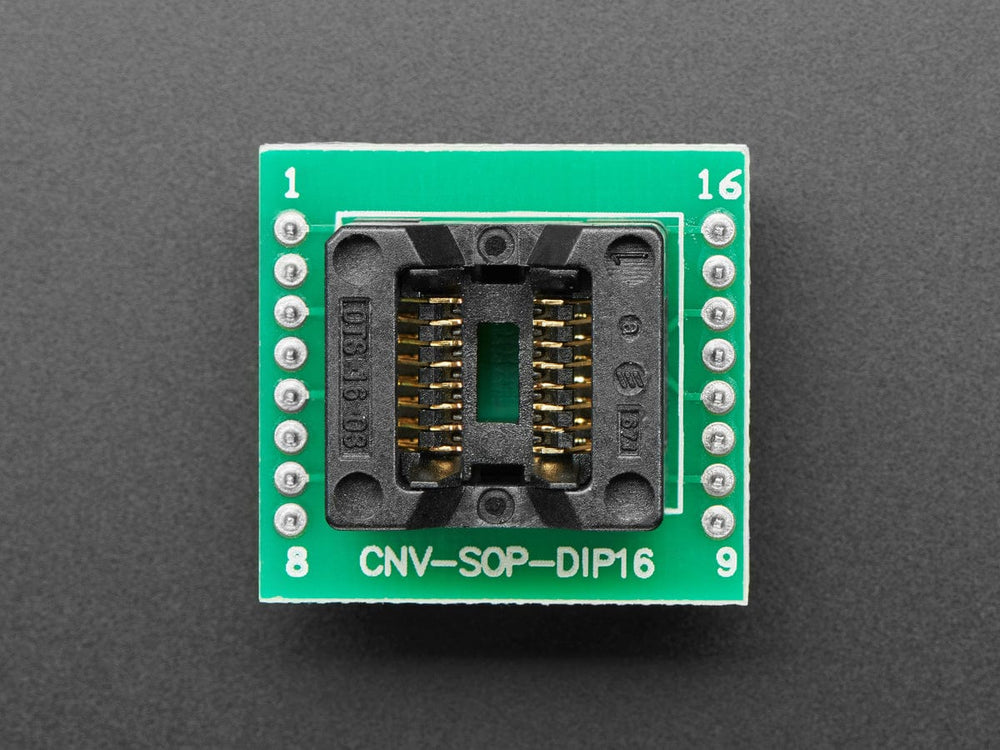

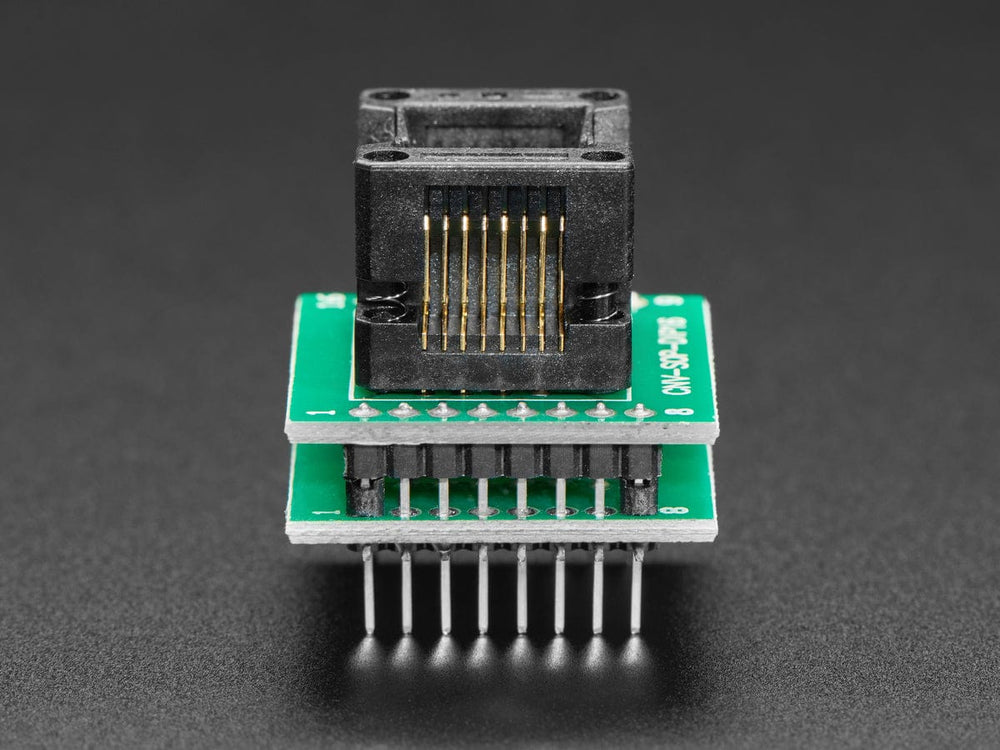

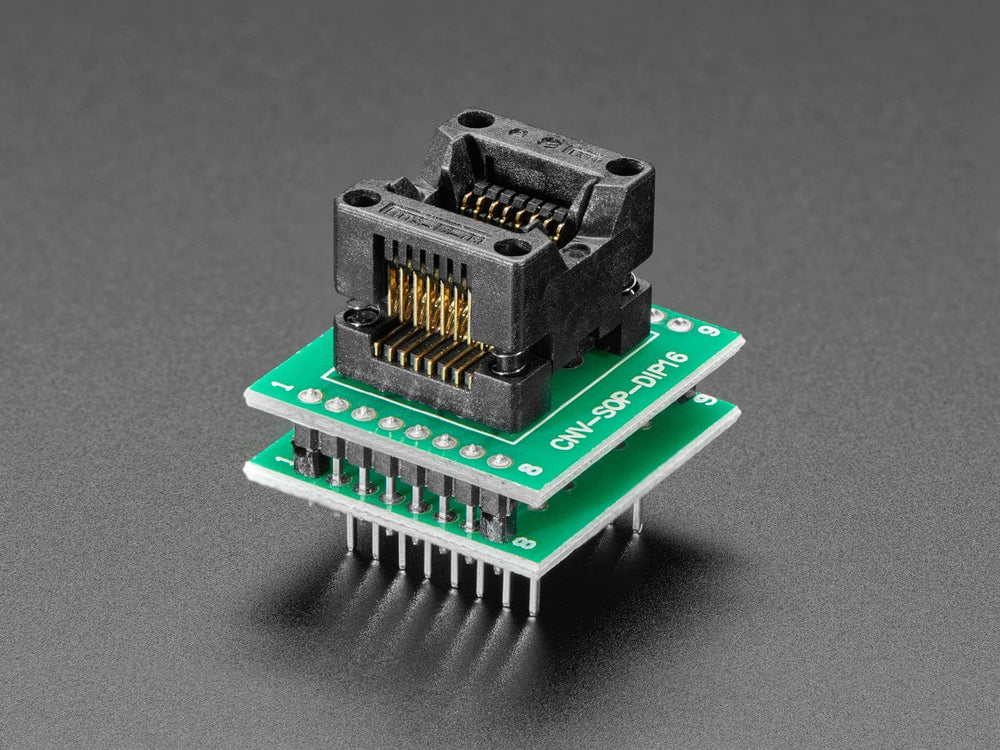

The socket is soldered onto a pair of PCBs that turn it into, essentially, a 16 pin DIP with 0.6" spacing that can be breadboarded fairly easily.
The test socket is a high quality, Japanese construction from
- 37.11mm/1.46" wide x 38.51mm/1.51" long x 32.35mm/1.27" high (w/header pins)
- Fits 16-pin SOIC with 150mil body
- Broken out into 0.6" wide 16 pin breadboard spacing
- As of Oct 1, 2020 the mechanical shape of the PCB breakout has changed to have only 16 pins. The overall function is the same and the socket is the same.
