SMT Test Socket - Medium SOIC-8 (200mil)

The Pi HutSKU: ADA1796
£16.40
incl. VAT
excl. VAT
Only 1 unit left

You know those ZIF sockets we have for DIP chips? Well these are just like that but for SMT parts! Yeah, that's right, now you can program and test out your favorite new parts in SOIC-8 or smaller packages. This test socket is good for any SOIC/SOP "Medium" chip in a 200mil wide body that has 8 pins. Simply press down on the top, place the chip in carefully and then release to latch the chip in. The chip is held securely against gold 'fingers' in the socket. 150 or 300mil wide chips will not fit, but we do have other sockets for narrow/wide SOIC chips.

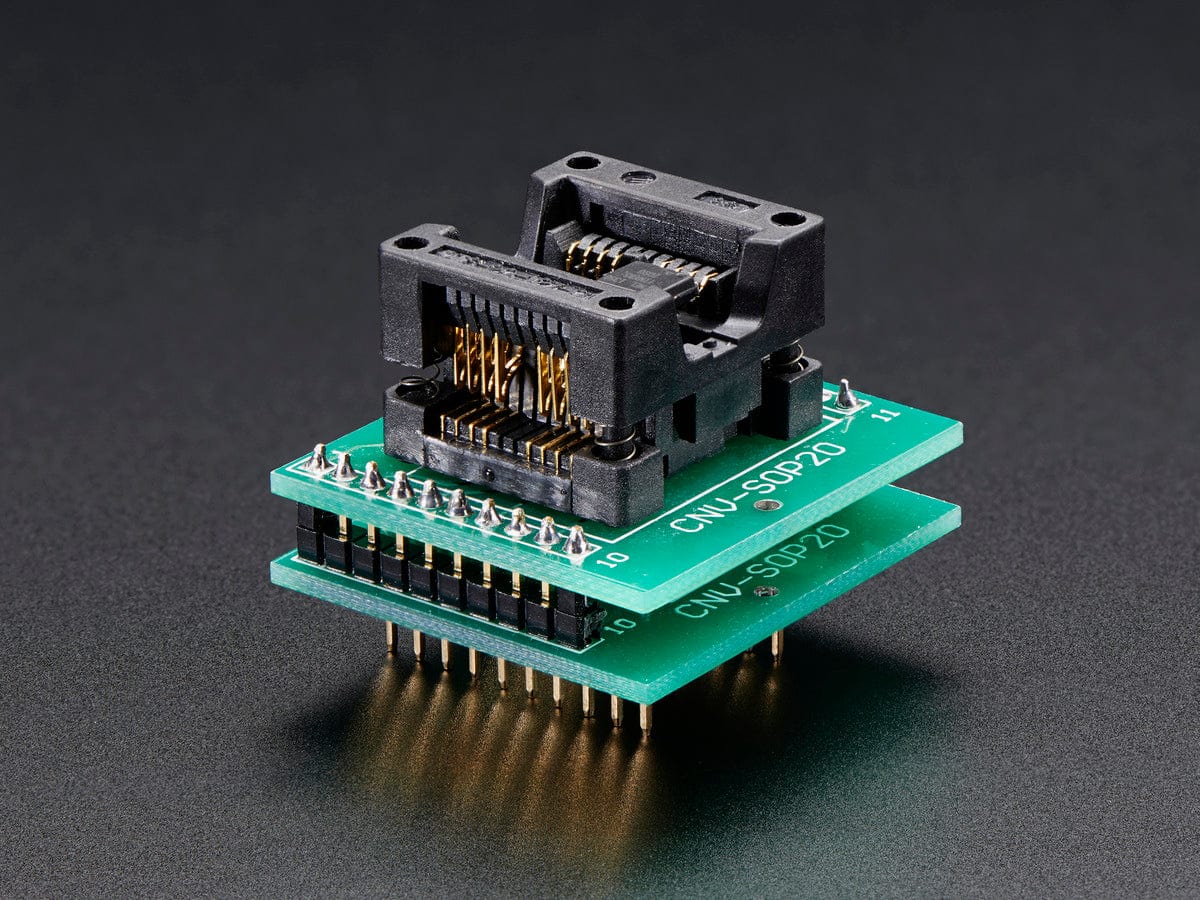

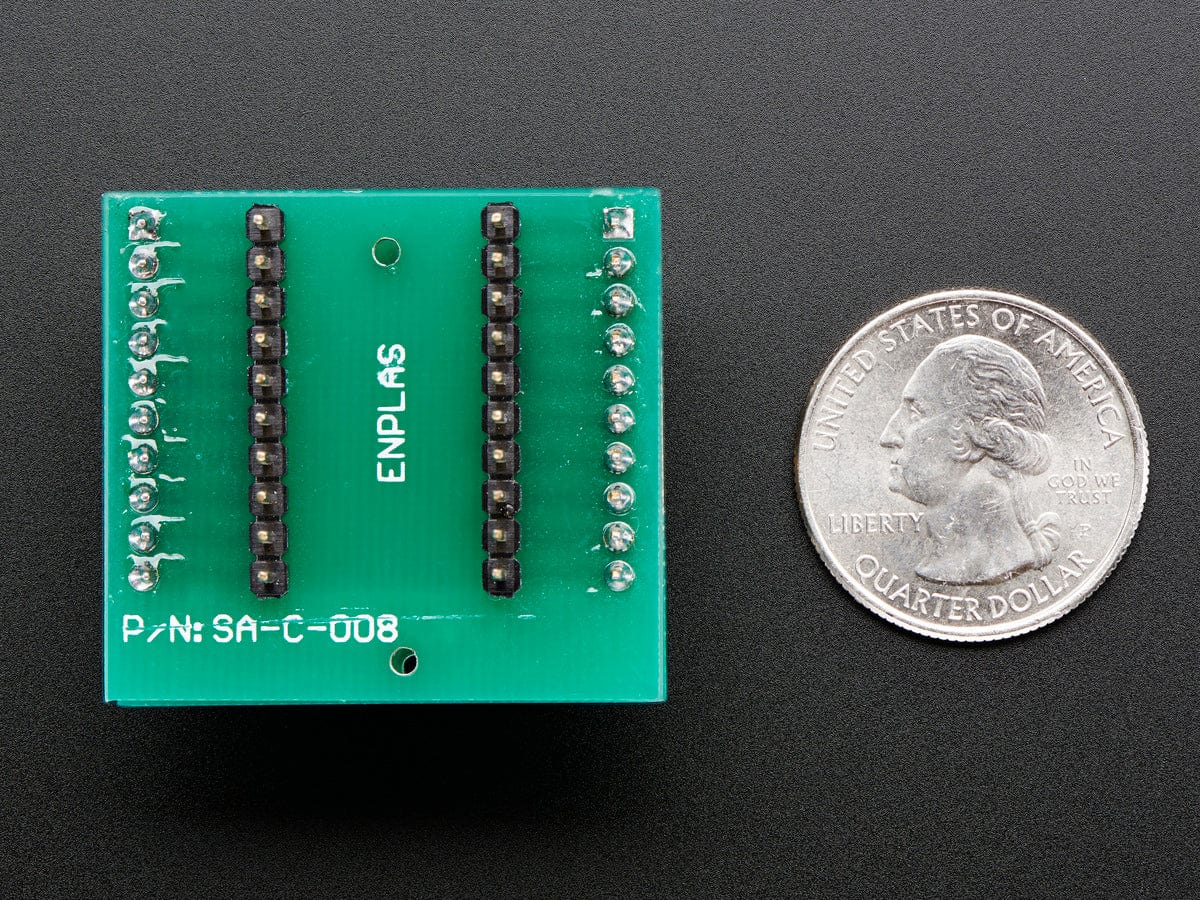

The socket is soldered onto a pair of PCBs that turn it into, essentially, a 20 pin DIP with 0.6" spacing that can be breadboarded fairly easily.

The test socket is a high quality, Japanese construction from Yamaichi

Technical Details

Dimensions:

  • Closed w/ Header Pins: 33mm x 36mm x 33mm / 1.3" x 1.4" x 1.3"
  • Weight: 17.5g
