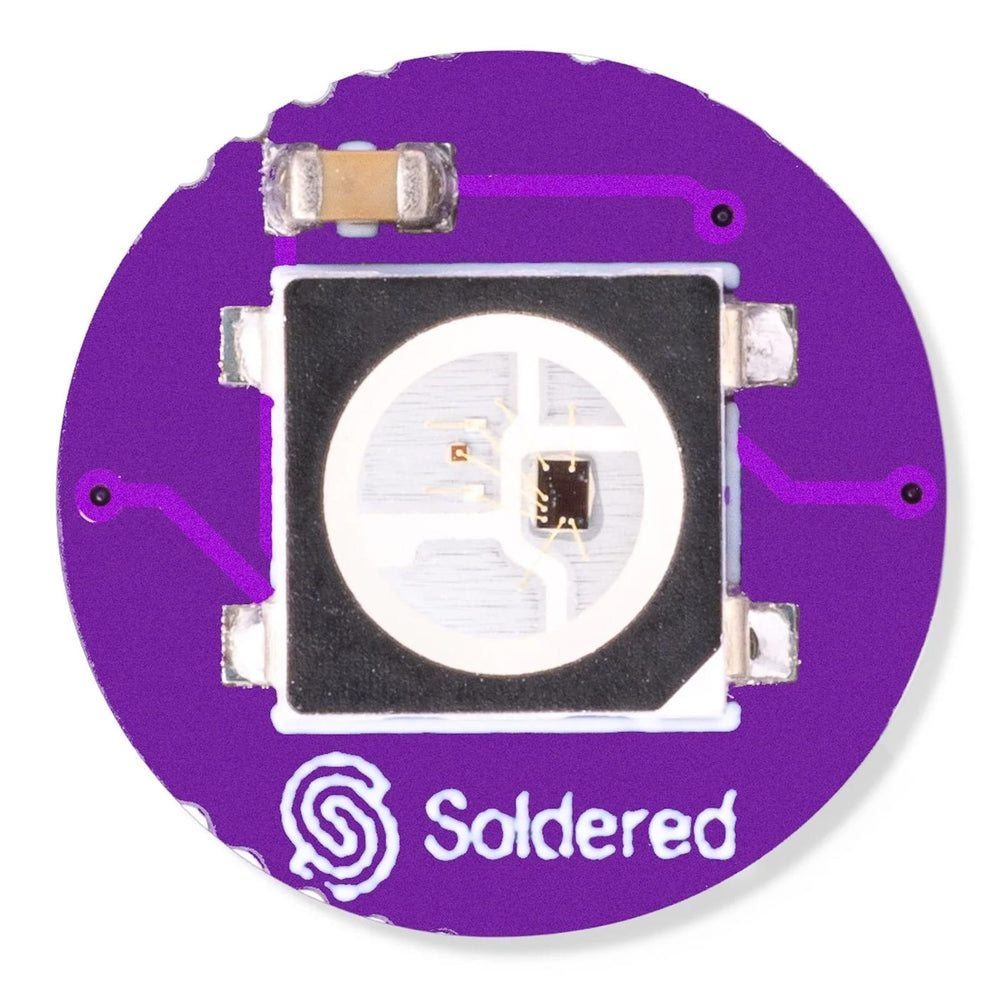

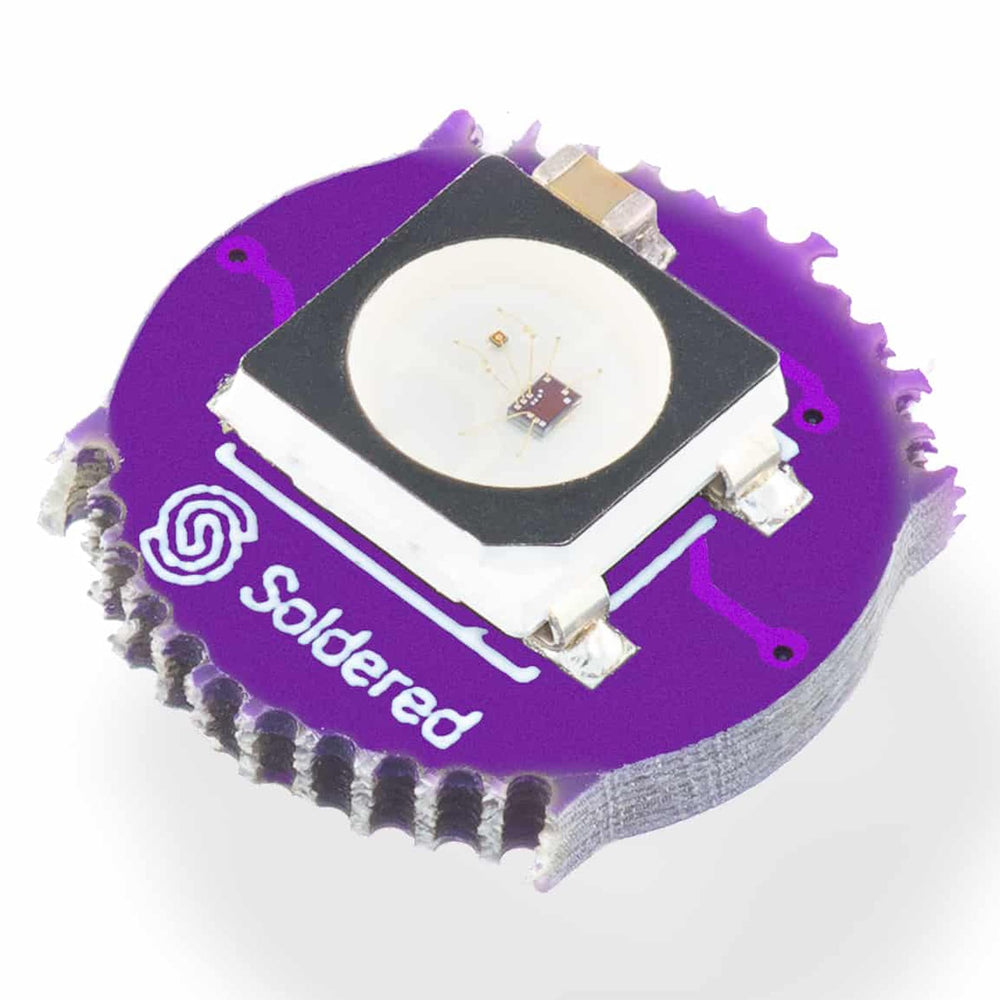

The Smart LED WS2812B Pixel features an individually addressable RGB LED, making it easy to create colourful lighting effect using a single microcontroller pin.


These small LEDs are not just ordinary lights - each is unique because it has a built-in small integrated circuit (IC) that is able to turn on the LED light in 16 million different colours.

IC is WS2812 and it uses a single wire that can control thousands of these LEDs. With a little imagination by putting these pixels, you get superior effects with a minimum effort. These lamps are easy to control with Arduino or similar microcontrollers.

View our full range of Soldered Electronics products here.

Features

  • 16 million colour options per LED
  • Built-in WS2812 integrated circuit
  • Single-wire control for multiple LEDs
  • Control thousands of LEDs simultaneously
  • Compatible with Arduino and most other microcontrollers
  • Programmable light effects
  • Individual addressable pixels
  • Easy to implement custom animations

Specifications

  • Colour: RGB (red/green/blue)
  • Voltage: 5V
  • Power: max. 60mA/pixel
  • Diode type: WS2812 SMD LED (5050 LED diode with built IC)
  • Dimensions: Diameter of 10mm

Resources

Package Contents

  • 1x Smart LED WS2812B Pixel
