Small -15 to +15V DC Analog Panel Meter

Name: Small -15 to +15V DC Analog Panel Meter
Brand: The Pi Hut
SKU: ADA4403
Price: 6.90 GBP
Availability: InStock

The Pi HutSKU: ADA4403

£6.90

incl. VAT

excl. VAT

Only 13 units left

Awesome Extras

Small -1 Amp to +1 Amp DC Current Analog Panel Meter - The Pi Hut

The Pi Hut Small -1 Amp to +1 Amp DC Current Analog Panel Meter

£6.90 incl. VAT excl. VAT

Small Alligator Clip Test Lead (set of 12) - The Pi Hut

The Pi Hut Small Alligator Clip Test Lead (set of 12)

£3.40 incl. VAT excl. VAT

The Pi Hut Prototyping Wire Spool Set - 6 Spool Solid Core

£12 incl. VAT excl. VAT

Analog panel meters are arguably not as blingy or flashy as LEDs, but their simplicity adds a touch of elegance and makes them easier to read quickly.

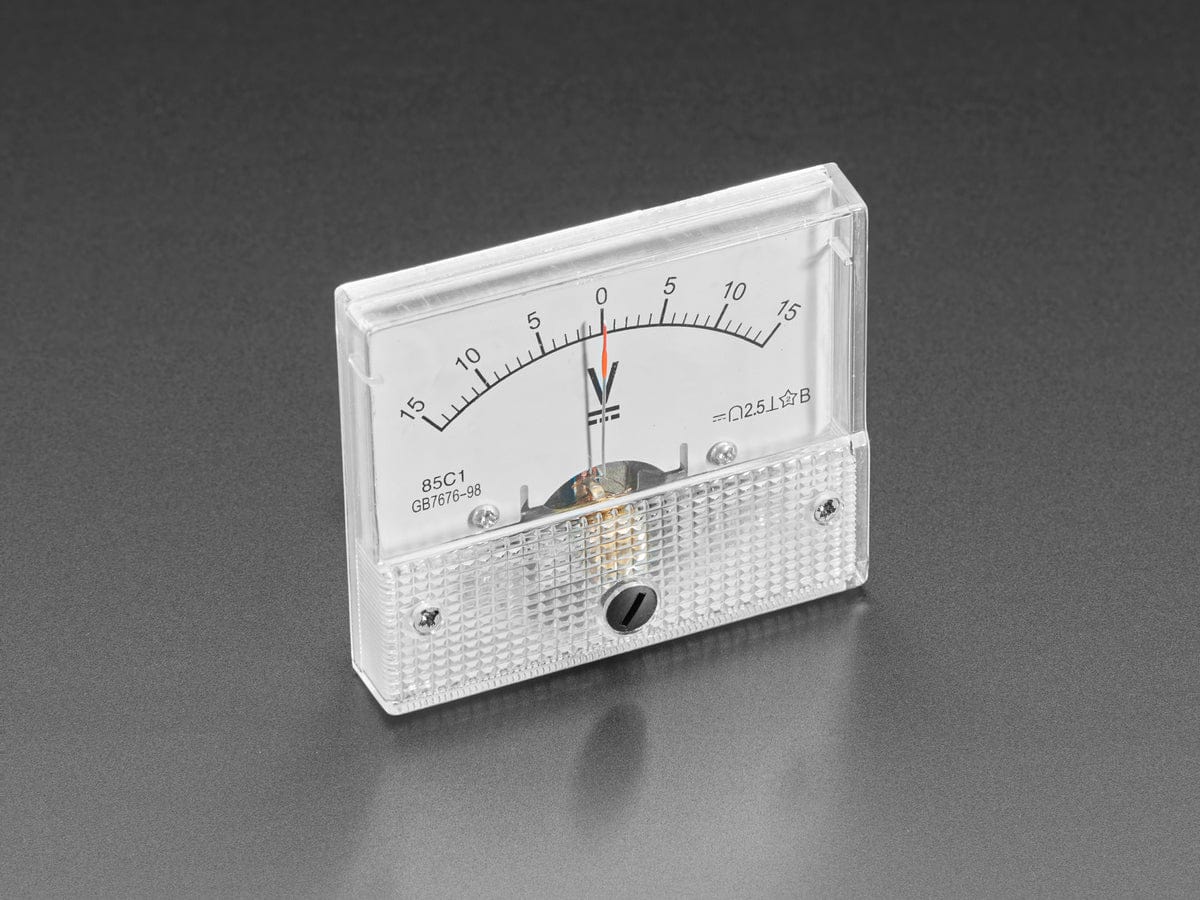

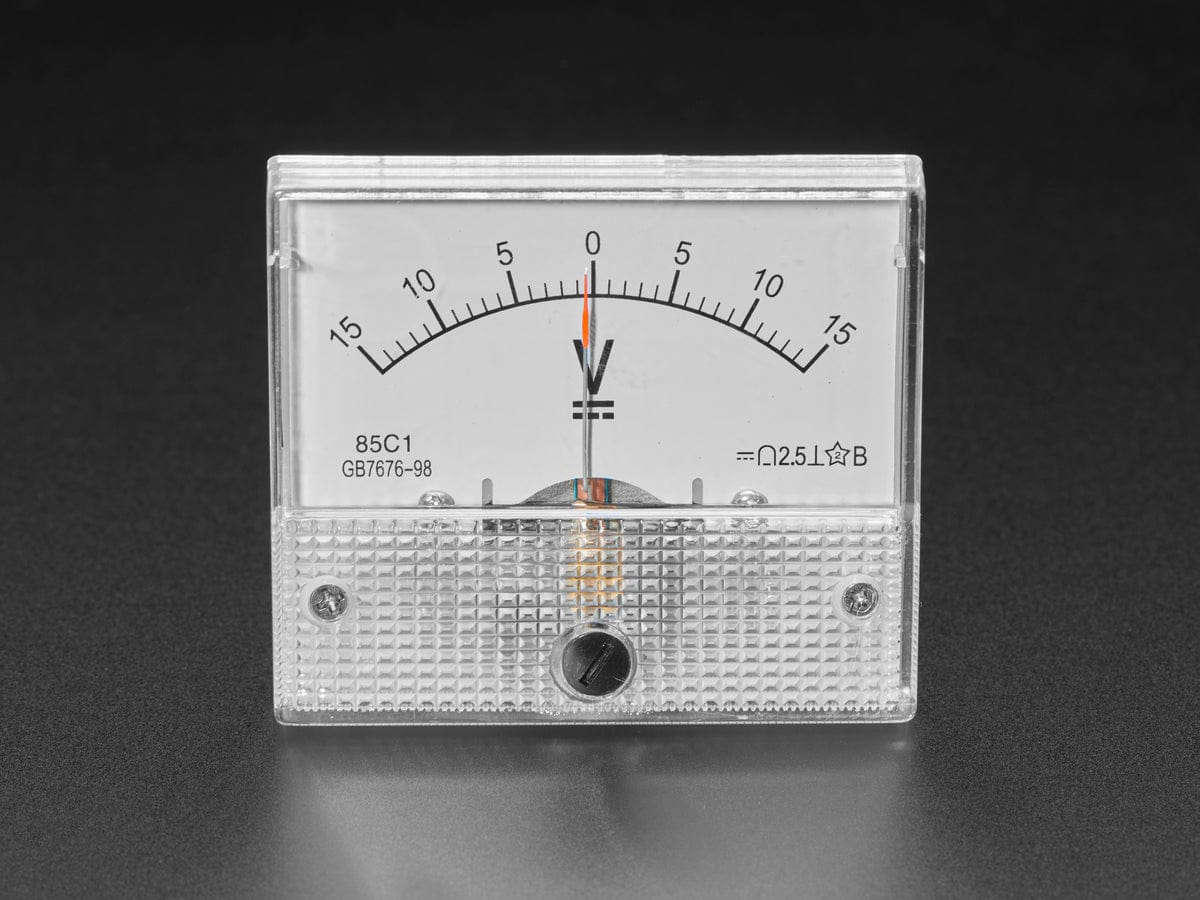

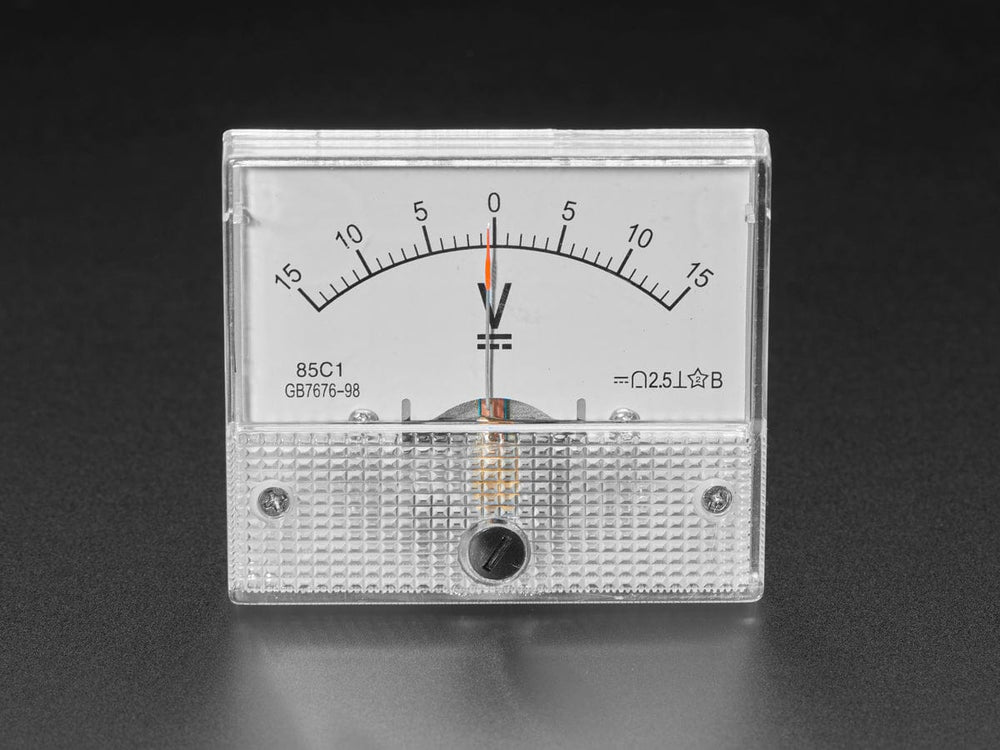

This Small -15V to +15V Panel Meter is about handheld-size, with three screws to open up the panel and replace the backing paper, if you like. It's great for analog projects that have a split power supply or large voltage swings.

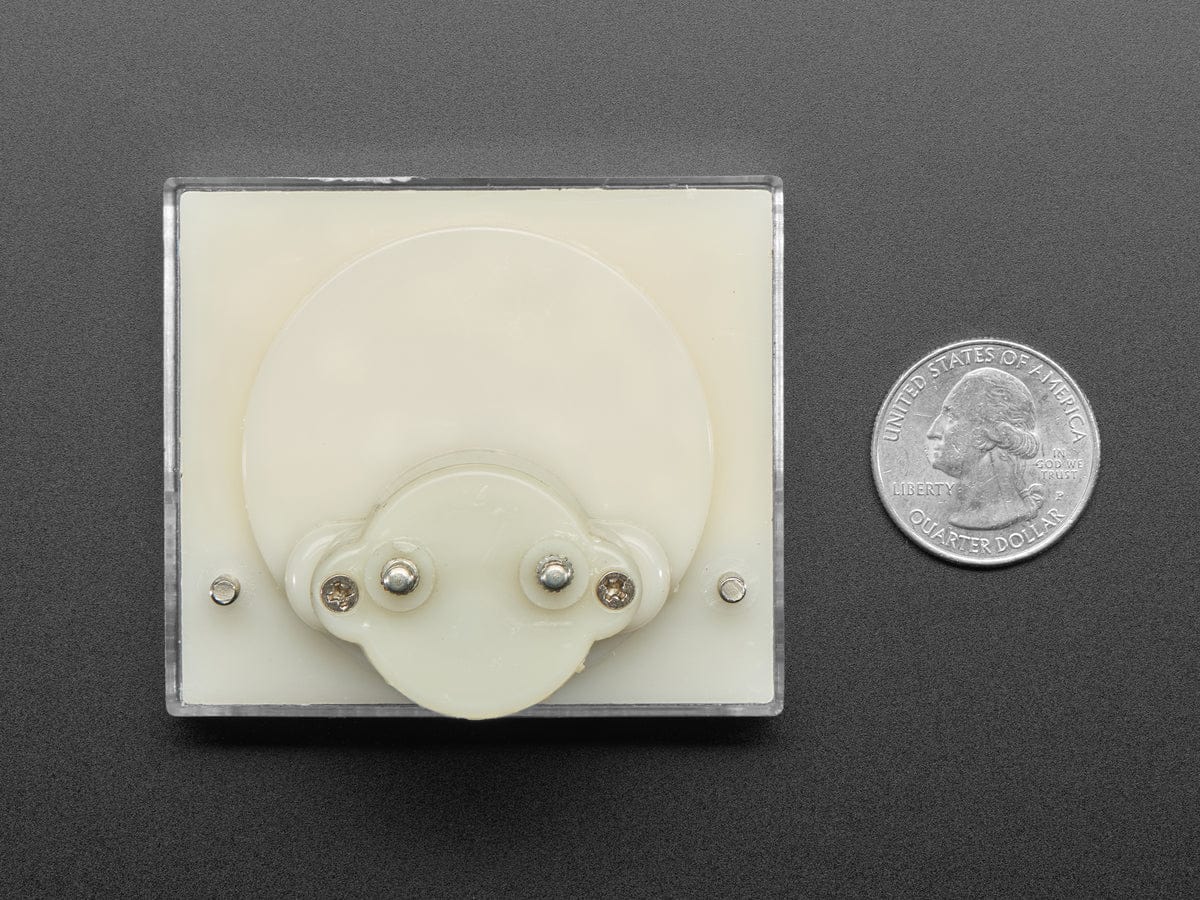

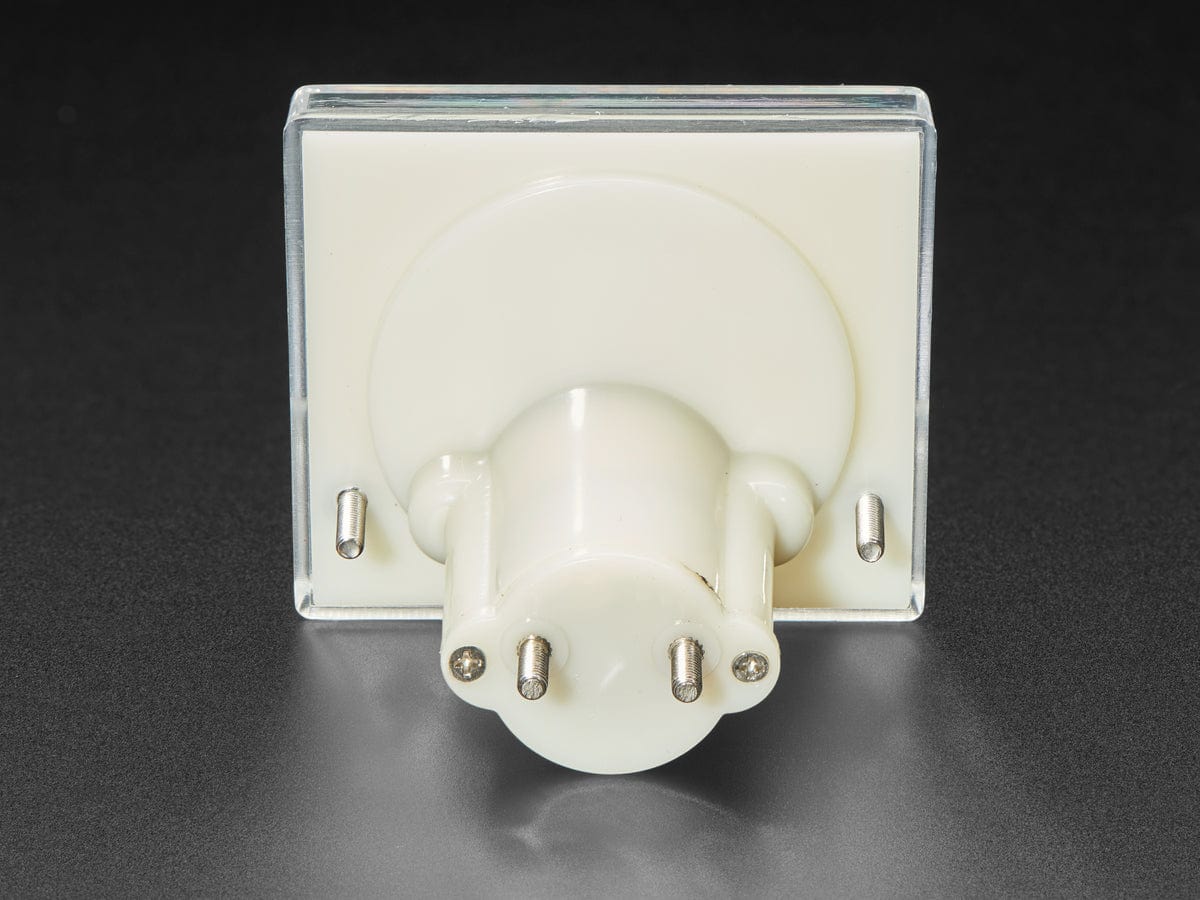

The back is constructed with two bolts the left coil is marked below with Negative to distinguish the positive from the negative. You can wrap a wire around the bolt and use the nuts to keep them in place, or use alligator clips.
