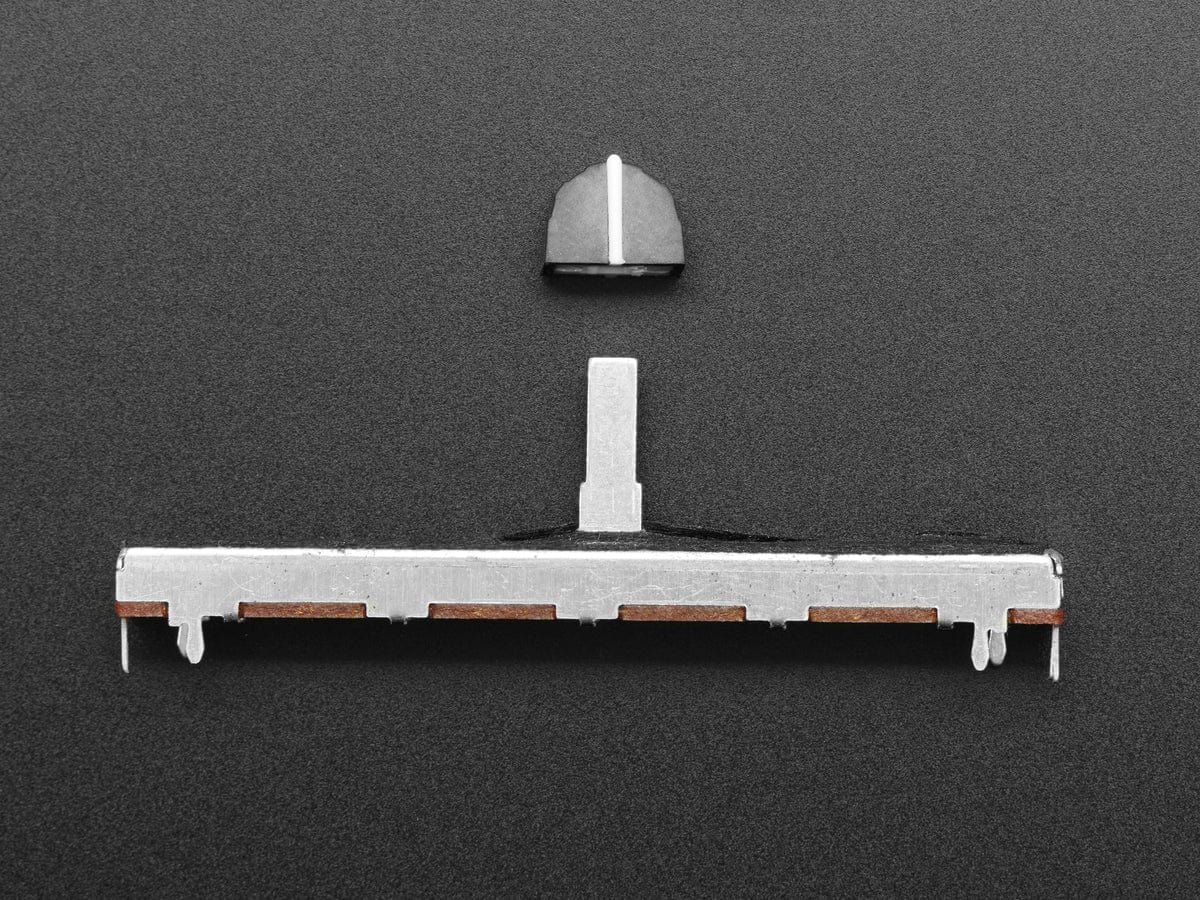

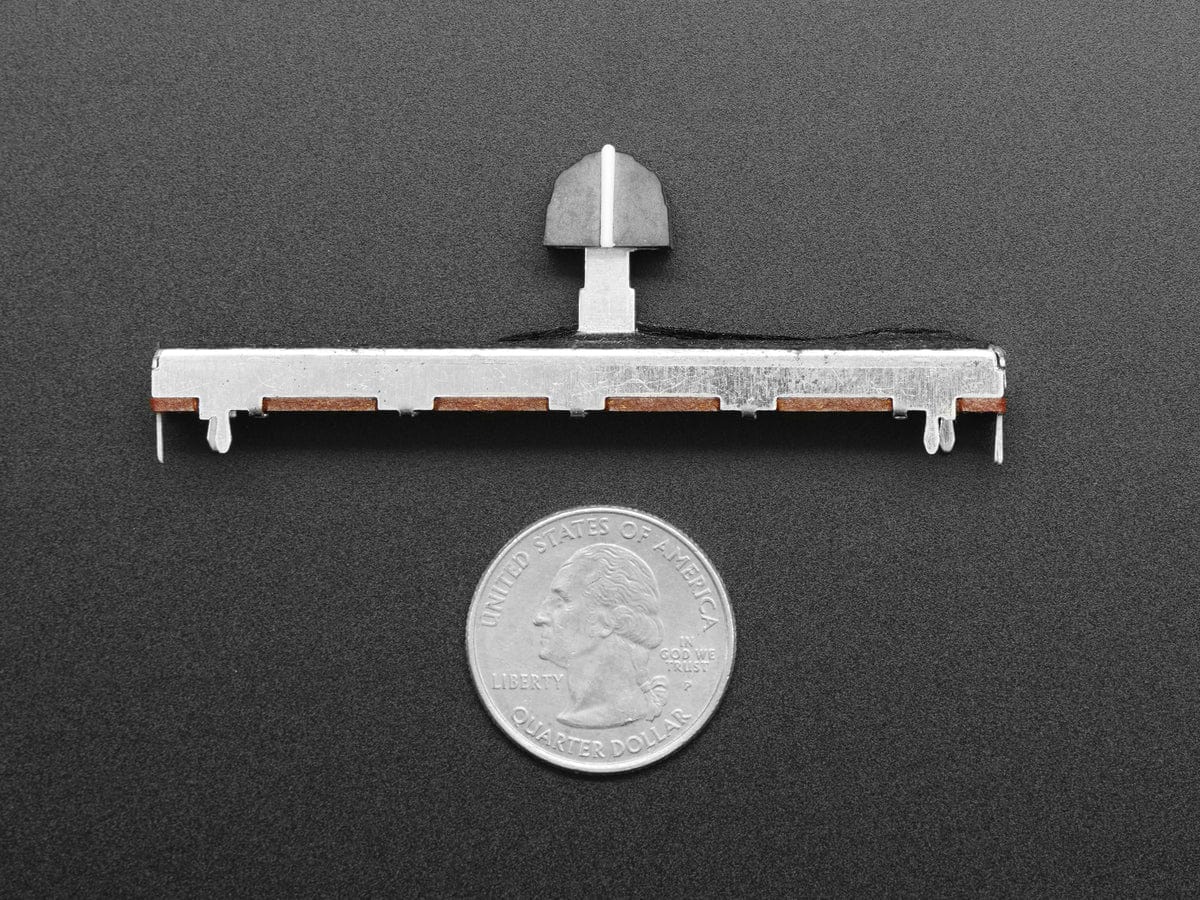

Slide Potentiometer with Knob - 75mm Long - 10KΩ

Price:
Sale price £2.90
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Slip slidin' away
Slip slidin' away
You know the nearer your resistance
The more you're slip slidin' away

If you're tired of the regular-old-twisty potentiometers we carry, why not slide over and try this slide pot? Most famously used on mixers and the transporter control panel on Star Trek, these slide pots are not too long at only 75mm. Use as a voltage divider and you can visually gauge the voltage from low to high. Best of all, it comes with a knob! These have a grippy plastic knob with a white stripe marking.

Comes as a standard 10K ohm linear potentiometer, and it works great for breadboarding and prototyping. You can solder to the 3 legs or sorta push it into a solderless breadboard (or a perfboard with large holes).

It has a nice feel, sliding it back and forth is quite satisfying.

Technical Details

  • Dimensions:
    • Overall length: 75mm
    • Width: 9.5mm
    • Height: 6.5mm
    • Shank length: 15mm
    • Shank width: 4mm
    • Nub dimensions: 11.2 x 7 x 9.3mm
  • Resistance: 10KΩ
