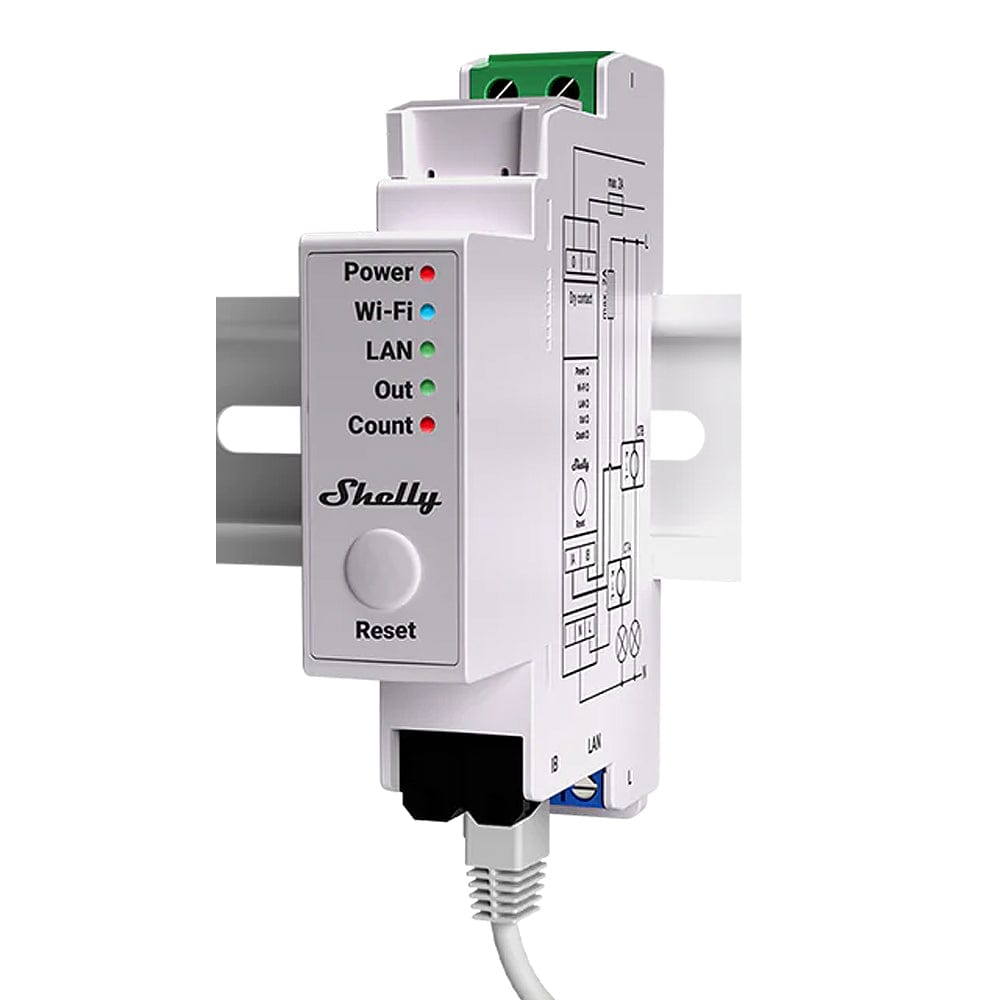

Shelly Pro EM-50

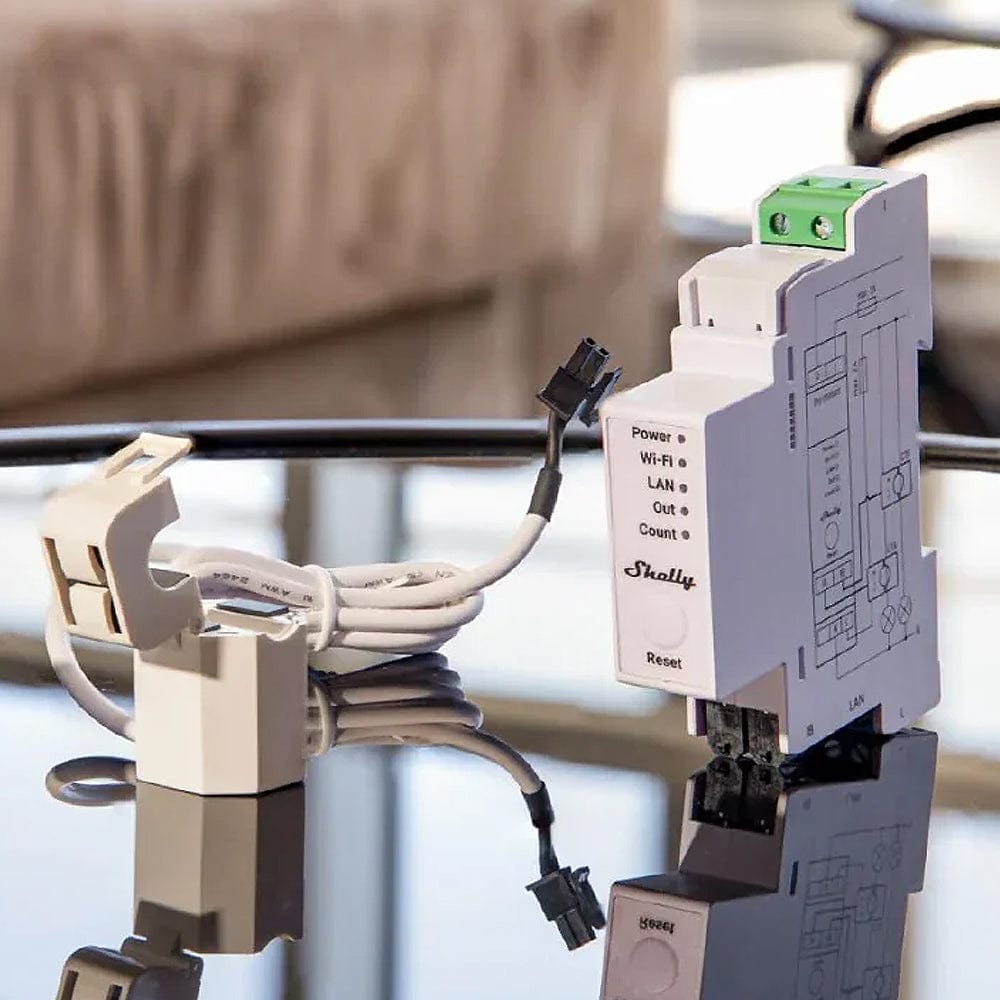

The Shelly Pro EM-50 is a DIN-mountable 1-Phase Energy Meter with an integrated switch for contactor control, which comes with two 50A clamps.

With an active energy measurement accuracy of 1%, Shelly Pro ЕМ-50 can be used to monitor the consumption of and control any home appliances, electric circuits, and office equipment. It features 60 days of on-device historical data with a 1-minute resolution. Additionally, its scripting functionalities allow for the execution of complex scenes and provide broader monitoring abilities.

Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!

Note: You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.

⚠️Caution - Read Before Buying⚠️

• Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
• Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
• Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
• Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
• Do not connect the device to appliances exceeding the given max load.
• Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
• Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.

Shelly Pro Series

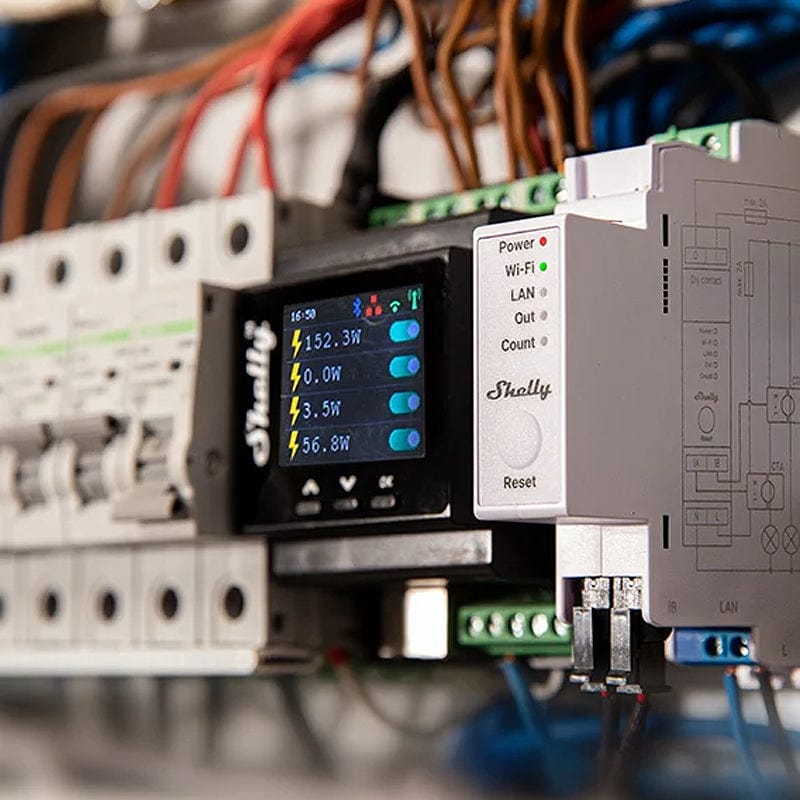

Enhanced with temperature, overpower, and overvoltage load protection, the Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, the Shelly Pro line is perfect for homes, offices, stores, businesses, and manufacturing facilities, as well as new buildings.

View our entire range of Shelly Pro and other professional home automation products.

Five-year manufacturer warranty

All Shelly Pro products carry a five-year manufacturer warranty.

This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.

Highlights

• Power measurement - Monitors two independent channels on the same phase
• Accuracy class B (active energy) - Shelly Pro EM-50 has a measurement accuracy of 1%
• Wi-Fi, LAN and Bluetooth connectivity - Simultaneous Ethernet and Wi-Fi usage. MQTT, inbound and outbound WebSocket, UDP, mTLS suppor
• MODBUS support - Allows for easy and fast deployment in existing industrial installations.
• Integrated switch - 2A dry contacts switch for contactor control
• Scripting - Shelly Pro EM-50 fully supports mjS scripting, allowing you to create further features and functionalities.

Features

• LAN, Wi-Fi and Bluetooth connection for high security and reliability
• Reports accumulated energy, as well as instantaneous voltage, current, active and apparent power per phase in real time
• Power metering - two independent measurement channels on the same phase
• 4 Quadrant measurement with optical pulse indication of energy usage
• Can be used with contactors for bigger loads
• Accuracy Class B (IEC 62053-21)
• Photovoltaic ready
• Stores data in non-volatile memory that can be retrieved for a period of up to 60 days in 1-minute intervals.
• No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home
• Assistant, or your preferred automation system.
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates & Modbus TCP protocol
• Includes 2x 50A Current Transformers

Specifications

Resources

• Shelly Product Documentation
• Printed User Guide (as found within the package)
• Components and APIs
• Declaration of Conformity
• UK PSTI ACT Statement of Compliance
• Device Identification
  • Device name: Shelly Pro EM-50
  • Device model: SPEM-002CEBEU50
  • Device SSID: ShellyProEM50-XXXXXX
• EAN: TBC

Handy Shelly Resources

• Shelly Cloud
• Shelly App
  • Apple App Store
  • Google Play
  • Huawei AppGallery
• Home Assistant Shelly Integration
• Shelly Community Forum
• Shelly Facebook Support Group
• Shelly Knowledgebase
• Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
• Shelly Developer API

Package Contents

• 1x Shelly PRO EM-50
• 2x 50A clamps
• 1x User Guide
