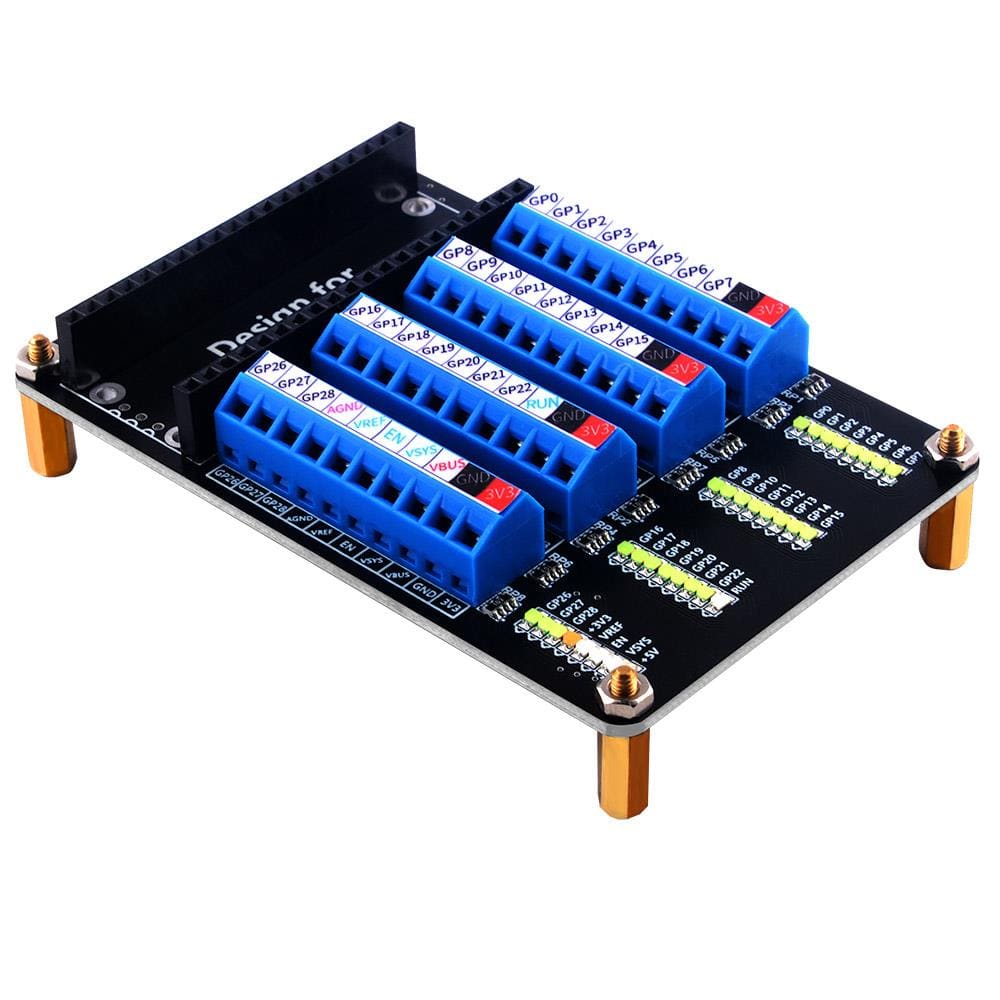

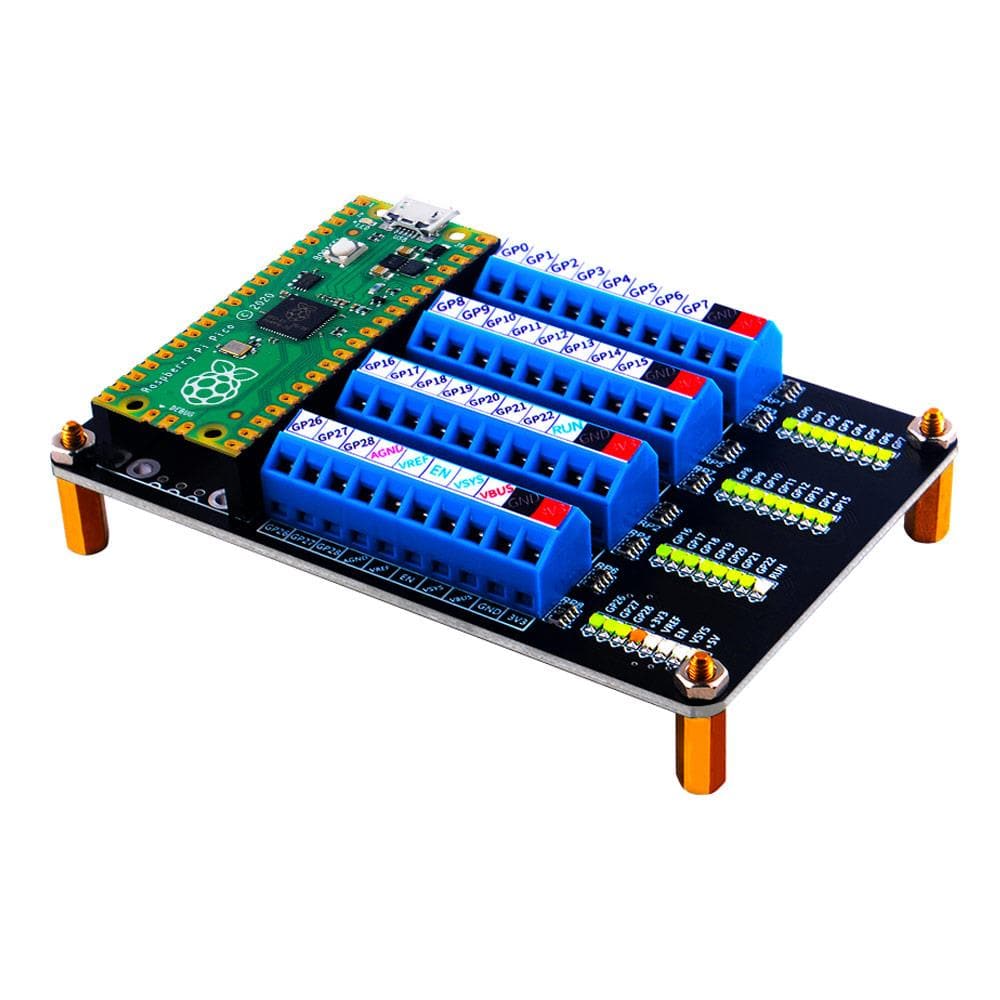

Screw Terminal Expansion Board for Raspberry Pi Pico

This is a screw terminal board designed for the Raspberry Pi Pico that allows rapid circuit construction for your projects.

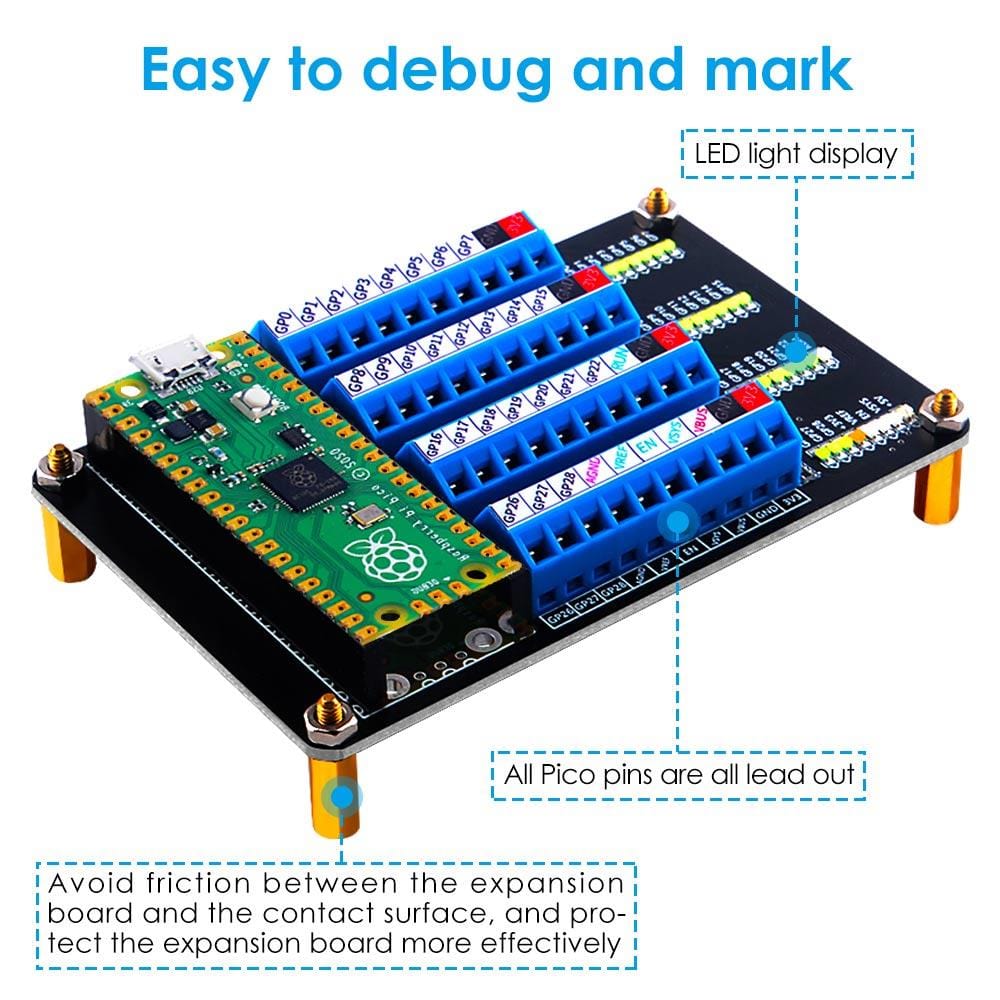

The customised terminals are labelled with the Pico's pin numbers for easy identification and include coloured LED lights connected to each pin. The board labels make it easy to debug projects, helped by the colour-coded LEDs for different pins. Pink is used for the 3.3V power supply, red for the 5V power supply and blue for all other GPIO pins.

The board comes with standoffs, fixings and a handy screwdriver that fits the terminals perfectly.

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• Designed for the Raspberry Pi Pico
• All Pico pins are broken out to handy terminals
• All pins include a colour-coded LED indicators
  • Pink = 3.3V
  • Red = 5V
  • Blue = GPIO
• Standoffs and fixings provided
• Easy to debug projects
• Connect your Pico to components and modules quickly and easily

Specifications

• Mounting hole: M2.5

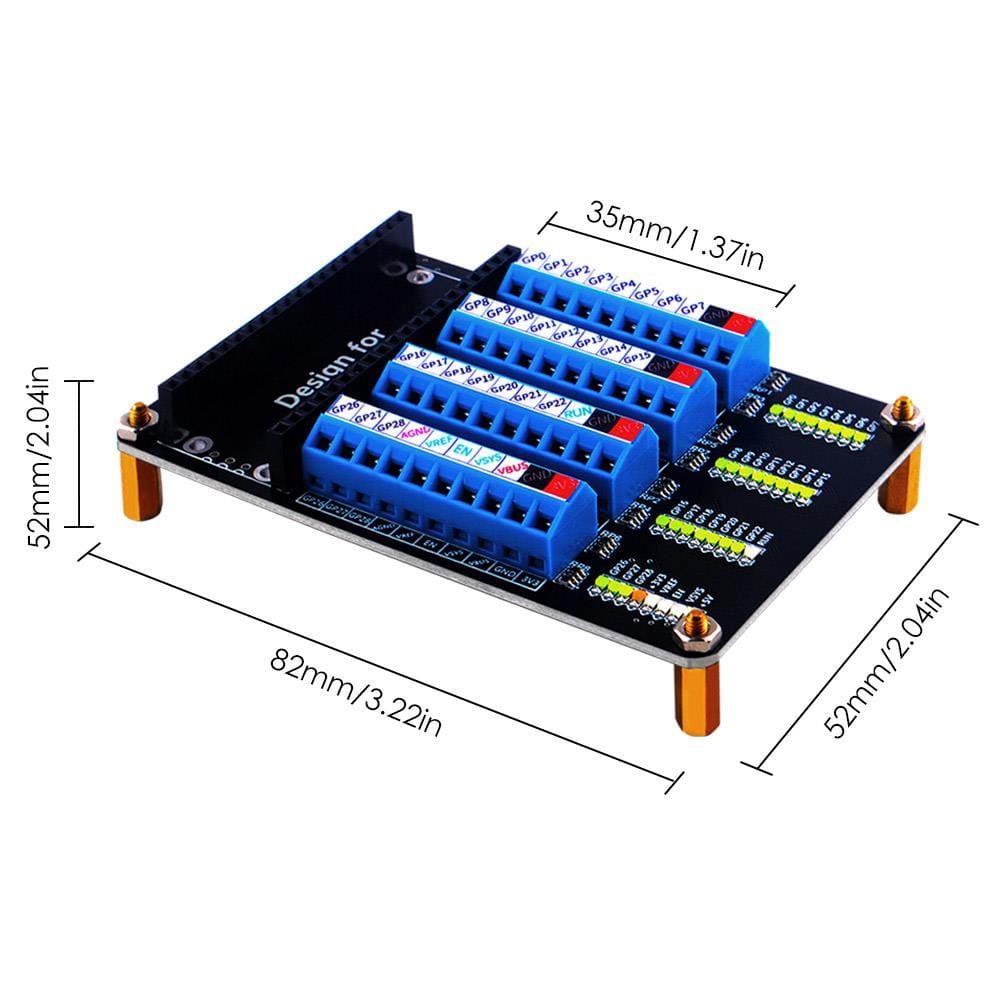

• Dimensions: 82mm x 52mm

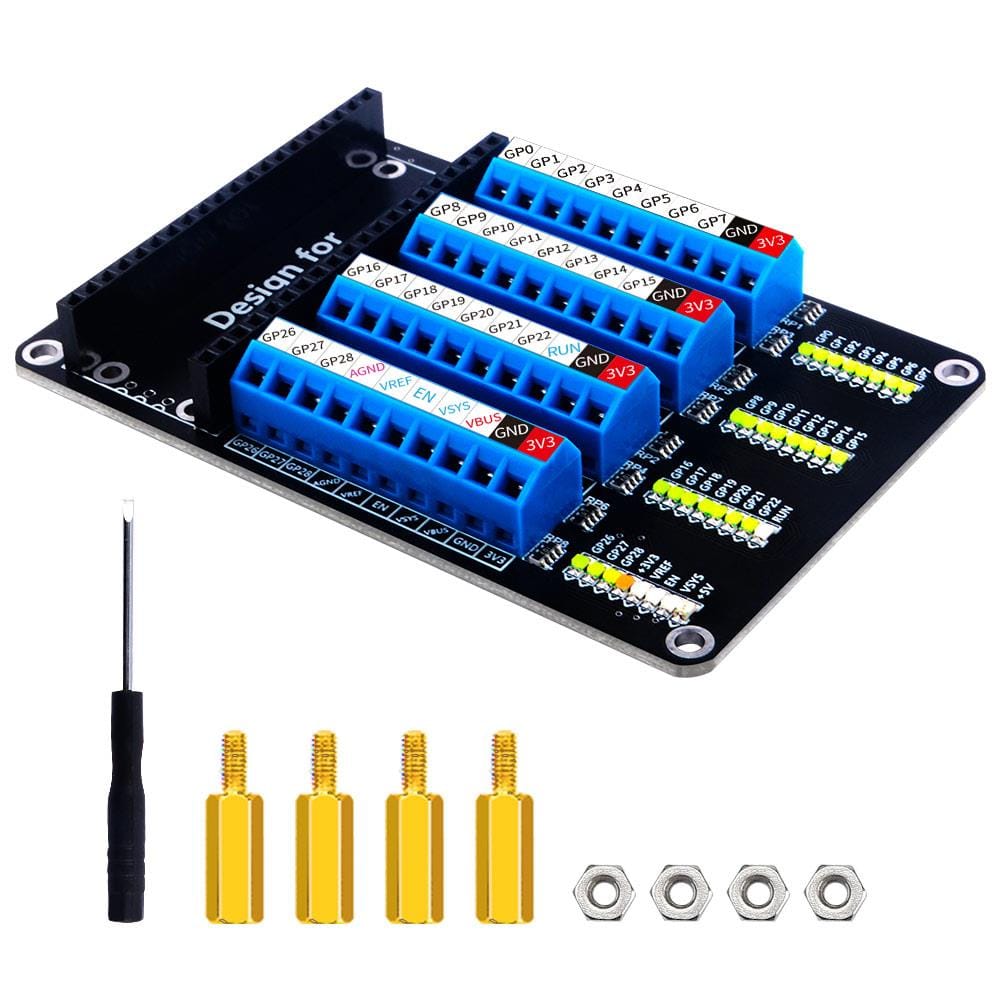

Package Contents

• 1 x Screw Terminal Expansion board for Raspberry Pi Pico
• 4 x M2.5 Coppler Pillar
• 4 x M2.5 Nut
• 1 x Screw Driver

Raspberry Pi Pico not included

Resources

• Assembly video
• Product Wiki
