RP2350 1.47" Display Development Board - USB-A (172x320)

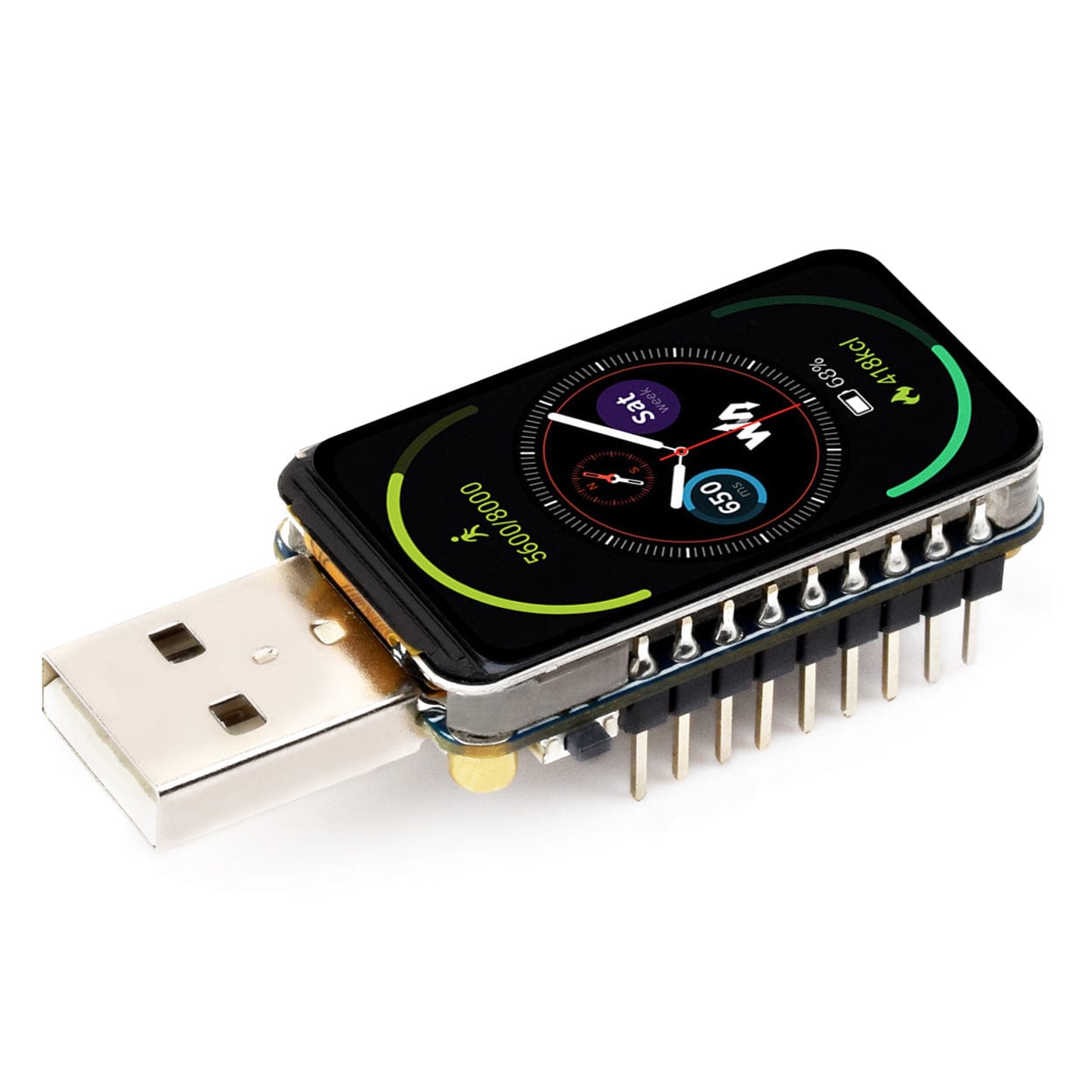

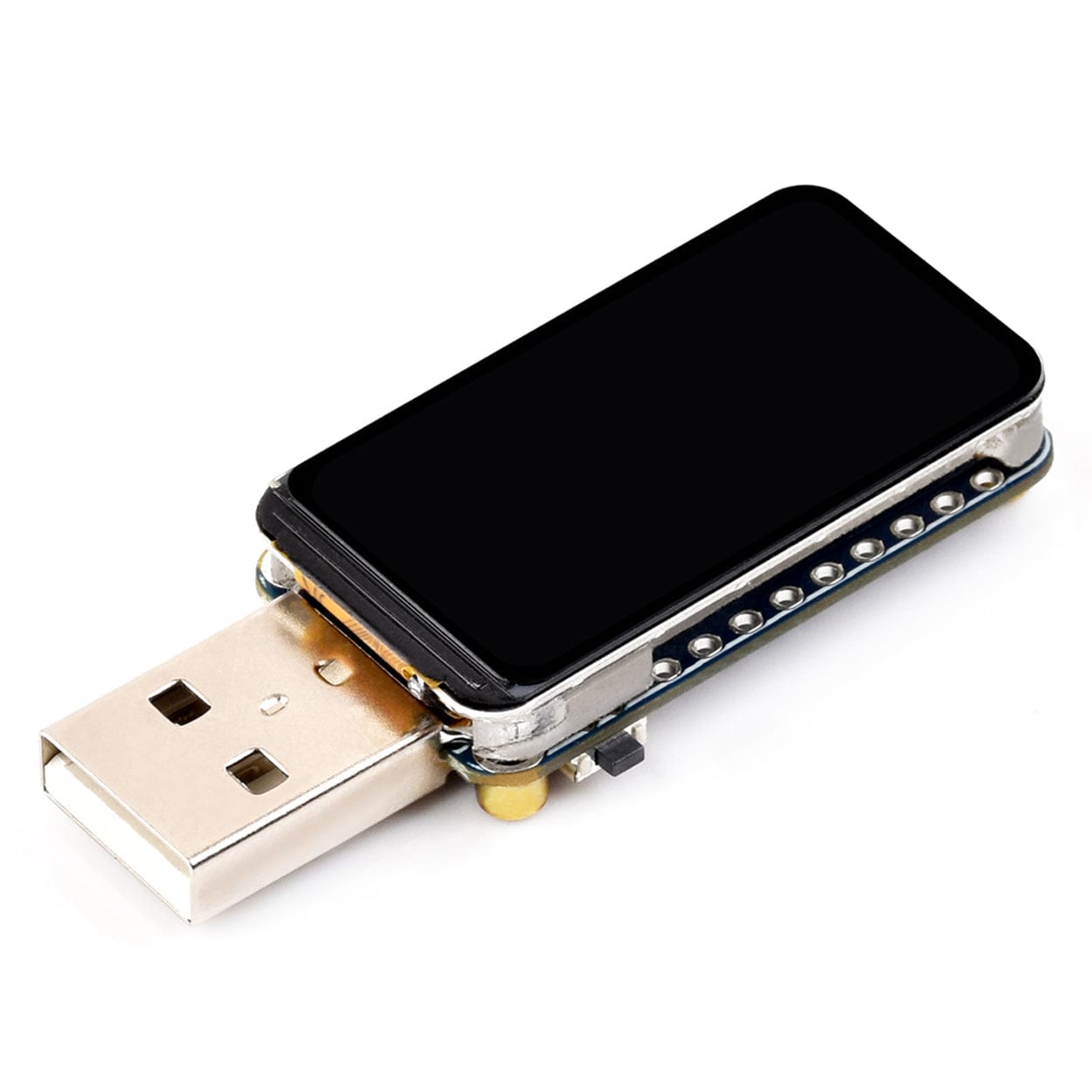

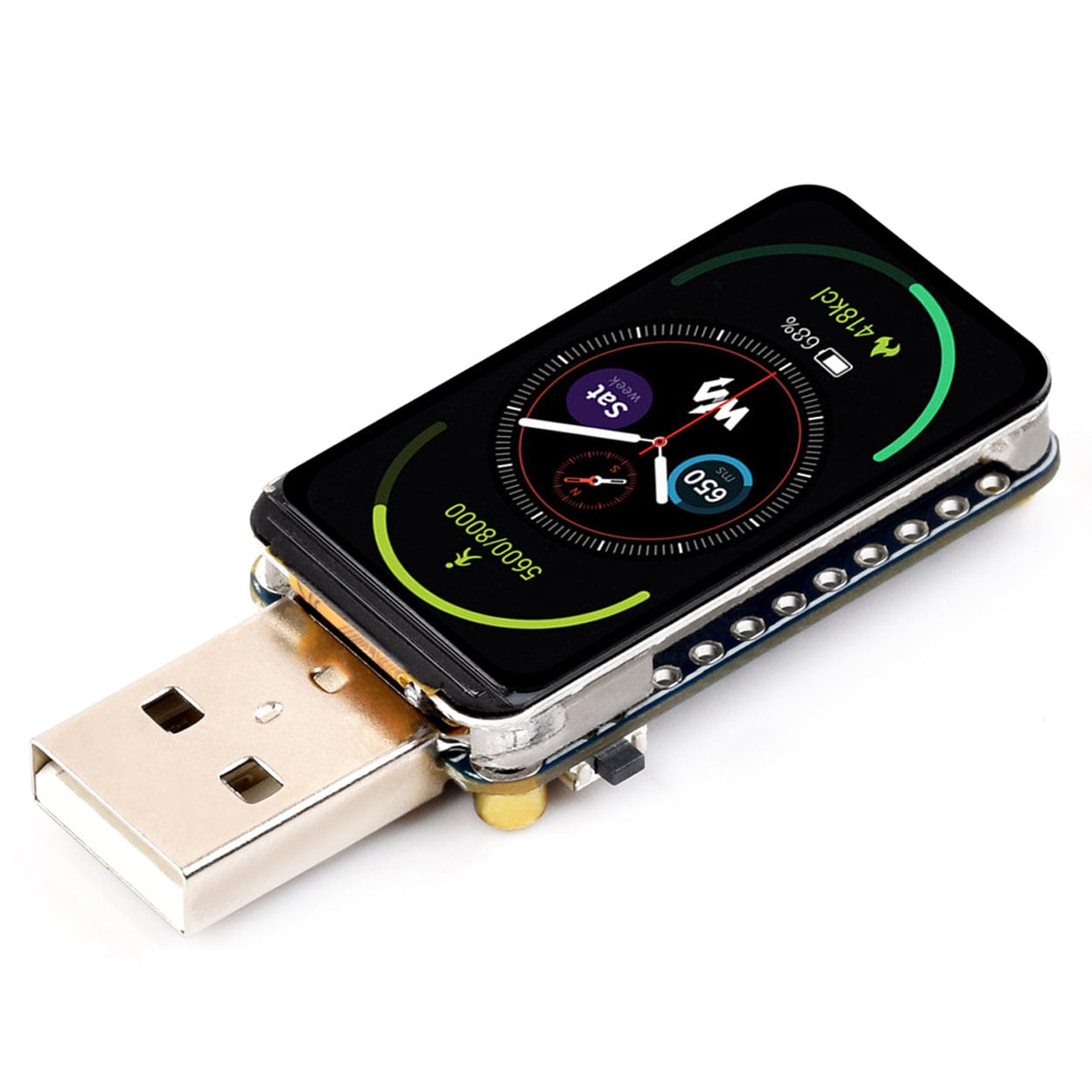

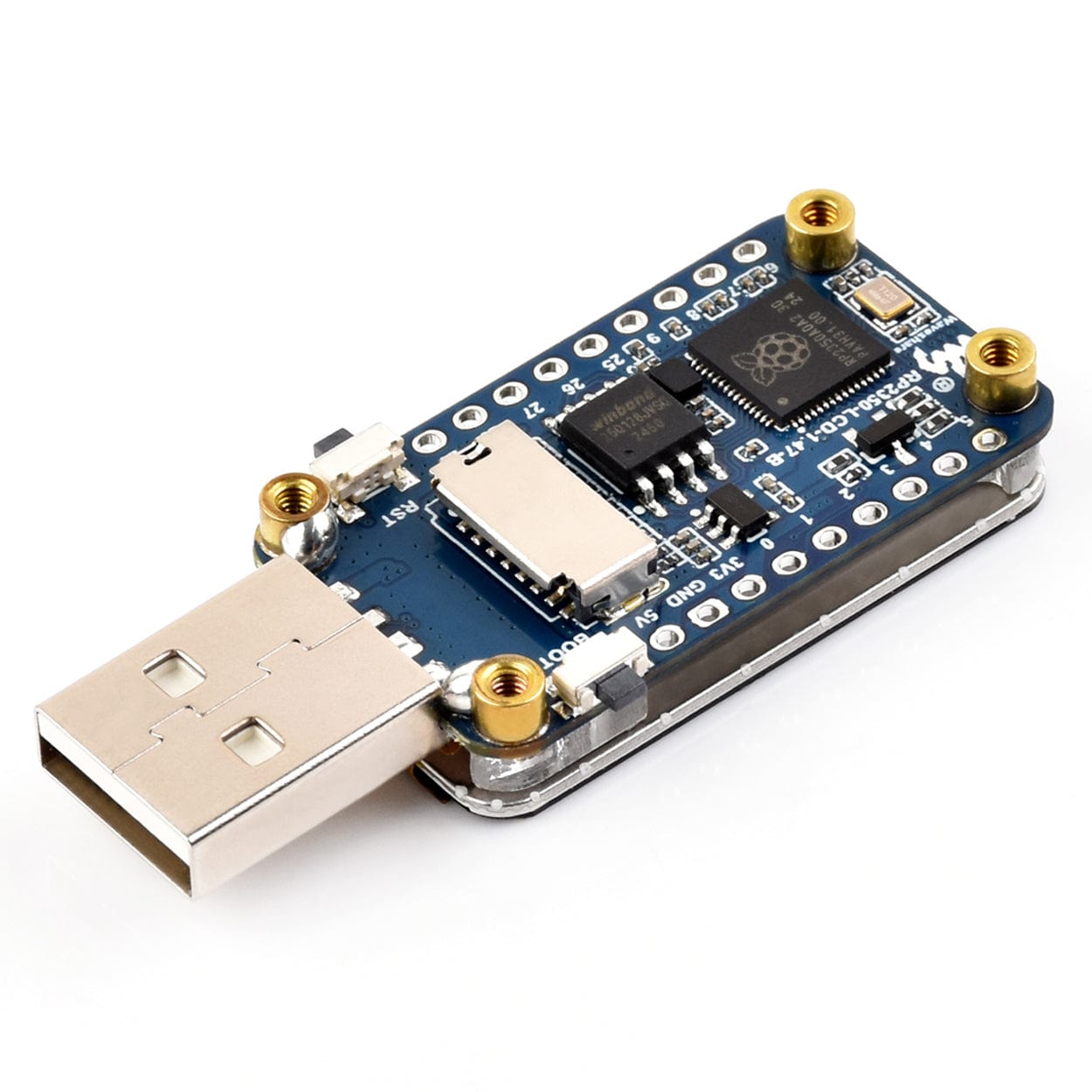

How cool is this?! Waveshare have created a tiny USB-A dev board with an RP2350A microcontroller (the same chip used on the Raspberry Pi Pico 2), with a 1.47" 262K colour LCD on one side, and a MicroSD slot on the other. The male USB-A connector allows you to plug this straight into your PC!

The LCD offers a 172x320 resolution and includes a neat RGB LED sandwiched between the display and the PCB, which is controllable via code.

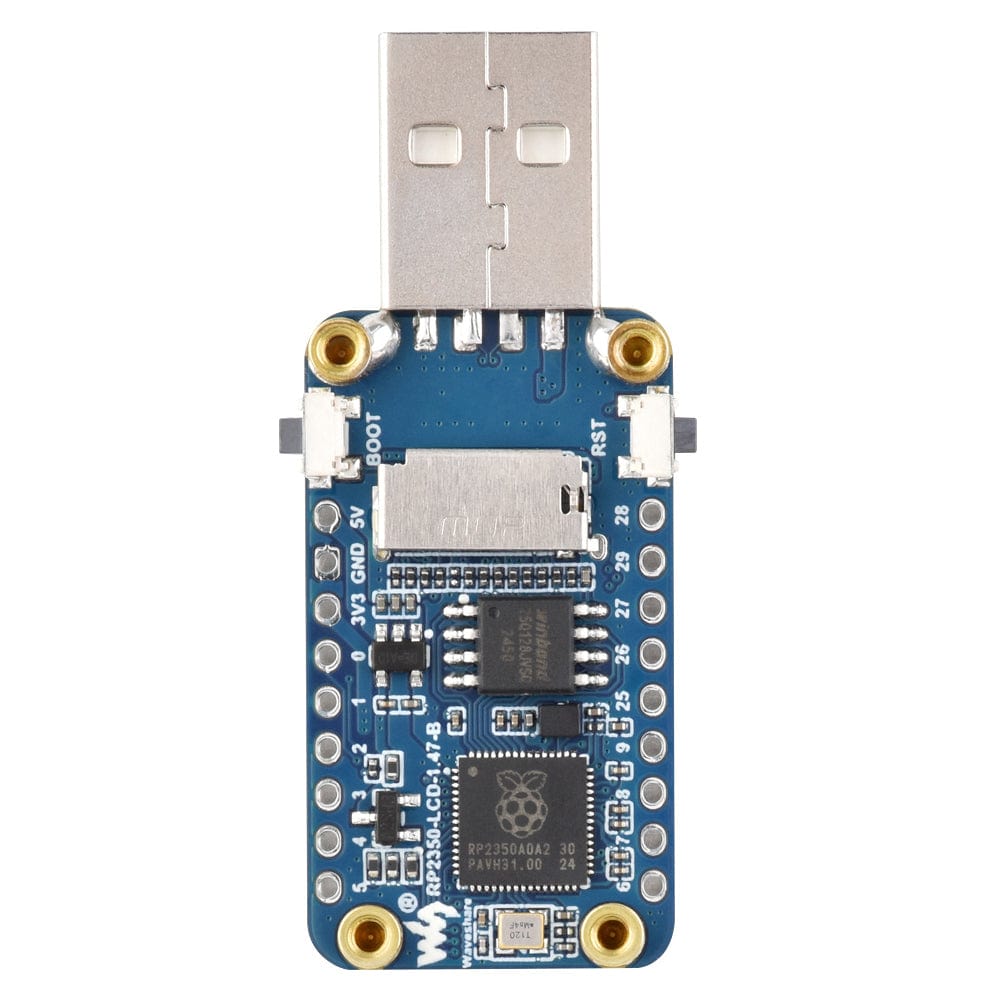

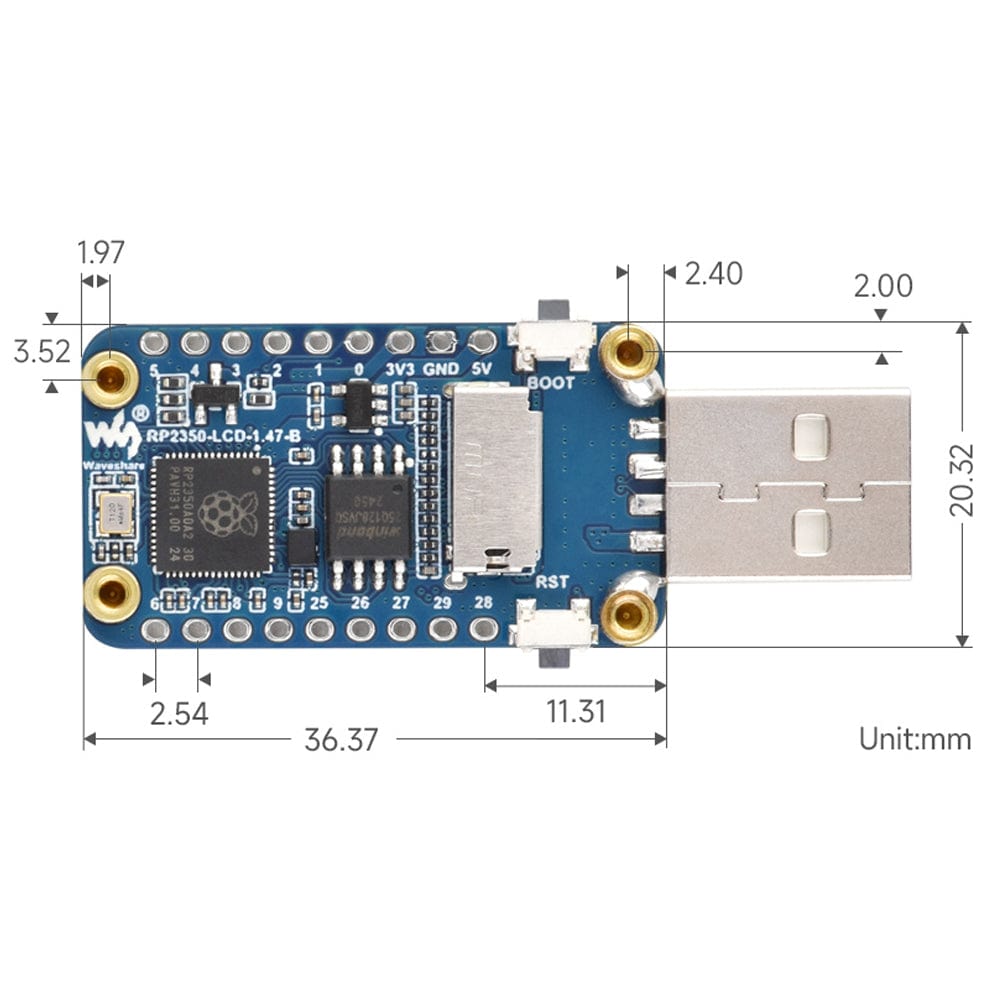

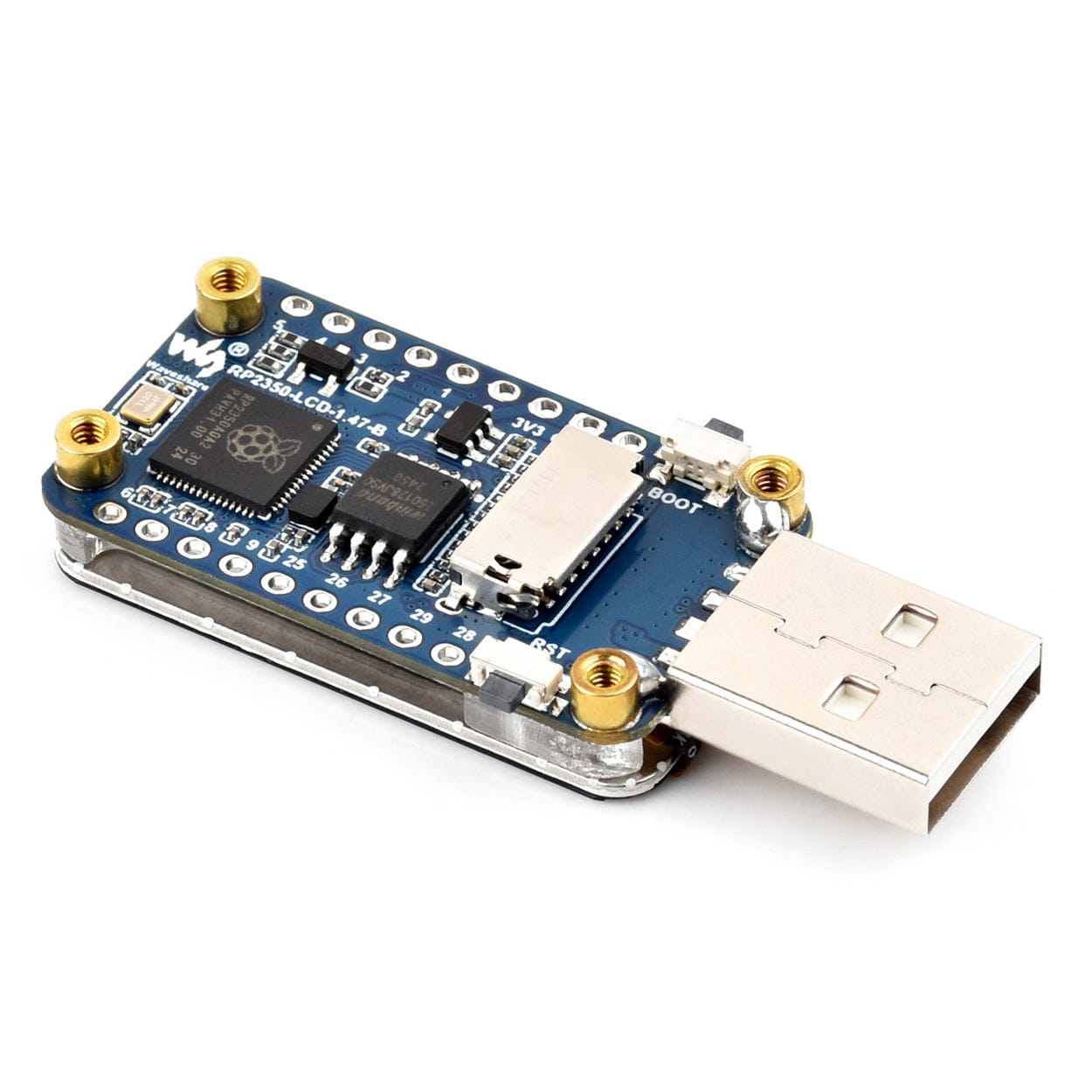

BOOT and RESET buttons can be found at the edges of the board, next to the M2 mounting posts (if you want to embed this into your own enclosure design). The board also runs 520KB RAM and 16MB Flash.

We offer this board with loose headers in the bag (unsoldered) or with pin headers pre-soldered. A USB-C version is also available, great for using away from a host computer!

Features

• RP2350A microcontroller
• Dual-core, dual-architecture design:
  • Arm Cortex-M33
  • Hazard3 RISC-V
  • Up to 150MHz
• 520KB SRAM
• 16MB onboard Flash
• USB-A (male) connector
• 1.47" LCD display
  • 172×320 resolution
  • 262K colours
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming via USB mass storage
• On-chip clock and timer
• RGB LED with acrylic sandwich panel for lighting effects

Specifications

Resources

• Product Wiki

Pinout

Package Contents

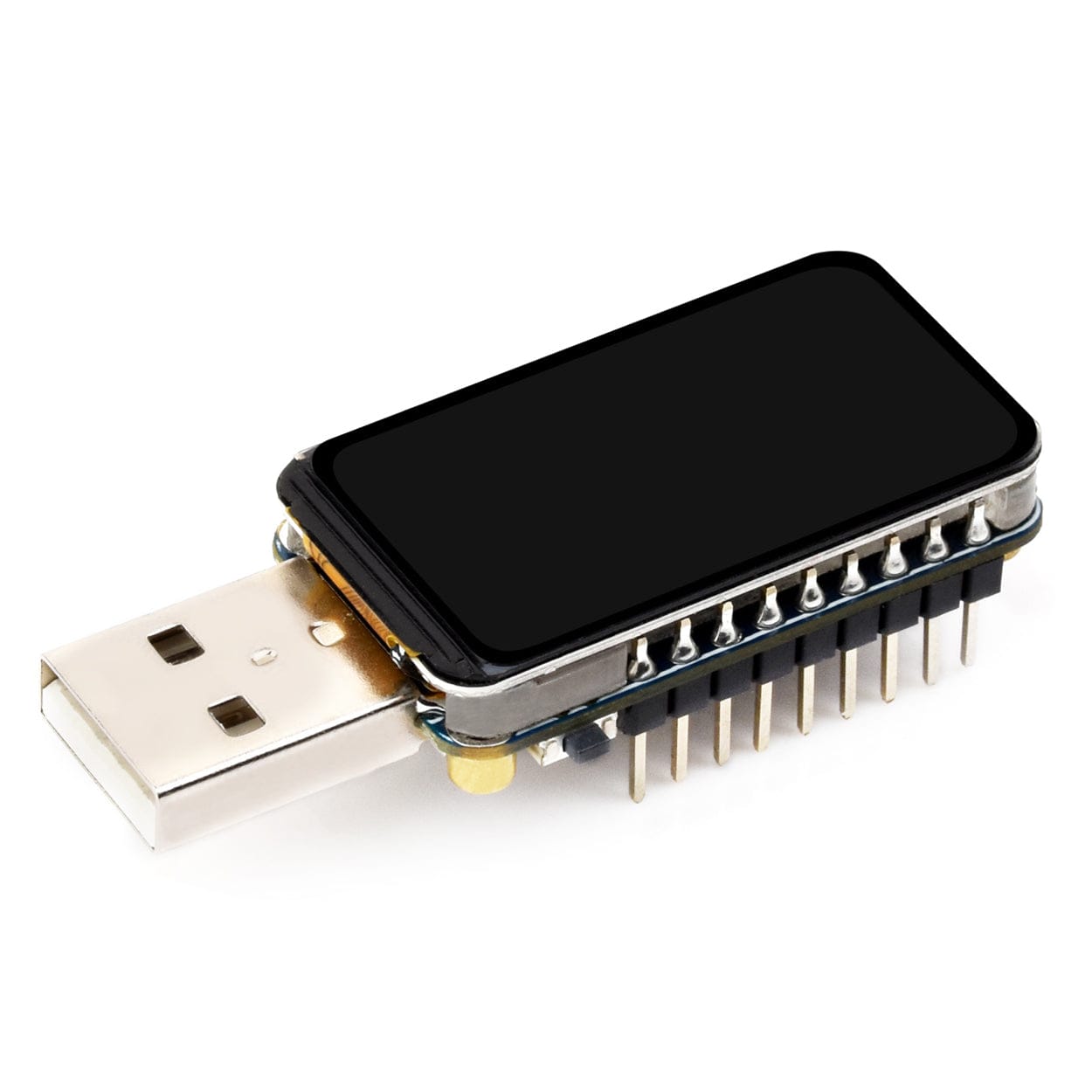

• 1x RP2350 1.47" Display Development Board (172x320) - USB-A version

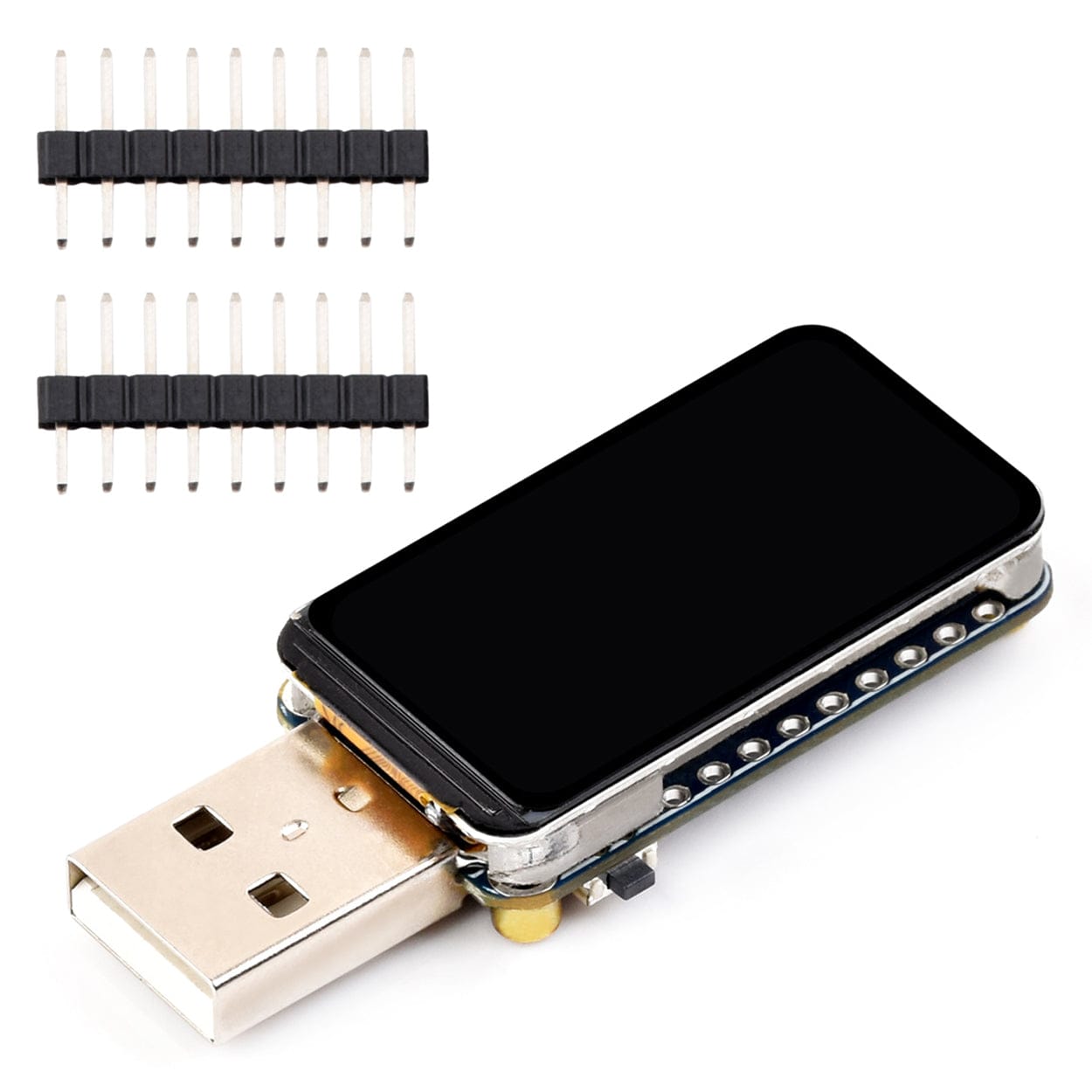

  • With either loose headers (unsoldered) or pre-soldered headers - select an option before adding to cart
