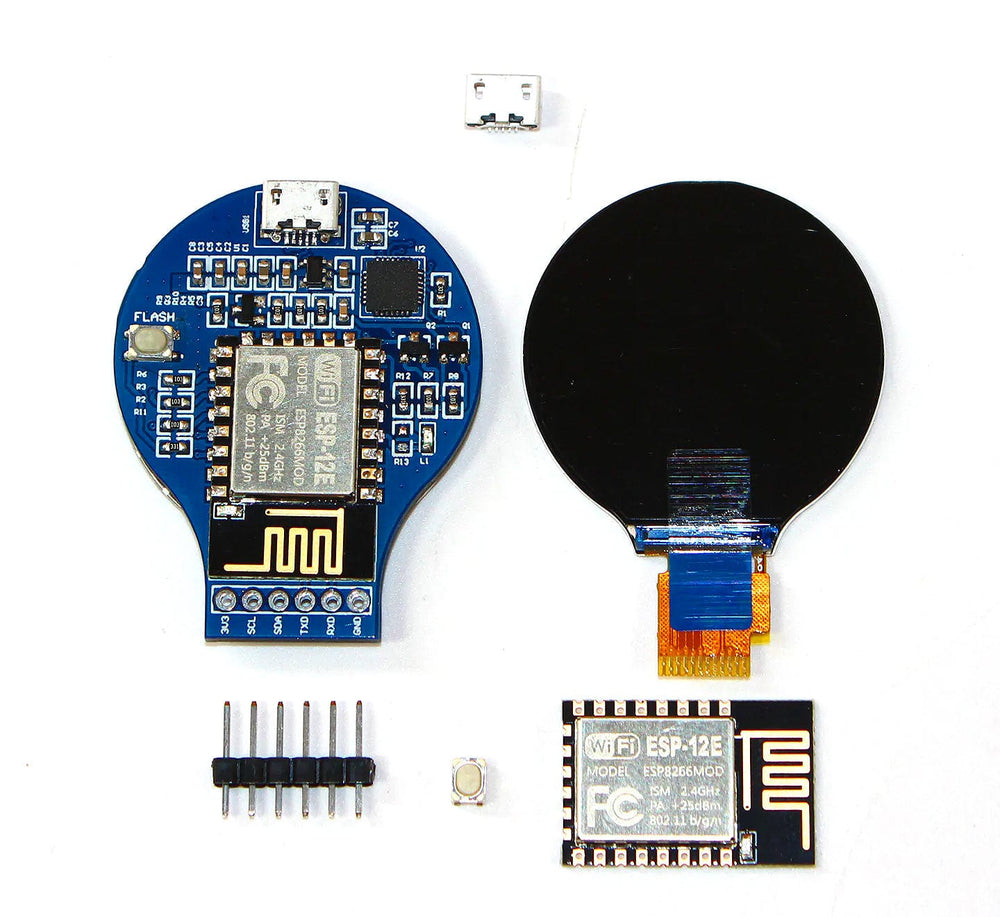

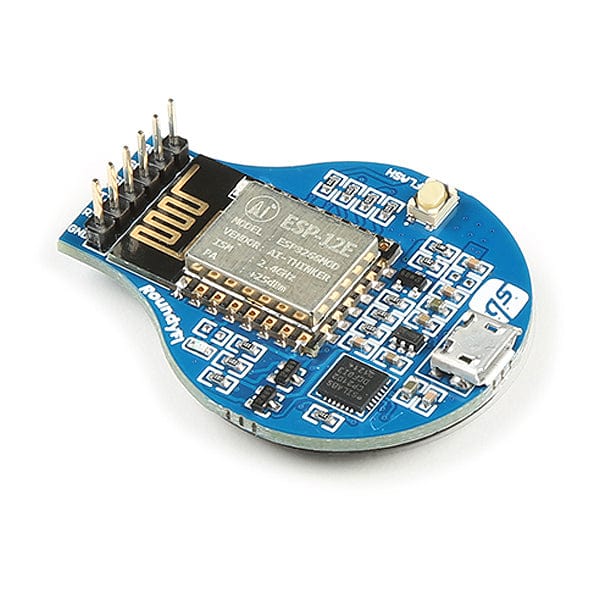

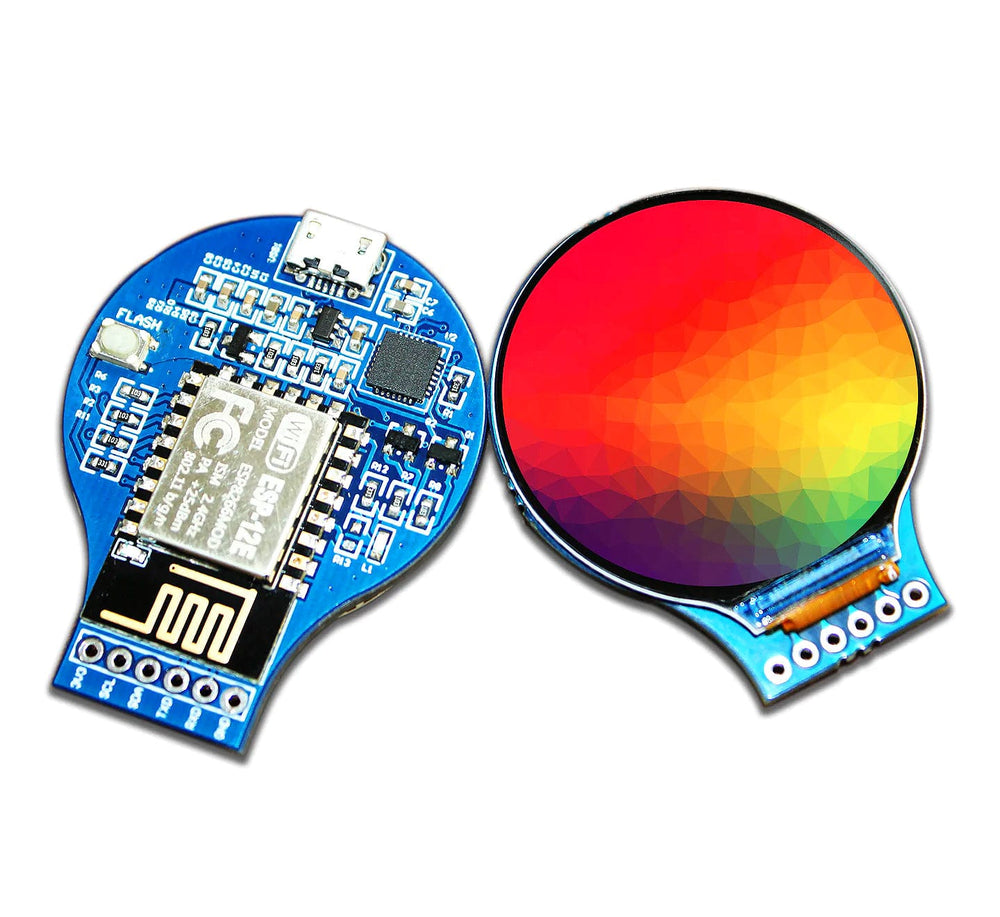

The RoundyFi is a round LCD display board based on the ESP8266 (ESP-12E) along with a compact 1.28" LCD display with a 240×240 resolution and 65K RGB colour.

The ESP-12E is particularly praised for its efficiency and ease of use, capable of running at 80 or 160MHz with built-in support for 802.11b/g/n Wi-Fi. The RoundyFi comes with an embedded GC9A01 Driver and SPI Interface that minimise the number of pins consumed by the display.

A micro-USB port is onboard for programming and power alongside a FLASH button.

We also stock the RoundyPi - a variation of this board which uses the popular RP2040 chip instead.

Features

  • Onboard ESP-12E
  • USB Port
  • USB to UART CP2102
  • 1.28" Display
  • 240 x 240 Resolution
  • IPS Display Panel
  • GPIO/I2C/UART/SPI Interface

Specifications

Product RoundyFi LCD Based on ESP-12E
Operating Voltage 3.3V
OnBoard ESP-12E MCU
Display Size 1.28 inch
USB Port Power & Data Transmision

Interface Pins

4 GPIO, 1 GND, 1 Power

Driver

GC9A01

Resolution

240 x 240 Pixel

Colour

65K RGB

Interface

SPI

Resources

ROUNDYFI ESP-12E
DIN(LCD) GPIO 13
CLK(LCD) GPIO 14
CS(LCD) GPIO 15
DC(LCD) GPIO 2
RST(LCD) GPIO 16
BL(LCD) GPIO 12

Package Contents

  • 1x RoundyFi board
