Round Side Illumination LED Module

KitronikSKU: KIT35167
Price:
Sale price £2.80
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

(96 Reviews)
The Pi HutUSB to Micro USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT
(2 Reviews)
KitronikRound USB White LED Lamp
Sale price £2.60 incl. VAT excl. VAT
(1533 Reviews)
Raspberry PiOfficial Raspberry Pi Zero UK Power Supply (5.1V 2.5A)
Sale price £9 incl. VAT excl. VAT

The Round Side Illumination LED Module is a pre-built board for low-power lighting displays, such as desk lamps, accent lights, and illuminated signs. It has been designed such that its power requirement is within the supply rating of a computer USB port (under 100mA).

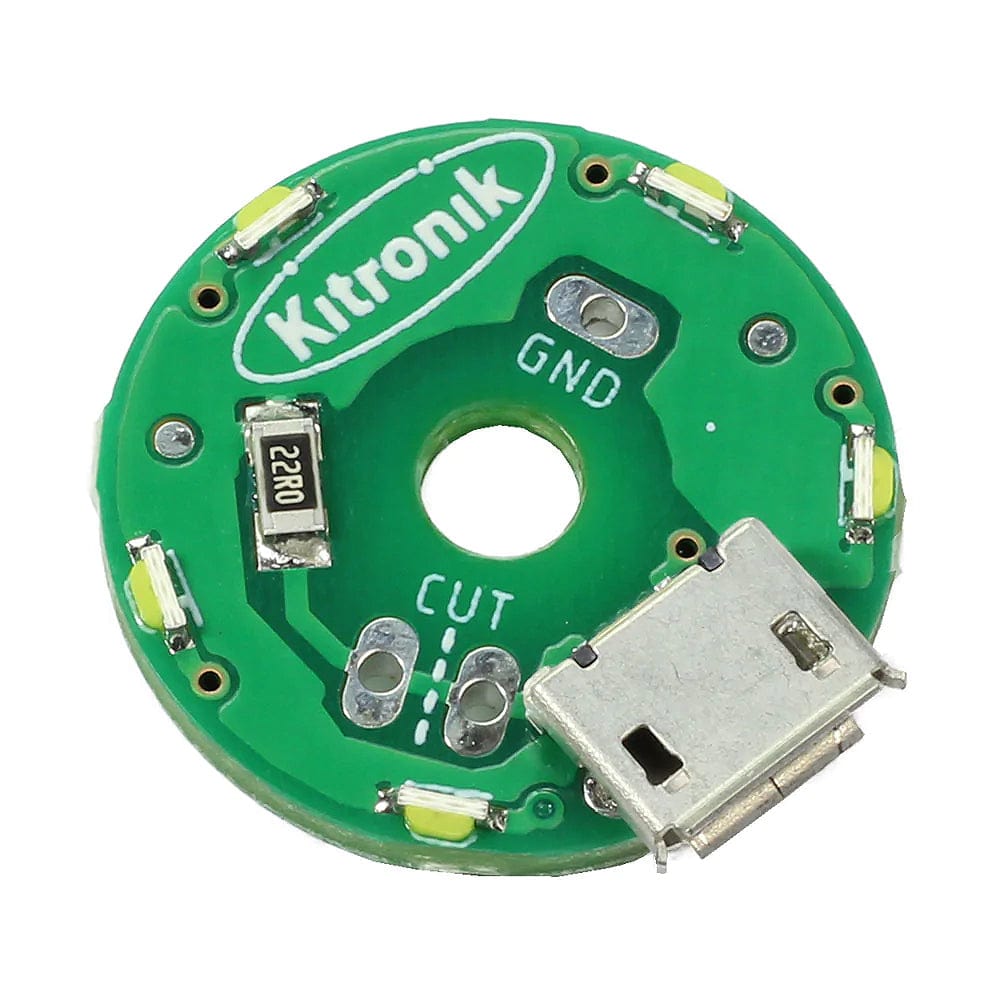

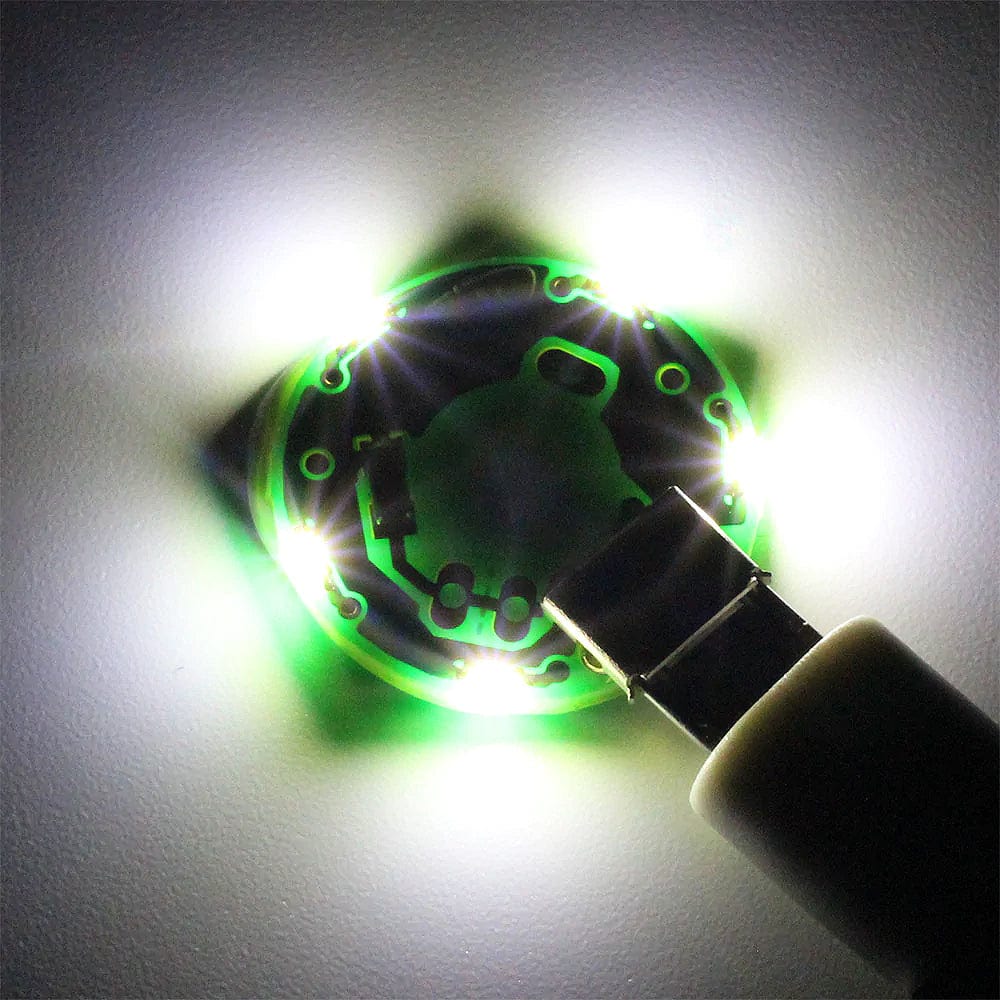

The board features 5 x bright white LEDs arranged around the board's edge, facing outward. The arrangement of the LEDs is such that this board would be the ideal choice for designing imaginative accent lighting, such as in corners or under-glow for shelving etc.

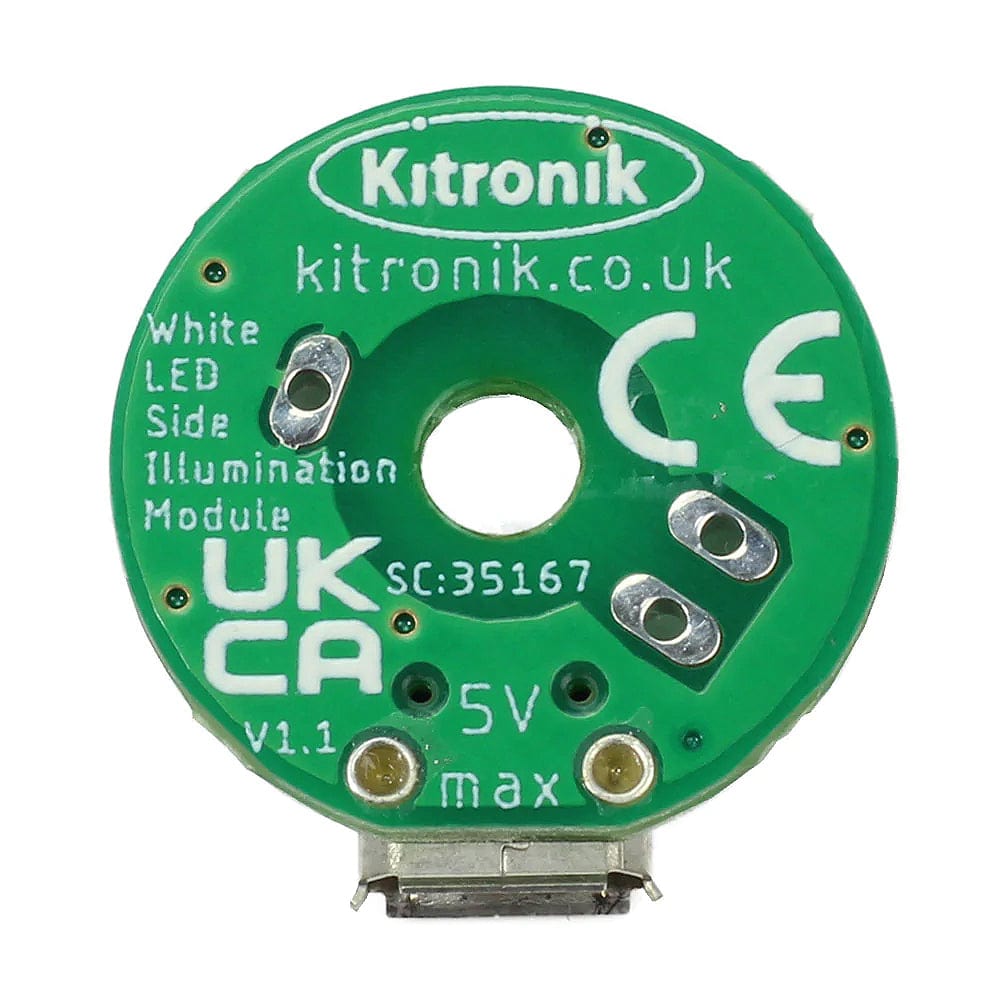

The PCB is 20mm in diameter, 4.1mm high, and is provided with a single central M4 mounting hole. A remote switch can be connected to pads provided on the PCB, allowing remote module mounting within an enclosure.

The board can be powered via its onboard USB connector or the power solder pads. This LED module requires a suitable 5V supply, such as a USB port on a computer or a dedicated power supply.

Features

  • This is a low-power (under 100mA) round, side-illuminated, LED Module that can be used in custom enclosure designs
  • The board features 5 x bright white LEDs arranged around the board's edge, facing outward
  • This board would be the ideal choice for designing imaginative accent lighting
  • It also features pads for connecting an optional switch that can be mounted on your enclosure
  • It features a single M3 (3.3mm) mounting hole at its centre
  • It features a micro USB power connector and can be powered by a computer or a suitable 5V power supply
  • The board can also be powered instead, via power solder pads on the PCB
  • Diameter (PCB): 20mm.
  • Diameter (PCB + USB Connector): 21mm.
  • Height: 4.1mm.
  • Mounting Hole Diameter: 4mm (M4).
