RJ45 Female to M12 4-Pin Female Adapter

DFRobotSKU: FIT0853
Price:
Sale price £15.75 Regular price £21
incl. VAT
excl. VAT
Save 25%
Stock:
Only 4 units left
Quantity:

Awesome Extras

DFRobotRJ45 Female to M12 4-Pin Male Adapter
Sale price £14 incl. VAT excl. VAT
The Pi HutRJ45 Coupler
Sale price £2 incl. VAT excl. VAT

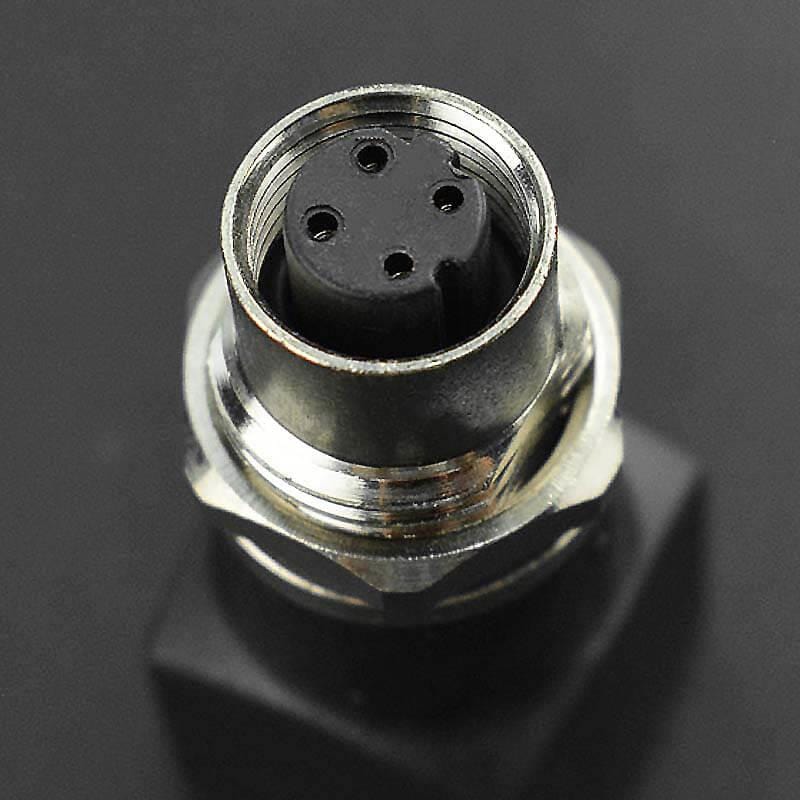

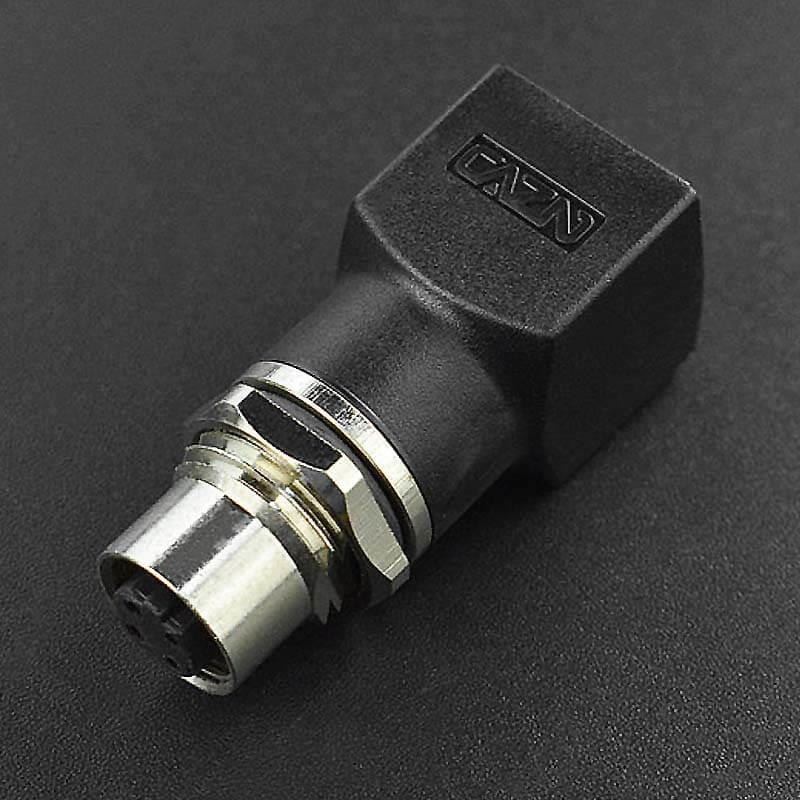

This M12 to RJ45 Ethernet adapter uses an M12 female 4-pin D-coded fitting with IP67 waterproof rating, which is impervious to dust and short-term soaking.

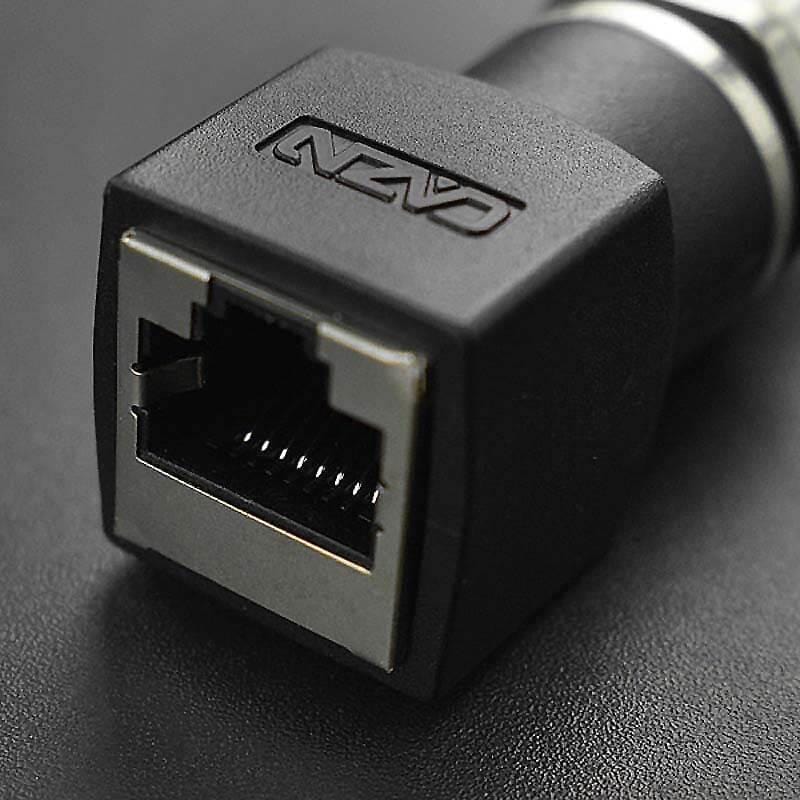

There are metal shielding layers on the RJ45 port for fixing the interface and preventing external electromagnetic interference, which ensures a reliable network signal. With pure copper eight-core gold-plated pins, the internal construction provides good contact and conduction performance during network data transmission.

The connector is fully compatible with the RJ45 network port, plug and play, which is very suitable for equipment with the same interface, such as industrial sensors, industrial cameras and switches.

We also stock a version with a Male M12 fitting,

Features

  • RJ45 Female to M12 Female
  • 4-pin D-coded fitting
  • Pure copper eight-core gold-plated pins
  • Good contact and conduction performance

Specification

  • Colour: Black
  • Interface: RJ45 Female to M12 4-Pin Female
  • Rated Current: 4A
  • Rated Voltage: AC 250V/DC 250V
  • Material: PVC environment-friendly shell
  • Insulation Resistance: ≥100MΩ
  • Contact Resistance: ≤3mΩ
  • IP Rating: IP67
  • Durability: ≥500 times
  • Operating Temperature: -40℃~+85℃

Package Contents

  • 1x RJ45 Female to M12 40-pin Female Adapter
