Right-Angle SPDT ON-ON Latching Sub-Miniature Toggle Switch

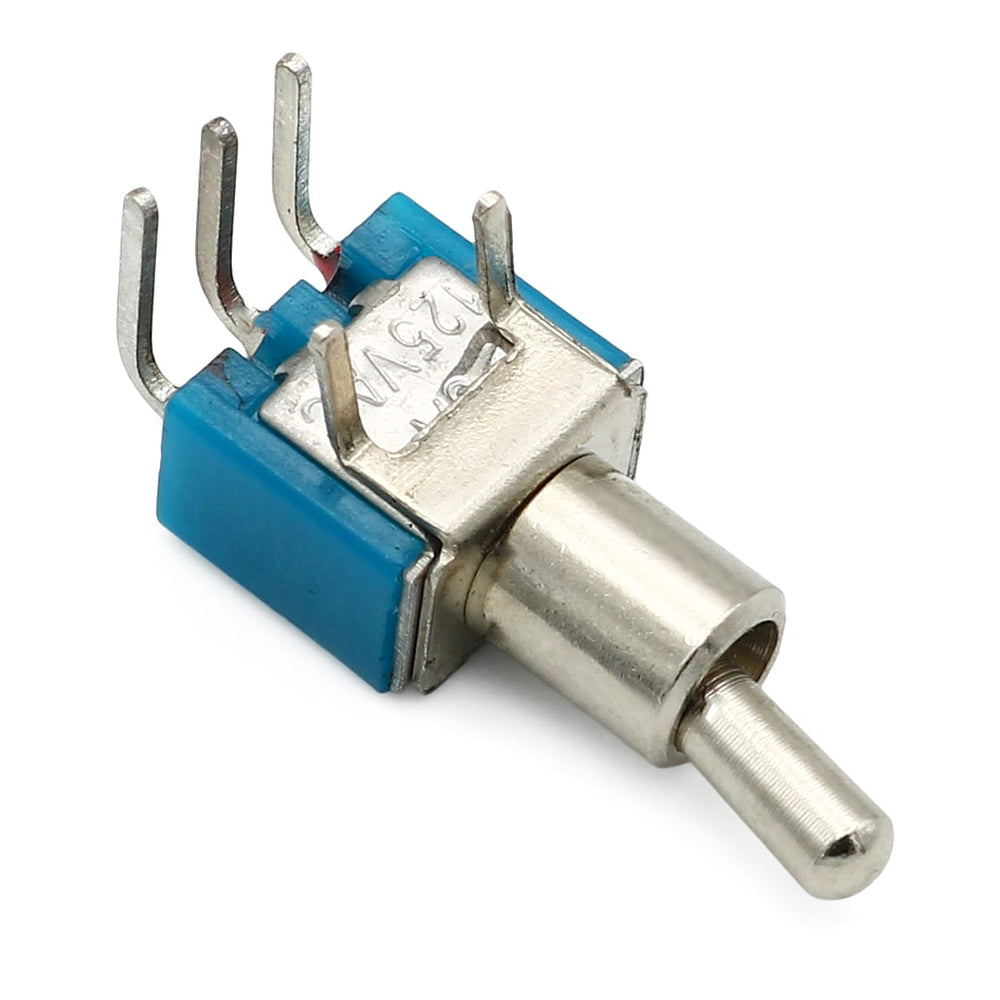

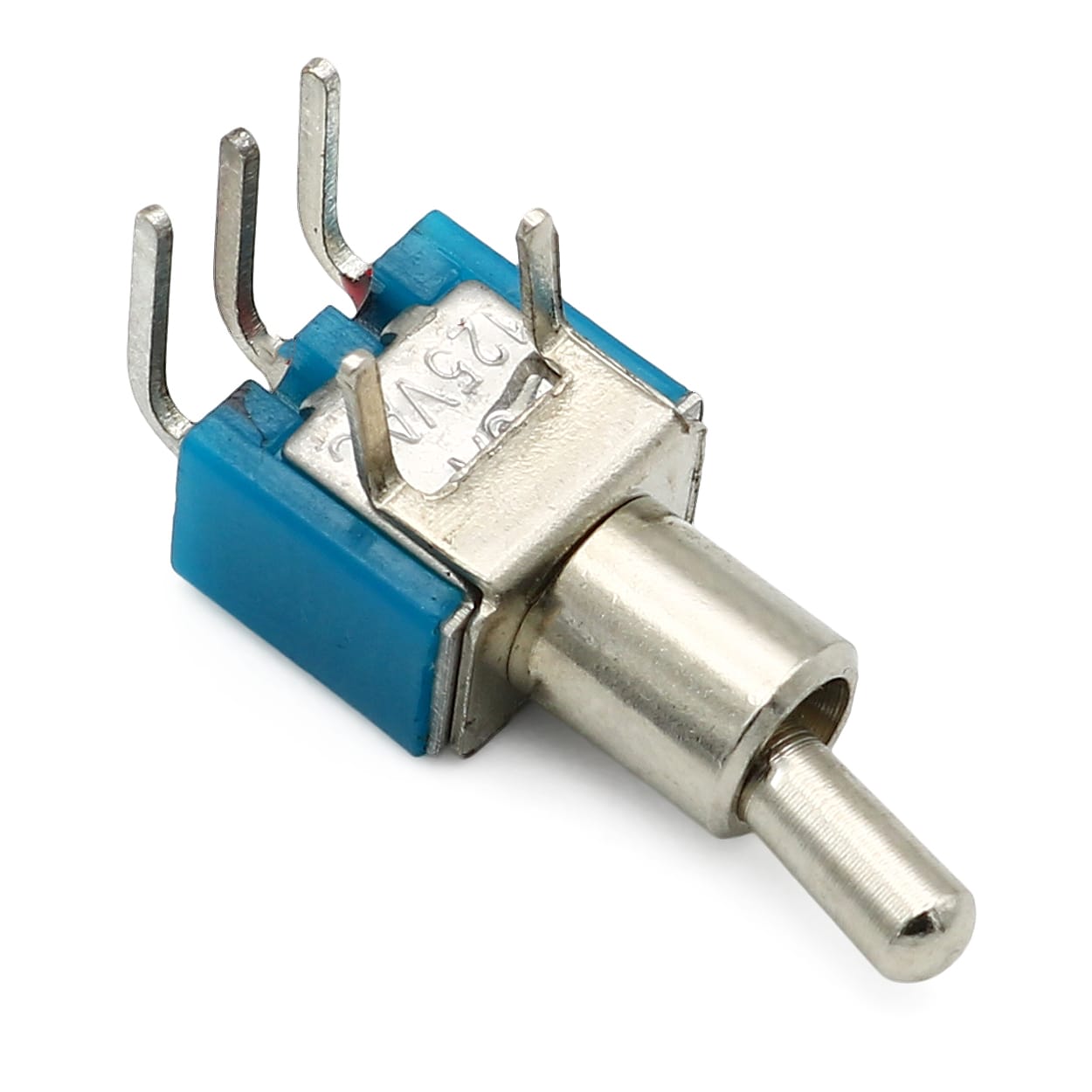

This is a right-angle latching SPDT ON-ON sub-miniature toggle switch with 3 horizontal PCB pins, rated to 125VAC 3A.

The right-angle terminal design allows you to mount the switch directly to your circuit board while extending the toggle lever out through the side of your enclosure. The shaft requires a 5mm hole and has enough length to pass through to a panel up to around 3-4mm thick.

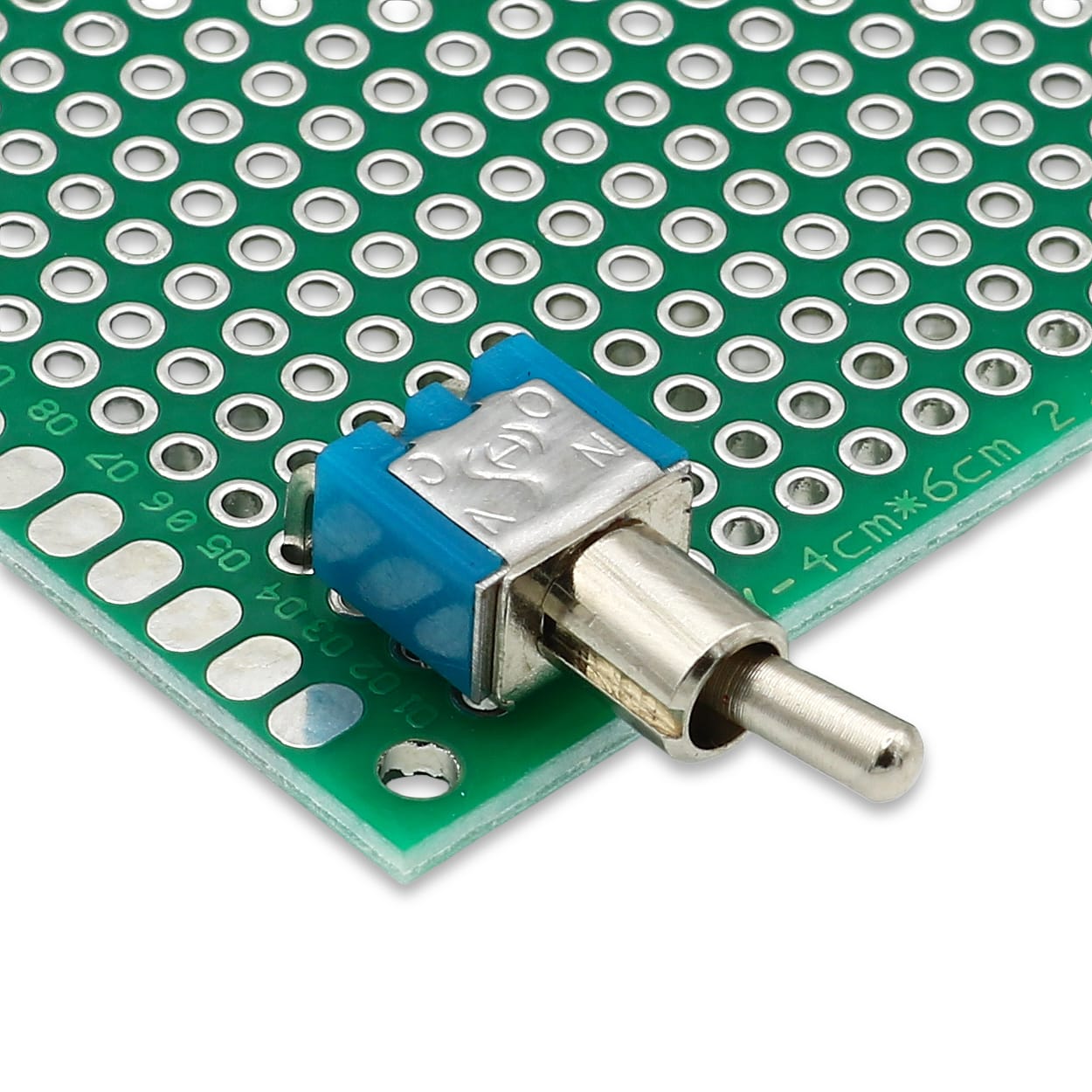

The switch has a smooth finished section around the lever, so no nuts or washers are required (or included). With a little encouragement, we found these fit into 2.54mm protoboards no problem, and breadboards can kinda work but it's a bit hacky.

Do not use these switches with mains voltages!

Features

• Right-angle sub-miniature toggle switch
• Horizontal PCB mount terminals
• SPDT (single pole, double throw)
• Latching action
• ON-ON switch
• Rated to AC 125VAC 3A
• 3 contacts/pins
• Body colour: Blue
• Model number: SMTS-102-C3
• Thread hole size: 5mm
• Maximum panel thickness: up to 3-4mm

Package contents

• 1x Right-Angle SPDT ON-ON Latching Sub-Miniature Toggle Switch
