RGB Full-Colour LED Matrix Panel - 2.5mm Pitch, 64x32 Pixels

WaveshareSKU: WAV-23707
Price:
Sale price £17.30
incl. VAT
excl. VAT
Stock:
Only 13 units left
Quantity:

Awesome Extras

AdafruitAdafruit RGB Matrix Bonnet for Raspberry Pi
Sale price £14.70 incl. VAT excl. VAT
PimoroniInterstate 75
Sale price £15 incl. VAT excl. VAT

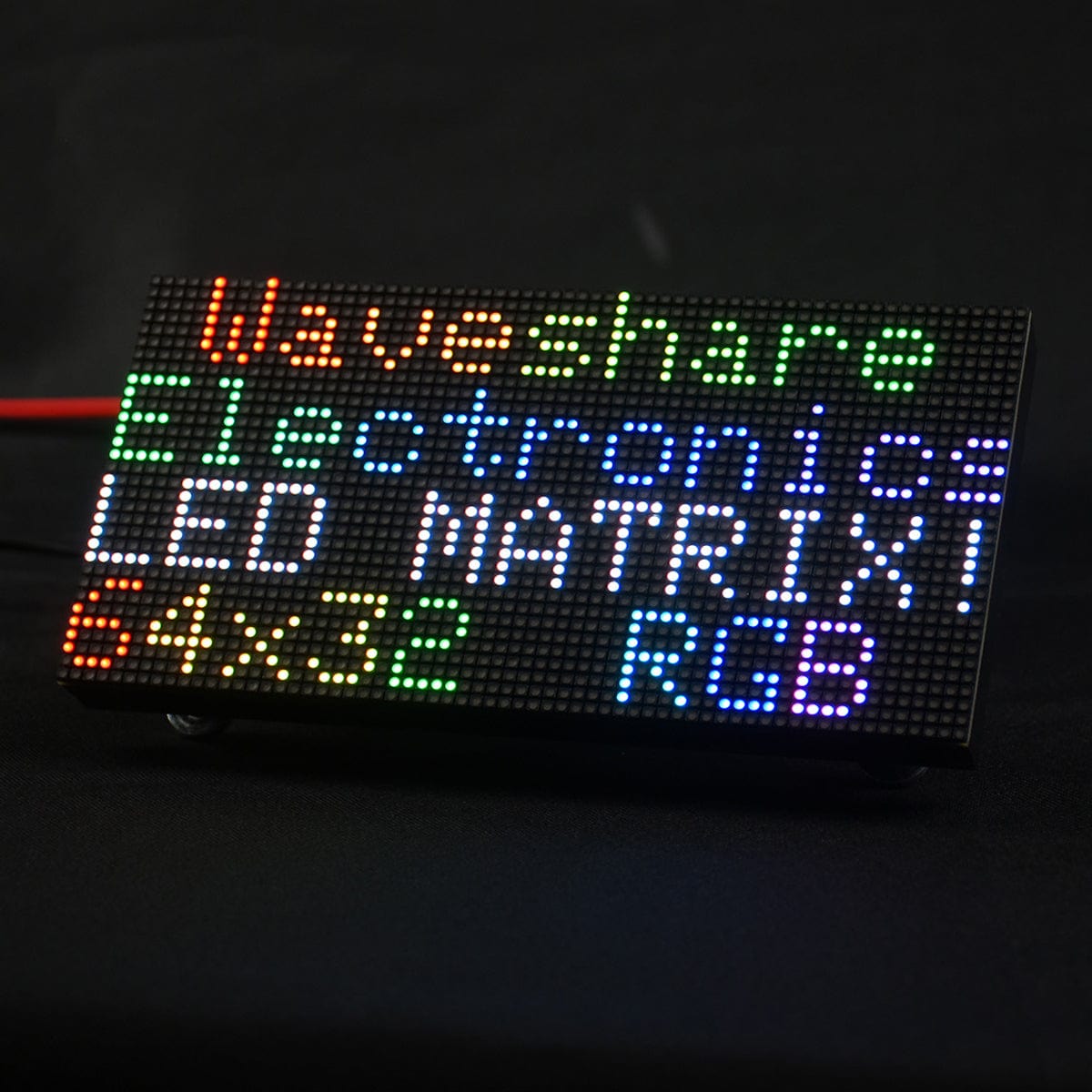

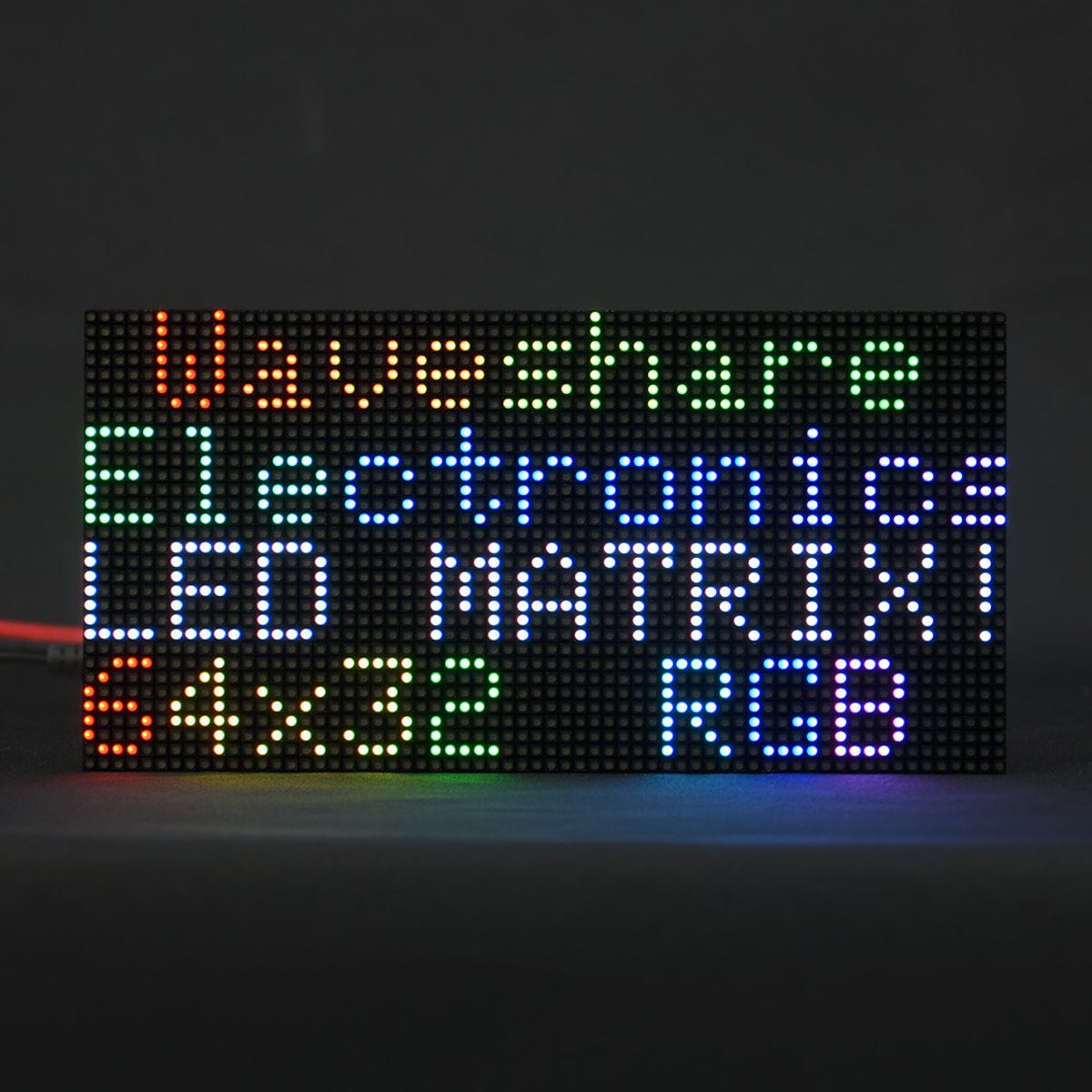

Create a super-compact colourful display with text, shapes and sequences with this 64x32 2.5mm pitch RGB LED Matrix panel from Waveshare.

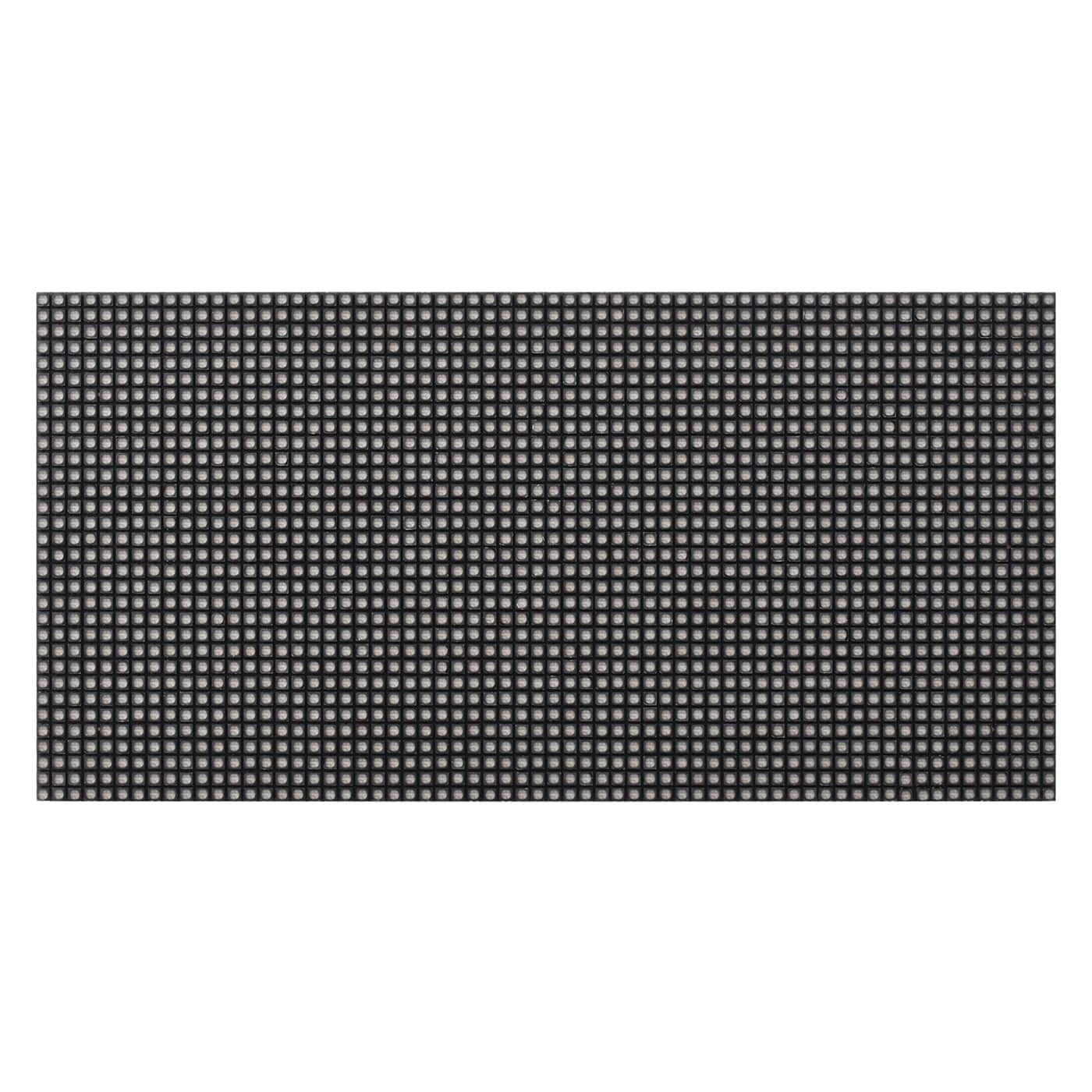

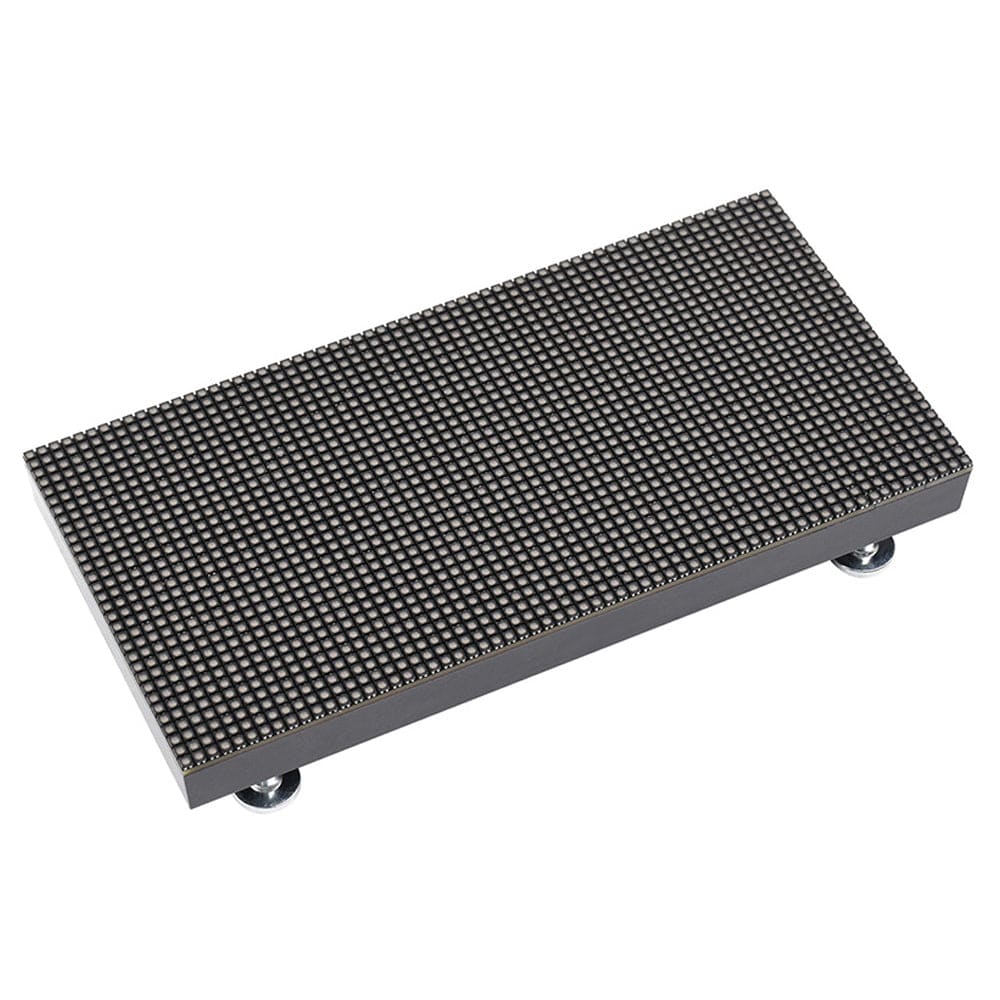

This LED matrix panel contains 2048 individual RGB LEDs which you can control with your favourite compatible microcontroller. The matrix has 64x32 LEDs with a 2.5mm pitch, suitable for text, animations and more.

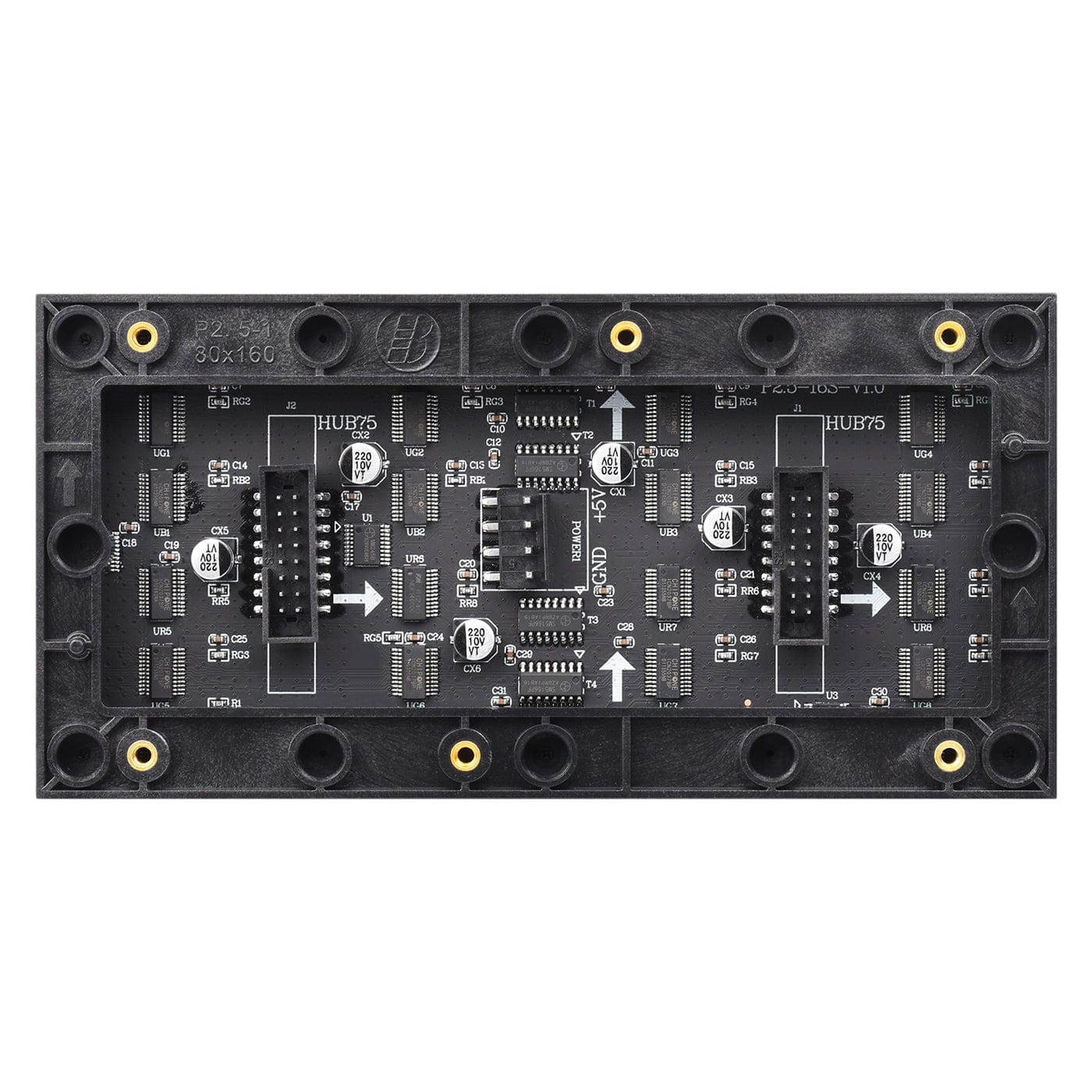

The 160x80mm panel includes two HUB75 headers for data, one for input and another for output, which allows you to chain multiple panels together for even larger displays - just keep an eye on current usage and ensure you have an adequate power supply. Power is fed to the unit via the central VCC/GND header.

The LED matrix comes with cables and accessories (see the image below under the Package Contents section). The product wiki includes some demo code and wiring instructions to help you get started with a Raspberry Pi Pico, Arduino Mega and ESP boards!

A 5V 2.5A power supply is recommended.

Need a different size?

We offer these Waveshare LED matrix units in different sizes with different LED pitch layouts, allowing you to find the right option for your specific project - check out the Waveshare range here or simply view our entire LED matrix section!

Features

  • 2048 individual RGB LEDs, full-colour display
  • Adjustable brightness
  • 64×32 pixels, 2.5mm pitch - display text, colourful images or animations
  • 160x80mm dimensions - suitable for DIY desktop display or wall mount display
  • Two HUB75 headers, one for controller data input, one for output (chain support)
  • Demo code for use with Raspberry Pi Pico, Arduino and more
  • 5V 2.5A power supply recommended

Specification

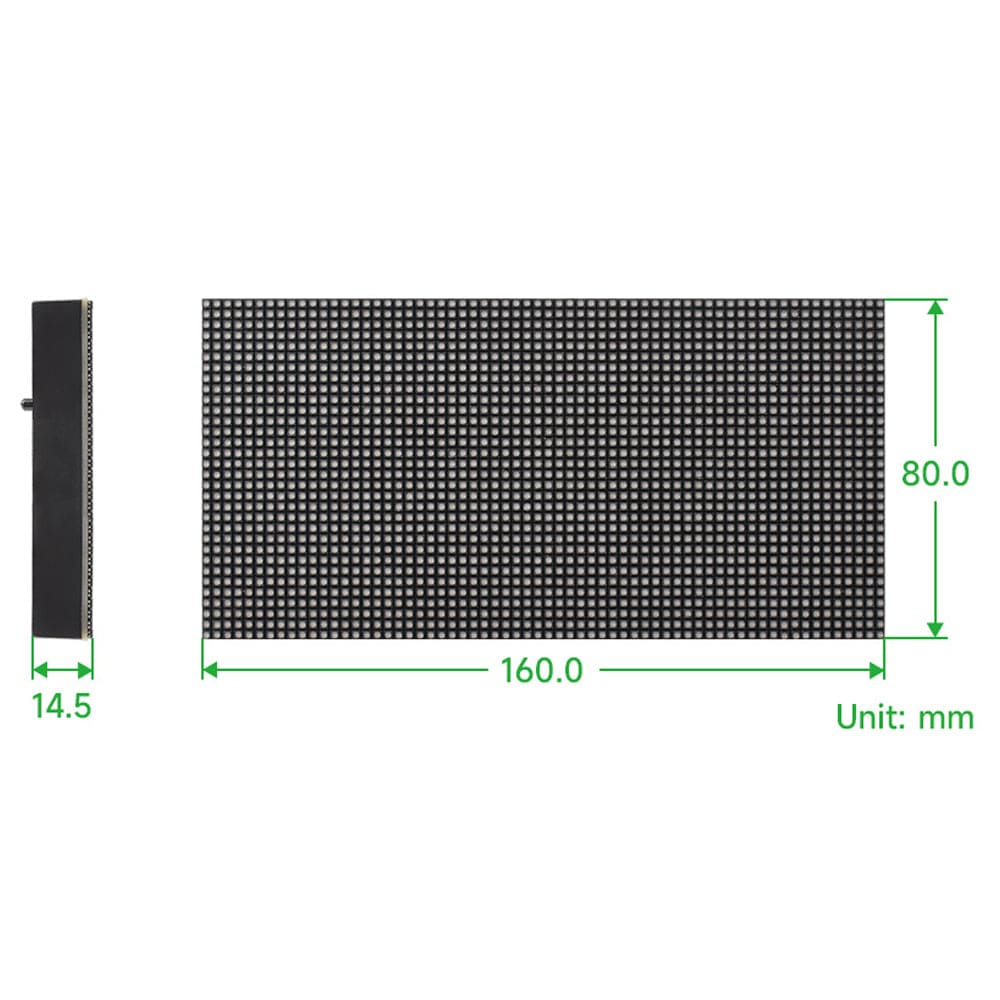

Dimensions 160mm × 80mm x 14.5mm
Pixels 64x32 = 2048 LEDs
Pitch 2.5mm
Pixel Form 1R1G1B
Viewing Angle ≥140°
Control Type synchronization
Driving 1/16 scan
Header HUB75
Power Supply 5V / 2.5A(VH4 header input)
Power ≤12W

Resources

Pinout

Pin Description Pin Description
VCC 5V power input GND Ground
R1 R higher bit data R2 R lower bit data
G1 G higher bit data G2 G lower bit data
B1 B higher bit data B2 B lower bit data
A A line selection B B line selection
C C line selection D D line selection
E E line selection CLK clock input
LAT/STB latch pin OE output enable

Package Contents

  • 1x RGB-Matrix-P2.5-64x32 LED matrix and accessories
  • 1x Power supply terminal adapter
  • 1x 16P wire ~30cm
