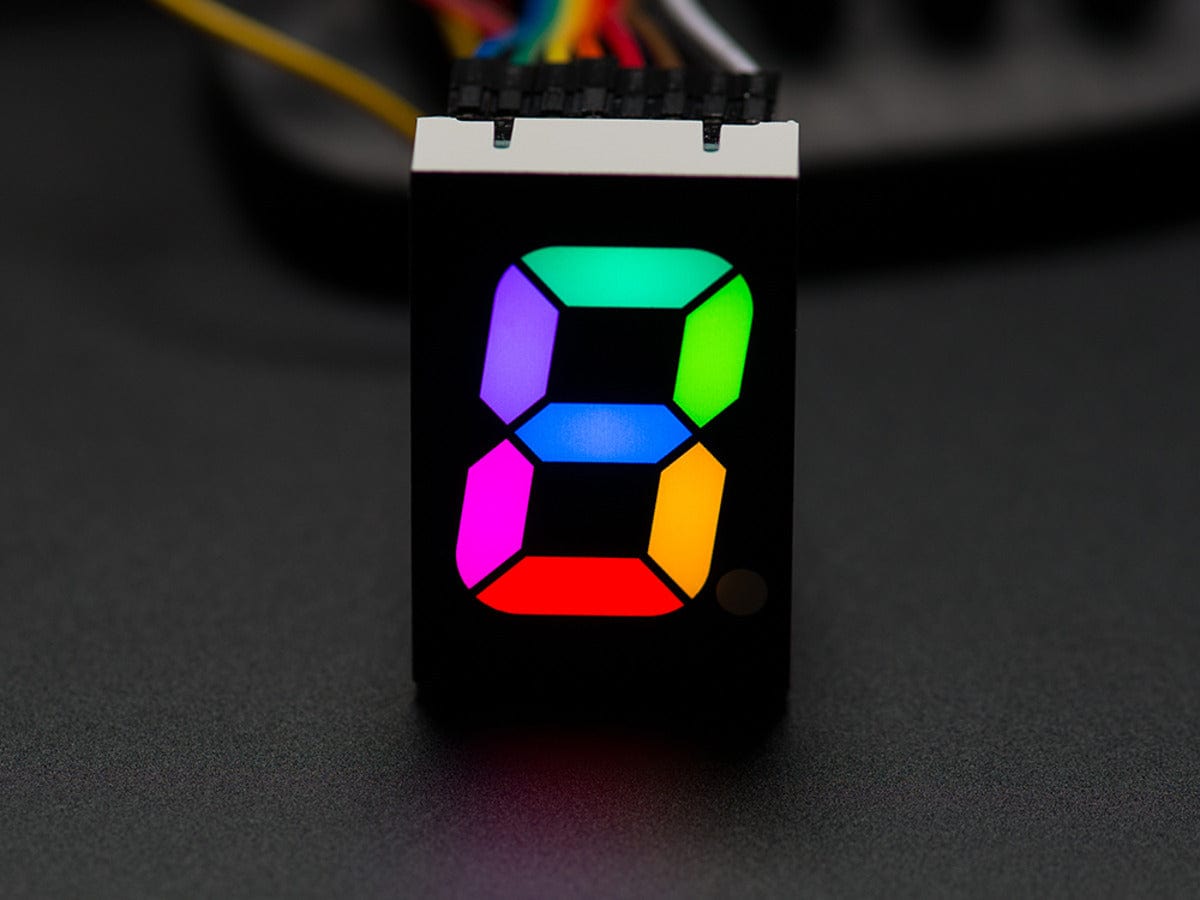

That photo isn't a Photoshop-job, it really is a 7-segment display with a RGB LED in every single segment! Now you can have a large 7-segment digit in your project with a full color display.

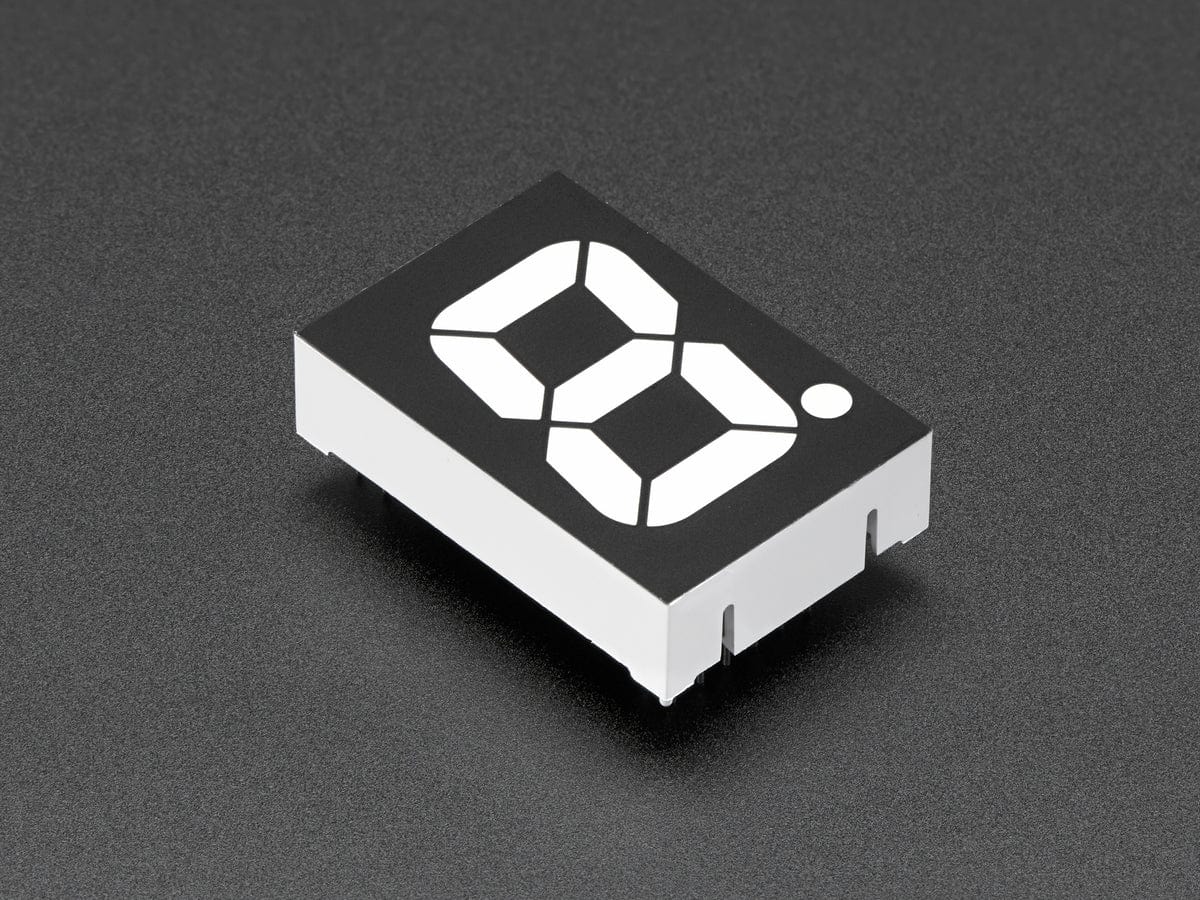

Inside each segment is 3 red/green/blue LEDs, for 21 LEDs total. The anodes are all connected together and then there are 21 cathodes to control. Unfortunately, that means you'll need 21 pins to fully control the display, and we do not have a backpack or easy solution at this time. We suggest 3 75HC595's (or similar) chained together so you can control 24 pins with a 3-pin SPI interface. That will let you light up each segment's LED separately. The decimal point is not connected (does not light up) on this display, only the seven segments.
Brightness (at 20mA):
The RGB 7-segment datasheet has a lot more details including dimensions, pinouts, brightness, etc.
RGB 7-Segment Digit - 1" Tall Digit (8:10)
- RGB 7-segment datasheet
- This is a common anode LED display

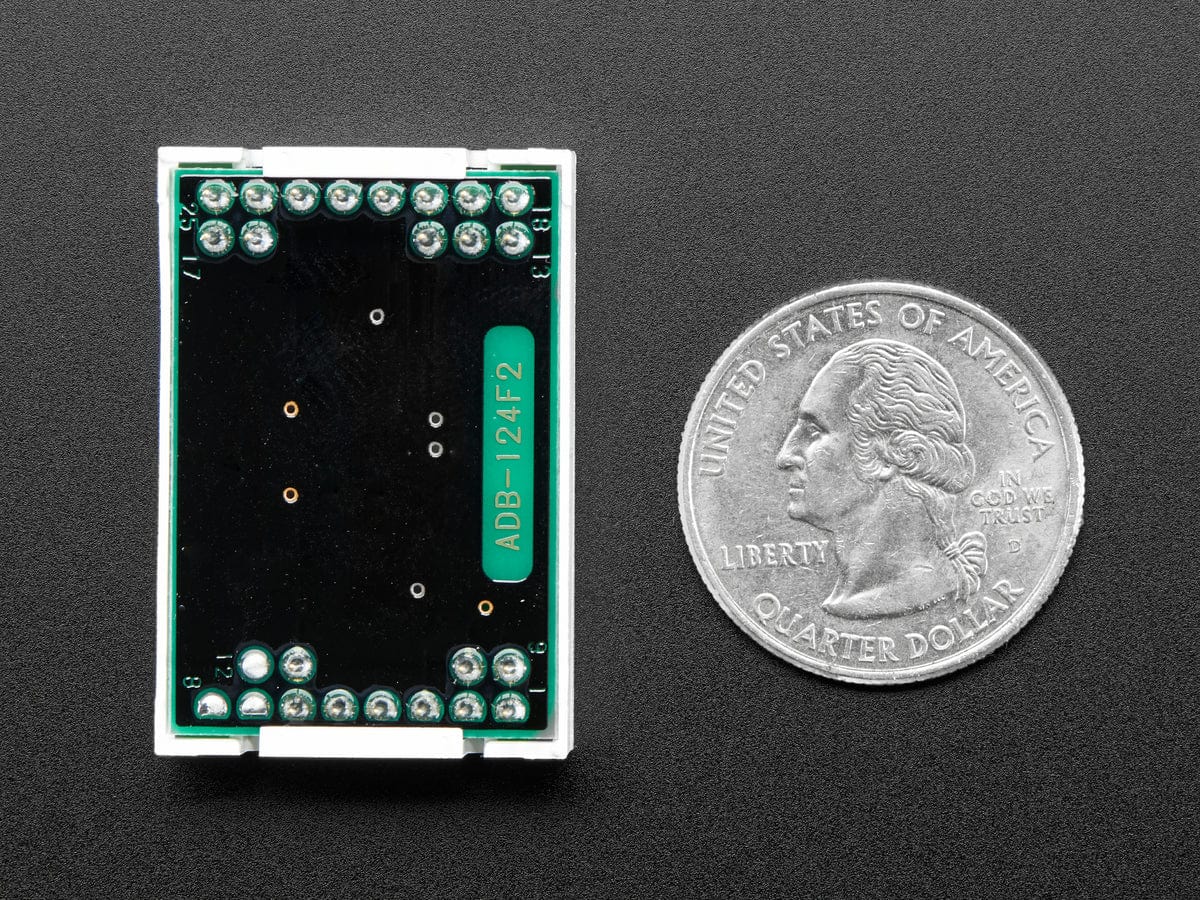

- Dimensions: 35.59mm / 1.4" x 24.10mm / 0.9" x 8.18mm / 0.3"
