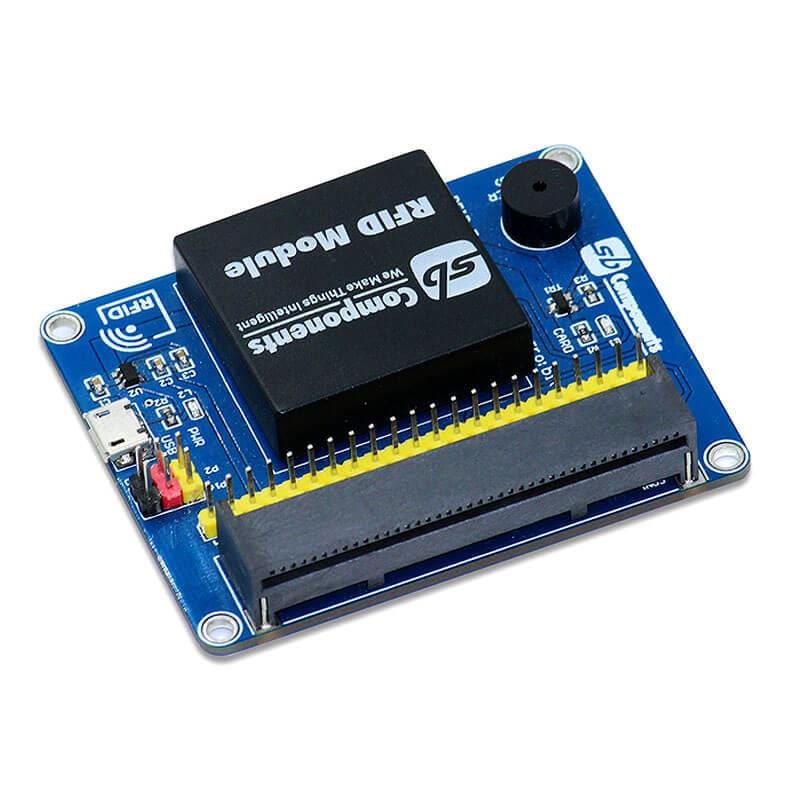

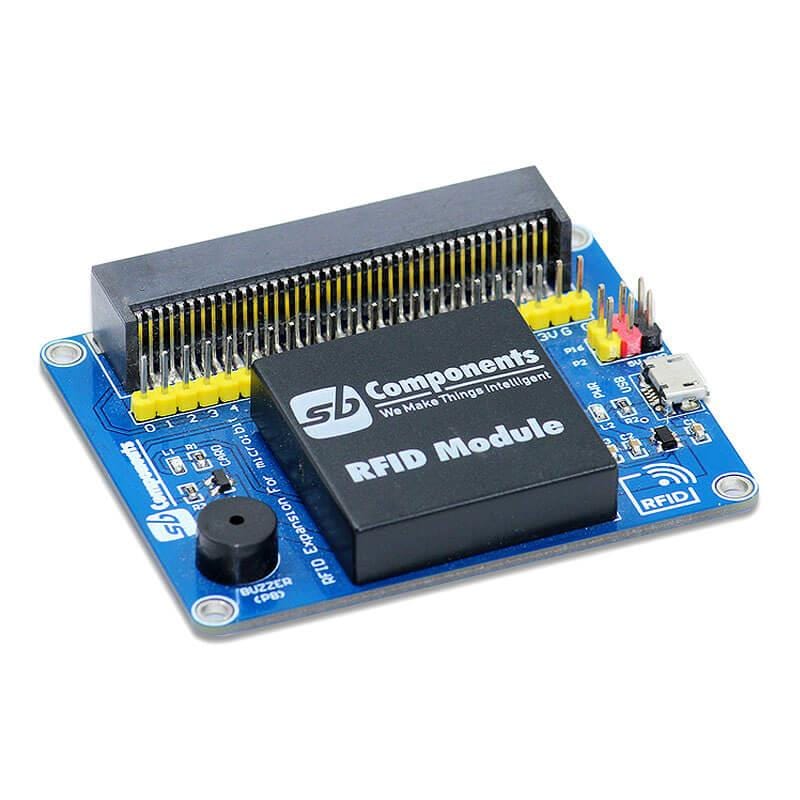

RFID Expansion for micro:bit

This expansion for the BBC micro:bit is an RFID device with a UART interface supporting 125KHz frequency RFID hardware. Control your projects with the tap of the included RFID fob or card!

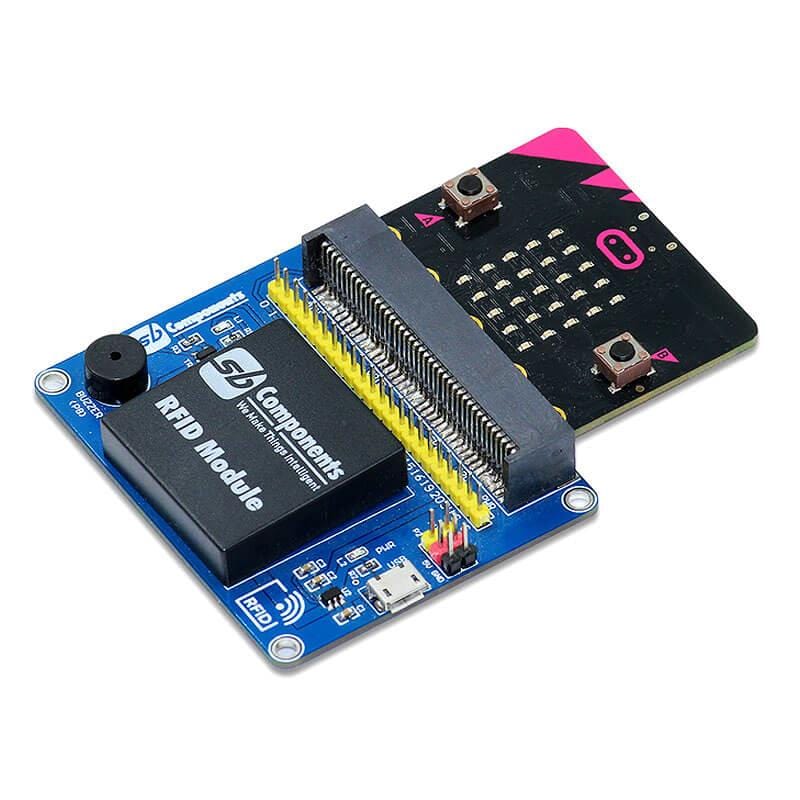

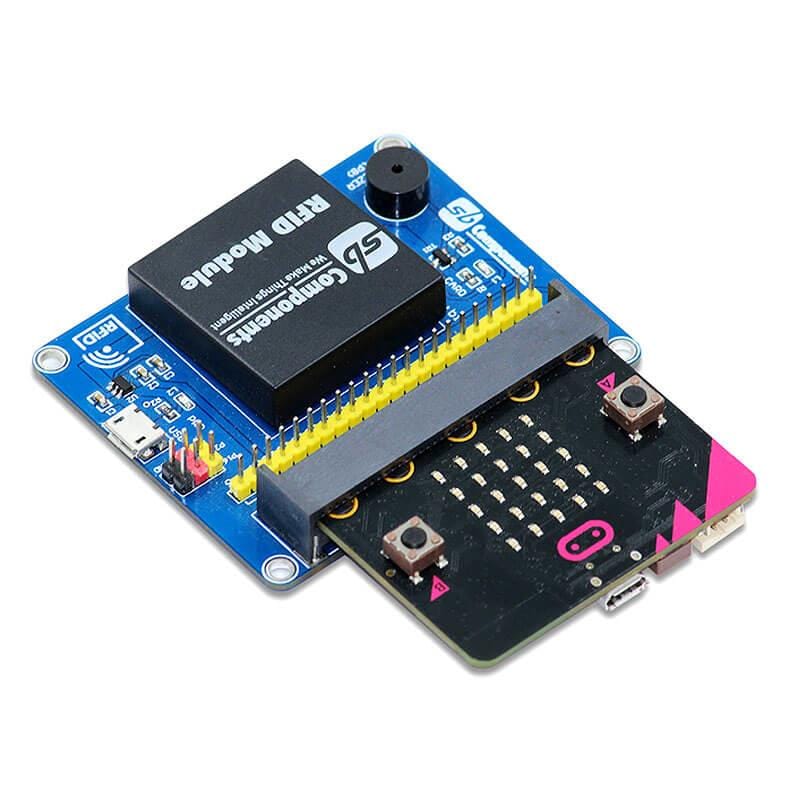

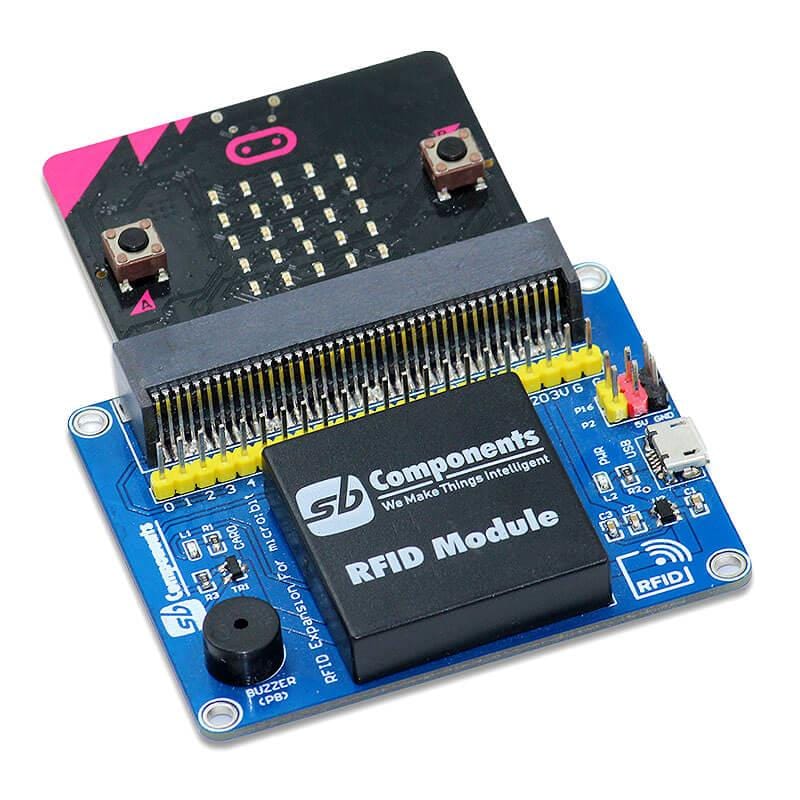

The module includes a programmable buzzer, dedicated pins for servo motor interfacing and a USB power port. The design is compact and compatible with all the variants of Micro:bit (both V1 and V2). Your micro:bit simply slots into the expansion header to connect the module.

The board comes complete with an RFID card and keyfob!

Features

• RFID Expansion for micro:bit
• Two dedicated slots for servo motor interfacing
• Programmable buzzer
• Power and card LED indicator
• Online development resources
• USB power port to provide power to RFID module and micro:bit

Specifications

• Operating Voltage - 5V
• Operating Frequency - 125 kHz
• Communication Interface - External Pins (GPIO and Power Pins)
• Default Baud Rate - 9600 bps
• Dimensions - 55.82 x 68 mm

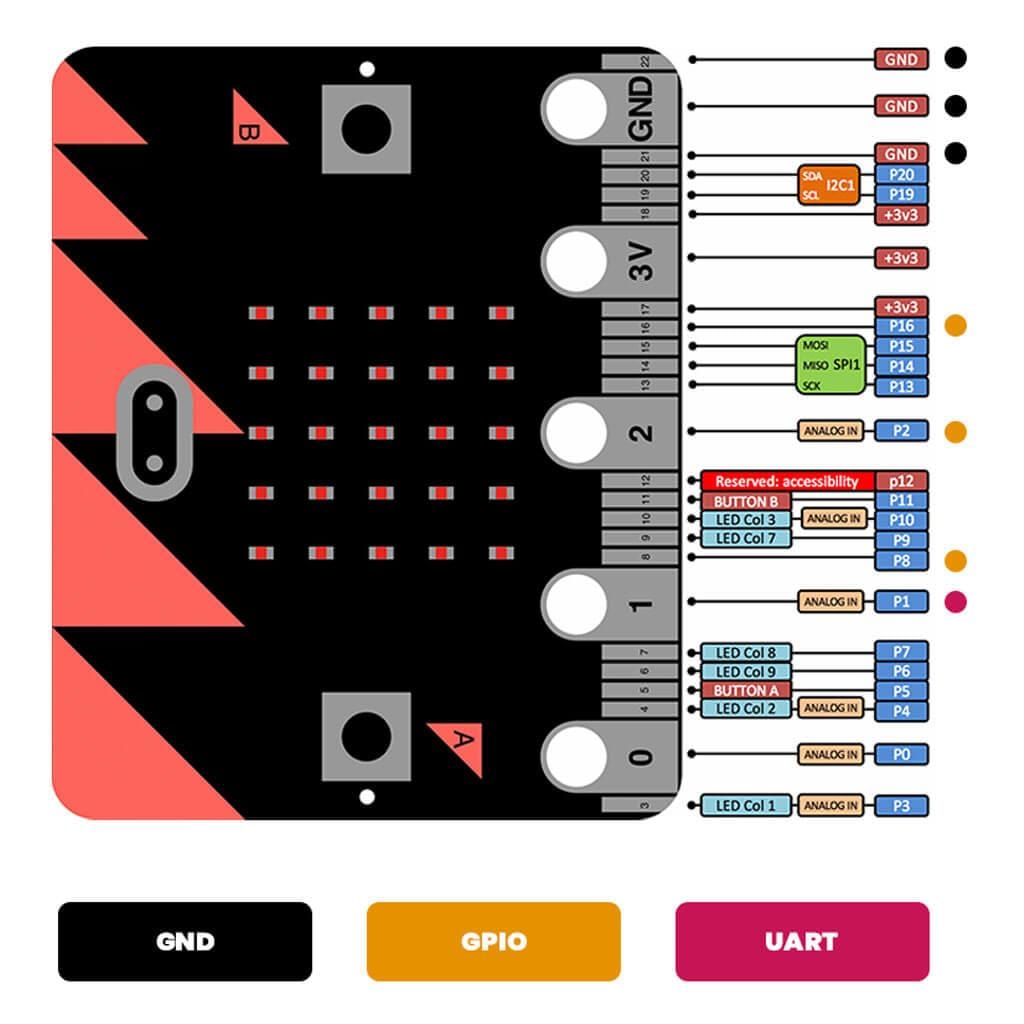

Pinout

Resources

• Manual
• GitHub
• Product Wiki
• MakeCode

Package Contents

• 1x micro:bit RFID Expansion
• 1x RFID Card
• 1x RFID Keyfob
