RasPiBox Zero - Pi Zero Prototyping DIN Rail Case (inc. 5V regulator)

ZihatecSKU: MMP-0468
Sale price £23
incl. VAT
excl. VAT
Only 11 units left

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi Zero WH (with pre-soldered header)
Sale price £15.40 incl. VAT excl. VAT

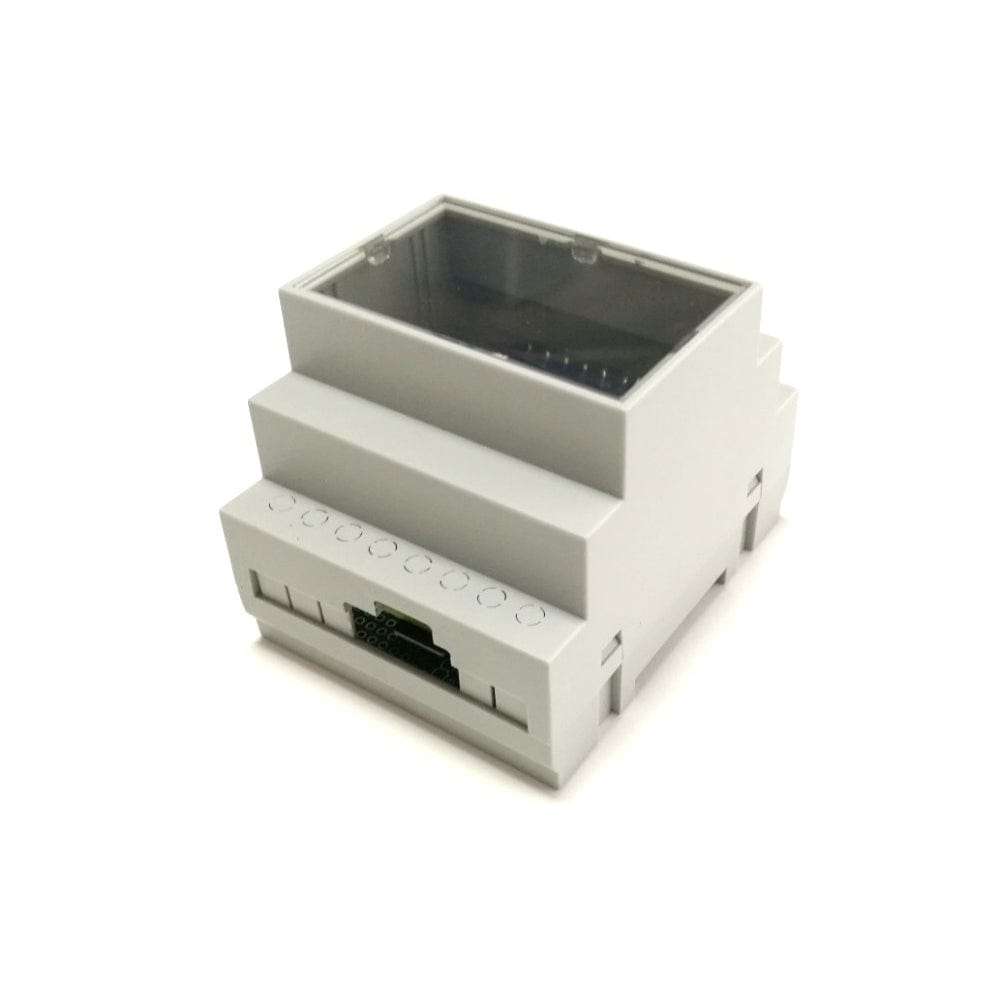

RasPiBox Zero is a DIN rail enclosure set for the Raspberry Pi Zero.

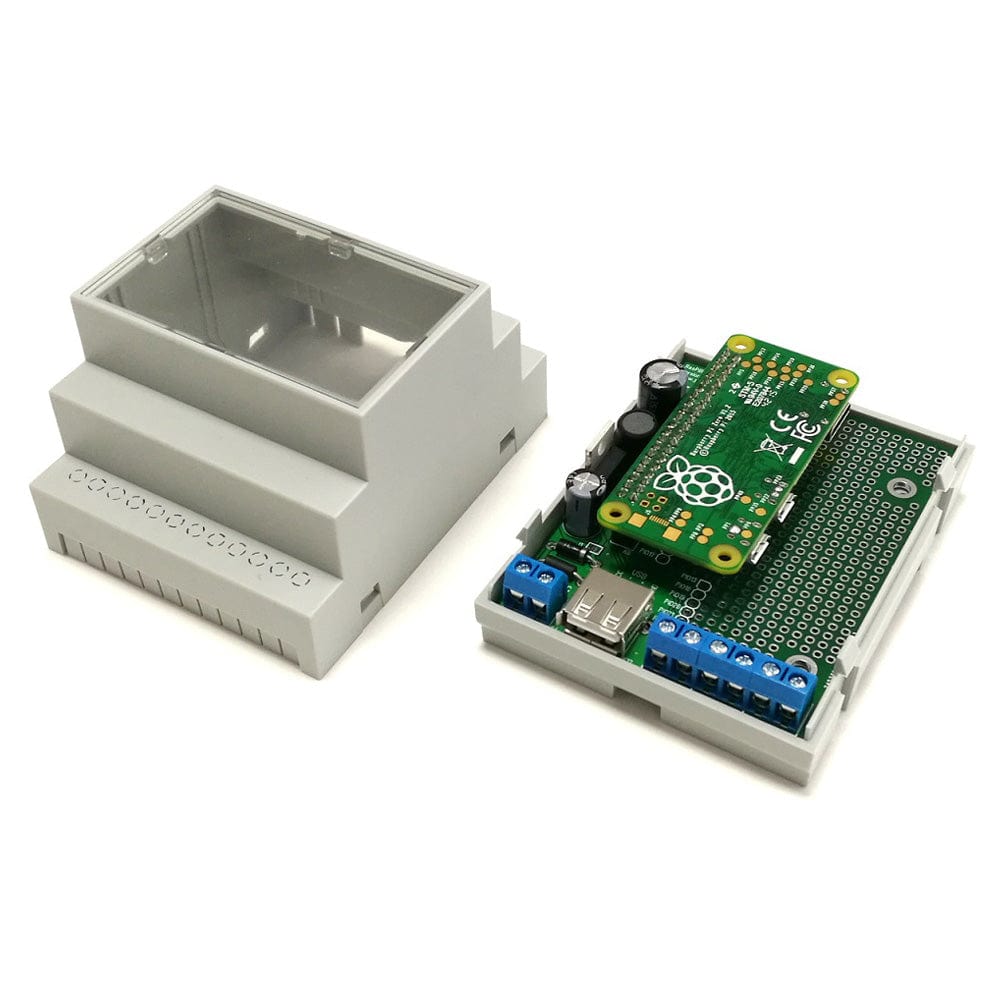

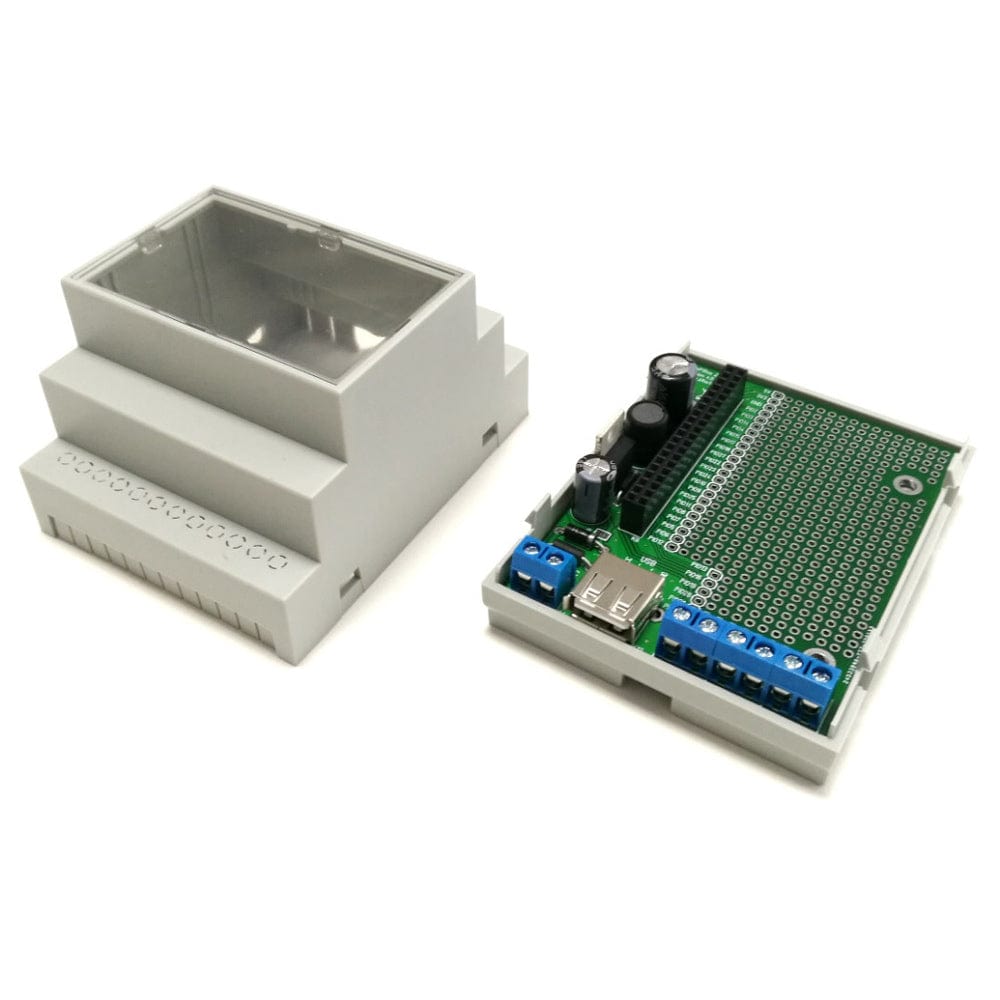

At the heart of the enclosure is an additional PCB with an integrated voltage regulator (soldering required) and a prototyping area. It fits together with the PiZero in a 4 module DIN rail enclosure and allows you to add your own custom circuit!

Note: Pi Zero not included. Assembly required including soldering.

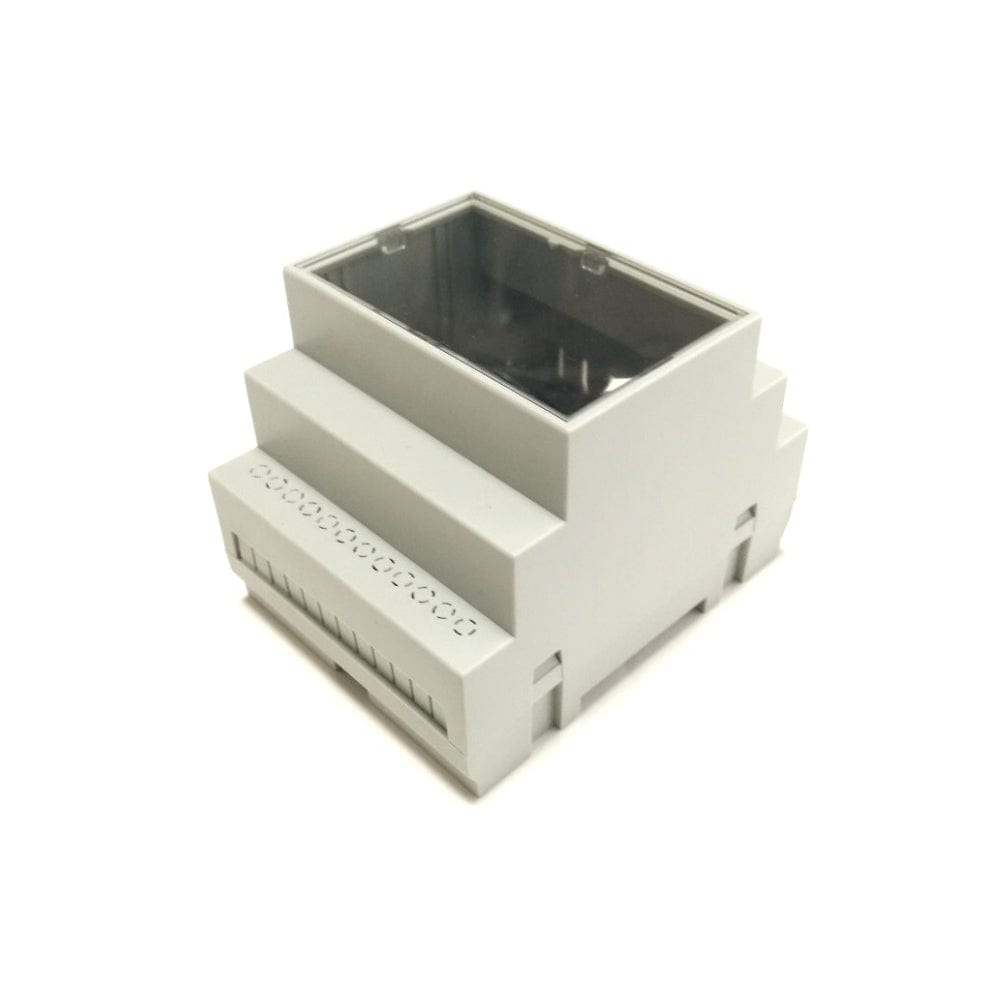

  • Milled 4 module DIN rail enclosure
  • Top shell with grey or transparent cover
  • Designed for EN50022 DIN rails
  • PCB with 40-pole female pin header to plug a Raspberry Pi Zero
  • Integrated voltage regulator (input voltage 9-35V via 2-way terminal block)
  • Protoboard for own circuits
  • All GPIO pins are marked and placed beside the breadboard area
  • 3x 2-way terminal blocks to connect external components to the breadboard
  • USB-A socket to bring the internal USB of the Pizero outside the housing
  • Removable protections for terminals
  • Opening for SD card on the top side
  • Raspberry Pi Zero (WH/1.3)
