Raspberry Pi High Quality Camera Lens

Option:16mm Telephoto
Price:
Sale price £57
incl. VAT
excl. VAT
Stock:
Only 19 units left
Quantity:

Awesome Extras

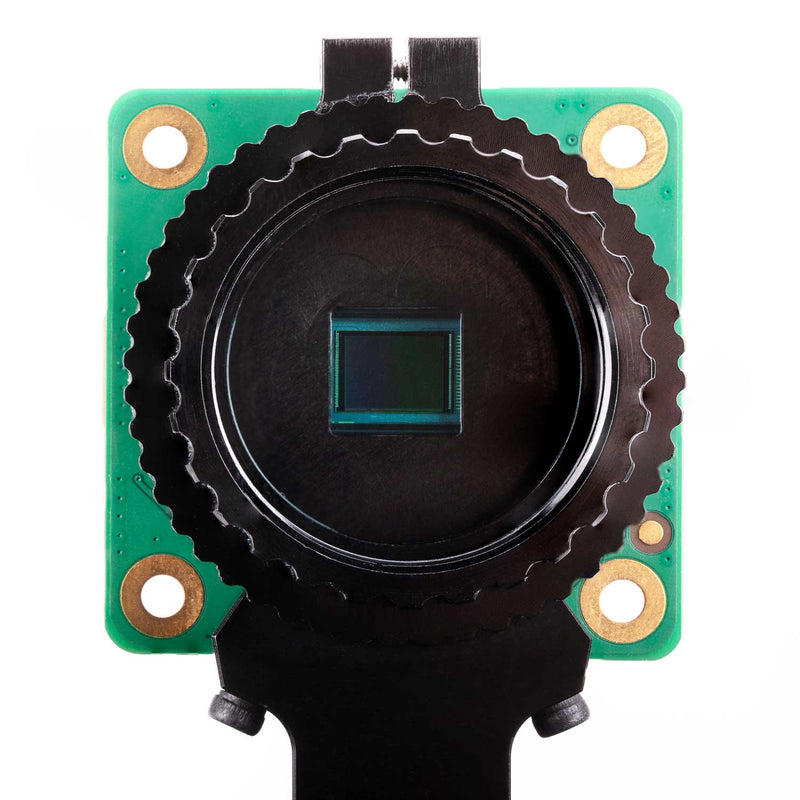

Raspberry PiRaspberry Pi High Quality Camera Module
Sale price £57 incl. VAT excl. VAT

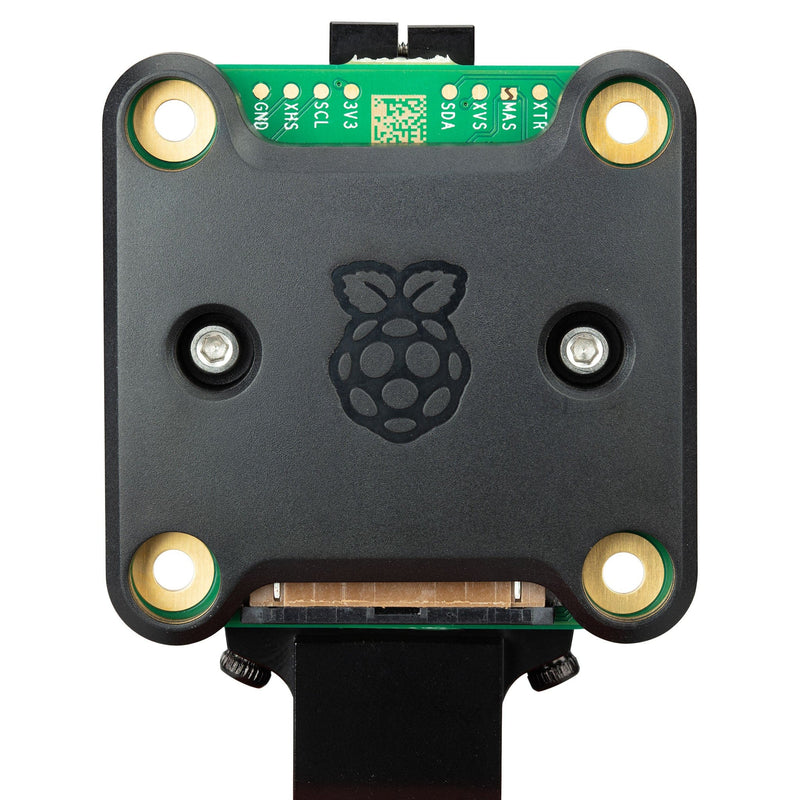

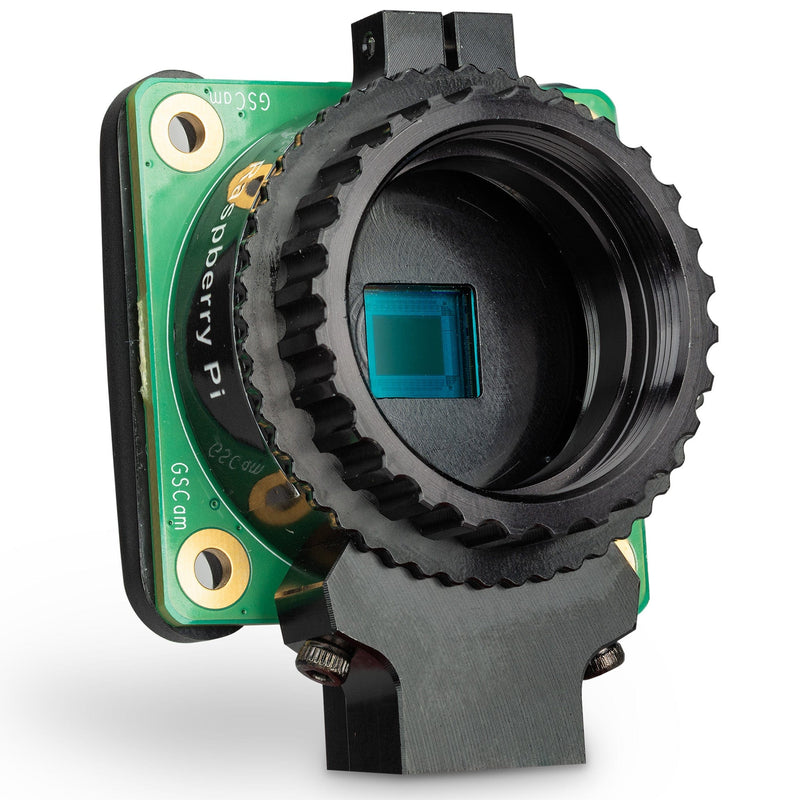

Raspberry PiRaspberry Pi Global Shutter Camera
Sale price £50.20 incl. VAT excl. VAT

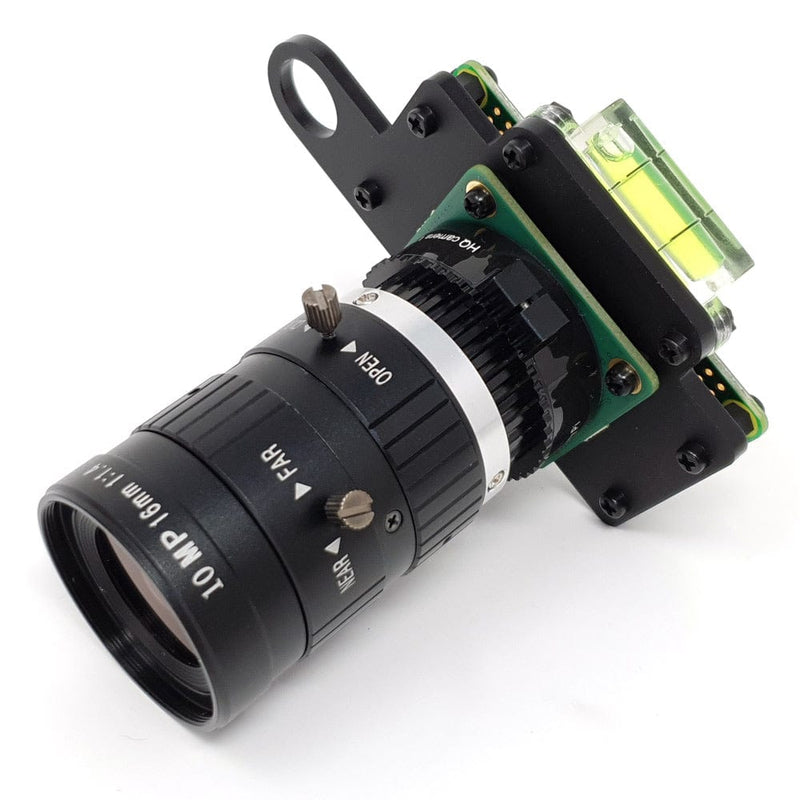

The Pi HutRaspberry Pi Mounting Plate for High Quality Camera
Sale priceFrom £3 incl. VAT excl. VAT

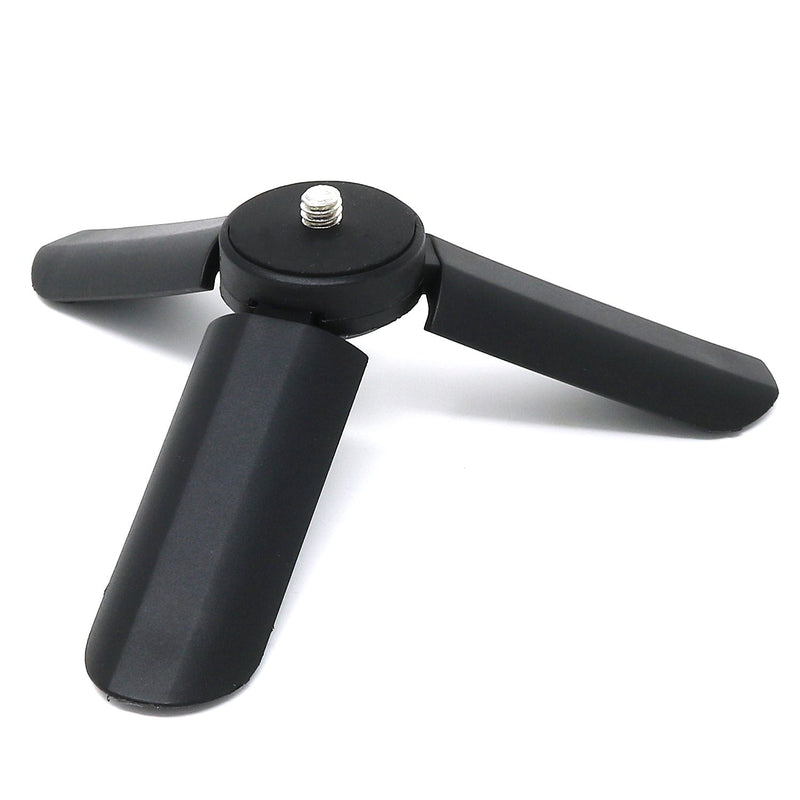

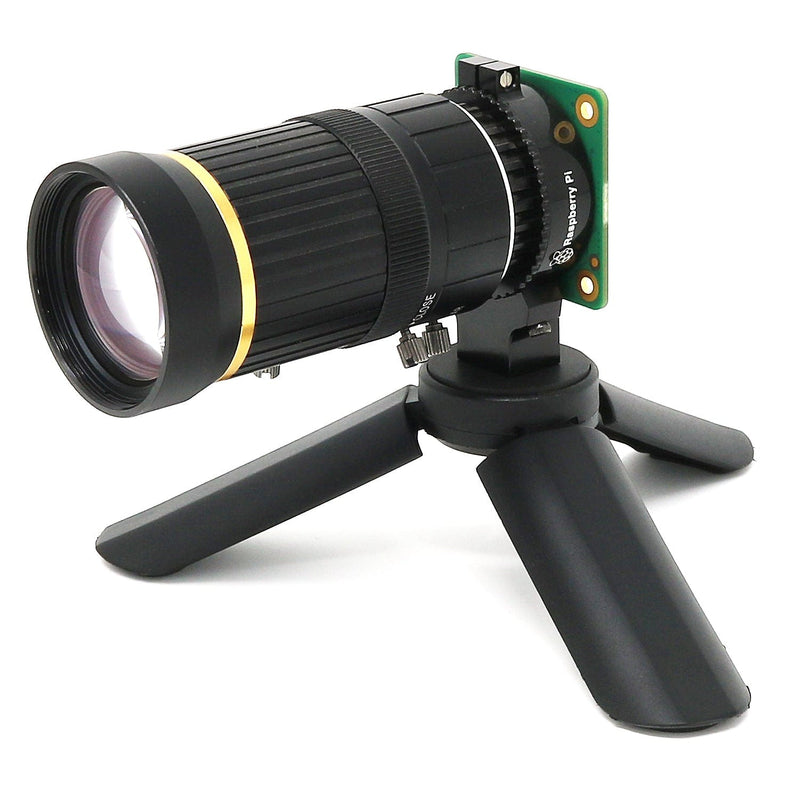

The Pi HutSmall Tripod for Raspberry Pi HQ Camera
Sale price £6 incl. VAT excl. VAT

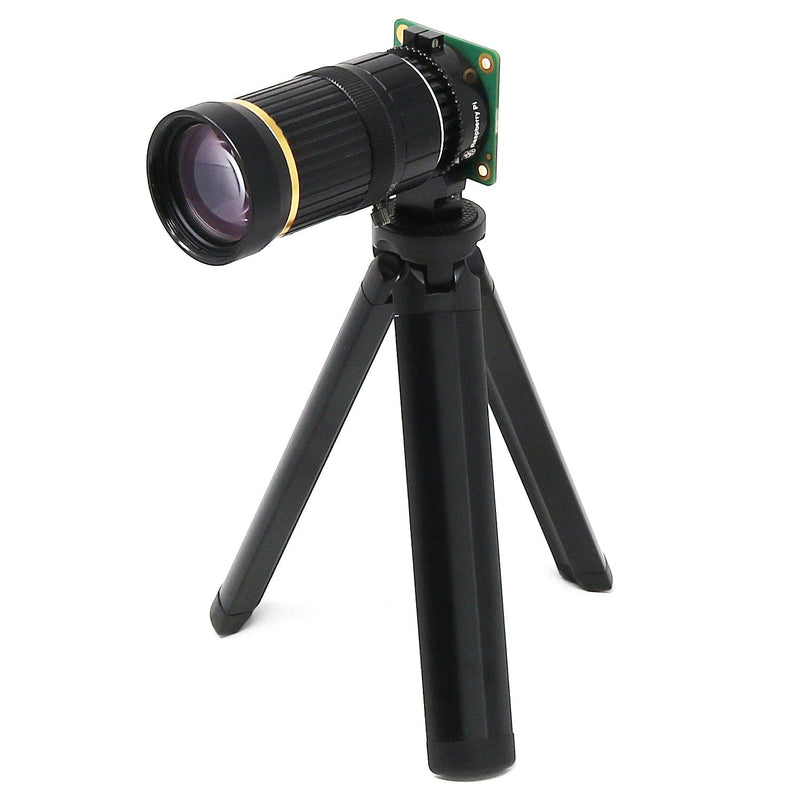

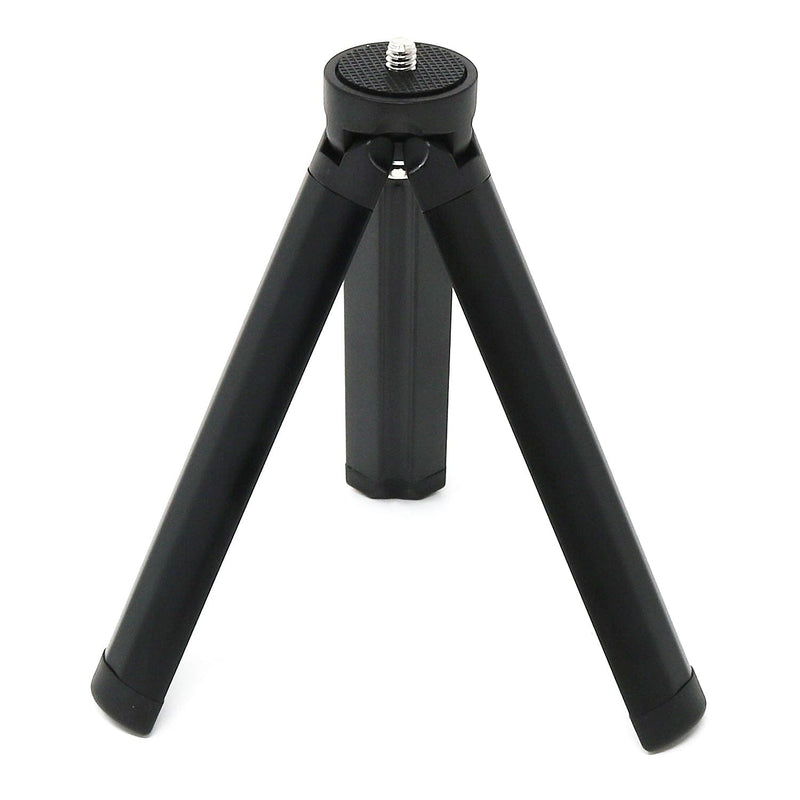

The Pi HutMedium Tripod for Raspberry Pi HQ Camera
Sale price £9 incl. VAT excl. VAT

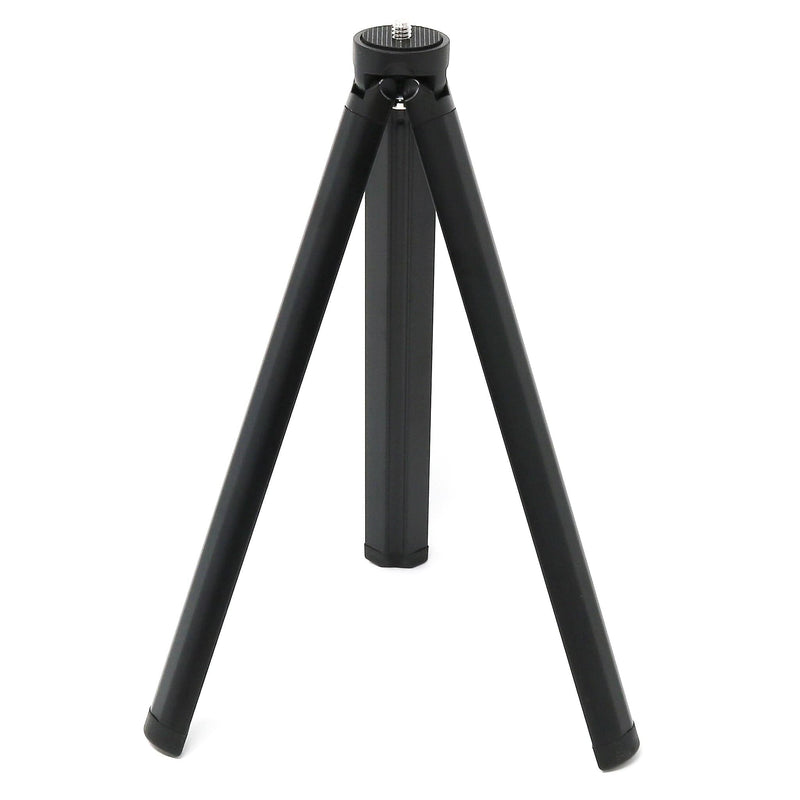

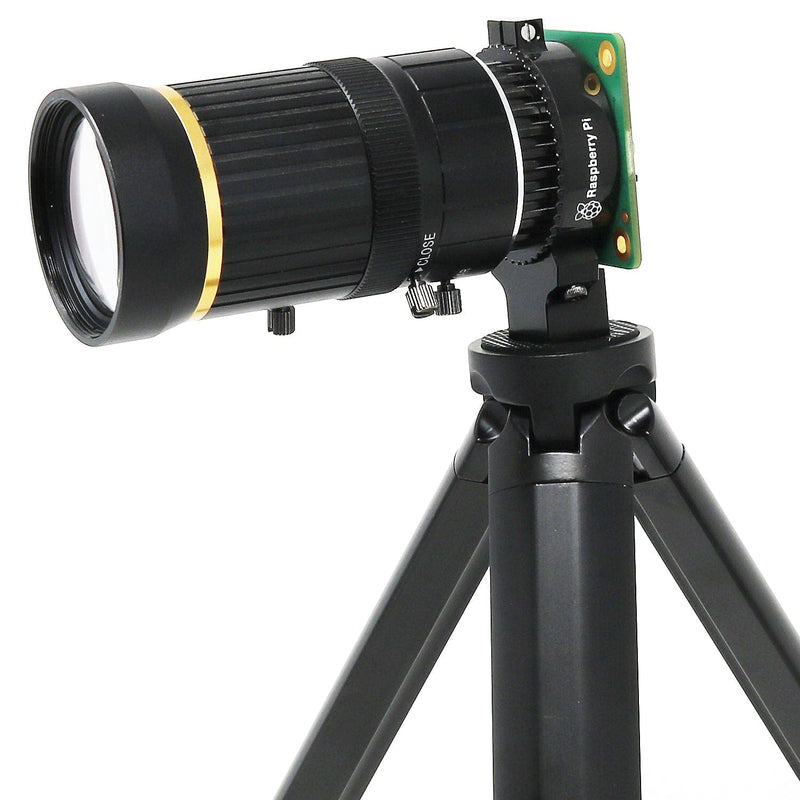

The Pi HutLarge Tripod for Raspberry Pi HQ Camera
Sale price £12 incl. VAT excl. VAT

The new High Quality Camera from Raspberry Pi is compatible with C or CS-mount lenses. We have two options available in this listing - 6mm 3MP Wide Angle and 16mm 10MP Telephoto (select option above). We also have a number of other lens options in the store!

Please note: This listing is for one lens. Select either the 6mm or 16mm from the available options. Raspberry Pi High Quality Camera not included - available separately here.

Which HQ Camera lens do I need?

The 6mm 3MP Wide Angle lens is great for CCTV-style applications with its wide field of view, allowing you to see more of the overall target area (do not use the lens adapter with the 6mm lens or everything will be blurry!)

The 16mm 10MP Telephoto lens offers a high level of zoom, for targeting your camera on specific subjects.

The lenses screw directly onto the Raspberry Pi High Quality Camera and feature multiple adjustment options (via thumbscrews) for greater flexibility and image refinement. Covers for the front and rear of the lenses are included and come pre-fitted.

Check out our lens section for other lens options!

Features

Resources

Specification

Feature 6mm 3MP 16mm 10MP
Image format 1/2" 1"
Focal length 6mm 16mm
Resolution 3 Megapixel 10 Megapixel
Aperture F1.2 F1.4 to F16
Mount CS C
Field Angle 63° 1" 44.6°× 33.6°
2/3" 30.0°× 23.2°
1/1.8” 24.7°× 18.6°
1/2" 21.8°× 16.4°
Distortion - 1" (-0.7%)
1/2" (-0.5%)
1/3" (-0.15%)
M.O.D 0.2m 0.2m
Back focal length 7.53mm 17.53mm
Optical length - 67.53mm
Filter thread size 27mm 37mm
Dimensions 30x34mm 39x50mm
Weight 53g 133.7g
