The range of high-quality, maintenance-free polypropylene junction boxes from QuickFix JB provides an innovative, safe and secure option to manage junctions in your home automation project.

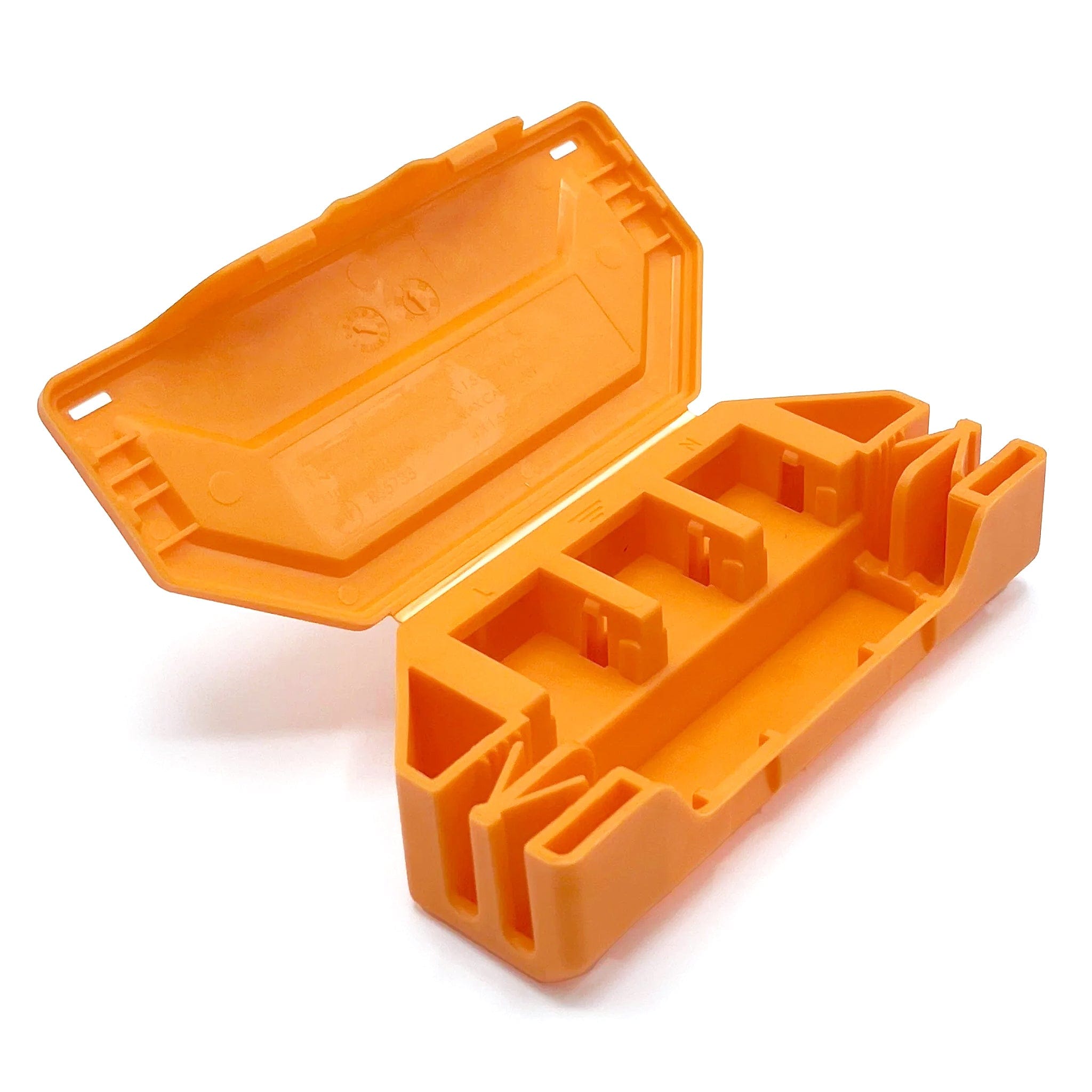

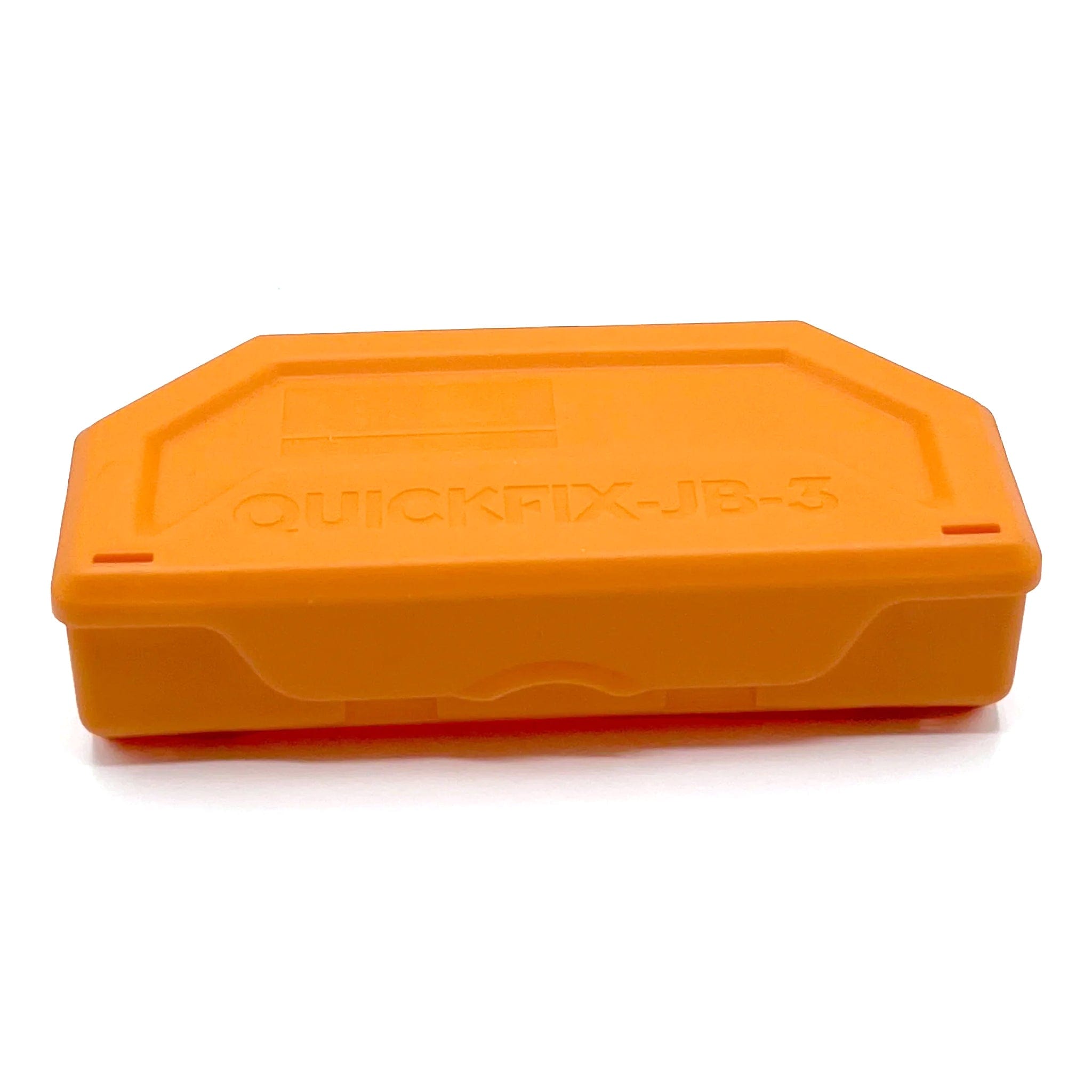

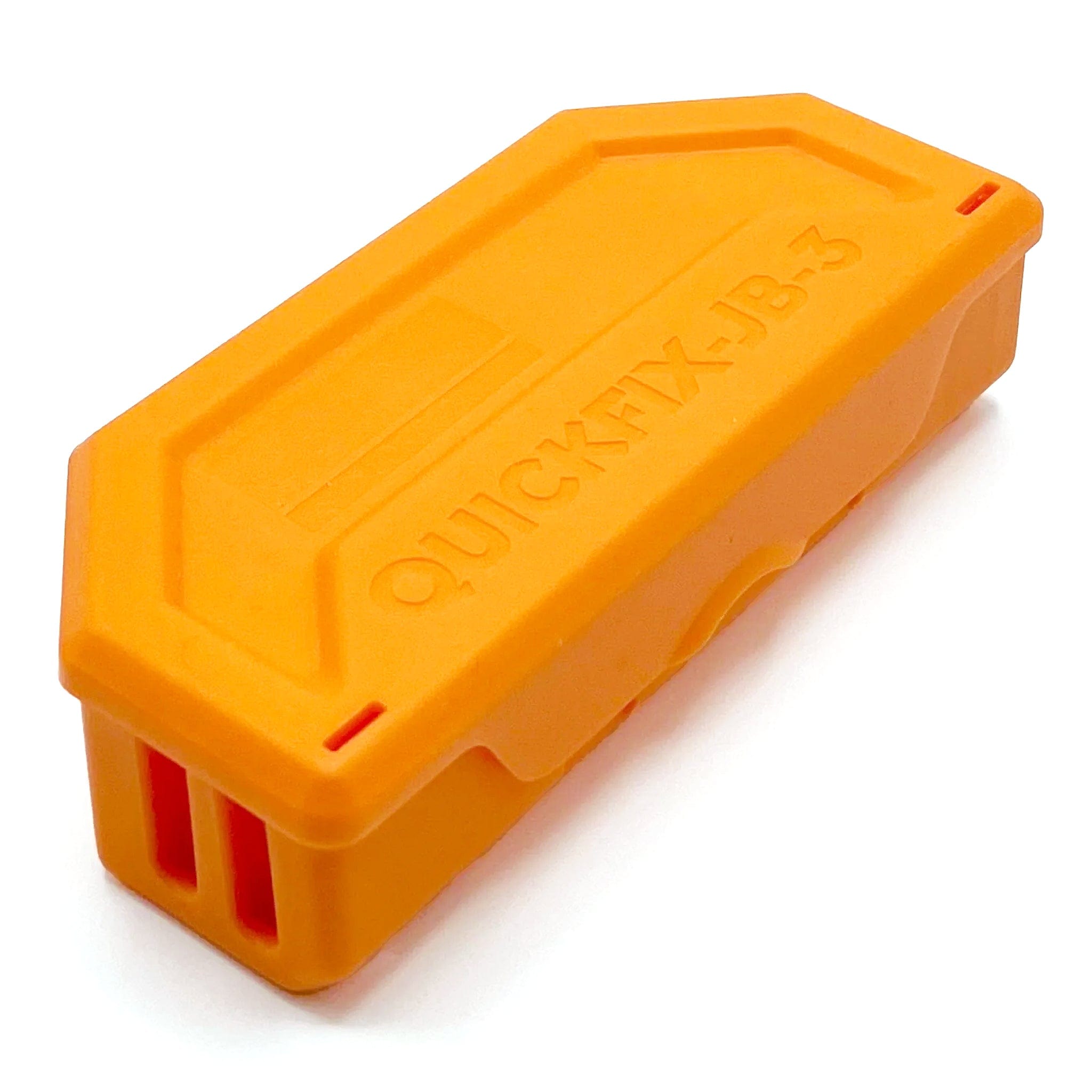

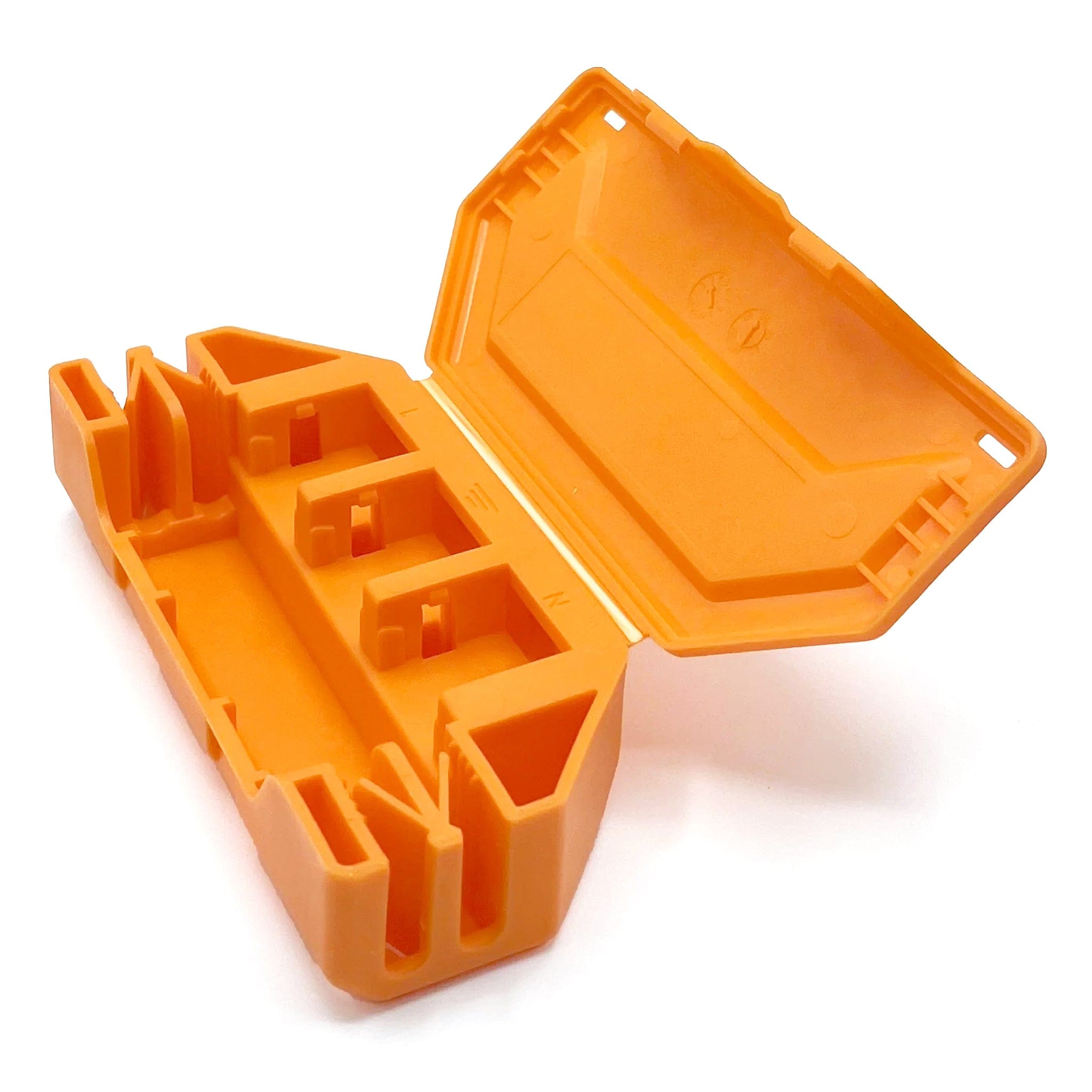

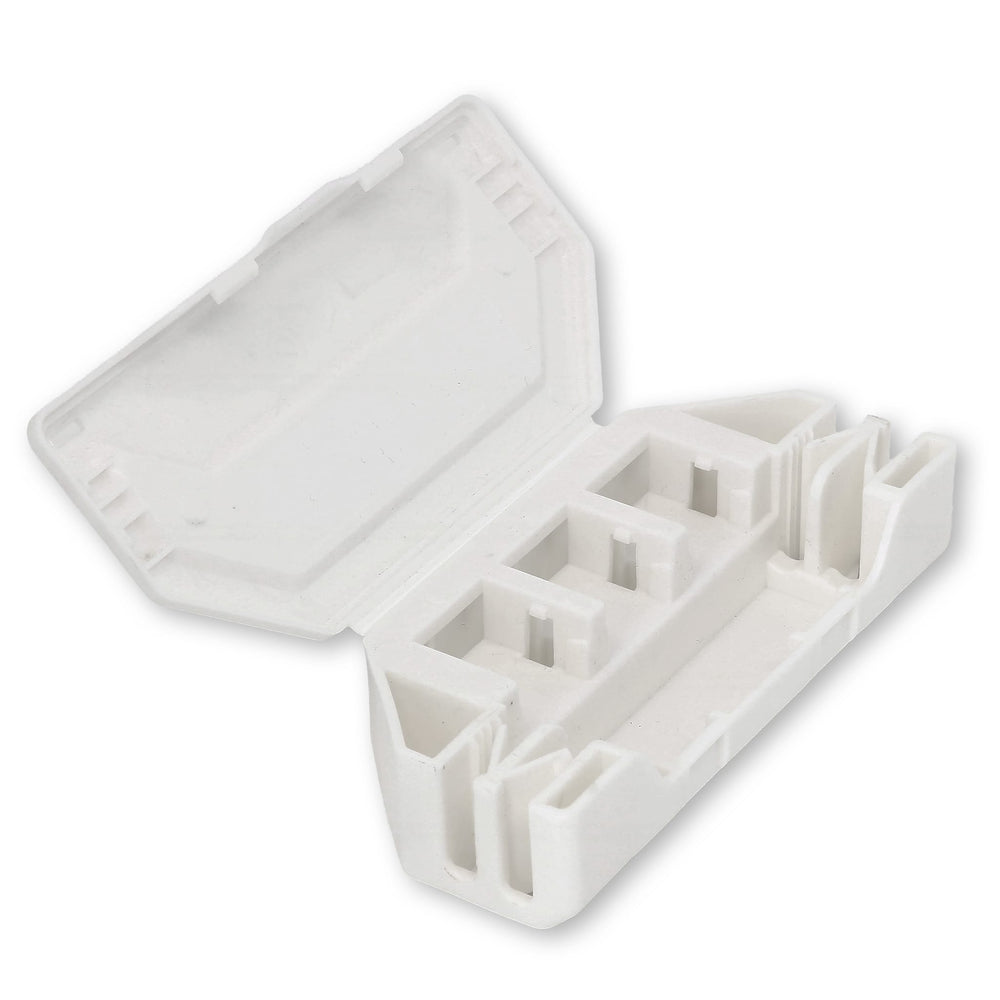

This model is the QuickFix JB-3 - designed for use with 3-way WAGO 221-413 (or the new WAGO Green 221-423) lever connectors. Snap the WAGO connectors in and they're held securely ready for your wiring, or wire them first and then pop them into place. Easy multimeter probe access is provided thanks to the front lower lip.
The JB-3 is designed for loop-in systems with cable sizes 1.0mm, 1.5mm & 0.75m flex. The box includes internal space to retail excess cable length and has quick and secure cable slots. It can handle up to 16 amps, meets BS5733 & 18th edition wiring regulations and is flame retardant to EN60598 standards. They are IP20-compliant for indoor use.
Note that once snapped into position, WAGOs can only be removed with nose pliers (which will likely damage them). This is by design, to keep the WAGOs securely in place. The levers can be opened/closed once snapped in, so there is no need to remove them.
Designed and manufactured in the UK!
Features
Designed for WAGO 221-413 / 221-423 series connectors
Dimensions: L 113.5mm, W 60mm, Depth 28mm
Can handle up to 16 amps
Designed for cable sizes 1.0mm, 1.5mm & 0.75mm flex
Complies with BS5733 & 18th Edition Wiring Regulations
High-Quality Polypropylene Material
Flame Retardant EN60598
Designed for Loop IN system
Internal Space to Retain Excess Cable Length
Quick & Secure Cable Slot
Complies with IP20 Standards
No Screwdriver Required
Easy multimeter Probe Access to Connector Terminals
Package Contents
1x QuickFix JB-3 junction box
Connectors are not included.
