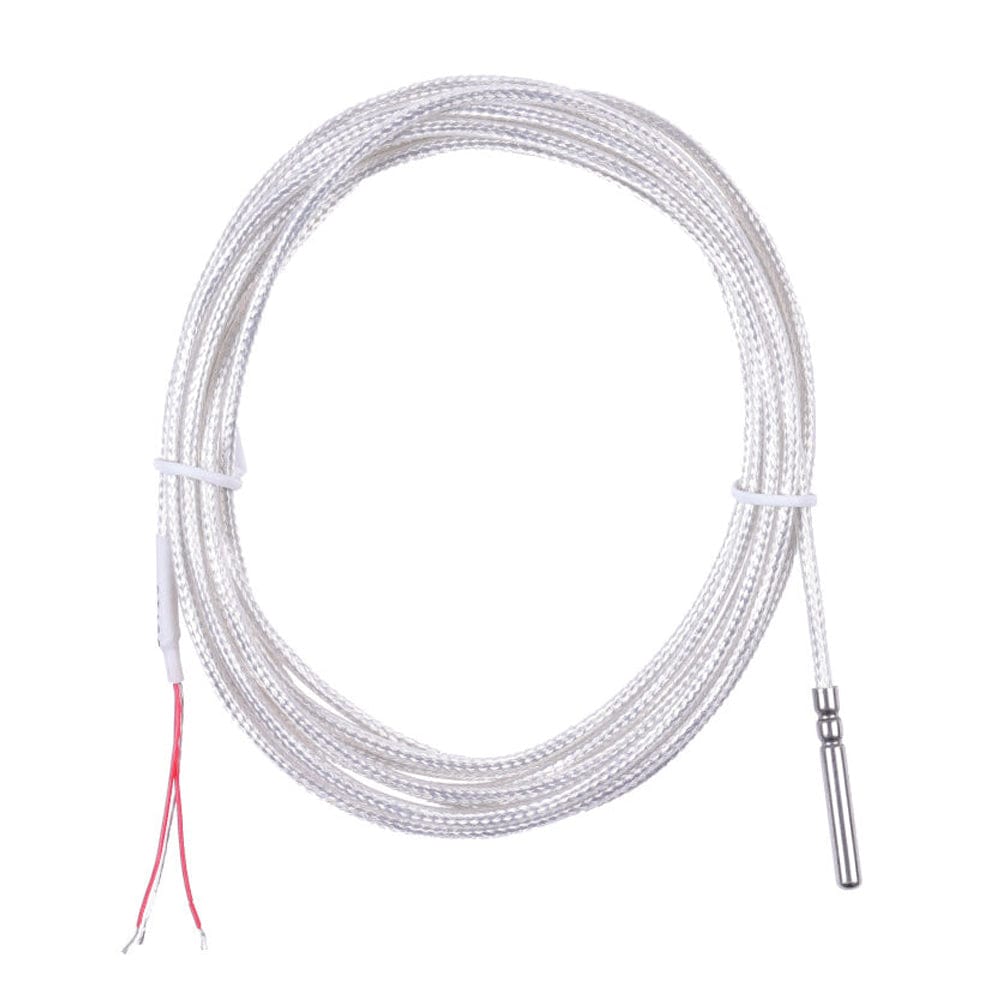

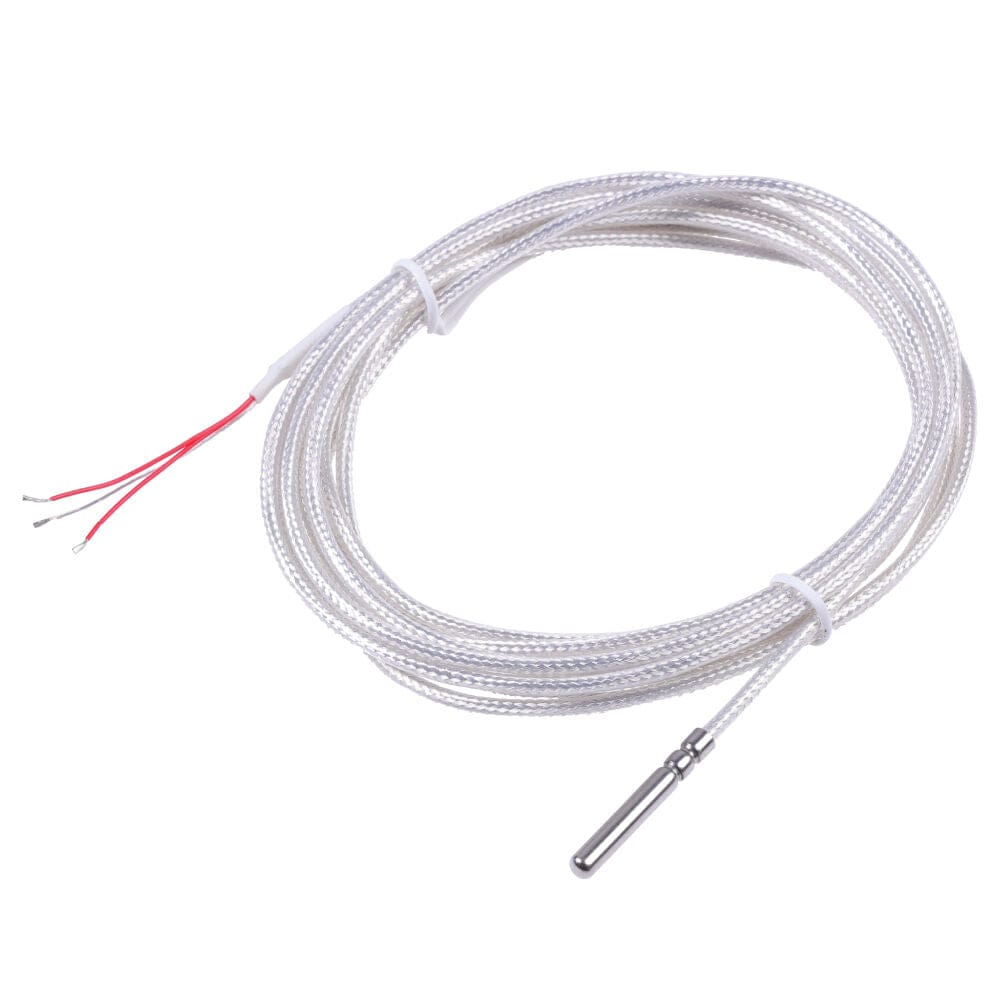

PT1000 Temperature Sensor Probe with Anti-Corrosion Stainless Steel
Price:
Sale price
£10.10
Stock:
Quantity:
Awesome Extras
The Seeed PT1000 temperature sensor delivers precise readings across a wide range of -50°C to 300°C, ideal for industrial applications. This platinum resistance sensor excels in measuring temperatures of gases, liquids, and solids, making it perfect for liquid detection, food monitoring, cold chain storage, boilers, and aquaculture. Reliable, accurate, and built for demanding environments.
The Seeed PT1000 temperature sensor accurately measures temperatures between -50°C and 300°C, making it an excellent choice for industrial applications. This platinum resistance temperature sensor is suitable for measuring the temperature of gases, liquids, and solids.
The highly accurate PT1000 sensor, is commonly used in various industrial applications, especially in liquid detection, food monitoring, storage cold chain, industrial boilers, and aquaculture solutions. PT1000 sensors, also known as 1000-ohm temperature sensors, represent the most prevalent type of platinum resistance thermometer.
We also provide wireless DTU of PT1000: LoRaWAN Temperature Sensor S2107, which supports a three-wire circuit for PT1000 sensors and allows for the connection of up to three sensors simultaneously. S2107 is a battery-powered IP66 wireless PT1000 temperature sensor, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.
Seeed also provides the SenseCAP Portal and SenseCAP Mate App to help users better manage and check data remotely.
Features
- High-performance: anti-interference and long-term stability
- Easy to install: small size, lightweight, easy to install
- Fast response: sensitive to temperature changes and responds quickly
- Wide temperature range: a wide range of -50°C to 300°C
Specifications
| Measuring Element | RTD platinum resistance Pt1000 |
| Measuring Medium | Solid, liquid or gas (compatible with contact material) |
| Range | -50 to 300 ℃ (For other range customization contact sensecap@seeed.cc, MOQ 300pcs) |
| Accuracy | Class B+ (@typical ±0.5℃) |

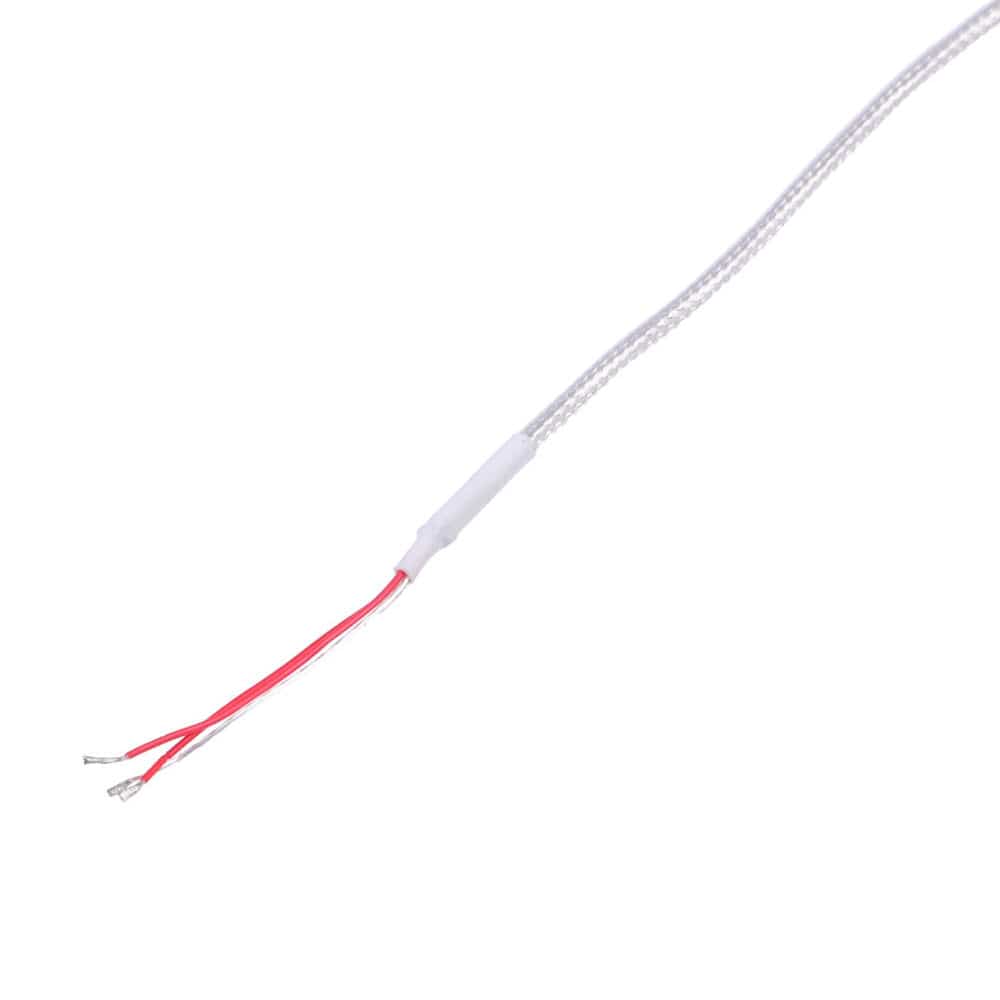

| Wire Material | PTFE silver-plated wire (3-wire) |

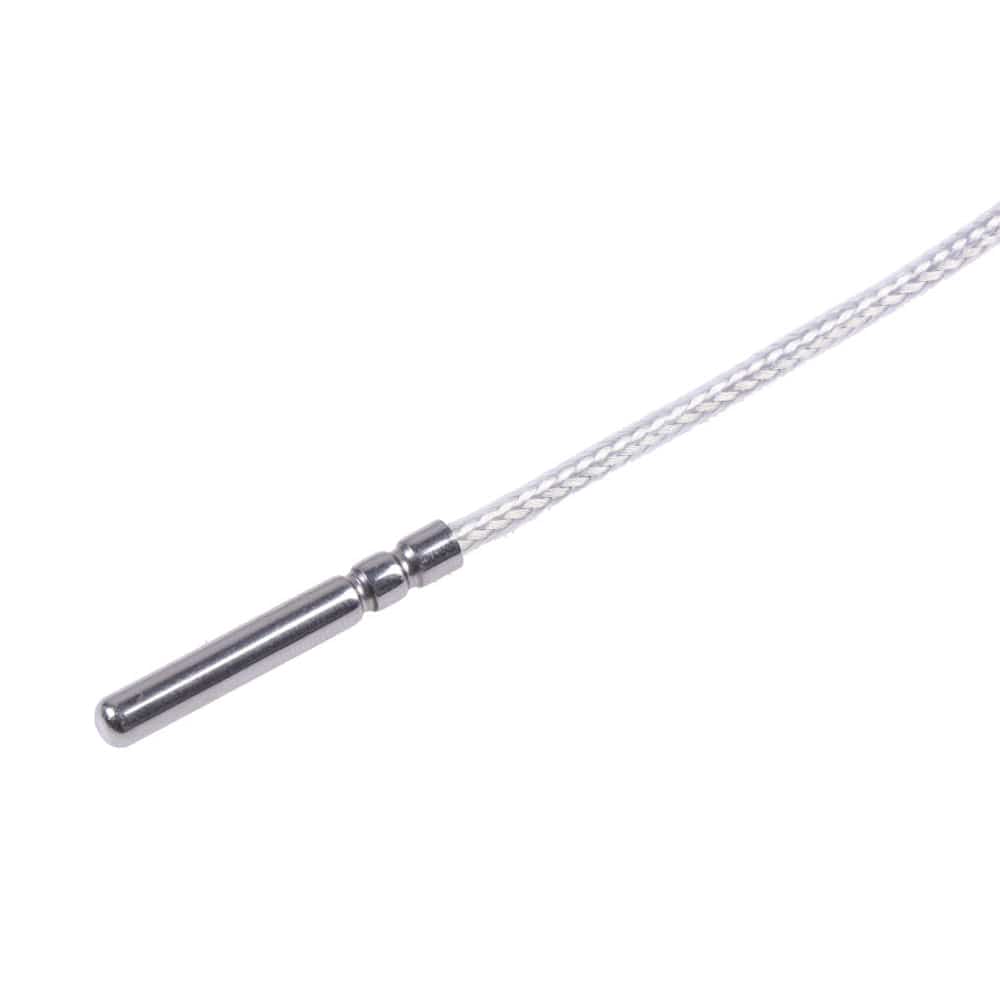

| Probe Enclosure | 304 stainless steel |
| Operating Temperature | -50 to 200℃ (Cable); -50 to 300℃ (Probe) |
| IP Rating | IP68 |
| Probe Length | 4 * 30mm |
| Cable Length | 3 meters |
| Supplier Code | 314010819 |
Resources
Network Example
Package Contents
- 1x PT1000 Temperature Sensor Probe with Anti-Corrosion Stainless Steel
