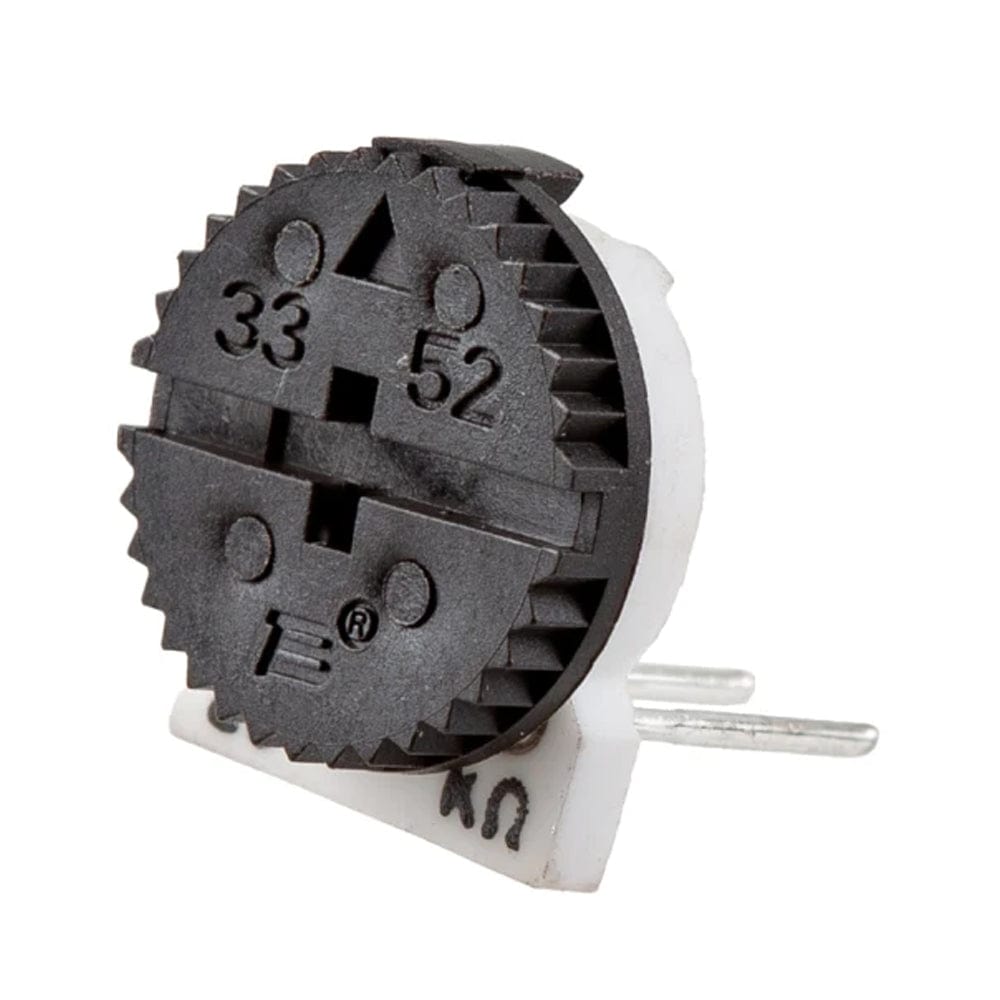

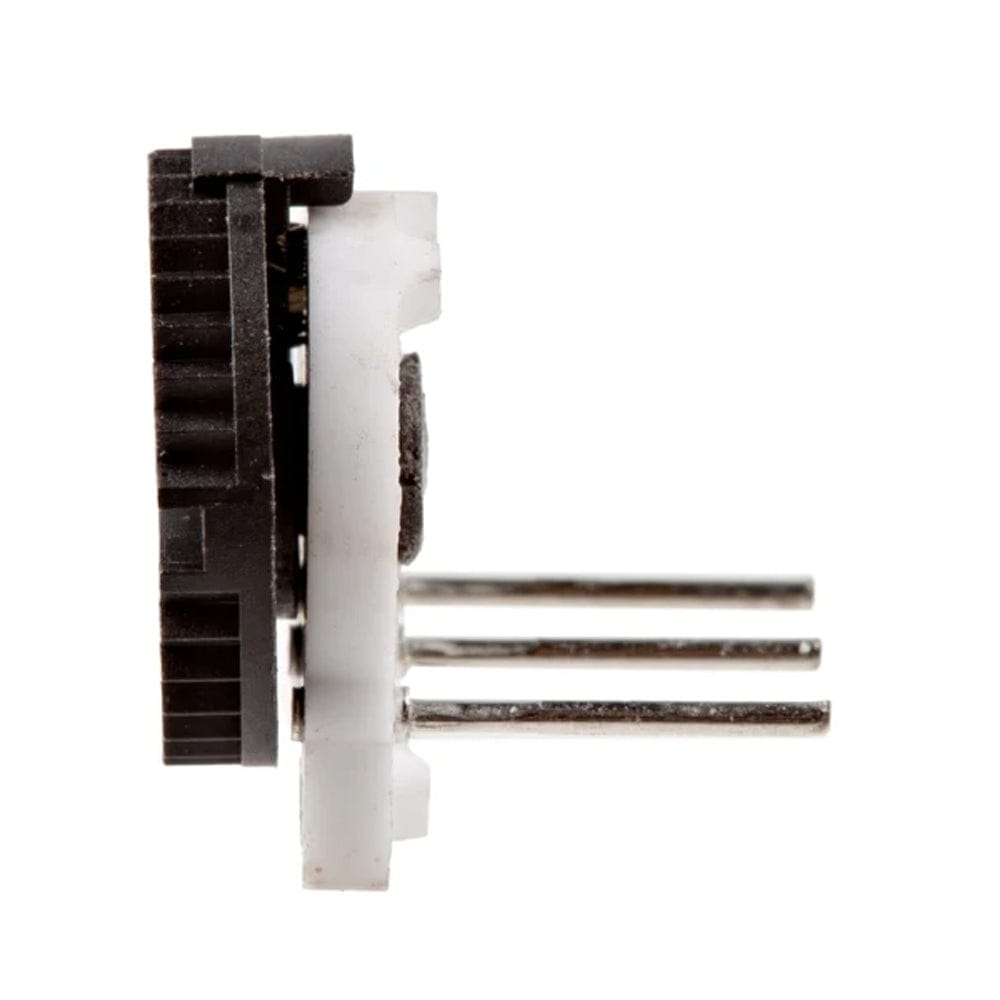

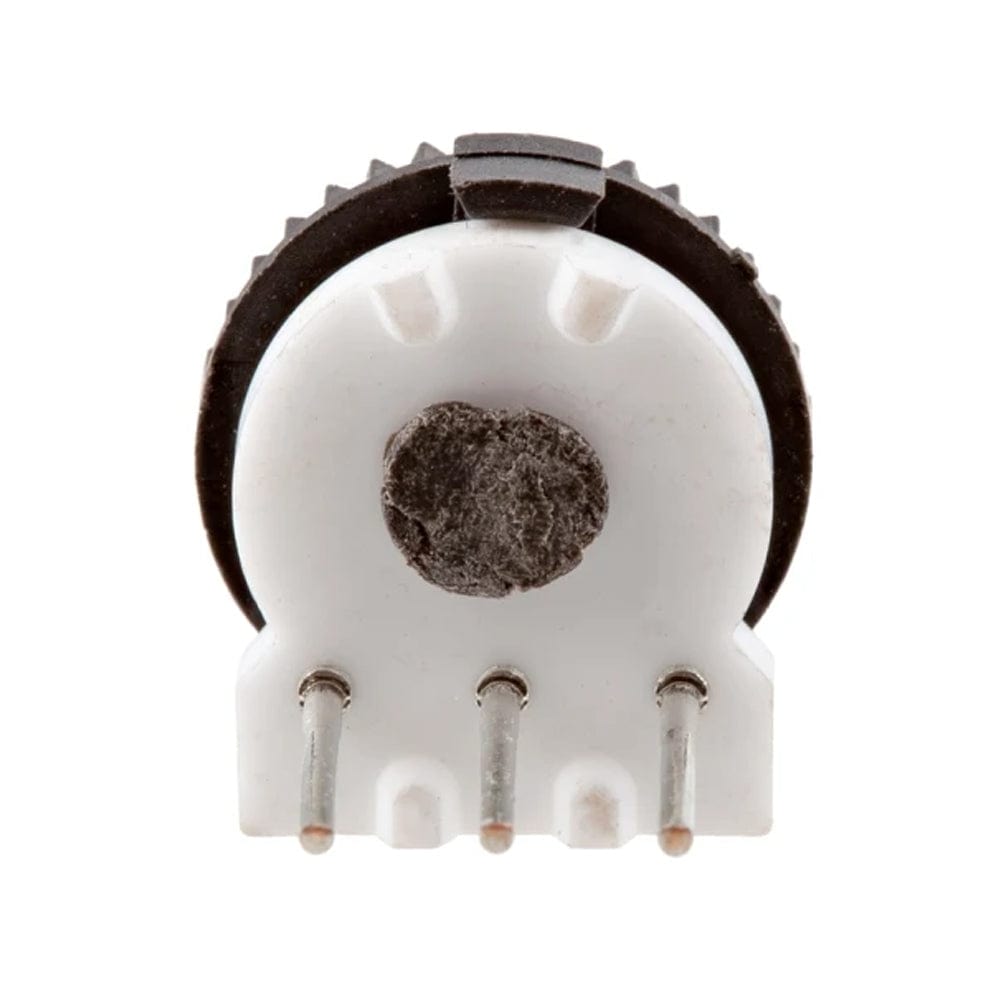

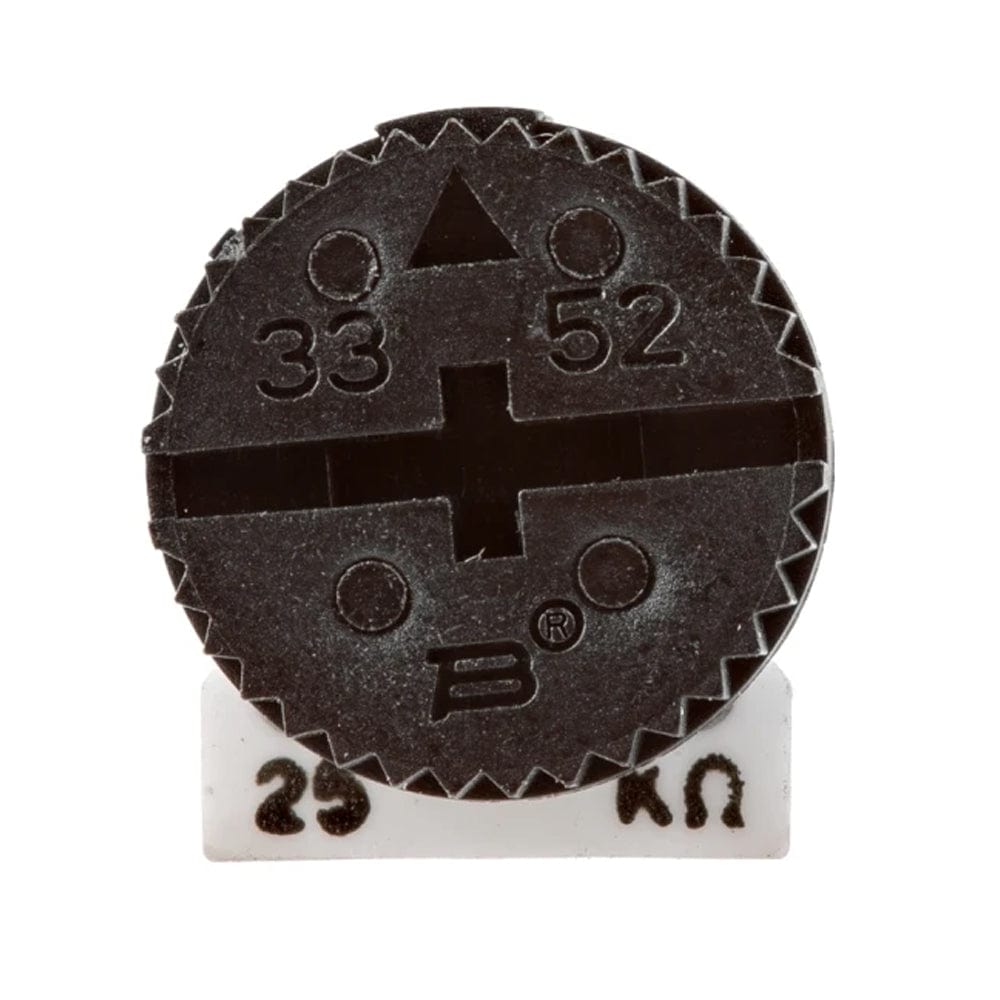

Thumbwheel Potentiometer for Teensy Audio Adapter

SparkfunSKU: COM-28384
Price:
Sale price £2.60
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

Audio Adapter Board for Teensy 4.0 (Rev D) by PJRC - The Pi HutAudio Adapter Board for Teensy 4.0 (Rev D) by PJRC - The Pi Hut
PJRCAudio Adapter Board for Teensy 4.0 (Rev D)
Sale price £9.50 incl. VAT excl. VAT
Microphone for Teensy Audio Adapter by PJRC - The Pi HutMicrophone for Teensy Audio Adapter by PJRC - The Pi Hut
PJRCMicrophone for Teensy Audio Adapter
Sale price £2.20 incl. VAT excl. VAT
Teensy 4.1 with Ethernet by PJRC - The Pi HutTeensy 4.1 with Ethernet by PJRC - The Pi Hut
PJRCTeensy 4.1 with Ethernet
Sale price £30.30 incl. VAT excl. VAT
Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi HutAutosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut

This 25kΩ potentiometer is made for the Teensy Audio Adapter Board, perfect for adding volume or audio parameter control. A simple way to expand your Teensy audio projects.


We're stocking this 25kΩ for use with the Teensy Audio Adapter, allowing you to add volume or audio parameter control. Further information on mounting orientation, pinout and control can be found on the PJRC website.

You can, of course, just use this as a potentiometer for many other projects.

An adjustable potentiometer can open up many interesting user interfaces. Turn the pot and the resistance changes. Connect VCC to an outer pin, GND to the other, and the centre pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the centre pin to an ADC on a microcontroller and get a variable input from the user!

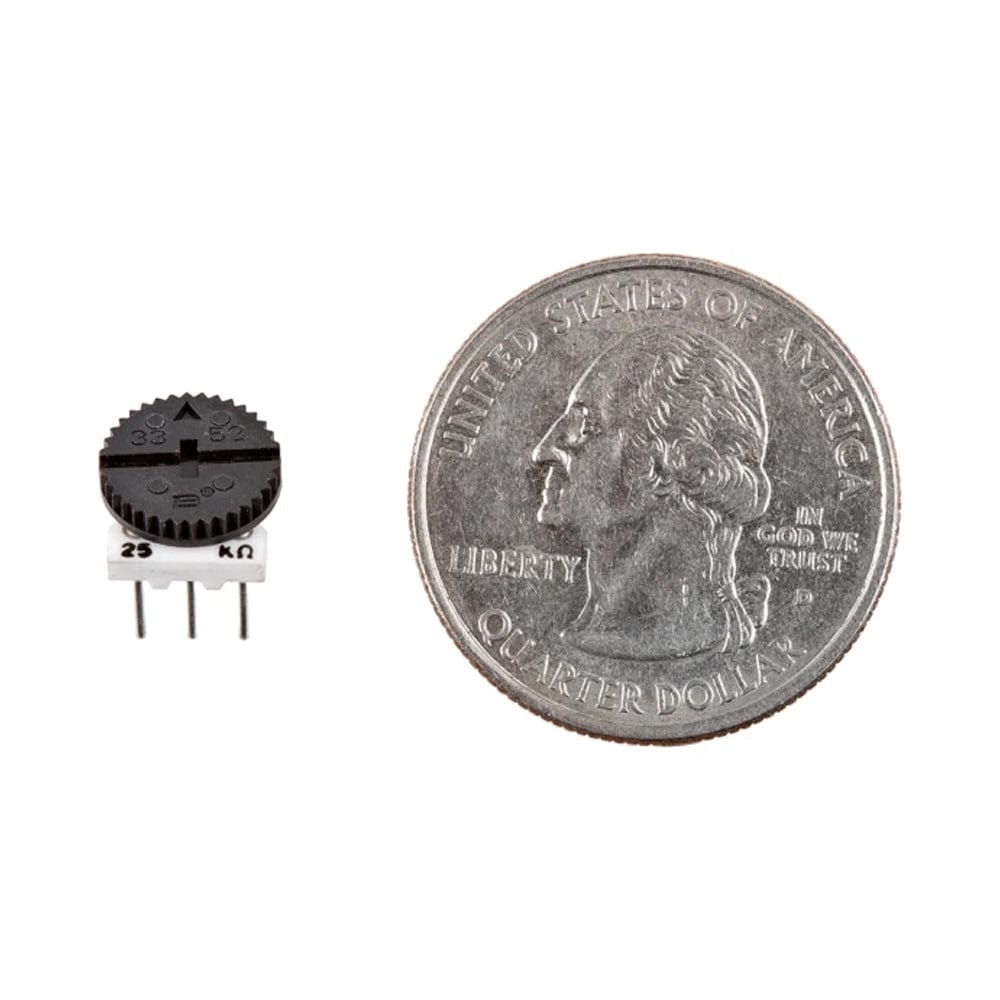

This 3/8" round trimpot has a resistance of 25 kOhms and a tolerance of ±20%. Check the datasheet for dimensional drawings.

Features

  • Resistance: 25 kOhms
  • Power (Watts): 0.5W, 1/2W
  • Tolerance: ±20%
  • Number of Turns: 1.0
  • Adjustment Type: Top Adjustment
  • Dimensions: Round - 0.350" Dia x 0.150" H (8.89mm x 3.81mm)
  • Termination: PC Pins
  • Mounting Type: Through Hole
  • MFG Part #: 3352T-1-253LF

Specification

  • Dimensions: Round - 8.89mm Dia x 3.81mm H

Resources

Package Contents

  • 1x Potentiometer - Thumbwheel Type, 25kΩ
