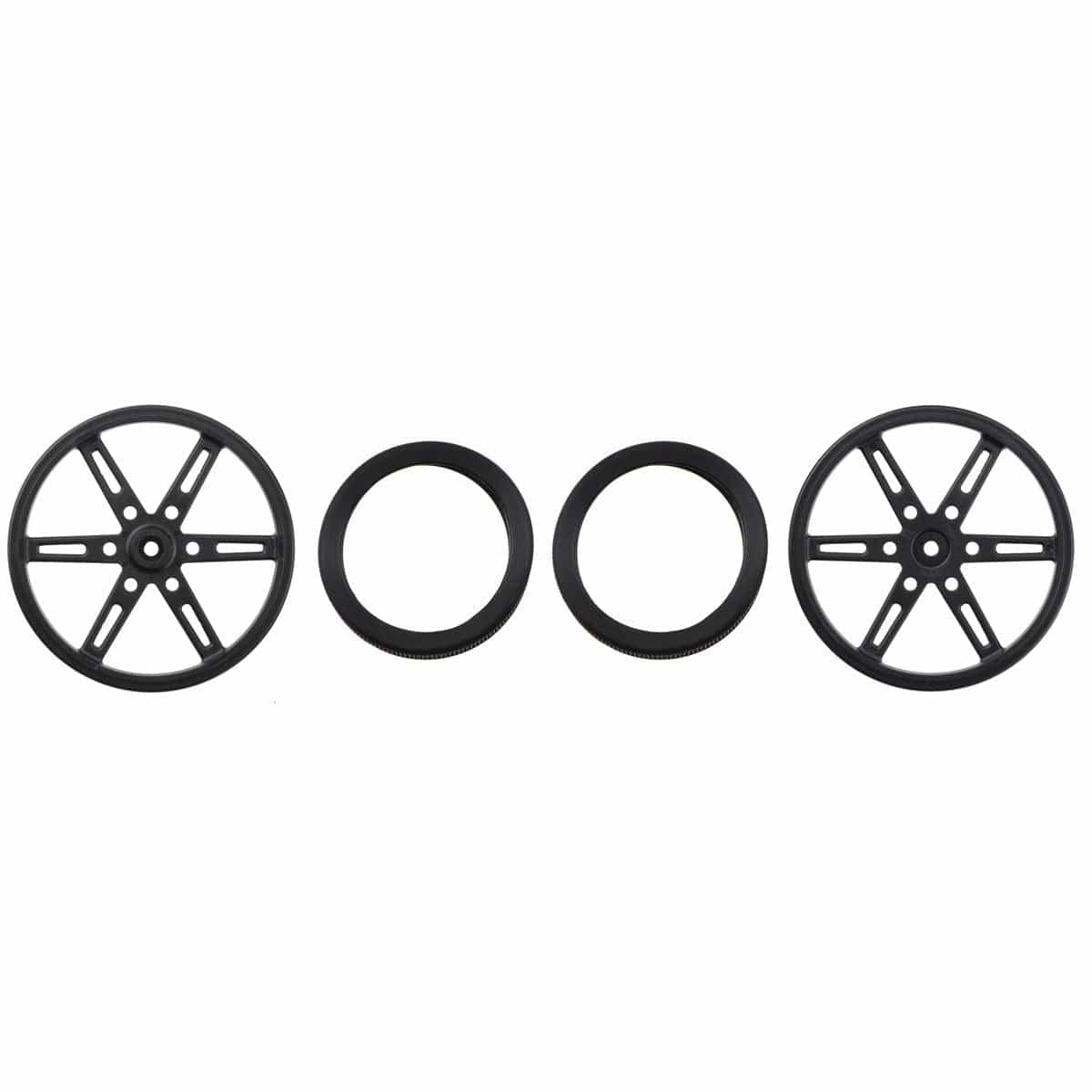

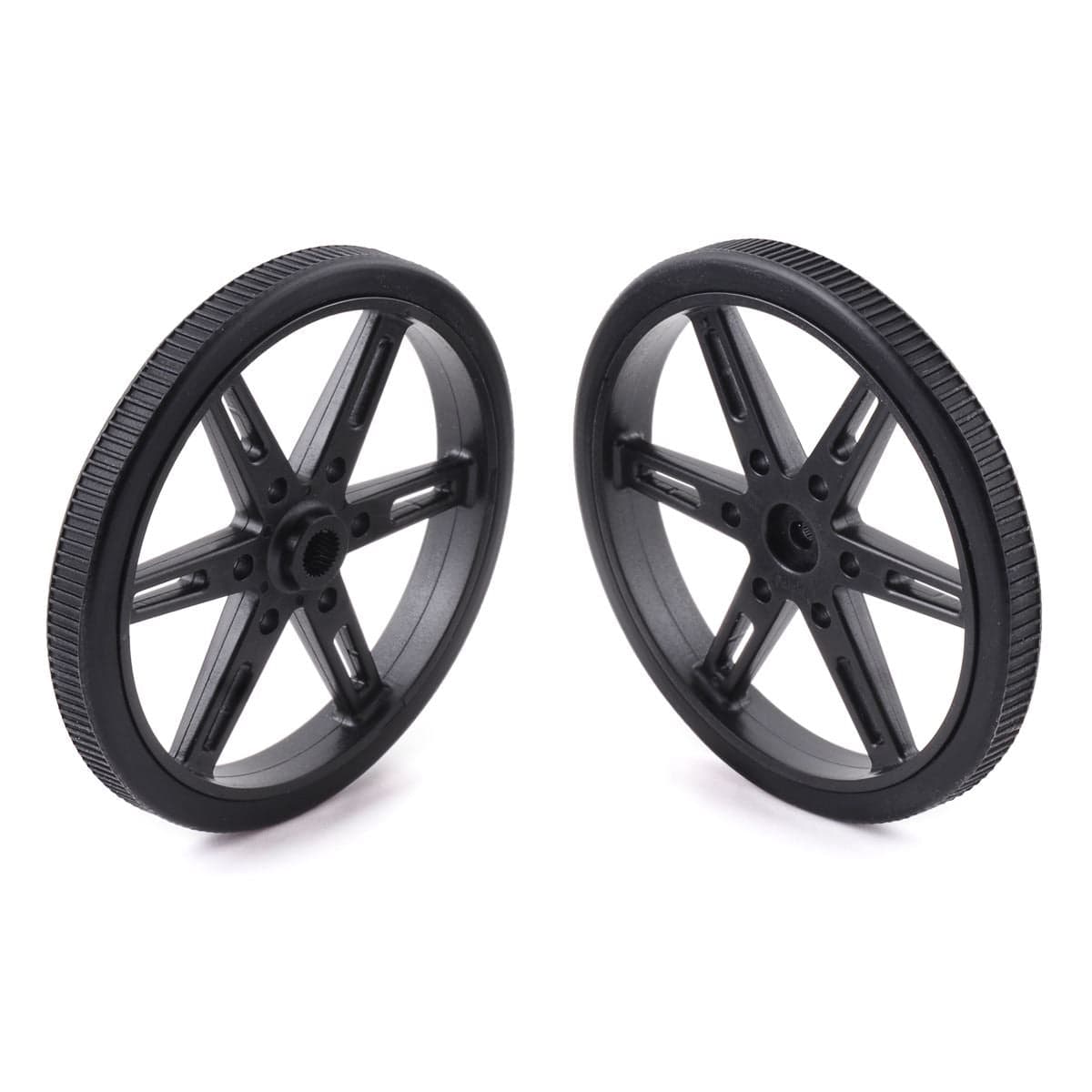

These black plastic wheels have silicone tires and measure 70 mm (2.75″) in diameter. They mount onto standard servo splines with 25 teeth and a 5.8 mm diameter. This product is a pair of wheels.
These wheels are great for robotics, custom RC vehicles, or any other project you need to get rolling. The combination can serve as a small, inexpensive, and easy-to-control drive system for a miniature robot. The wheel presses onto the servo spline just like a typical servo horn, and the small screw included with the servo accessory pack for mounting servo horns should be used to hold the wheel in place.
Six mounting holes for #4 or M3 screws make it possible to use the wheel with our universal mounting hubs for 6mm, 8mm, and 1/4″ shafts, enabling these wheels to be used with 37D Metal Gearmotors and stepper motors with compatible shafts.
The slots in the six spokes fit #2 or M2 screws and allow additional accessories to be mounted to the wheel such as decorations or parts of an encoder system. The included silicone tyres feature horizontal treads for improved traction.
|Size:||70 × 8 mm|
|Weight:||12.5 g (per wheel, including tyre)|
|Shaft type:||25T, 5.8 mm diameter servo spline|
