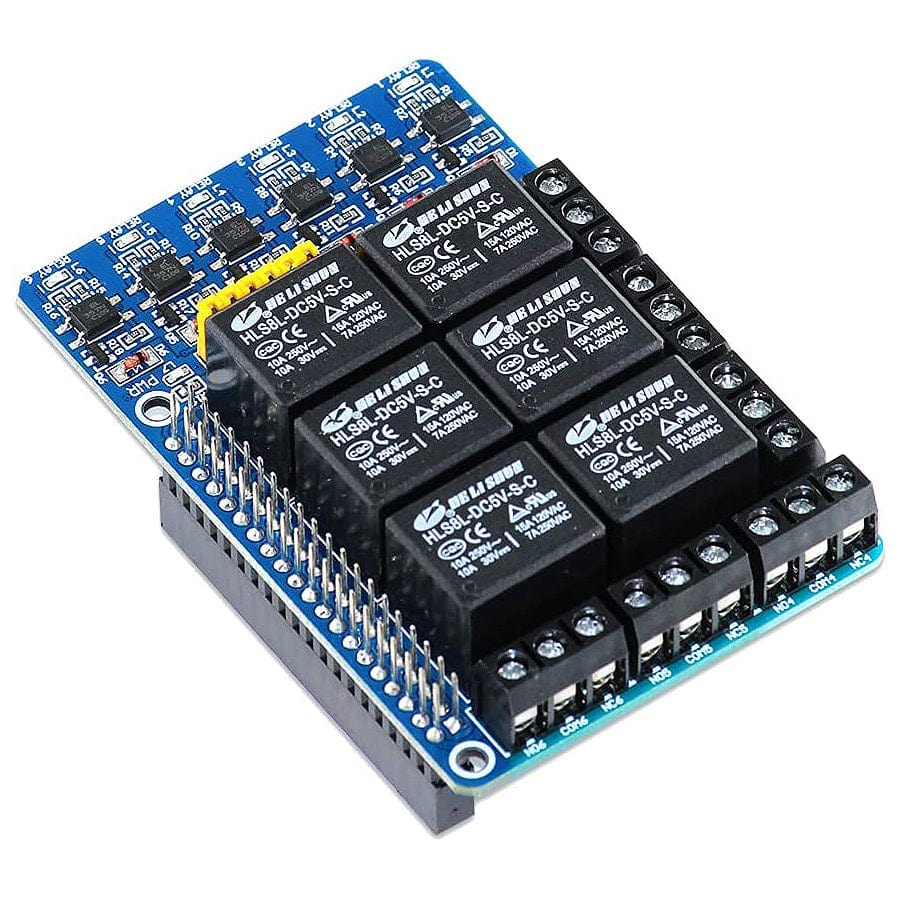

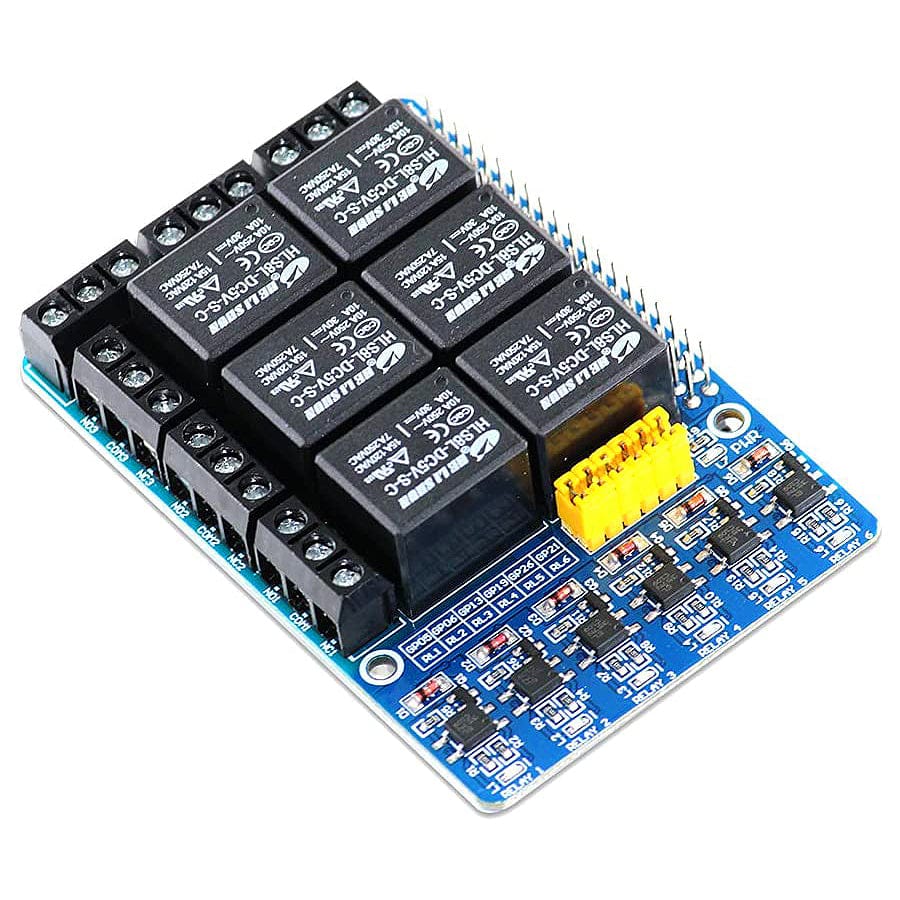

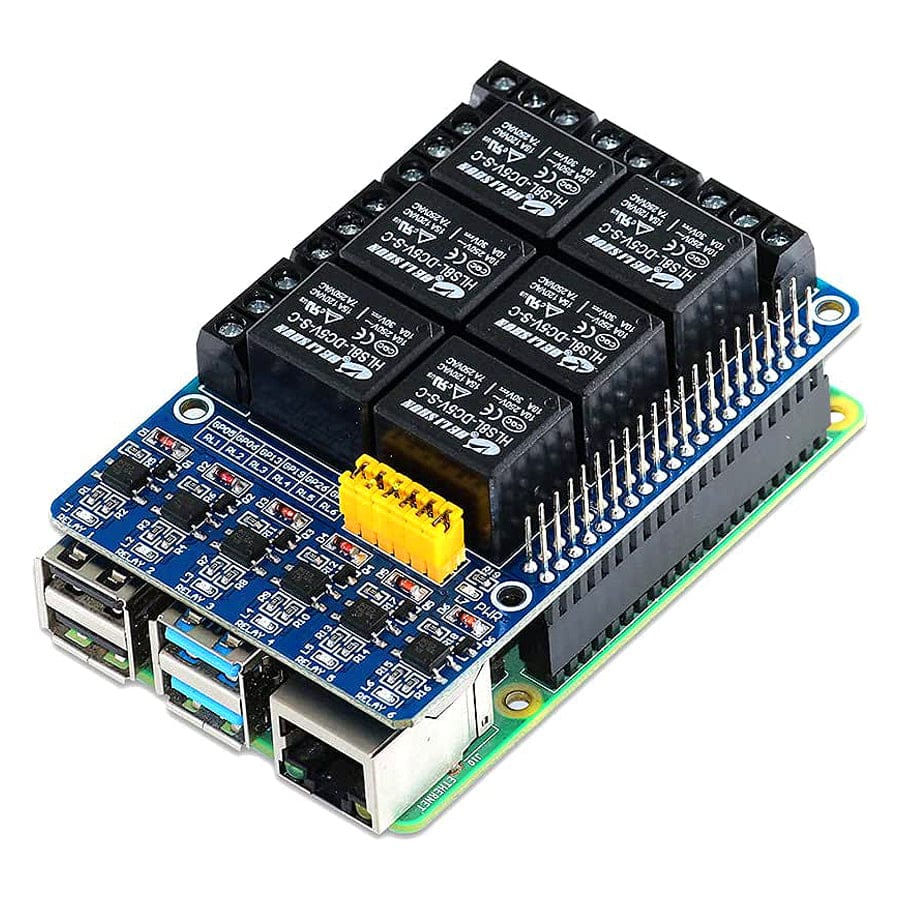

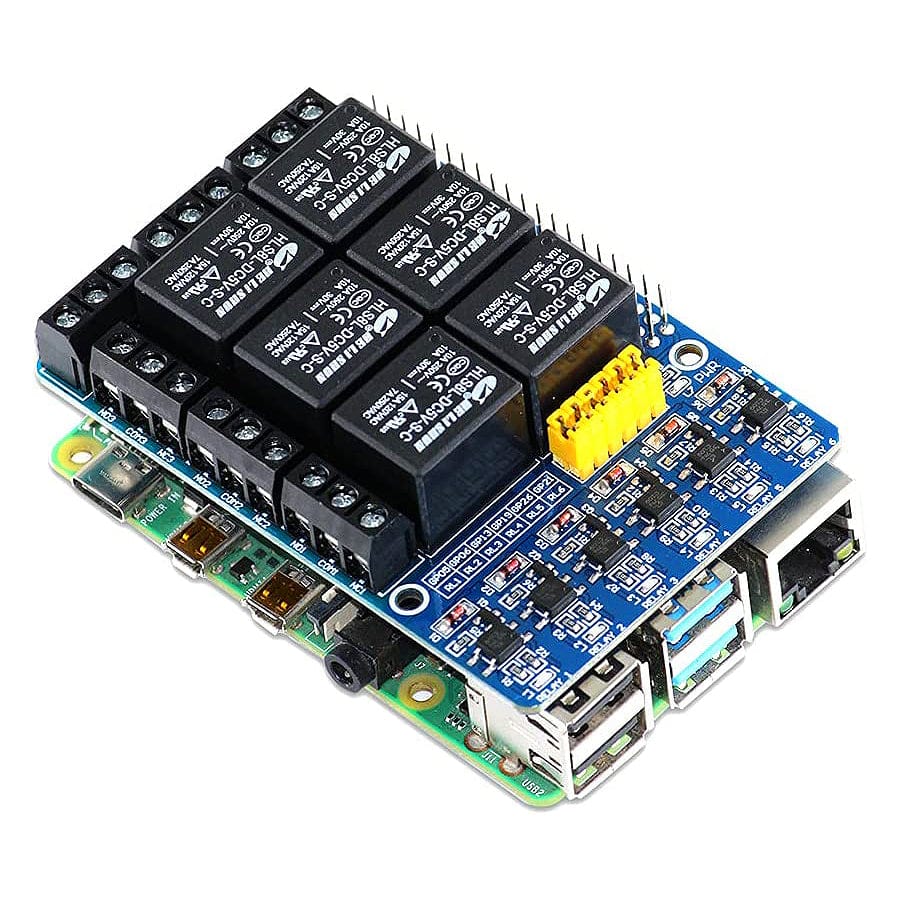

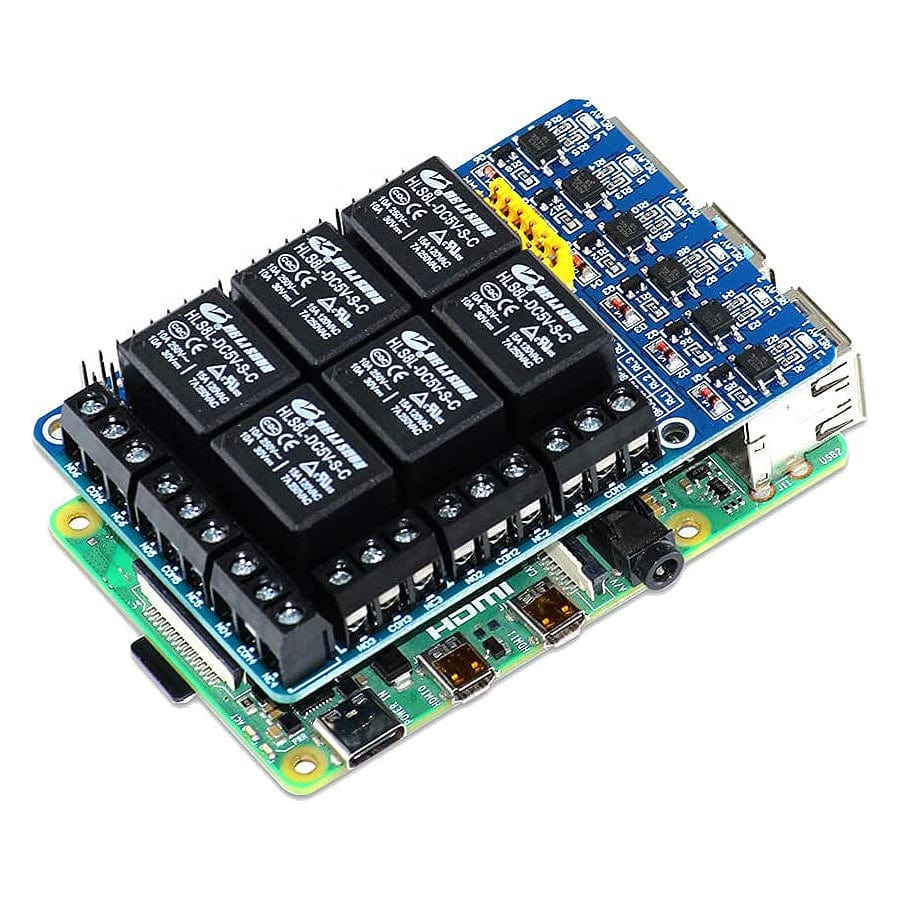

The PiRelay 6 is a relay HAT for the Raspberry Pi that can control up to 6 devices with photo-coupling isolation on a load of 250V AC/7 A, 30V DC/10 A, and a trigger voltage of 3.3V. It comprises an Optocoupler that allows the circuit to transmit an electrical signal between two isolated circuits through light energy.

The Optocoupler helps to prevent high voltages in one part of the circuit from affecting the other part of the circuit, which provides safety to the system.

NOTE: Raspberry Pi NOT included

Features

  • 6 High-quality Relay and loads up to 250VAC/7A, 30VDC/10A
  • Optocoupler
  • Standardized shield shape and design
  • LED working status indicators for each Relay
  • Pin Stacking Header for accessing GPIO of RPi
  • Compatible with Raspberry Pi 4, 3B+, 3,2, Zero

Specifications

  • Channel - 6 CH
  • Operating Voltage - 5V
  • AC Control Voltage - 7A / 250V
  • DC Control Voltage - 10A / 30V
  • Dimensions - 56.01 mm x 85.01 mm

Contents

  • 1x PiRelay 6

Resources

Pinout

Relays BOARD BCM
Relay 1 29 GPIO 5
Relay 2 31 GPIO 6
Relay 3 33 GPIO 13
Relay 4 35 GPIO 19
Relay 5 37 GPIO 26
Relay 6 40 GPIO 21
