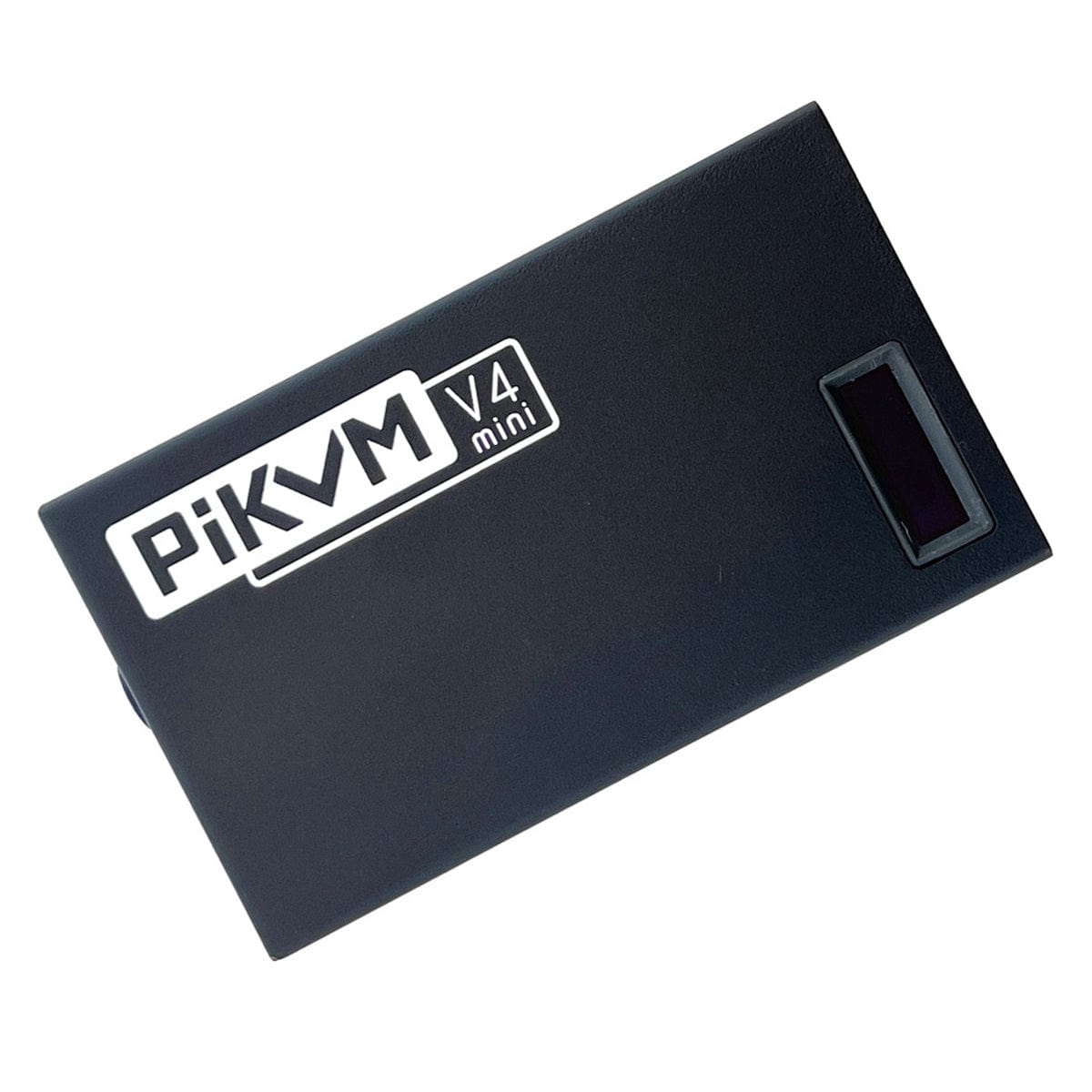

PiKVM V4 Mini

PiKVMSKU: 105512
Price:
Sale price £241.60
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

PiKVMPiKVM V4 Plus
Sale price £365 incl. VAT excl. VAT
Raspberry PiOfficial Raspberry Pi 3 HDMI Cable
Sale priceFrom £3.40 incl. VAT excl. VAT
The Pi HutLaptop Security Cable with Barrel Lock & Keys
Sale price £5.50 incl. VAT excl. VAT
SanDiskSanDisk Ultra Fit USB 3.2 Flash Drive
Sale priceFrom £8 incl. VAT excl. VAT

The next generation of Raspberry Pi-based KVM over IP. Manage your servers or PC remotely! PiKVM is a feature-rich, production-grade, open-source, Raspberry Pi-based KVM over IP device.

PiKVM V4 Mini is the compact and budget-friendly version of PiKVM V4 with all the essential features. It is small, cost-effective, and powerful!

Upgrade your remote management capabilities and simplify your digital life with the PiKVM V4 Mini. Whether you're in IT, a tech enthusiast, or simply looking for a smarter way to control your devices, this sleek and powerful solution is perfect for your next project.

Notes

  • USB functionality such as KVM switching is only supported on the PiKVM V4 Plus which you can find here.
  • Please note that USB-C displays are not supported.

Features

  • Capture video signal up to 1920x1200@60 Hz with audio and deliver it to your browser using WebRTC and efficient H.264 encoding
  • Transfer your mouse and keyboard actions to a remote PC
  • Take full control of a remote PC’s power: remote reset or reboot using the actual hardware reset & power buttons connector functions
  • Access to all configuration settings of a remote computer like tweaking UEFI/BIOS settings to do some overclocking
  • Boot a controlled PC using any OS you need using mass storage device emulation support. You can even reinstall the system remotely
  • Fanless design with a passive heatsink for quiet operation
  • Includes a locator-led simplifying your device search
  • Improved power consumption in idle mode: just 2.67 Watts

Specifications

Raspberry Pi Compute Module 4 CM4102000 with 2GB of RAM, WiFi, and Bluetooth
Connection type USB-C
Power type DC 5.1V, 3A
Power failure option Internal supercapacitor for the real time clock support
HDMI female HDMI source input
USB-C female For the keyboard, mouse, mass storage, and other external device emulation)
USB-C female Serial console management port
Micro SD card slot For the OS storage
ATX RJ-45 Special port for power control or AUX
WiFi Optional WiFi b/g/n support with internal/external antenna
LED indicators power, activity, console power, search led, HDMI source engaged
OLED display OLED 128x32 0.91” white
Supported resolutions Up to 1920x1200@60Hz
Video compression methods MJPEG, H.264
Audio capture mode HDMI audio capture support
Peak power consumption Up to 12W (2.6A/5V)
Operating temperature 0°C to 50°C
Storage temperature -20°C to 60°C
Size 120 x 68 x 24mm
Weight 0.35 kg

Resources

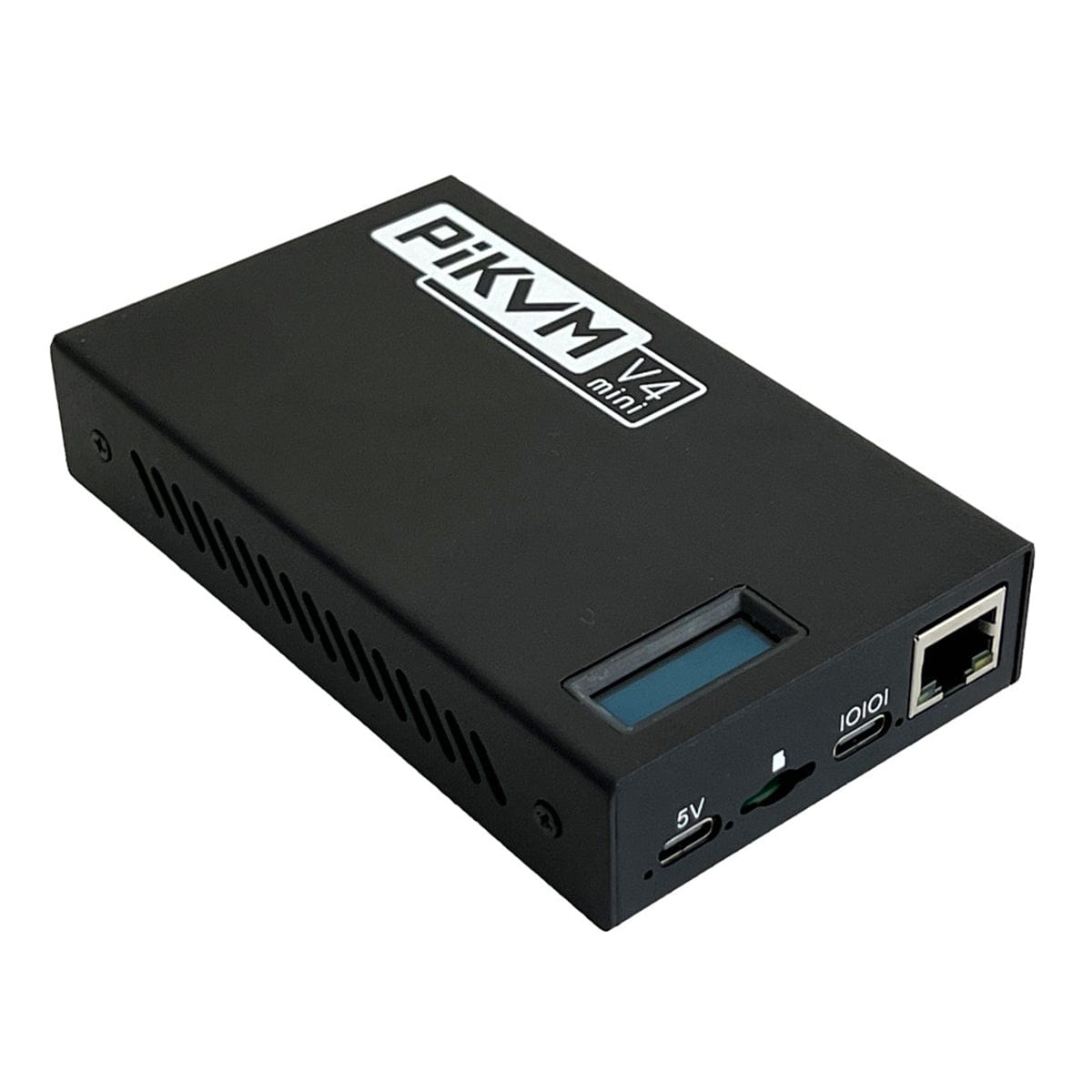

Pinout

  1. Power LED (Green)
  2. Power Input 5.1V 3A
  3. Activity LED (Red)
  4. Micro SD card slot
  5. USB 2.0 Serial console port
  6. Serial console active LED Green (“Beacon LED”)
  7. RJ45 1Gb Ethernet connector
  8. RJ45 ATX Control connector
  9. USB 2.0 OTG connector
  10. Mount hole for WiFi SMA antenna connector
  11. Beacon LED
  12. HDMI Power present LED Green
  13. HDMI video input connector
  14. Video capture power ok LED amber
  15. Ventilation holes
  16. Service switches
  17. Kensington Security Slot
  18. Display

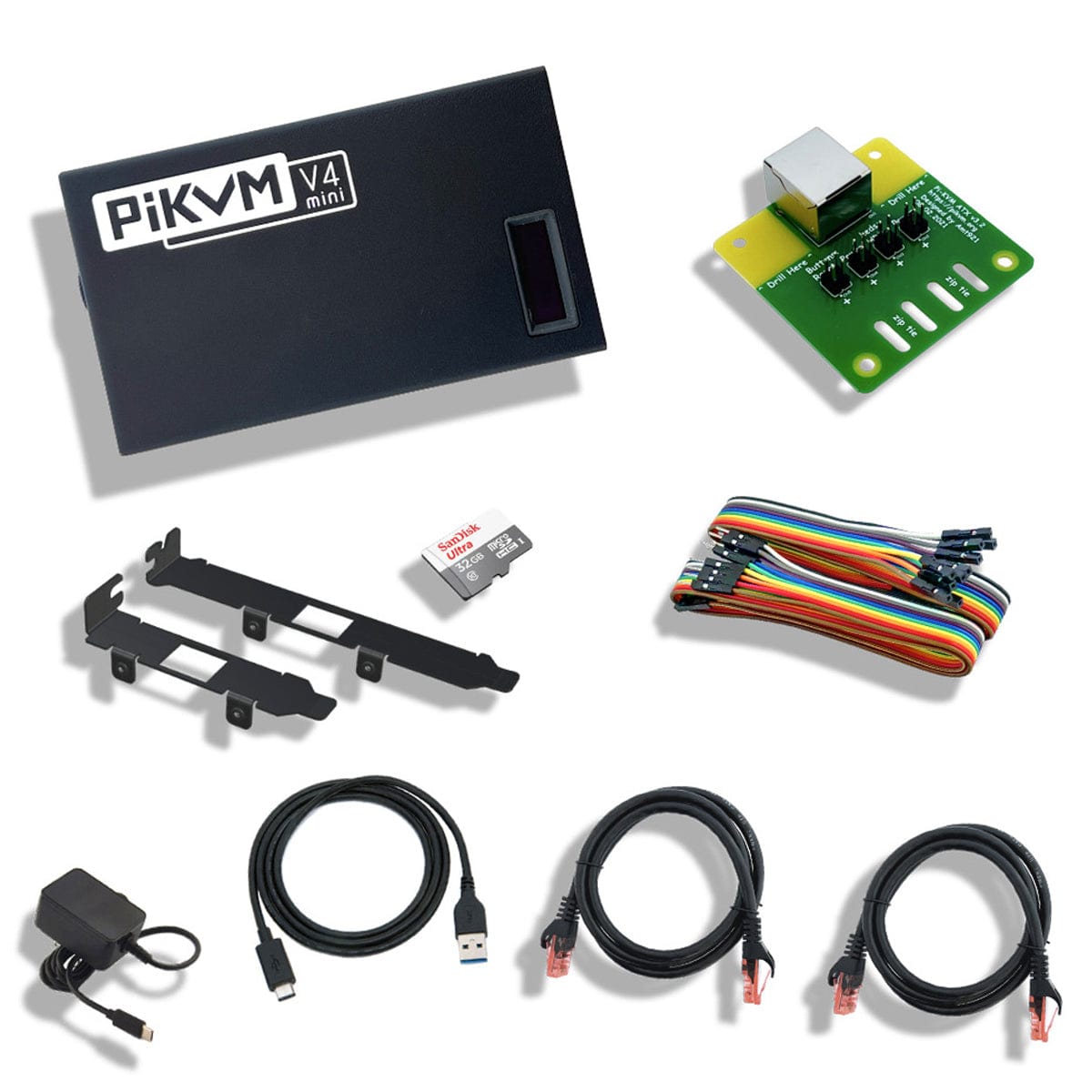

Package Contents

  • 1x PiKVM V4 Mini device
  • 1x Micro SD card with pre-imaged PiKVM software
  • 1x ATX control board
  • 1x ATX connection cables
  • 1x ATX installation brackets
  • 1x Ethernet cable
  • 1x ATX cable
  • 1x USB C to USB A cable
  • 1x 5V 3.1A USB C Power Supply (international adapters)
