PiKVM Switch Multiport Extender

The PiKVM team is excited to present its new PiKVM Switch Multiport Extender - the most full-featured switch for PiKVM devices.

The PiKVM Switch Multiport Extender enables one PiKVM device to view and control multiple computer targets connected to each port from a web UI. Up to five Switch Multiport Extenders can be daisy-chained to provide 20 ports, allowing a single PiKVM to control and manage one of 20 connected targets. ATX statuses and controls are available for all connected targets simultaneously.

One target system at a time can be selected for HDMI video capture and USB control. ATX statuses and controls are available for all connected targets simultaneously. Video inputs include dedicated EDID (HDMI information and display parameters) and full control of the video connection state of each port.

The PiKVM Switch Multiport Extender is fully plug-and-play. It is compatible with PiKVM models V4 Plus, V3, V2, and V1. NOT compatible with PiKVM V4 Mini.

Please see the product documentation for detailed information, including detailed operating instructions.

Compatibility

Requires one supported and configured PiKVM. List of supported PiKVMs:

• PiKVM V4 Plus
• PiKVM V3
• PiKVM V2
• PiKVM V1 DIY models

Important Note

• PiKVM V4 Mini is NOT compatible due to the lack of available USB host ports.
• The Switch Multiport Extender MUST be operated via the PiKVM interface, as the unit has no built-in controls.

Features

• A competitive & cost-effective solution – A single PiKVM can manage up to five chained switch units, enabling control of multiple targets while minimising costs and maintenance efforts.
• Each PiKVM Switch Multiport Extender unit can control 4 targets.
• Switch functionality integrated into the PiKVM interface – Use the popular interface, now expanded to support the number of targets available through the connected switches.
• Operational insights with multifunctional status LEDs – Monitor detected targets, selected ports, and the switch's overall status in real time.
• Rapid switching – With an advanced HDMI dummy plug function, you can switch between target computers significantly faster than competing solutions!
• Automatic firmware updates with PiKVM OS - Once PiKVM is updated, the main switch update will simply deploy to its neighbours for version uniformity and improved stability. Video inputs feature dedicated EDID configuration and complete control over the connection state of each port.
• Ready to use – Includes a power supply, ATX adapters for power and AUX control, brackets, and all the cables needed to get started!

Specifications

• Power:
  • Power Input: 12V, 0.5A DC, 5.5x2.1mm (Power supply is included)
  • Peak power consumption: Up to 6W (0.5A/12V)
  • Built-in watchdog circuitry
• Connectivity/Interfaces:
  • 4x HDMI input ports: Video source from the target computer
  • 4x USB-C 2.0 “OTG”: Keyboard and mouse emulation for the target computer
  • 4x ATX RJ-45: Special port for target power control or AUX
  • HDMI uplink/downlink: HDMI signal to PiKVM unit or to daisy-chain multiple units
  • USB-C female “CTL”: Switch management from PiKVM
  • USB-C female “OTG”: External device emulation/mass storage from PiKVM
• Video/Audio:
  • Supported resolutions: up to 1920x1200 60Hz
  • Audio capture mode: HDMI audio capture support
• Environmental:
  • Operating temperature range: 0°C to 50°C
  • Storage temperature range: -20°C to 60°C
• Dimensions: 121 x 137 x 44mm
• Weight: 0.6 kg

Connectivity

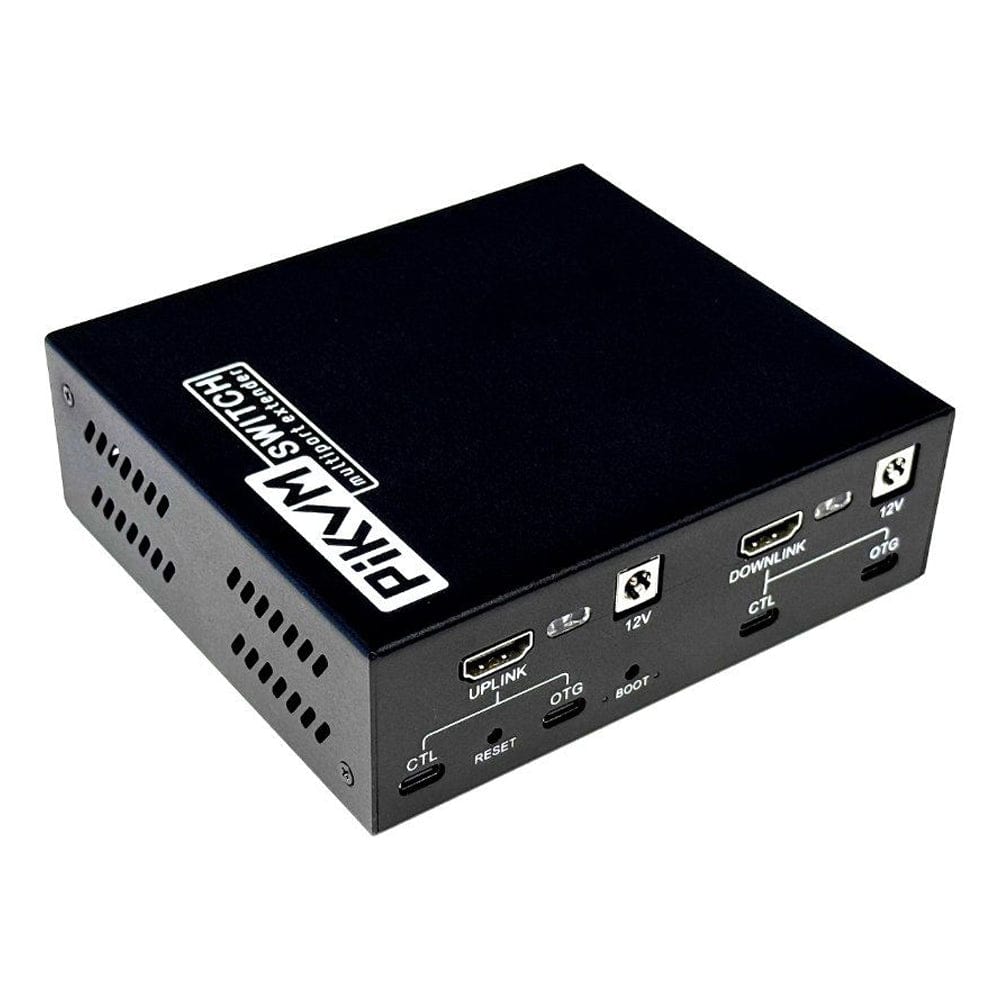

1. HDMI video input port
2. Multifunctional status LED
3. Port Number
4. USB 2.0 OTG connector
5. RJ45 ATX control port

6. HDMI video output port to PiKVM
7. Multifunctional status LED (Uplink)
8. Power Input 12V 0.5A
9. HDMI video input port from other Switch
10. Multifunctional status LED (Downlink)
11. Power Output to other Switch
12. USB Control port to PiKVM
13. Switch Reset button
14. USB OTG port to PiKVM
15. Activity LED (Yellow)
16. Switch Boot button
17. Power LED (Green)
18. USB Control port to other Switch
19. USB OTG port to other Switch

Resources

• PiKVM Handbook: Switch Multiport Extender Device Guide
• PiKVM GitHub

Package Contents

• 12V 2A AC Power Supply
  • International Plugs (UK, US, EU, AU)
  • DC 5.5x21mm
• DC Barrel Jack Cable
  • 5.5x2.1mm
  • 90-Deg Male
  • Black
  • 30cm
• 2x USB3.0 Cable
  • USB-C Male
  • Black
  • 30cm
• USB-A Male To USB-C Female Adapter
• HDMI 2.0 Cable
  • Black
  • 30cm
• 4x ATX Board & Wire Set
• 4x ATX Bracket Set

PiKVM not included.
