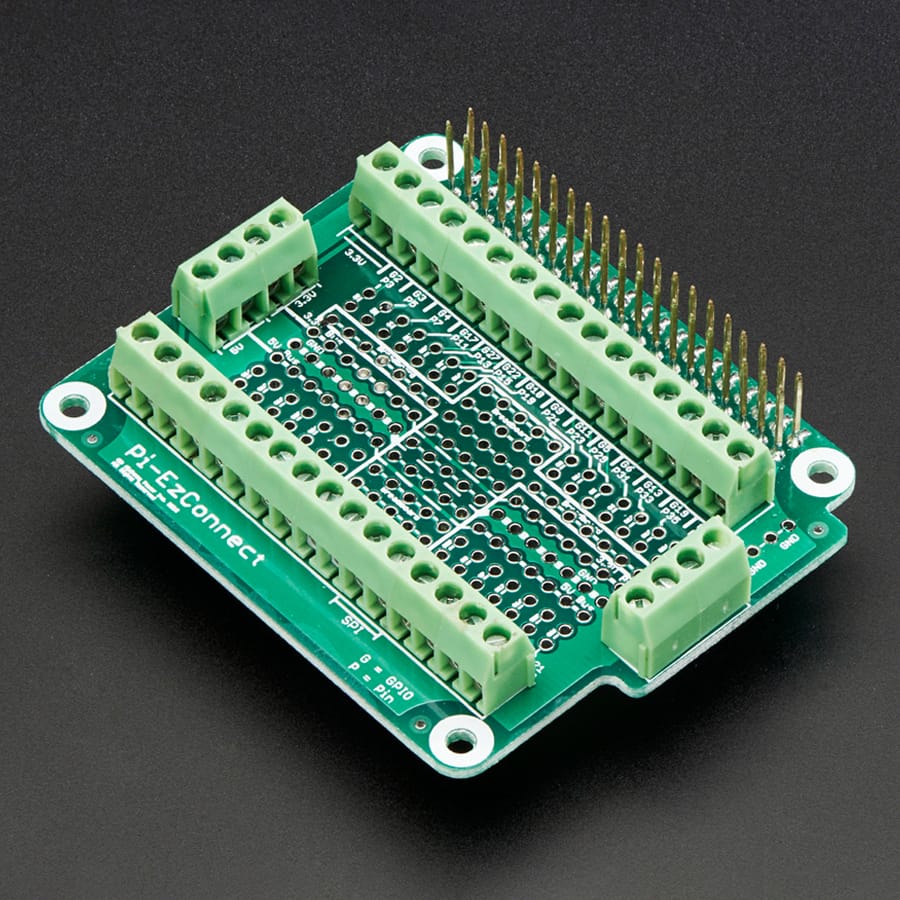

The Pi-EzConnect GPIO HAT lets you connect electronics to your Raspberry Pi using screw terminals, offering a solderless, clearly labelled, and protected way to access every GPIO pin.

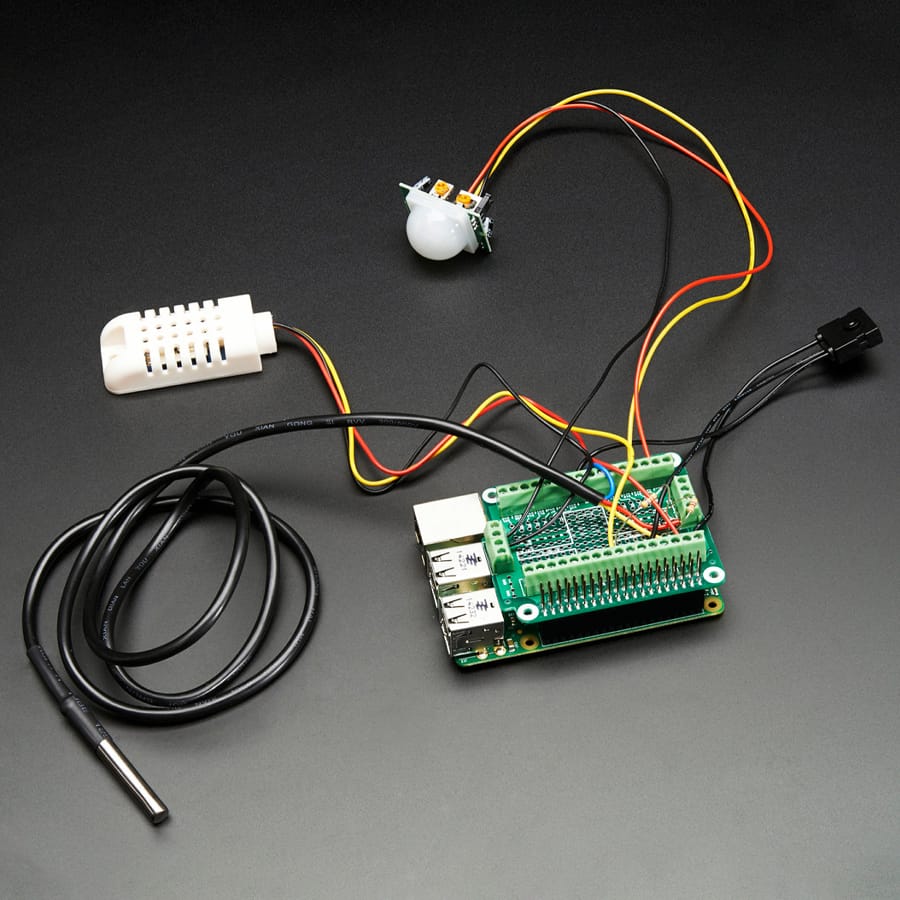

With the Pi-EzConnect you can connect all sorts of electronics to a single Raspberry Pi with no soldering or breadboarding! This HAT has screw-terminals for each pin on the Pi Header
Please note: This is compatible with the Pi 5, Pi 4, Raspberry Pi 3 Model B, Pi 2 Model B, Model B+, and Model A+ Not for use with '2x13' Raspberry Pi models such as the Pi 1 Model B or A.
Raspberry Pi, sensors and cables not included.
Features
Solderless or soldered connections for all GPIO’s on a Raspberry Pi
Mini proto area for adding components
Add standard male or female headers for breadboard like functionality
Power (both 5V and 3.3V) as well as ground connections available

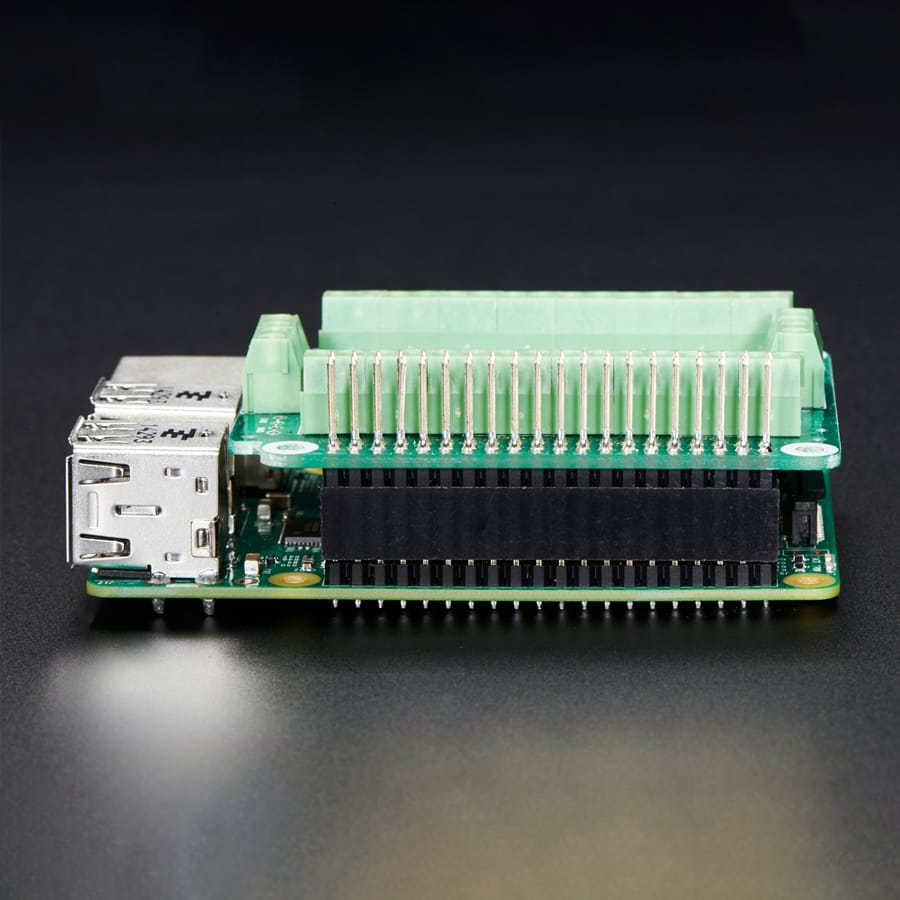

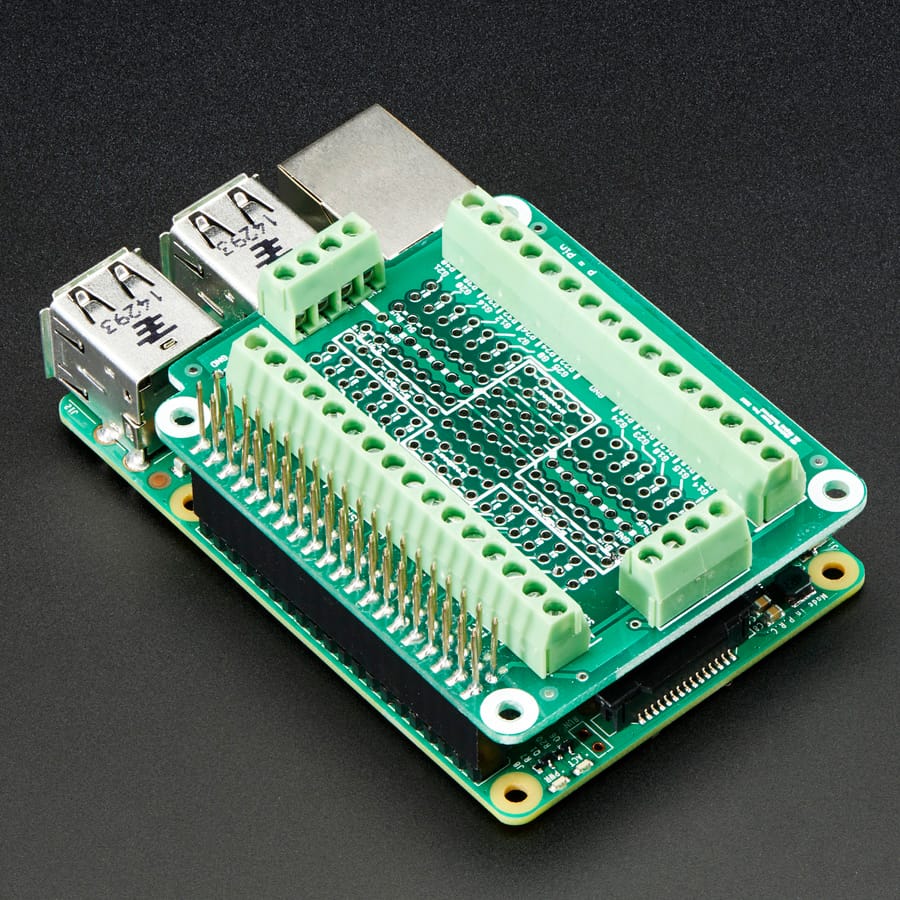

Compact footprint – fits easily on top of a Raspberry Pi

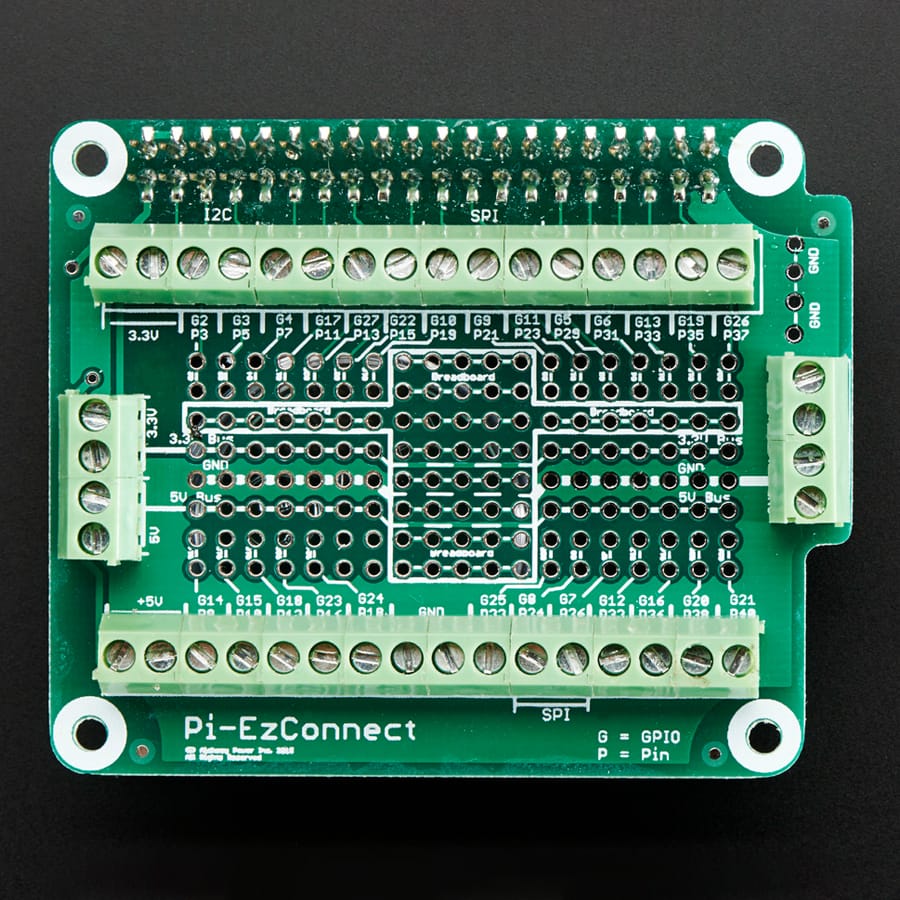

Fully documented pins – easily connect to pin numbers or GPIO number without referring to external charts

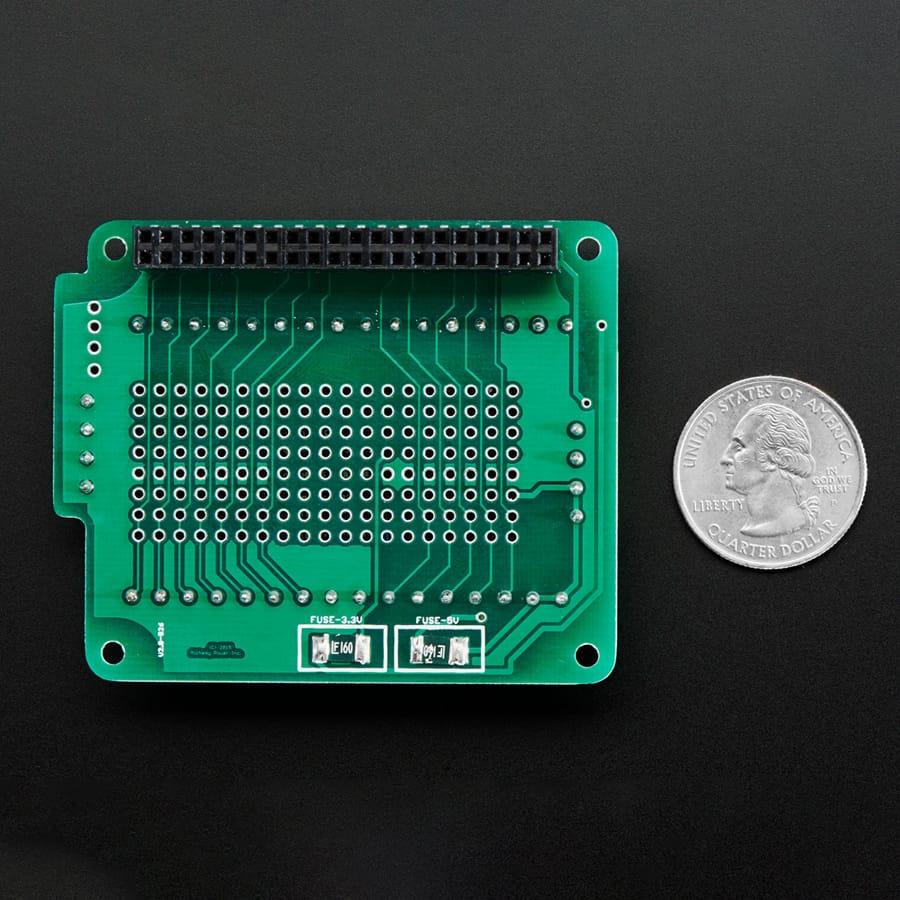

Protection: Resettable 8V, 1.6A fuse for 3.3V and 5V power

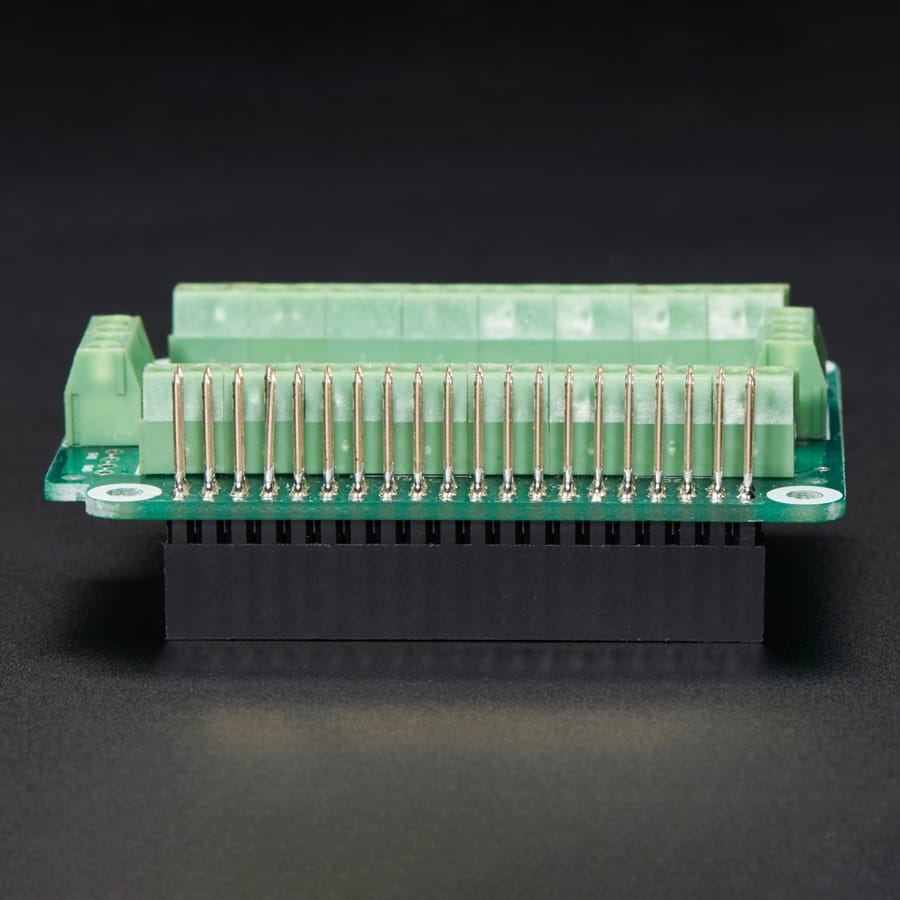

Header connections: Can use 0.1" (2.54mm) spaced headers, male or female
Standoff connections: Matches Raspberry Pi model A+, B+, and Pi 2
