The Peristaltic Liquid Pump moves fluids without the liquid contacting the pump mechanism, making it ideal for dosing, dispensing, gardening, and other applications where clean, isolated fluid transfer is required.
Move fluid safely from here to there with this very nice little pump. Unlike most liquid pumps, this is a peristaltic type - the pump squishes the silicone tubing that contains the liquid instead of impelling it directly. The upshot? The pump never touches the fluid which makes this an excellent choice for any food/drink/sterile based pumping such as for making drink-bots or gardening robots!

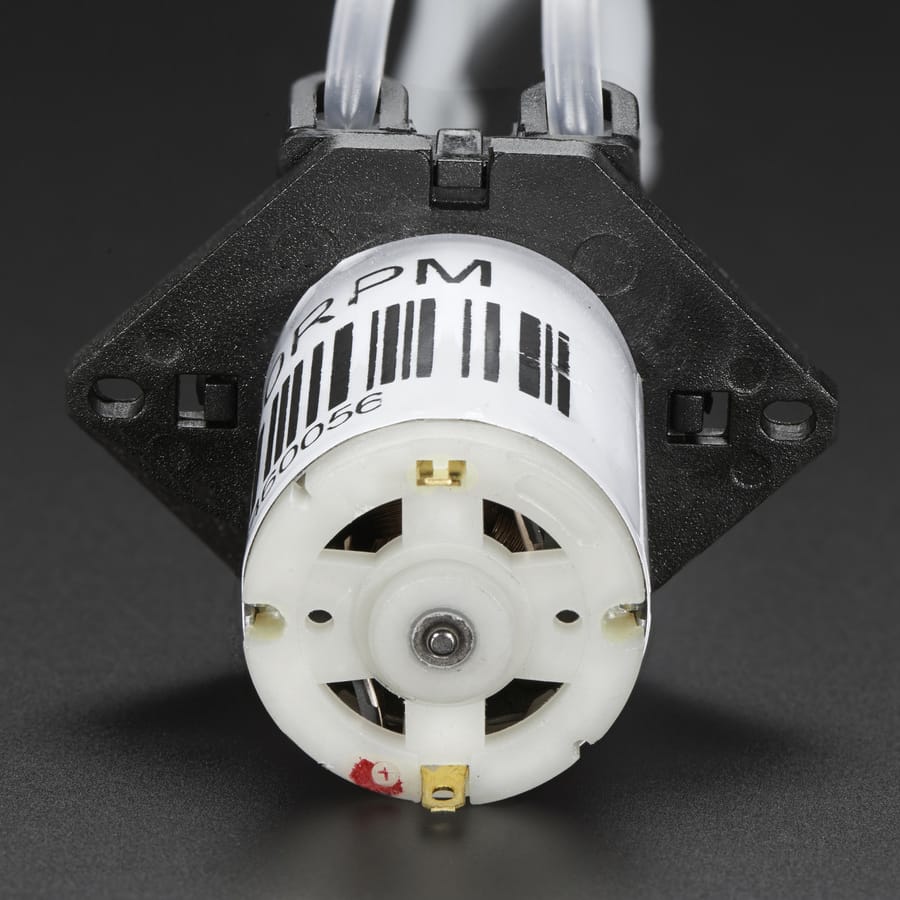

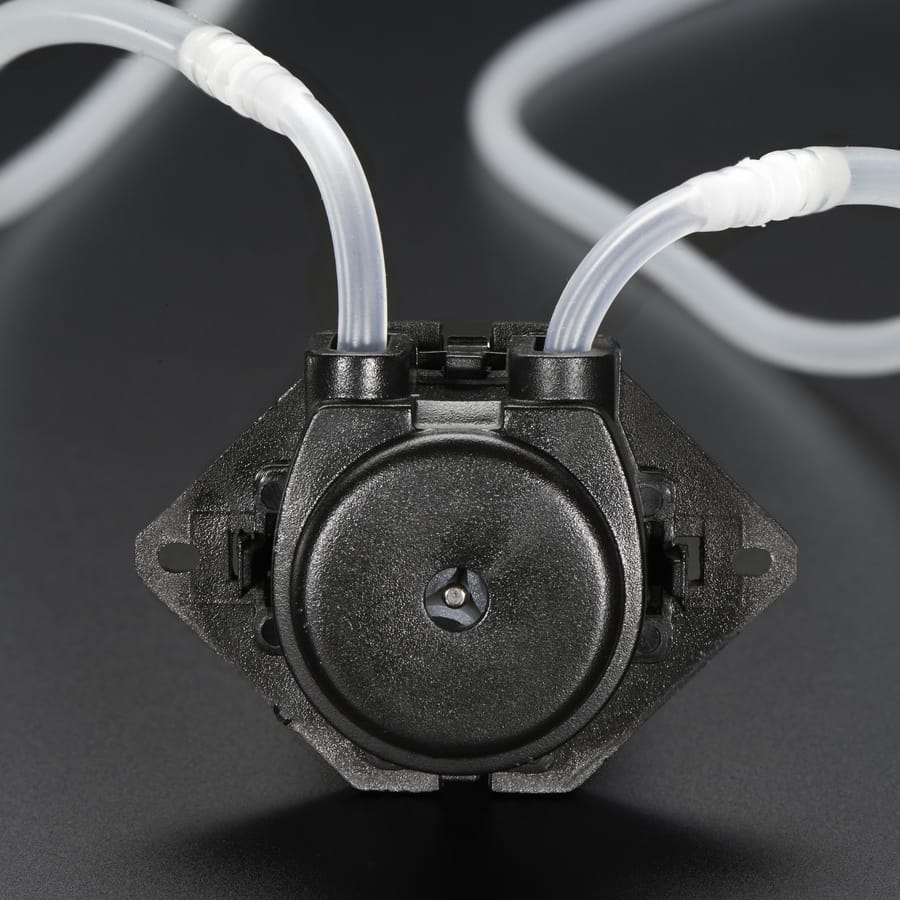

The pump is basically a geared down DC motor, so it has a lot of torque. Inside the pump is a 'clover' pattern of rollers. As the motor turns, the clover presses on the tube to press the fluid though. The pump does not need to be primed and in fact can self-prime itself with water a half meter with ease. You can PWM the motor to speed up or slow down the flow rate and if you connect the motor the other way it will move fluid the other direction. Works great with either a power transistor (basic on/off) or a motor driver chip such as the L293D.
We also stock a version that is compatible with both 5V and 6V DC power supplies. You can find it here.

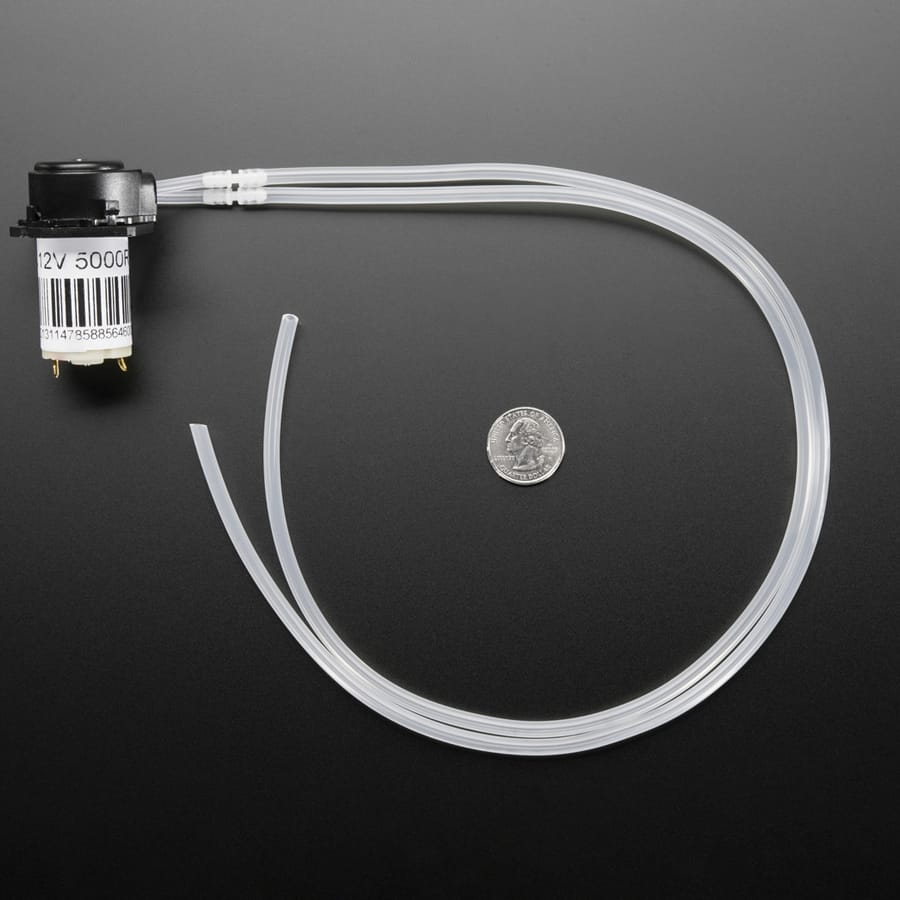

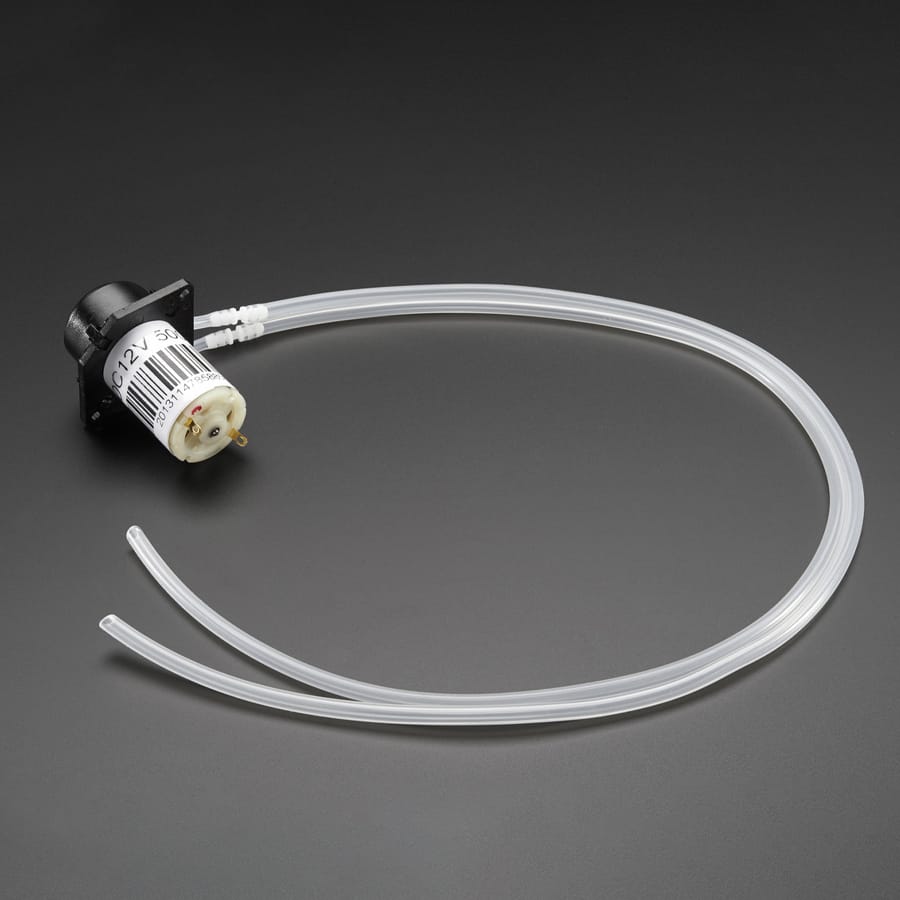

Please note: The pump comes with a bit of silicone tubing already installed and two 1/2 meter pieces attached on with barbed connectors. However, the silicone tubing is not sterile and might be dirty on its way to you. Before using, the tubing must be sterilized! The included tubing is also not rated FDA or USDA compliant and is only meant for basic testing of the pump. If you need to purchase FDA/USDA compliant tubing for use with your food-hacking project check out McMaster-Carr. They have many types of silicone tubing available by the foot! We also have a meter of silicone tubing you can pick up right now.
Wikipedia has a great article on peristaltic pumps, please check it out for more details on how these devices work!
Uses approx. 4mm outer diameter, 2mm inner silicone tubing, the pump tube size has changed on us, so please measure the tubing that comes with your pump to verify!
Features
Peristaltic pump design - squishes silicone tubing rather than impelling fluid directly
Never touches the fluid being pumped
Ideal for food, drink, and sterile applications
Geared down DC motor with high torque
Clover pattern roller mechanism for consistent fluid movement
Self-priming capability - can prime itself with water up to half a metre
PWM compatible for variable flow rate control
Reversible operation - reverse motor direction to change fluid direction
Compatible with power transistors and motor driver chips (e.g. L293D)
Includes silicone tubing pre-installed with two 0.5 metre pieces and barbed connectors
Non-sterile tubing included - requires sterilisation before use
Included tubing not FDA/USDA compliant - suitable for testing only
Specifications
Working Temperature: 0℃ - 40 ℃
Motor voltage: 12VDC
Motor current: 200-300mA
Flow rate: up to 100 mL/min
Weight: 200 grams
Dimensions: 27mm diameter motor, 72mm total length
