PCM5122 I2S HiFi DAC for Raspberry Pi
Price:
Sale price
£10.90
Stock:
Quantity:
Awesome Extras
Fit this DAC board to your Raspberry Pi to enable high-quality audio playback with stereo encoding/decoding, supporting 32-bit resolution data and sampling frequencies up to 384kHz - compatible with Raspberry Pi OS, Volumio and Moode!

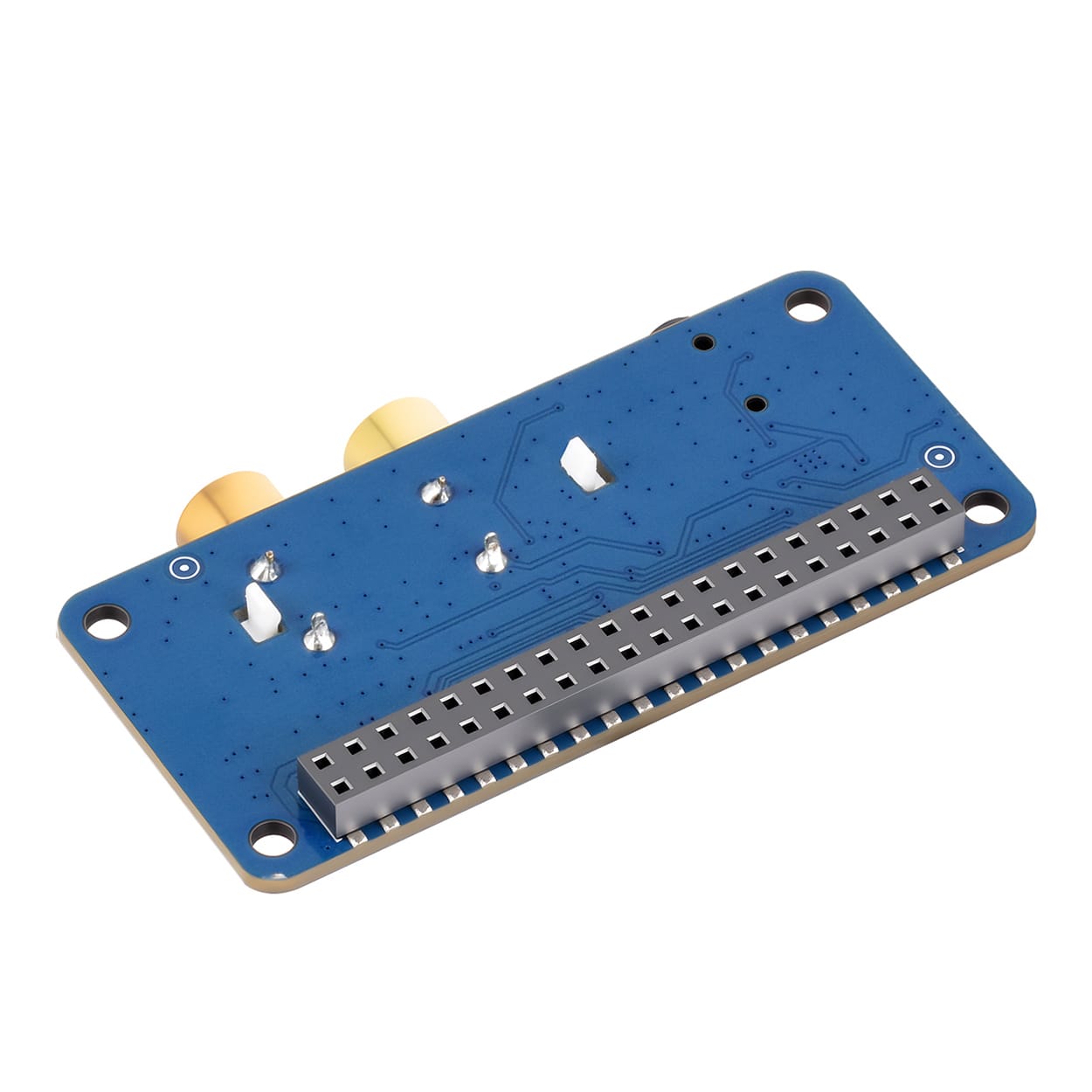

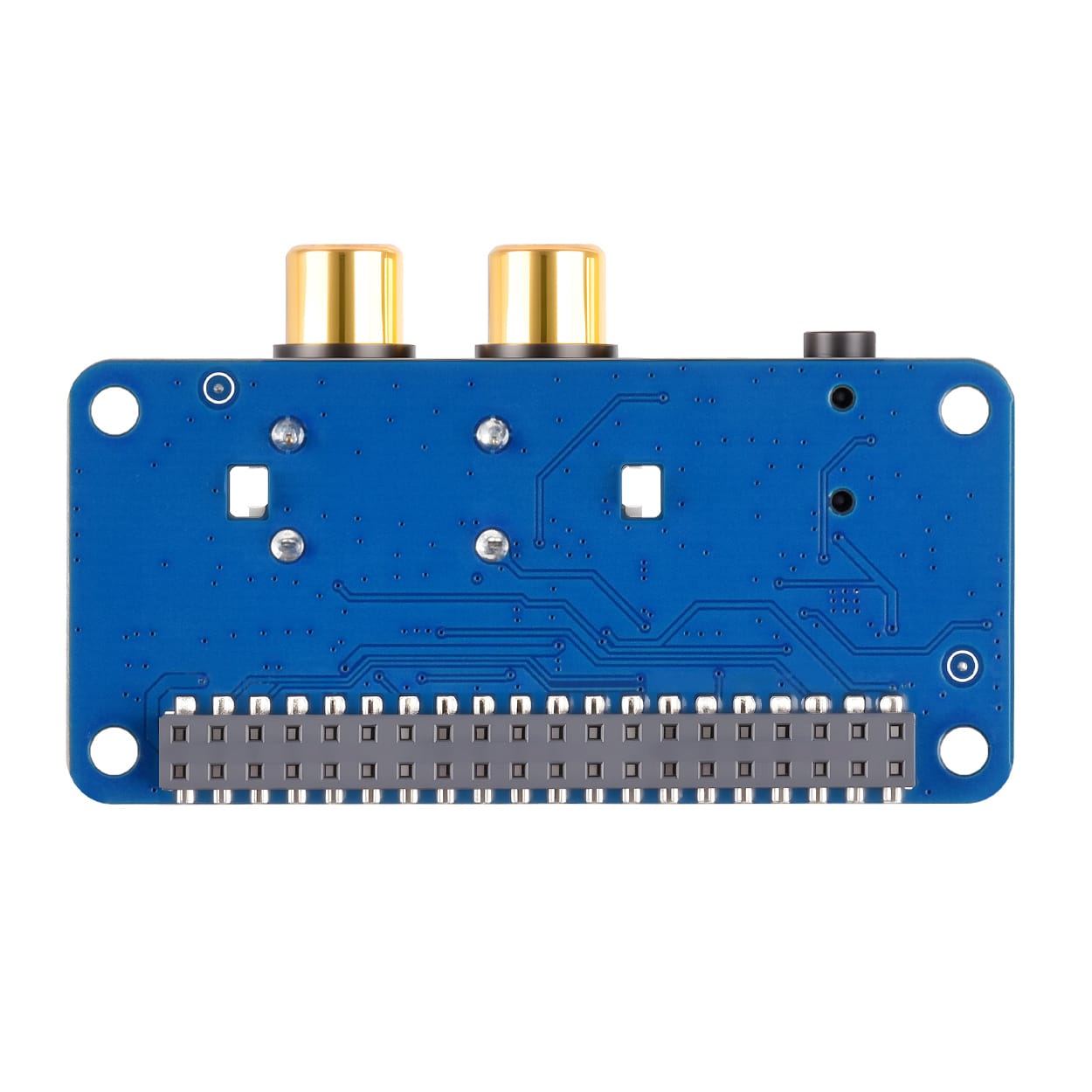

The HAT fits on top of your Raspberry Pi (any 40-pin model) via the included pass-through GPIO header, secured with the included fixings.

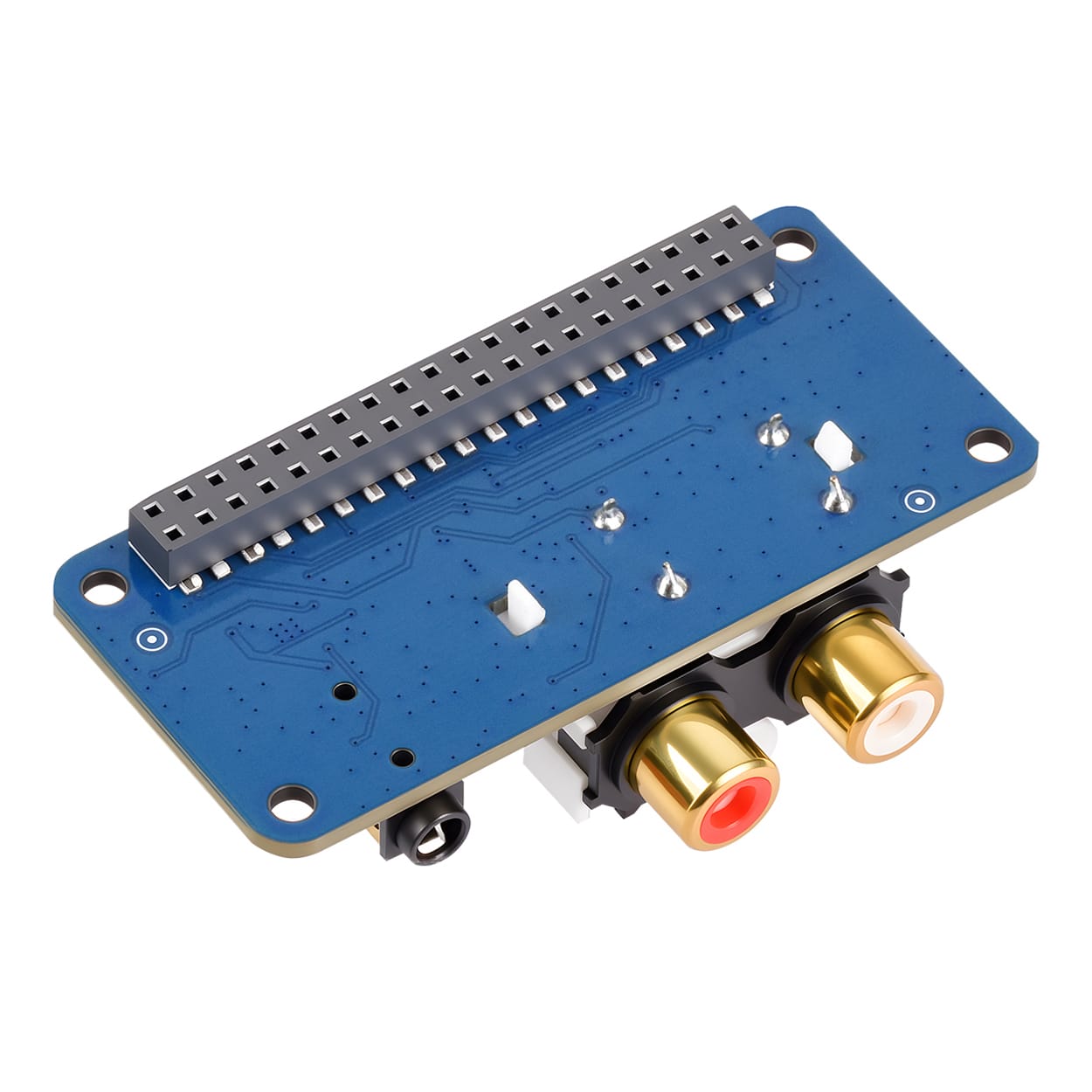

Once fitted, simply connect the RCA to your audio system, or the 3.5mm jack to headphones, and enjoy high-quality audio transmitted via the Pi's I2S interface.

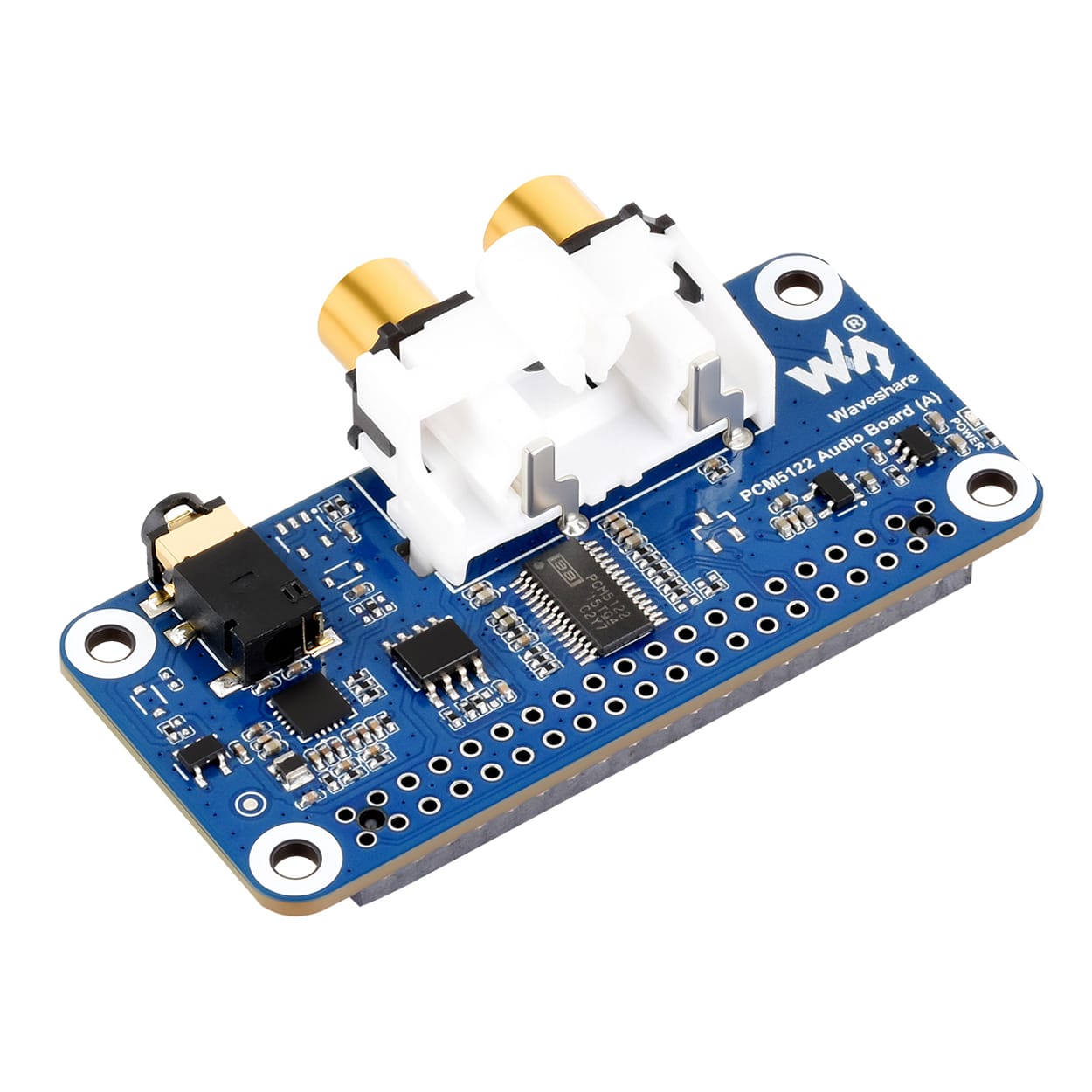

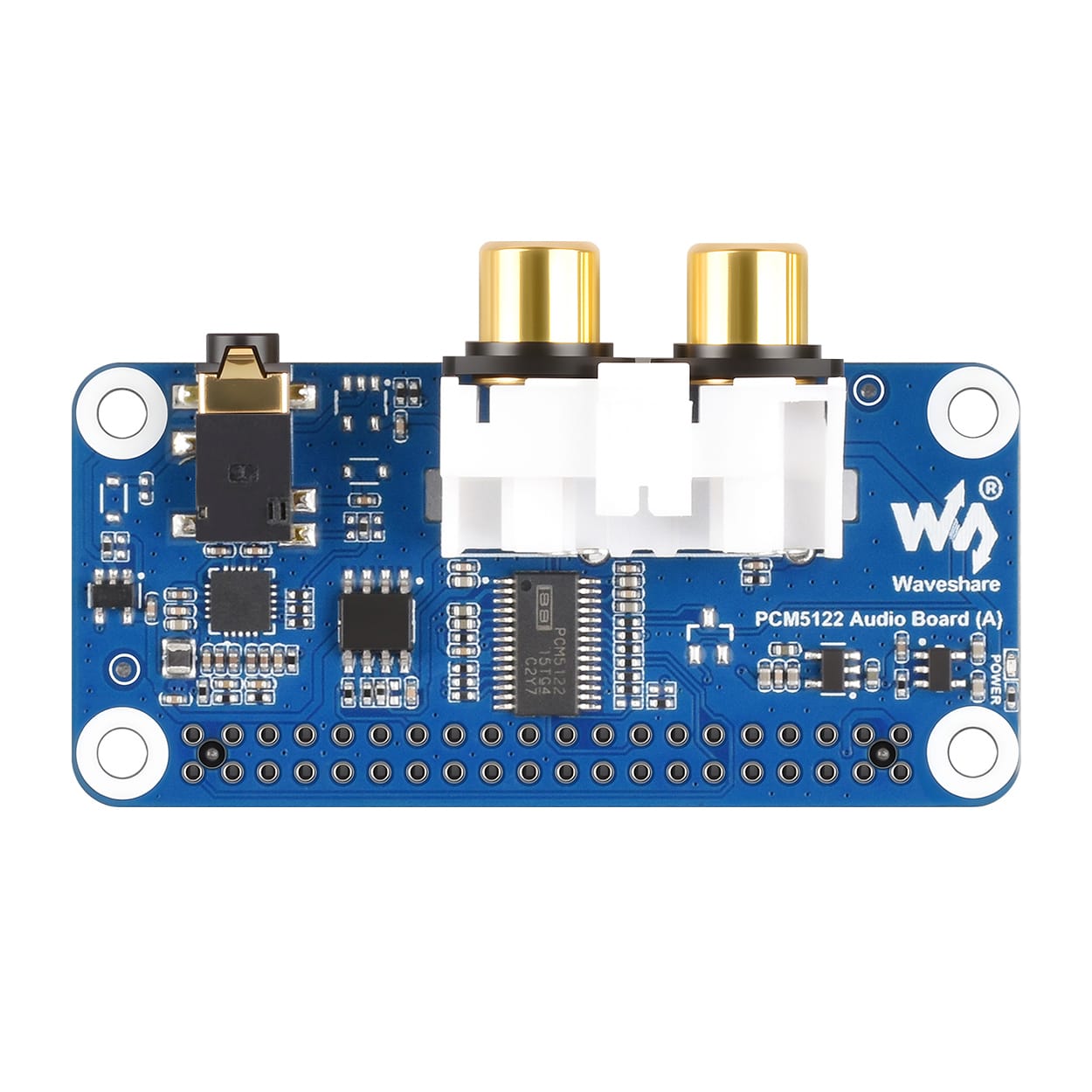

It uses a PCM5122 32-bit, 384kHz stereo digital-to-analog converter (DAC) which converts audio streams into high-quality audio signals for the outputs.
Raspberry Pi not included.
Features
- PCM5122 stereo digital-to-analogue converter
- 32-bit audio resolution
- Sampling frequencies up to 384kHz
- Audio transmitted via I2S interface

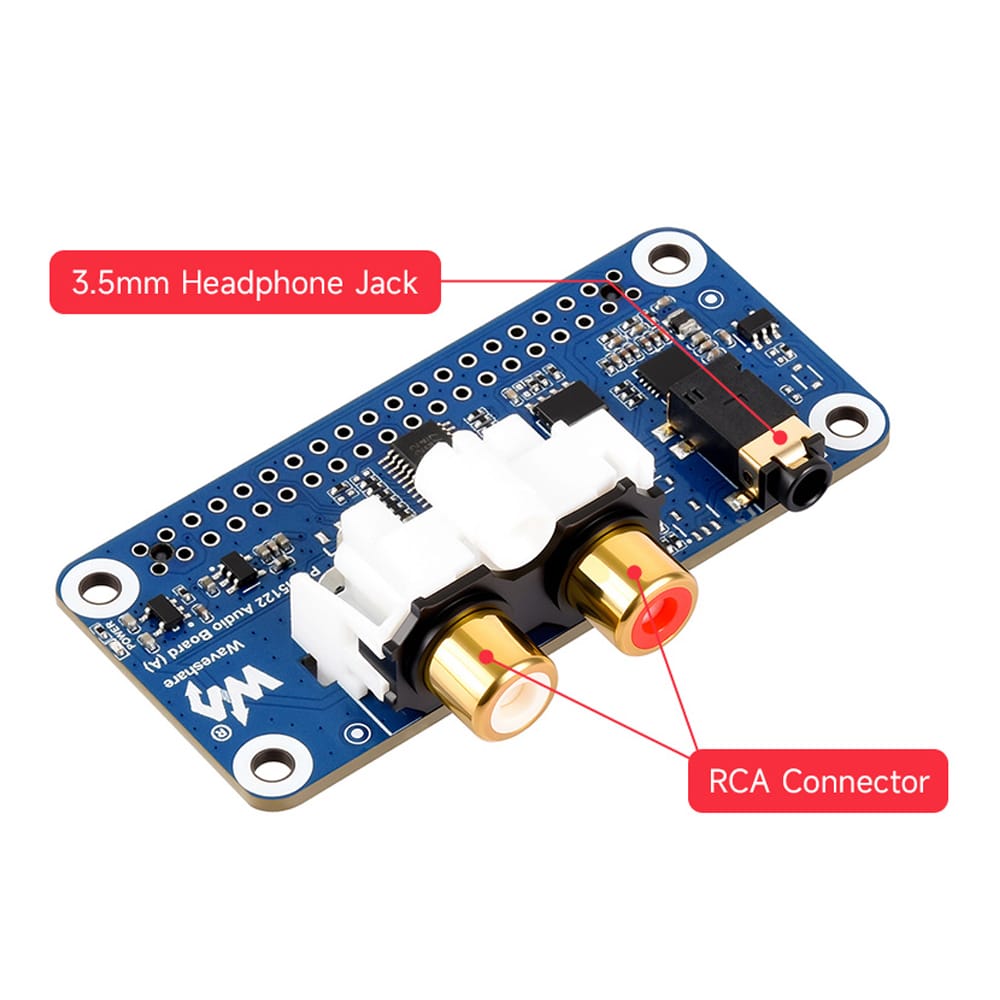

- Audio outputs
- Stereo RCA
- 3.5mm headphone jack
- Compatible with Raspberry Pi OS, Volumio and Moode (and potentially other systems)
- Compatible with any 40-pin Raspberry Pi model
Specifications
- Supply voltage: 5V
- Logic voltage: 3.3V
- Audio codec chip: PCM5122
- Control interface: I2C
- Audio interface: I2S
- DAC SNR: 112dB
Resources

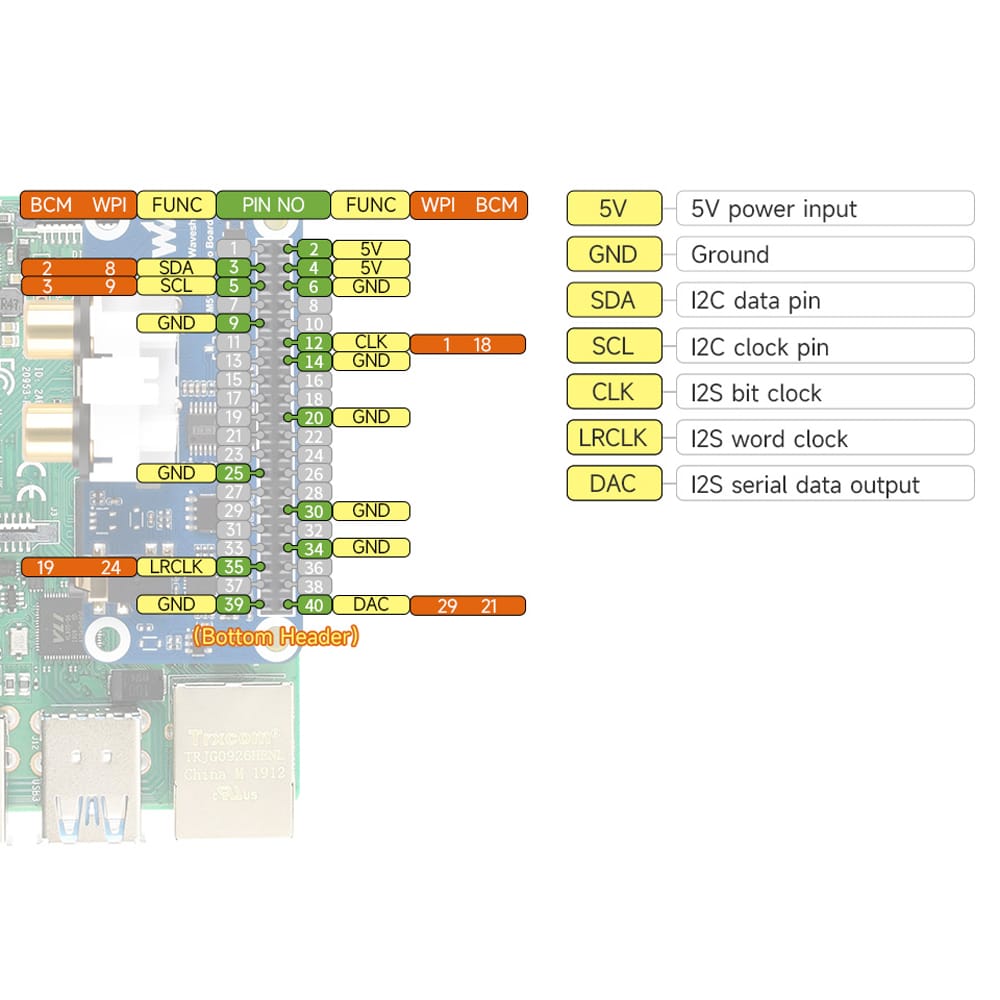

Pinout
Package Contents
- 1x PCM5122 I2S HiFi DAC for Raspberry Pi
- 1x GPIO pass-through header
- 1x Fixings pack
Raspberry Pi not included.
