PC4-M6 (Black) Pneumatic Connectors (5-pack)

The Pi HutSKU: 105178
£3
incl. VAT
excl. VAT
Only 16 units left

Awesome Extras

PTFE Bowden Tube for 1.75mm Filament - The Pi HutPTFE Bowden Tube for 1.75mm Filament - The Pi Hut
The Pi HutPTFE Bowden Tube for 1.75mm Filament
£3 incl. VAT excl. VAT
3D Print Deburring Tool + 10x Blades - The Pi Hut3D Print Deburring Tool + 10x Blades - The Pi Hut
The Pi Hut3D Print Deburring Tool + 10x Blades
£7.90 incl. VAT excl. VAT
Jet Black PLA Filament (1.75mm, 1kg) - The Pi HutJet Black PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFJet Black PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT
Notify me
Titanium White PLA Filament (1.75mm, 1kg) - The Pi HutTitanium White PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFTitanium White PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT
Notify me
Treasure Gold PLA Filament (1.75mm, 1kg) - The Pi HutTreasure Gold PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFTreasure Gold PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT
Midnight Silver PLA Filament (1.75mm, 1kg) - The Pi HutMidnight Silver PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFMidnight Silver PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT

Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

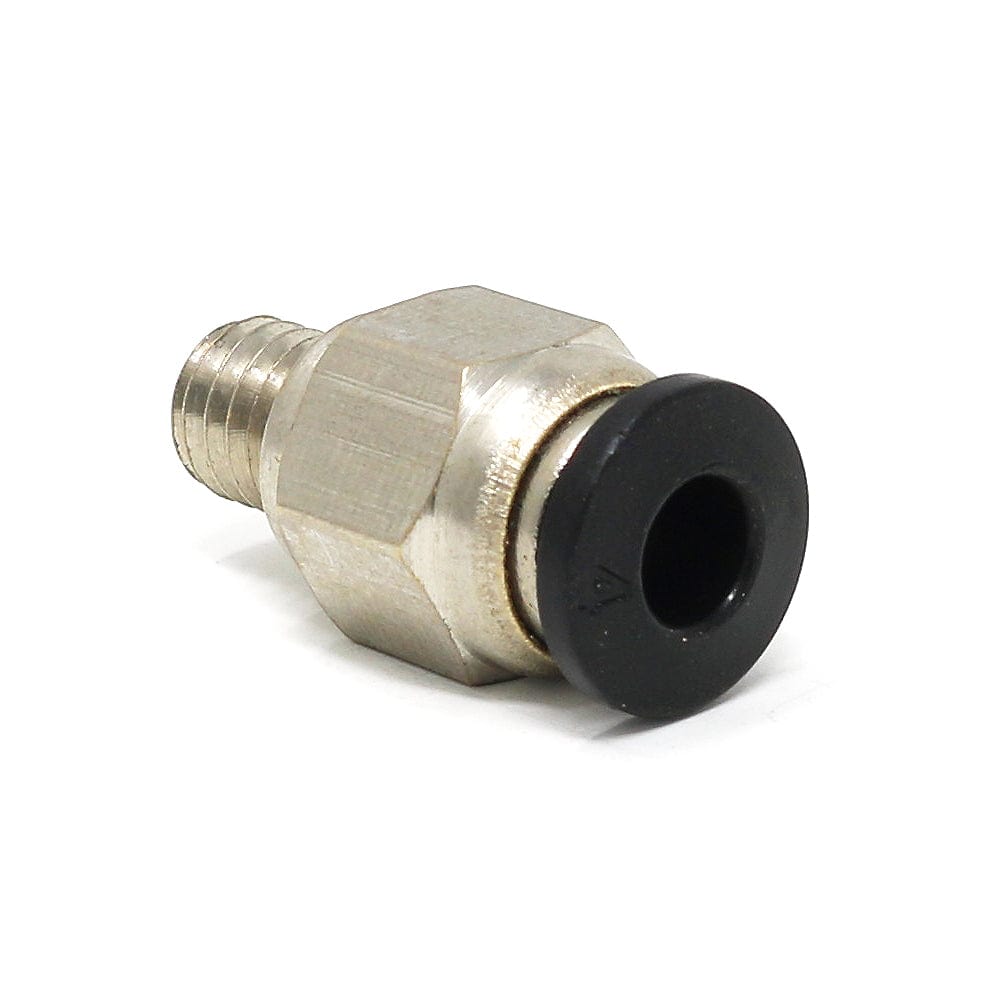

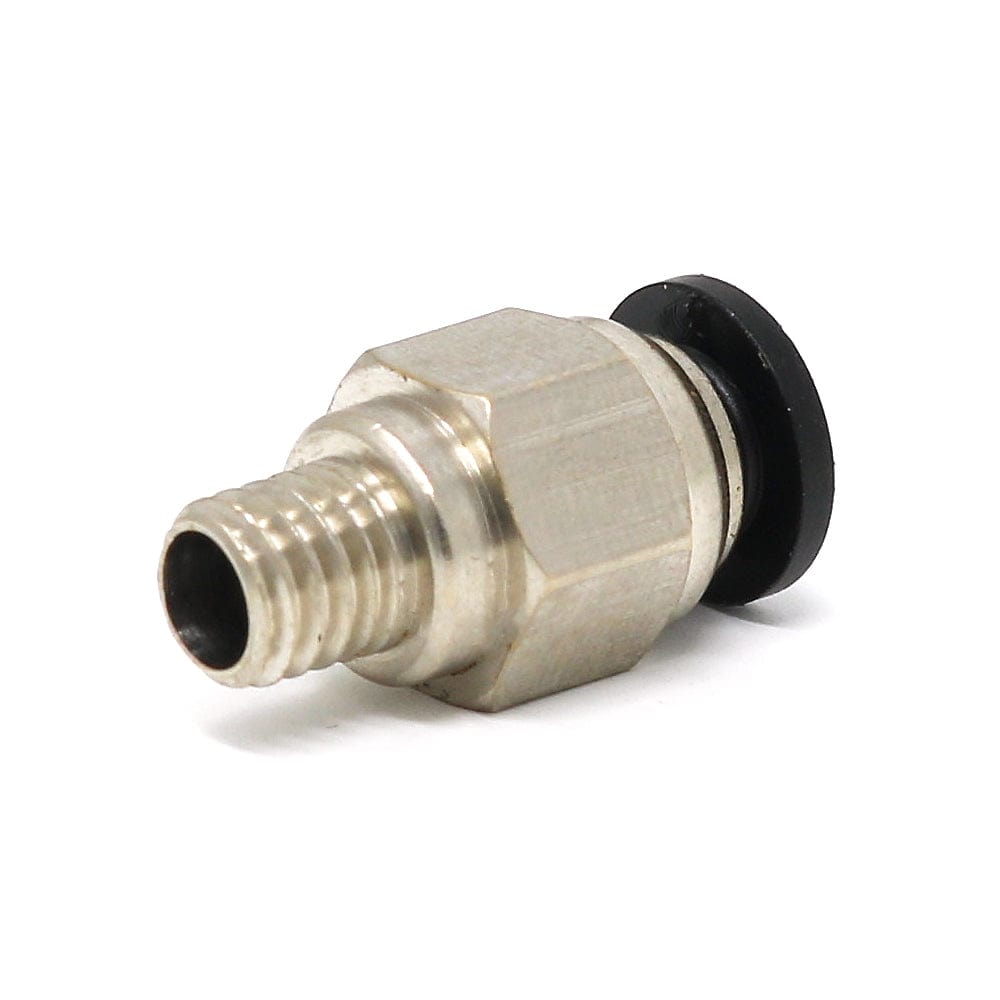

This is a pack of five PC4-M6 (Black) pneumatic connectors which accept Bowden tubes with a 4mm outer dimension (4mm OD) and 2mm inner dimension (2mm ID), such as the tubes we sell in the store.

We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!

Specifications

  • Type: PC4-M6 Black
  • Thread OD: 5.8mm
  • Height: 20.2mm
  • Nut OD: 10.1
  • Thread length: ~5mm
  • Input diameter (thread end): 4.1mm
  • Compatible PTFE: 4mm OD / 2mm ID
  • Weight (per connector): 4.5g

Package Contents

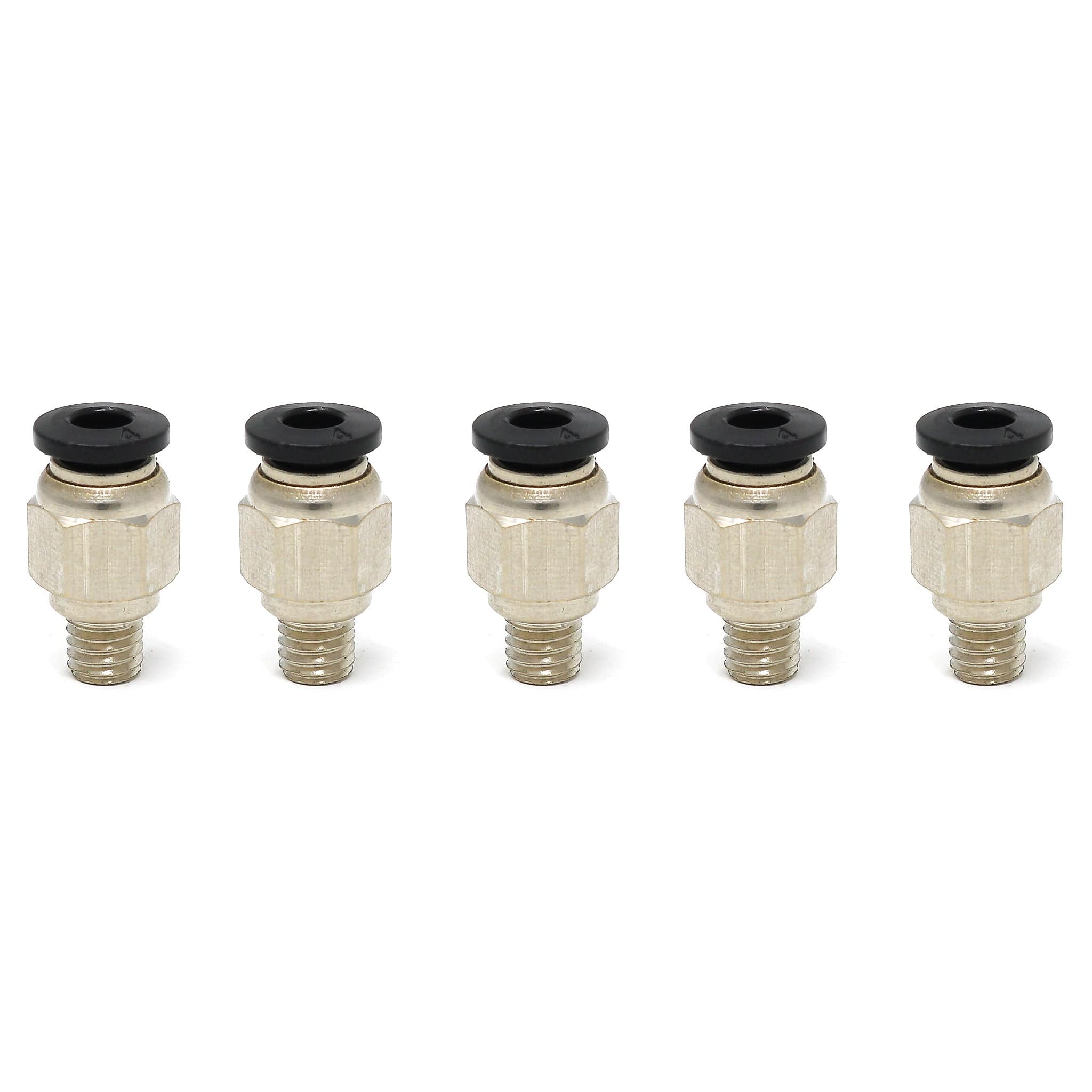

  • 5x PC4-M6 (Black) pneumatic connectors
