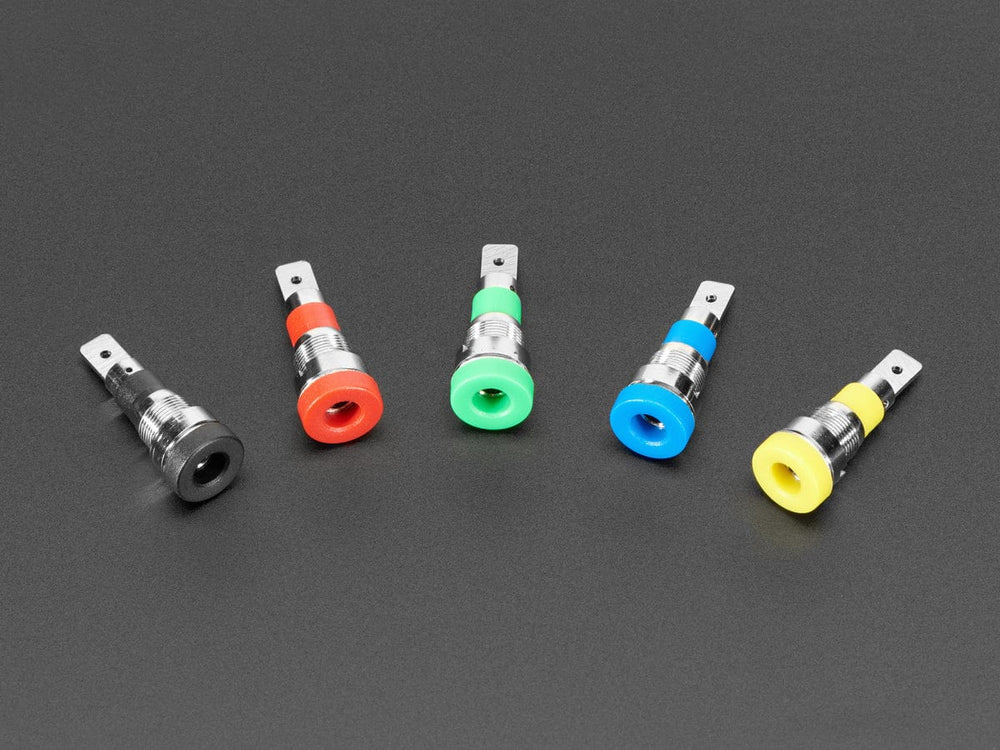

You've done such a great job making your own electronic control panel that the last thing you need are those wires to get pulled out and frizzy. These fancy Panel-Mount Banana Jacks look good and work well. They will snugly hold onto any 4mm banana plug or cable, and have a colorful ring you can use to help identify and categorize connections.

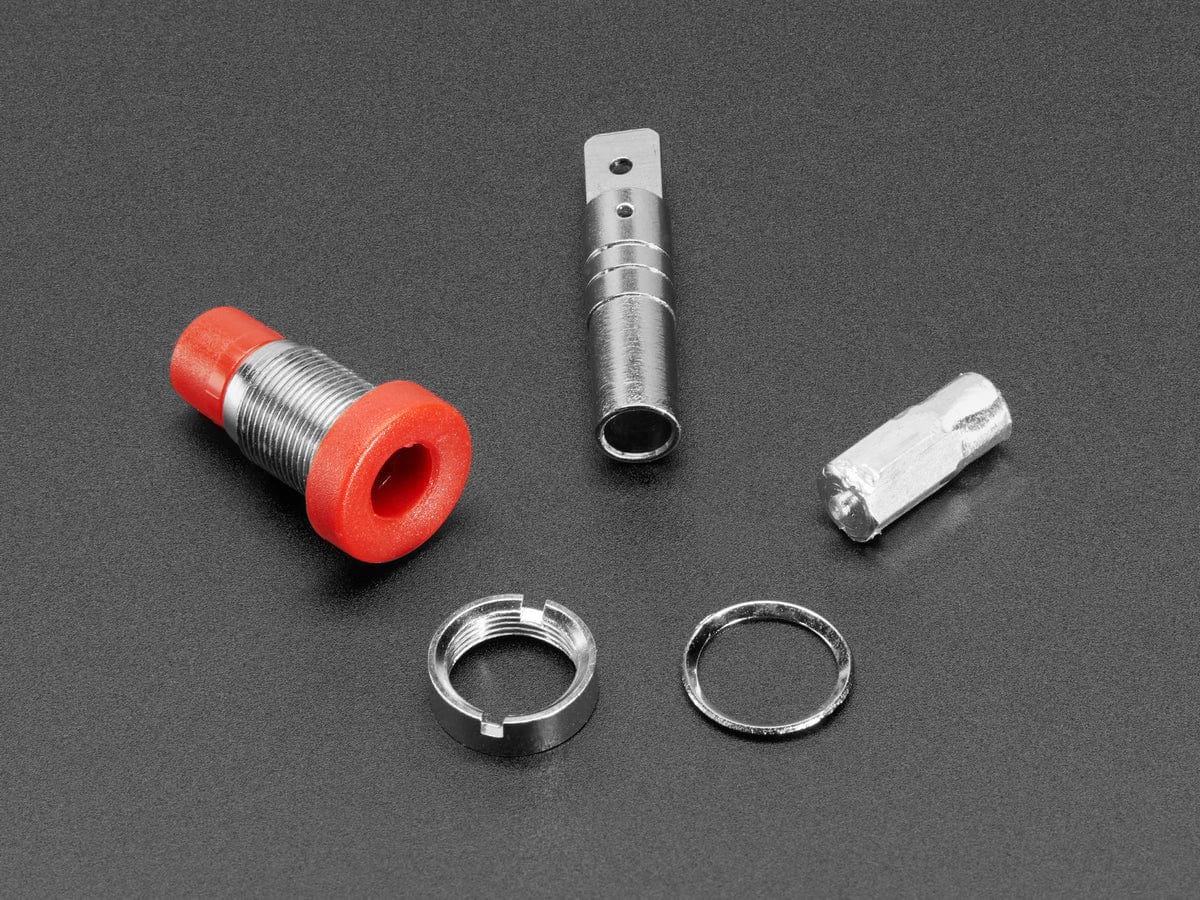

Each plug has an M8 screw body with a washer+nut combination that can be used to secure it to a panel. The back has a large slug with a hole you can solder to.
Comes as pack of 5, you get one of each lovely color. We also have Solder-free Stackable Banana Plugs that go well with these jacks.
- Body: Nickel-plated brass
- Insulator: PA66 Nylon
- Voltage: up to 30V AC - 60V DC
- Current: up to 15A
- Weight (single jack): 4.2g
- Internal diameter: about 4.8mm
- Length: about 28mm
