Panel Mount 100K potentiometer (Breadboard Friendly) (100KB)

Name: Panel Mount 100K potentiometer (Breadboard Friendly) (100KB)
Brand: The Pi Hut
SKU: 103726
Price: 0.80 GBP
Availability: InStock

The Pi HutSKU: 103726

Share this product

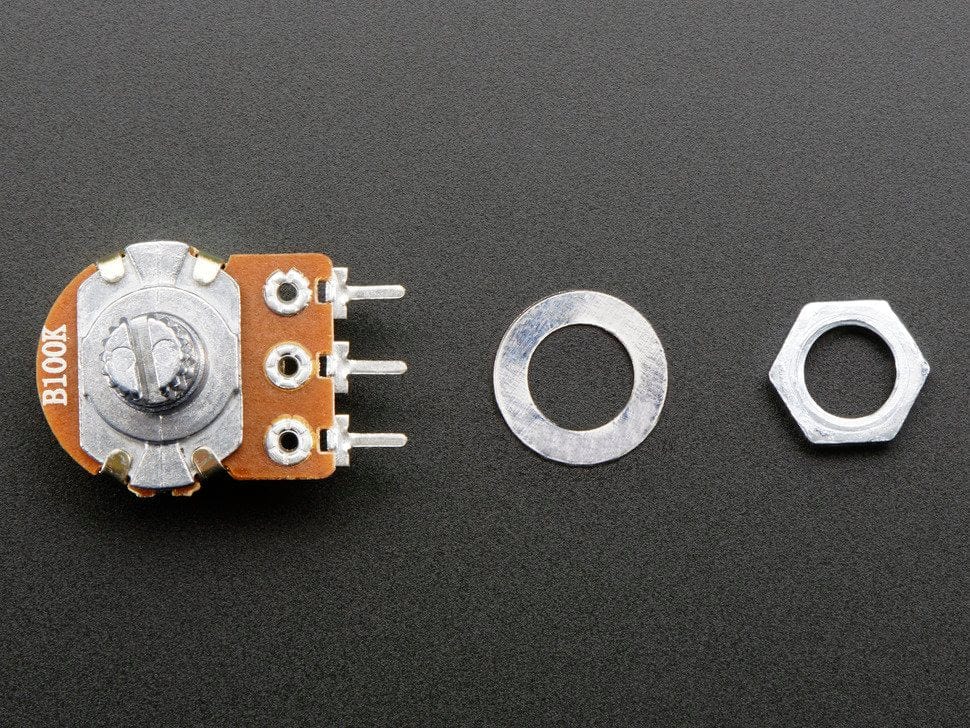

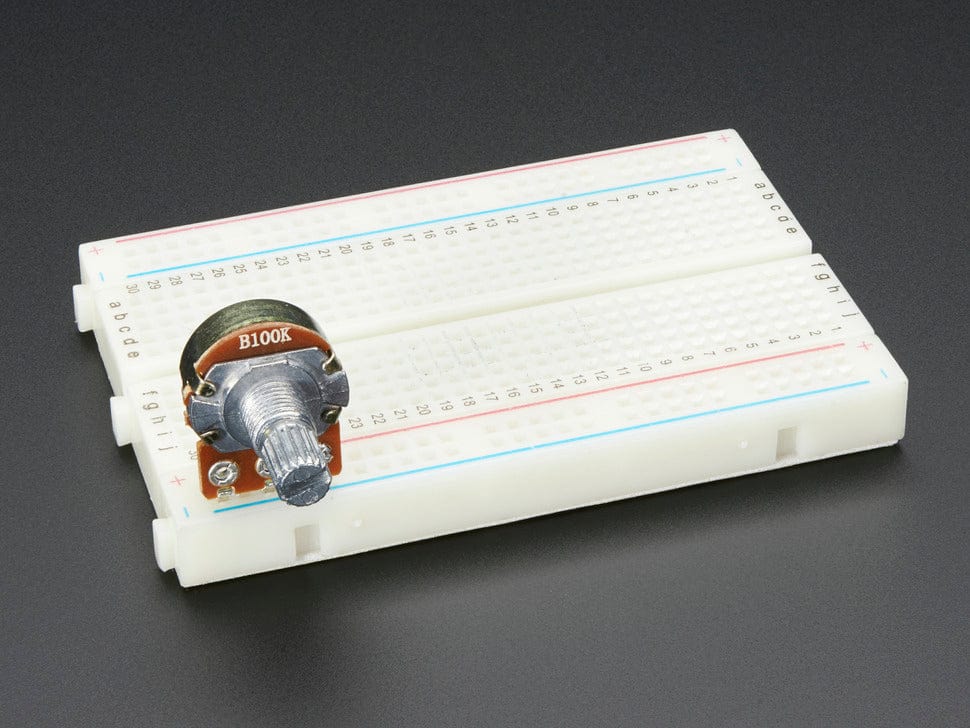

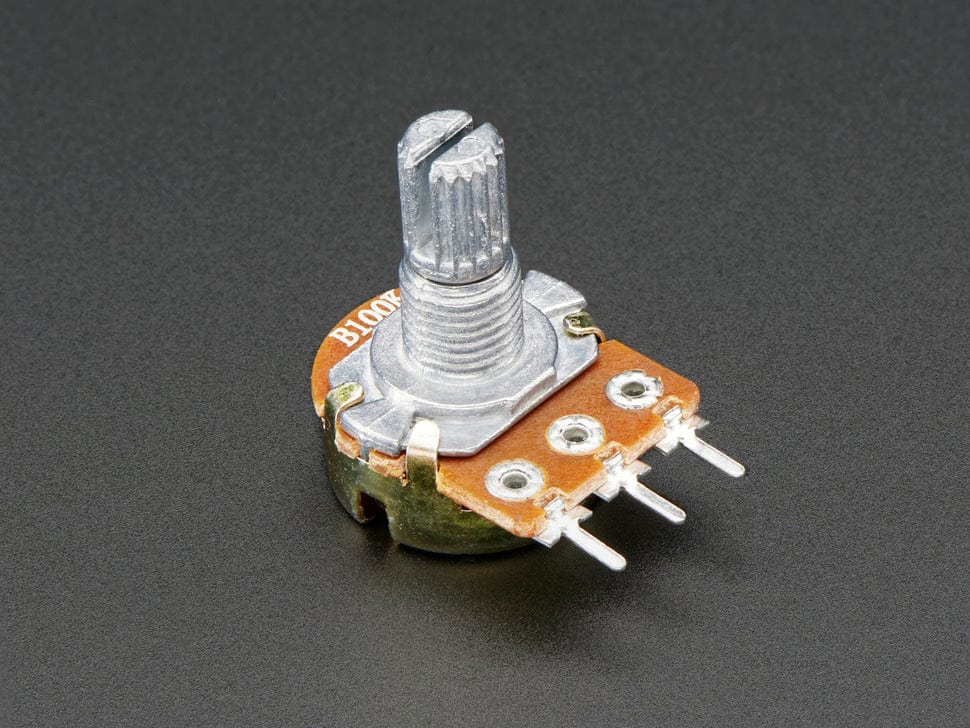

This potentiometer is a two-in-one, good in a breadboard or with a panel. It's a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.

Technical details

Dimensions:

Body: 16mm / 0.6"
Body Circumference: 50mm / 2"
Shaft Length: 15mm / 0.6"
Weight: 6g

100K ohm potentiometer, linear taper
100,000 Cycle Life
Rotational travel: 300 °
Static Stop Strength: 90 oz-in
Rotational Torque: 0.5 to 1.25 oz-in
P160KN-0QC15B100K Datasheet
