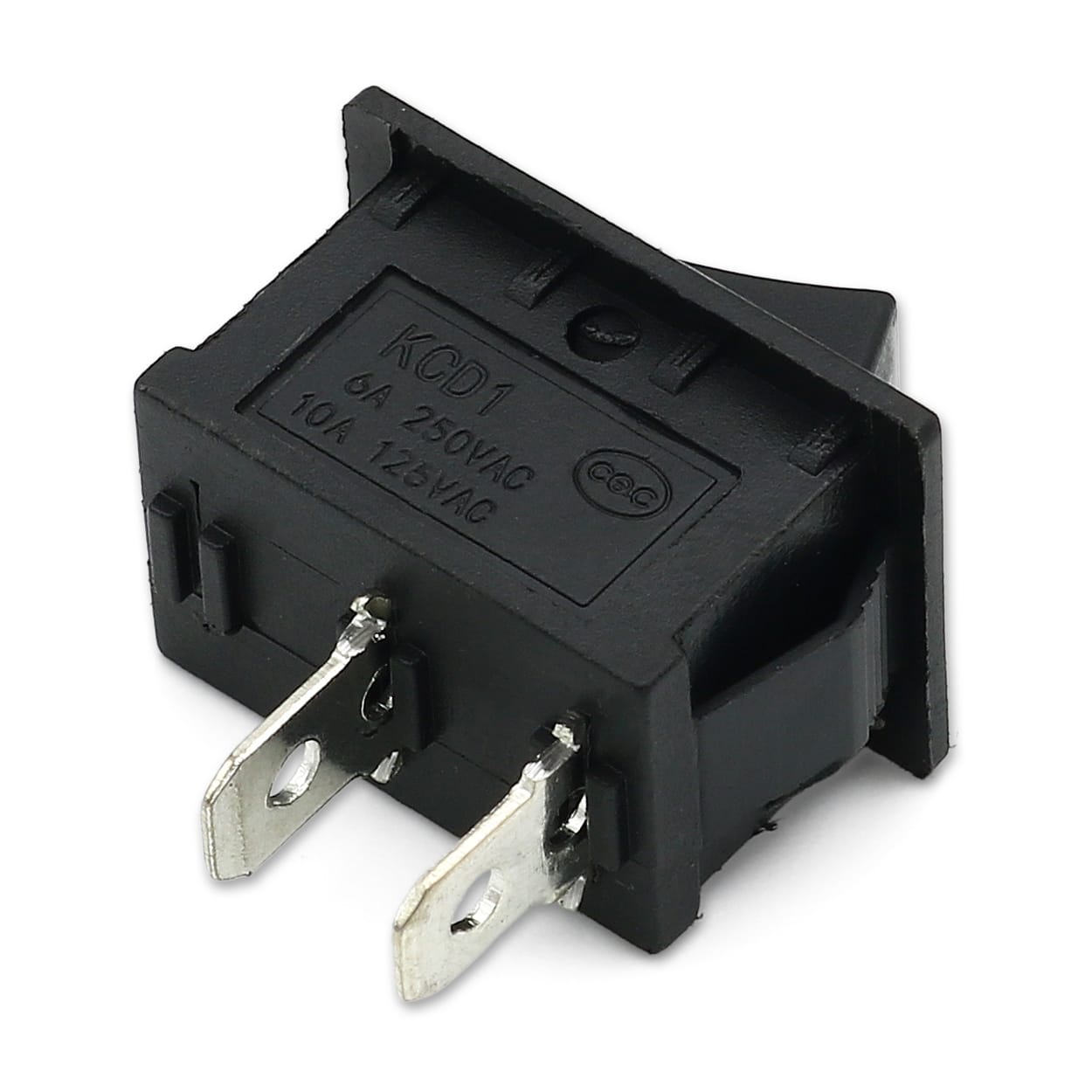

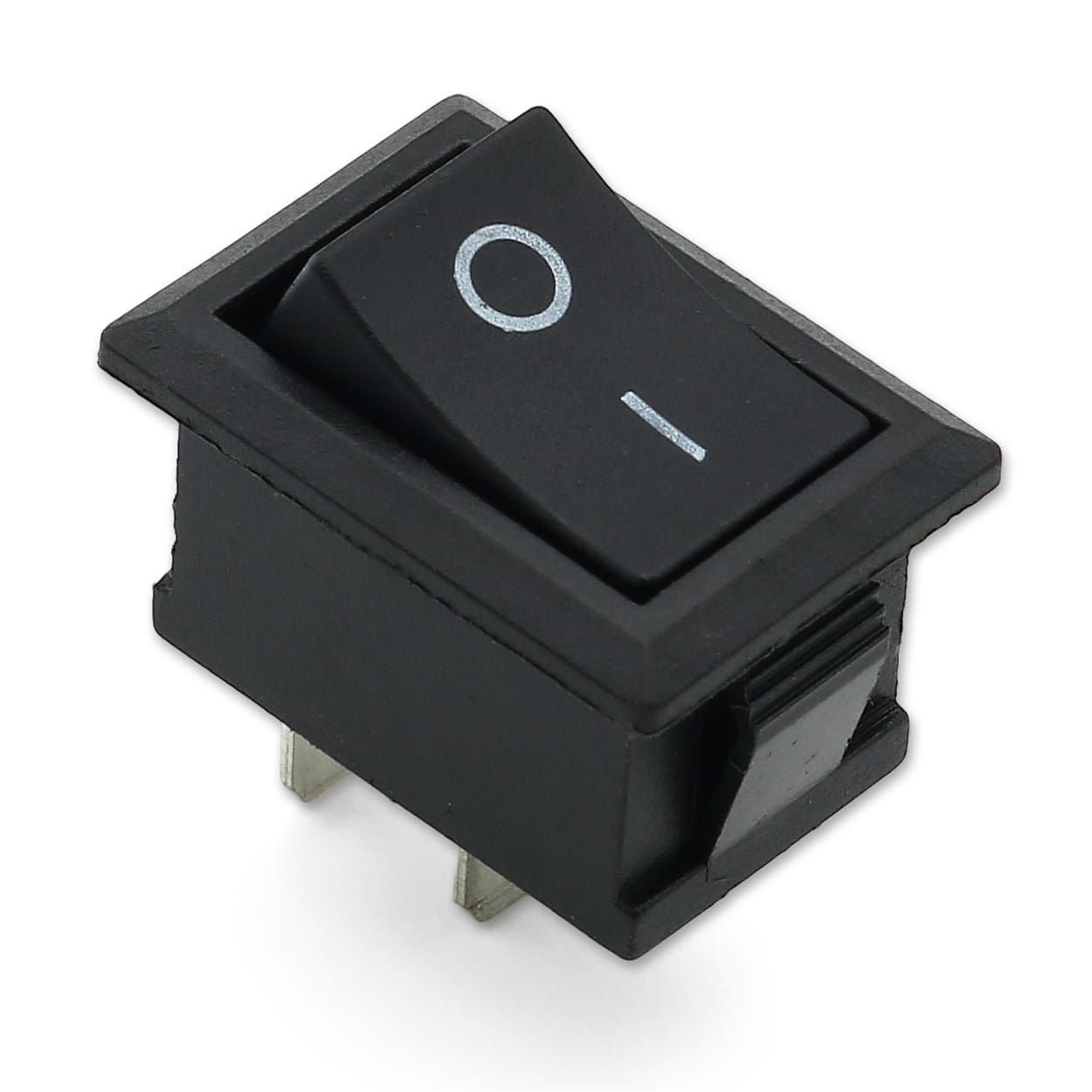

Ah the classic 'boat style' mini rocker switch - simple, reliable, and with that satisfying 'snap' when you use it.
Rated to 250VAC 6A or 125VAC 10A(although we don't suggest using these with mains electricity because...it's dangerous!), these switches are really handy to control power or even IO from outside an enclosure, with a simple push-fit panel-mount body with tabs that keep the switch in place (panel mount thickness up to around 2mm).
We really like useing these for controlling IO pins to trigger other parts of a project. You can connect our 4.8mm Spade to Female Jumper Wires to the tabs on the switch and hook them up to microcontroller pins without any soldering.

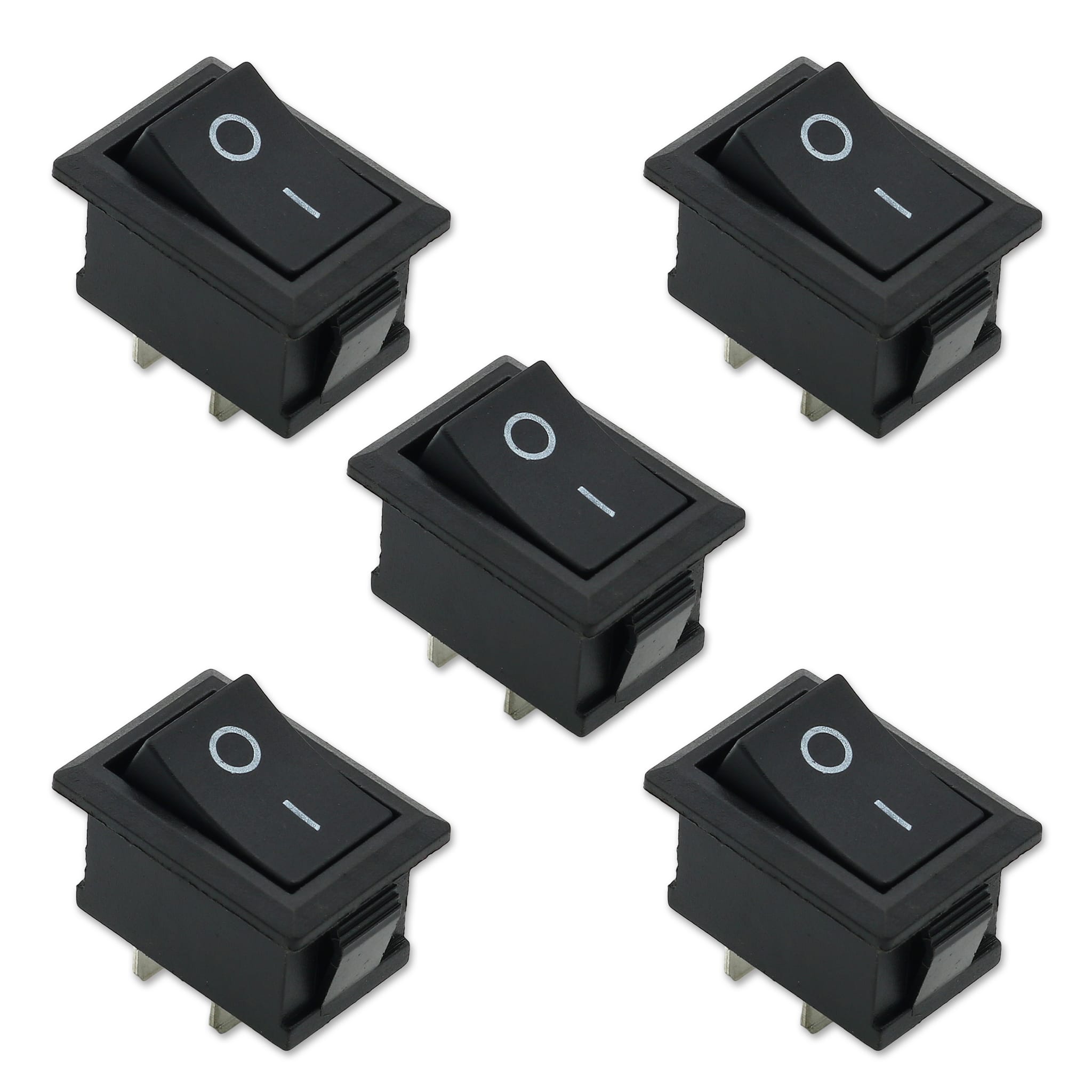

Comes as a 5-pack, for switching allll the things.
Features
Boat-style rocker switch
Rated 250VAC 6A or 125VAC 10A
Push-fit panel mounting with retaining tabs
Supports panel thicknesses up to around 2mm
4.8mm spade terminals
5-pack
Specifications
Model / Series
KCD1 Mini Rocker Switch
Switch Type
SPST (Single Pole Single Throw)
Positions
2 Position (ON - OFF)
Pin / Terminal Count
2 Pins
Terminal Type
Quick-Connect Spade Terminals
Rated Voltage / Current
6A 250V AC / 10A 125V AC
Mounting Type
Panel Mount (Snap-In / Press-Fit)
Panel Cut-Out Size
19.2mm x 13mm (approx. 19mm x 12.5mm - 13mm)
Overall Face Dimensions
21mm x 15mm
Material
Plastic Body, Metal Terminals
Color
Black Body / Black Rocker
Package Contents
5x ON-OFF Rocker Switches
