Olimex RT1010-Py

OlimexSKU: 105870
£16.50
incl. VAT
excl. VAT
Only 10 units left

Awesome Extras

USB-A to Micro-USB Cable - The Pi Hut
The Pi HutUSB-A to Micro-USB Cable
From £1.50 incl. VAT excl. VAT
SanDisk MicroSD Card (Class 10 A1) - The Pi HutSanDisk MicroSD Card (Class 10 A1) - The Pi Hut
SanDiskSanDisk MicroSD Card (Class 10 A1)
From £6 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
Full-Size Breadboard - White - The Pi HutFull-Size Breadboard - White - The Pi Hut
The Pi HutFull-Size Breadboard - White
£5 incl. VAT excl. VAT

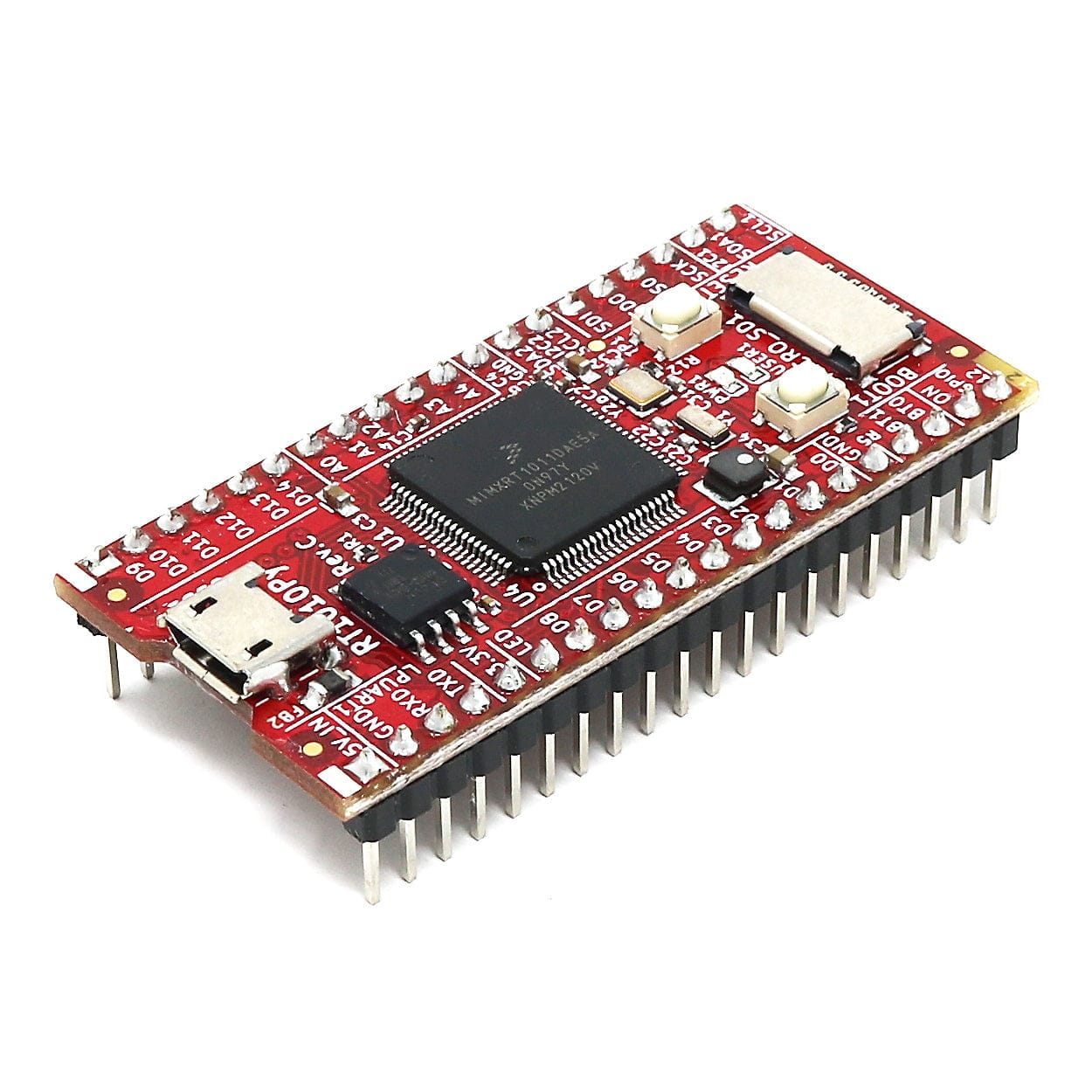

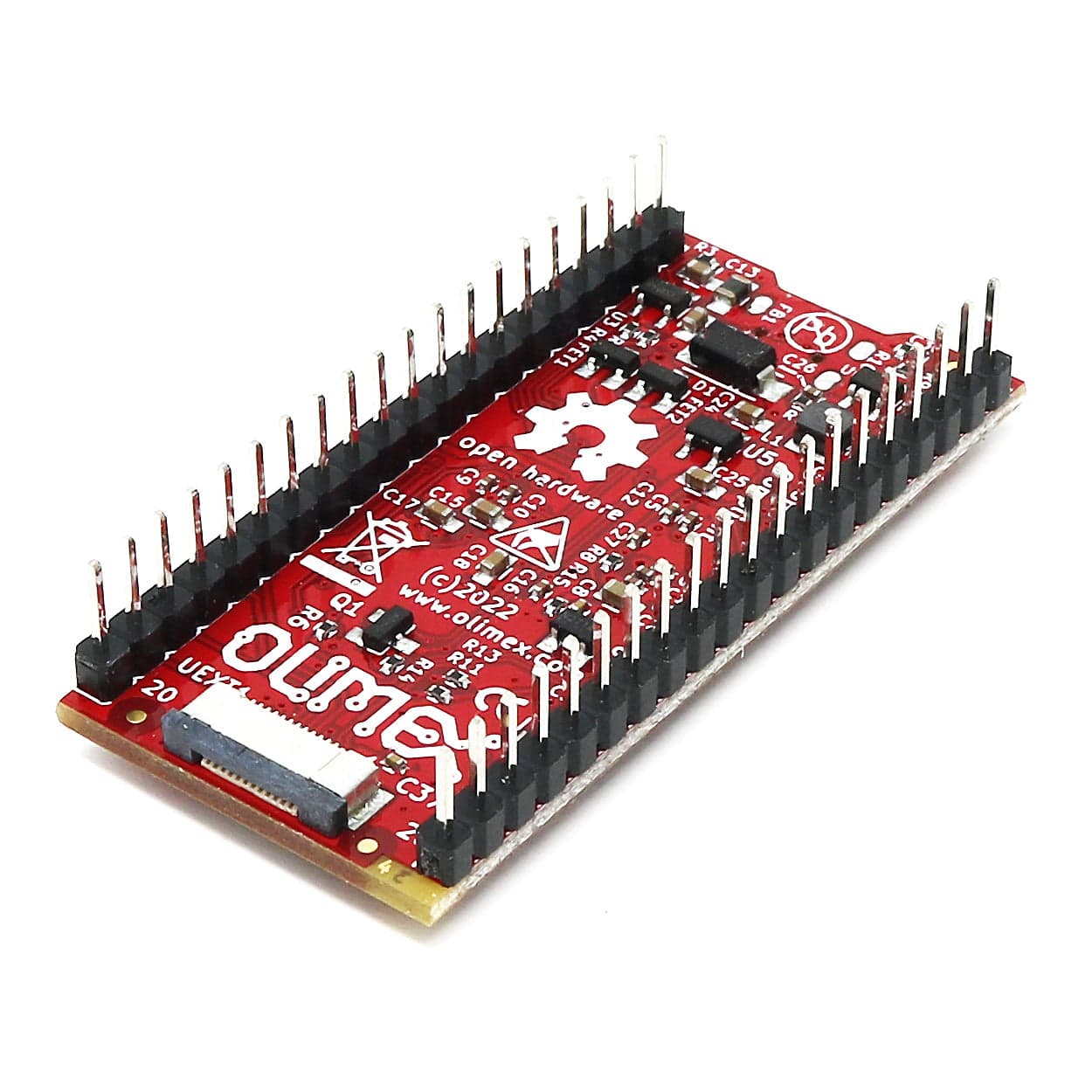

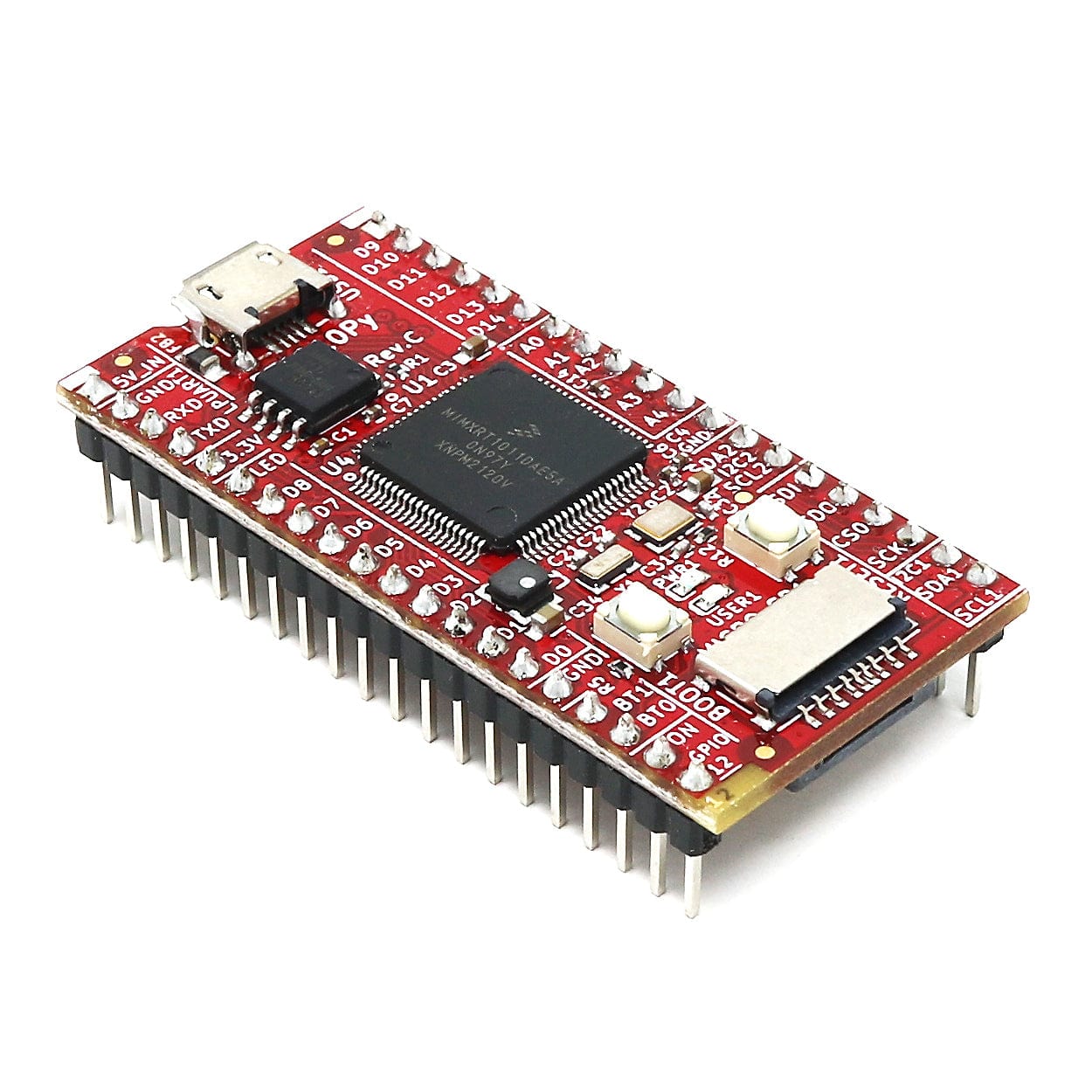

This is the Olimex RT1010-Py - a development board with an NXP MIMXRT1011DAE5A Cortex-M7 processor running at 500Mhz - four times faster than the RP2040!

If you use an RP2040 but need more speed, this board might be the perfect solution for you!

The board offers 128KB on board RAM, 2MB SPI Flash and a microSD port. You'll also find a RESET and BOOT buttons. A micro-USB connection handles power and programming (be sure to grab a micro-USB cable as one isn't included).

The RT1010-Py runs MicroPython thanks to Robert Hammelrath.

Features

  • MIMXRT1011DAE5A running at 500Mhz
  • 128KB on board RAM
  • 2MB SPI Flash
  • Three UARTs
  • Two SPIs
  • Two I2Cs
  • I2S
  • Four PWM units with complementary outputs for push pull drivers
  • USB 2.0 OTG
  • Micro SD card connector
  • RTC with 32.768 kHz crystal
  • RESET button
  • BOOT button
  • UEXT connector with 3.3V, GND, I2C, SPI, and UART
  • Two GPIOs headers spaced at 22.86 mm (0.9”)
  • Dimensions: 53.34 x 25.4 mm ( 2.1 x 1”)

Resources

Documents

Hardware

Software

Package Contents

  • 1x Olimex RT1010-Py board
