Olimex MIDI Shield for Arduino

The Pi HutSKU: 105379
£15.90
incl. VAT
excl. VAT
Only 6 units left

Awesome Extras

Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
£24.50 incl. VAT excl. VAT
Arduino UNO R4 Minima - The Pi HutArduino UNO R4 Minima - The Pi Hut
ArduinoArduino UNO R4 Minima
£18 incl. VAT excl. VAT
DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
£16 incl. VAT excl. VAT
Notify me
Adafruit MIDI FeatherWing Kit - The Pi HutAdafruit MIDI FeatherWing Kit - The Pi Hut
AdafruitAdafruit MIDI FeatherWing Kit
£6.90 incl. VAT excl. VAT

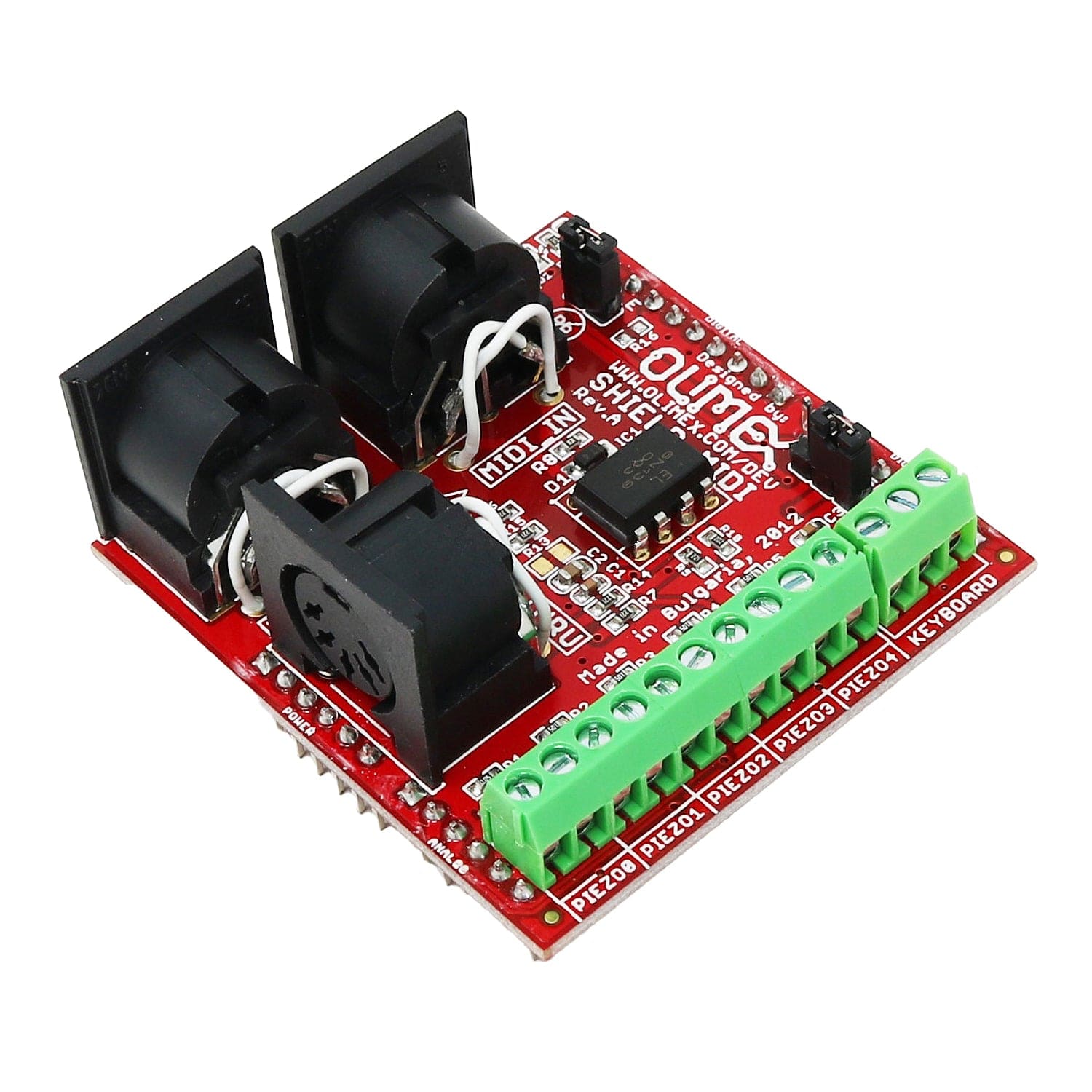

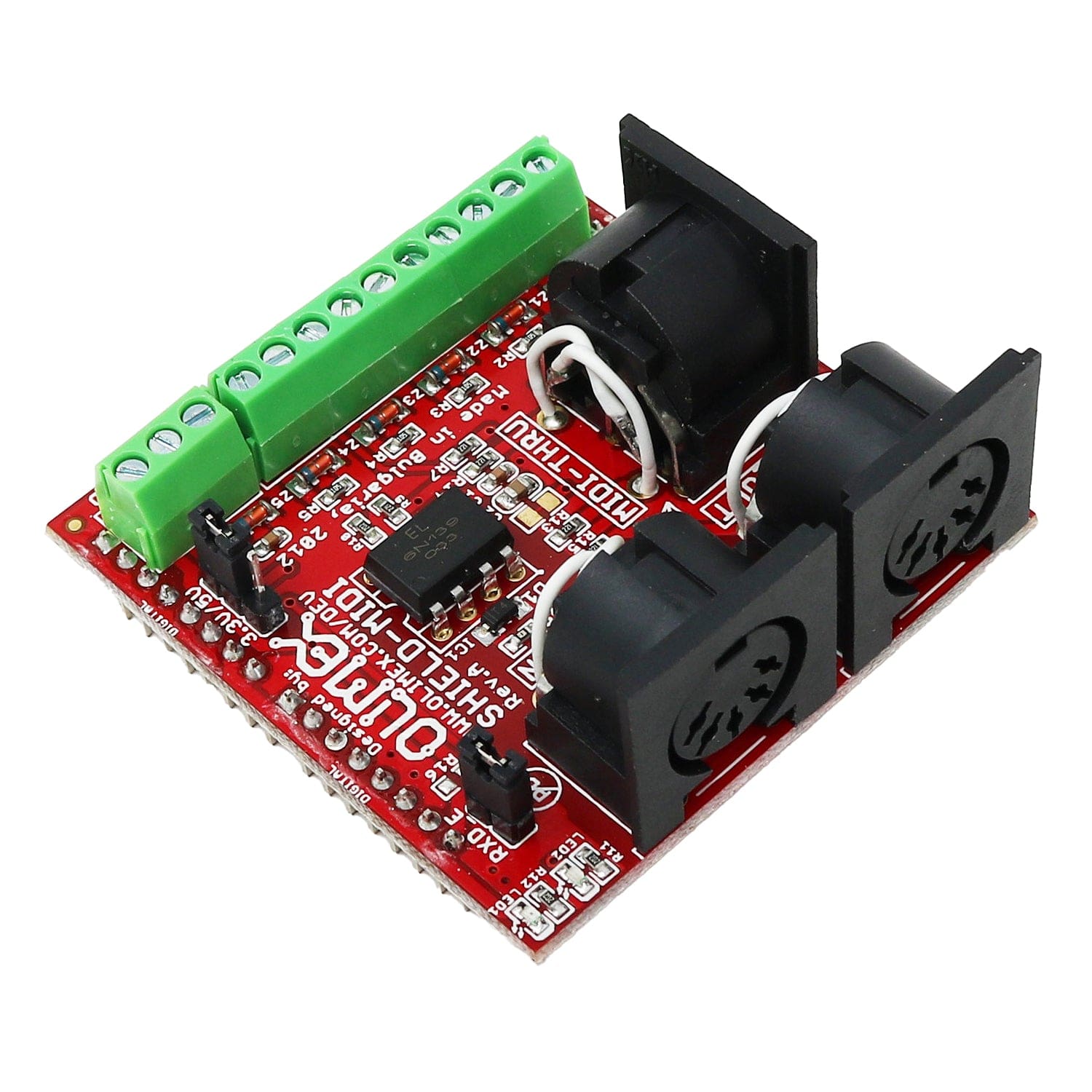

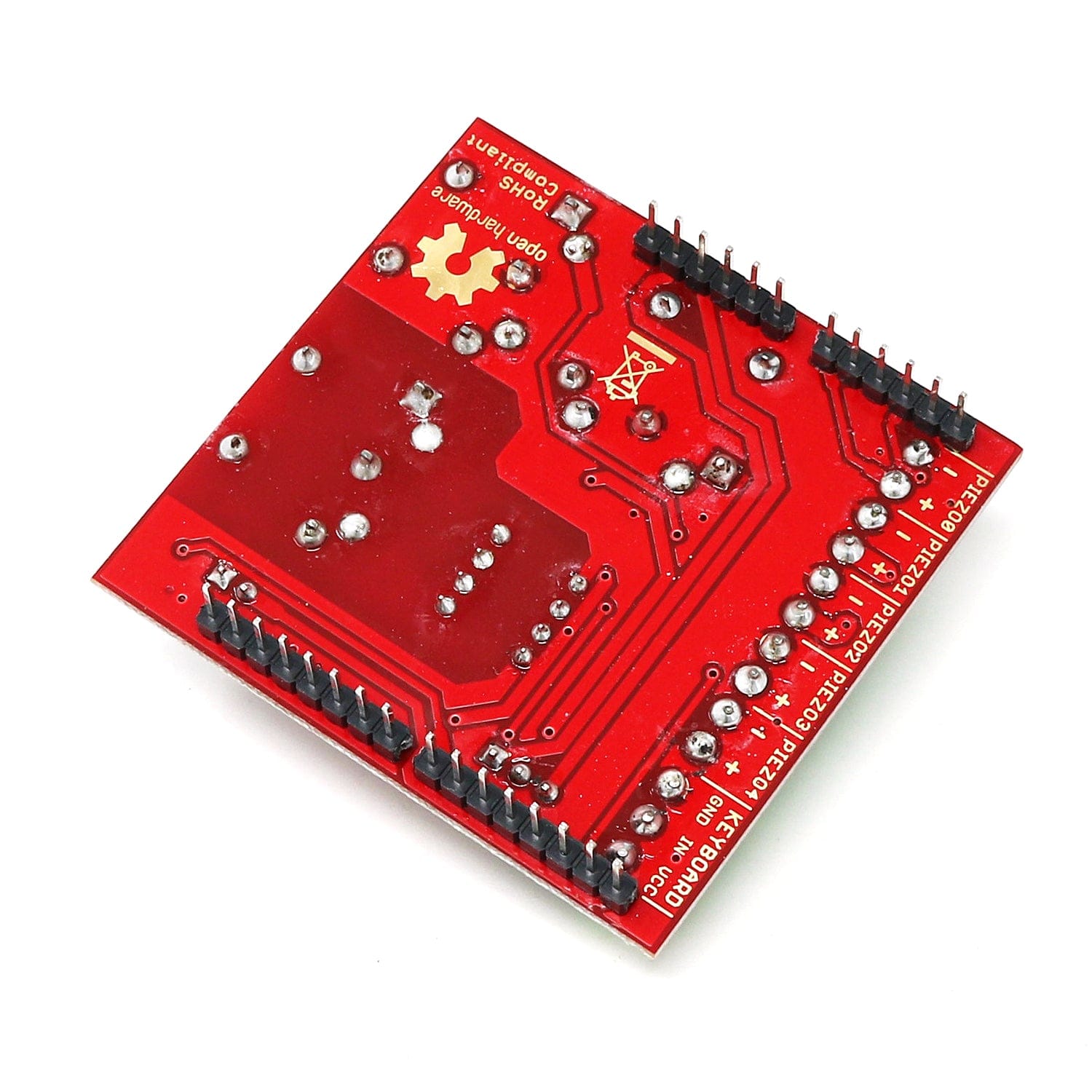

This is a MIDI shield which allows Arduino UNO-format boards to receive and send MIDI messages.

The shield allows direct wiring of up to 5 piezzo sensors and a keyboard (with buttons and serial resistors) making it ideal for drum projects. The project is based on this open hardware design.

Works with Arduino UNO and pin-compatible boards.

Features

  • MIDI-IN, MIDI-OUT and MIDI-THRU connectors
  • 5 Piezzo sensors for drum implementation
  • Keyboard for piano implementation
  • Works with both 3.3V and 5V Arduino-like boards

Resources

Documents

Hardware

Software

Package Contents

  • 1x MIDI Shield
