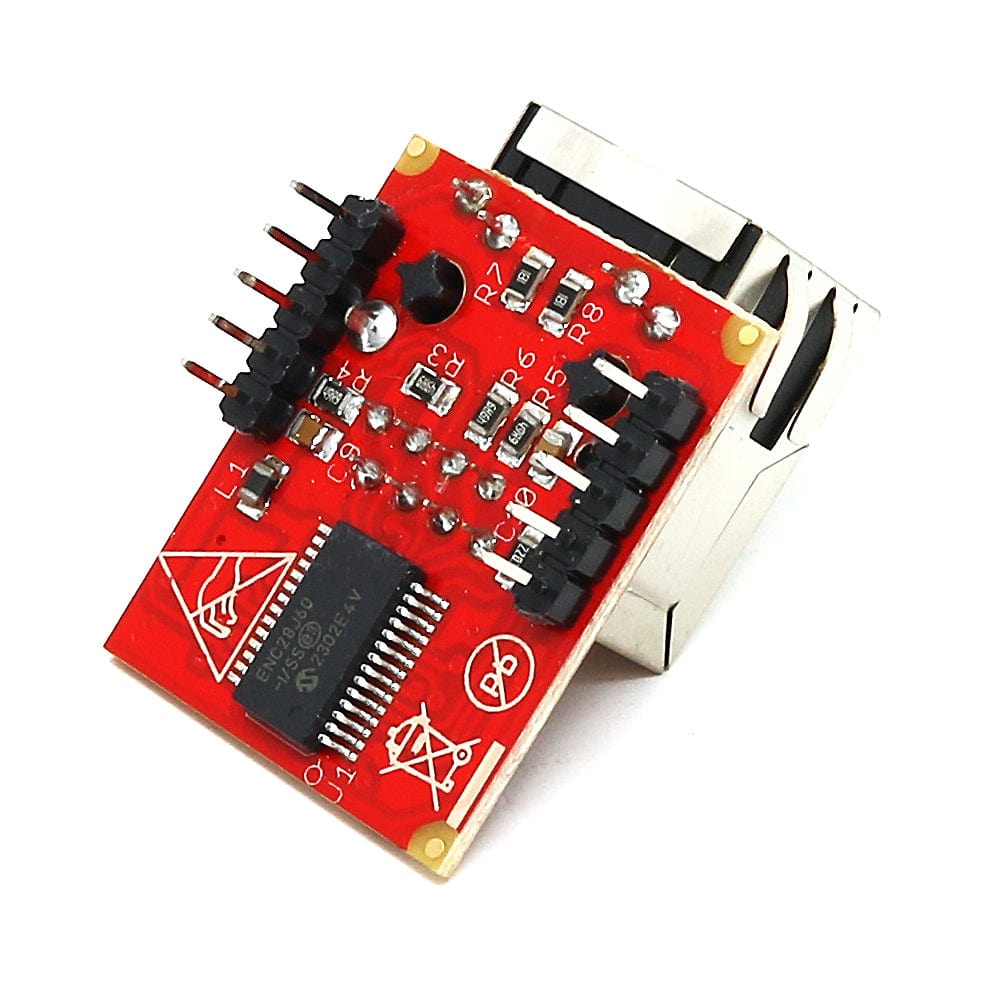

This is (according to Olimex)the world's smallest ENC28J60 Ethernet controller development board with a size of only 30x24mm!
This board from Olimex provides an easy connection to any microcontroller with only few ports (via SPI) which makes it perfect for adding Ethernet connectivity to embedded applications.
Features
ENC28J60 Ethernet controller in the world's most compact header form!
LAN connector with build in transformer
Two status LEDs on LAN connector
SPI interface takes only few pins to add Ethernet interface to your microcontroller project
10 pin interface on 0.1" row pins header
PCB: FR-4, 1.5 mm (0,062")
Dimensions: 30x24 mm (1.18 x 0.95")
Space between the pin rows: 20 mm (0.8")
Controller Features
IEEE 802.3. Compatible Ethernet Controller
Fully Compatible with 10/100/1000Base-T Networks
Integrated MAC and 10Base-T PHY
Aupports One 10Base-T Port with Automatic Polarity Detection and Correction
Supports Full and Half-Duplex modes
Programmable Automatic Retransmit on Collision
Programmable Padding and CRC Generation
Programmable Automatic Rejection of Erroneous Packets
Compatible with Microchip's TCP-IP stack, which is part of Microchip Libraries for Applications - full featured software, very easy to configure and use with Microchip hardware
Package Contents
1x Olimex ENC28J60-H board
