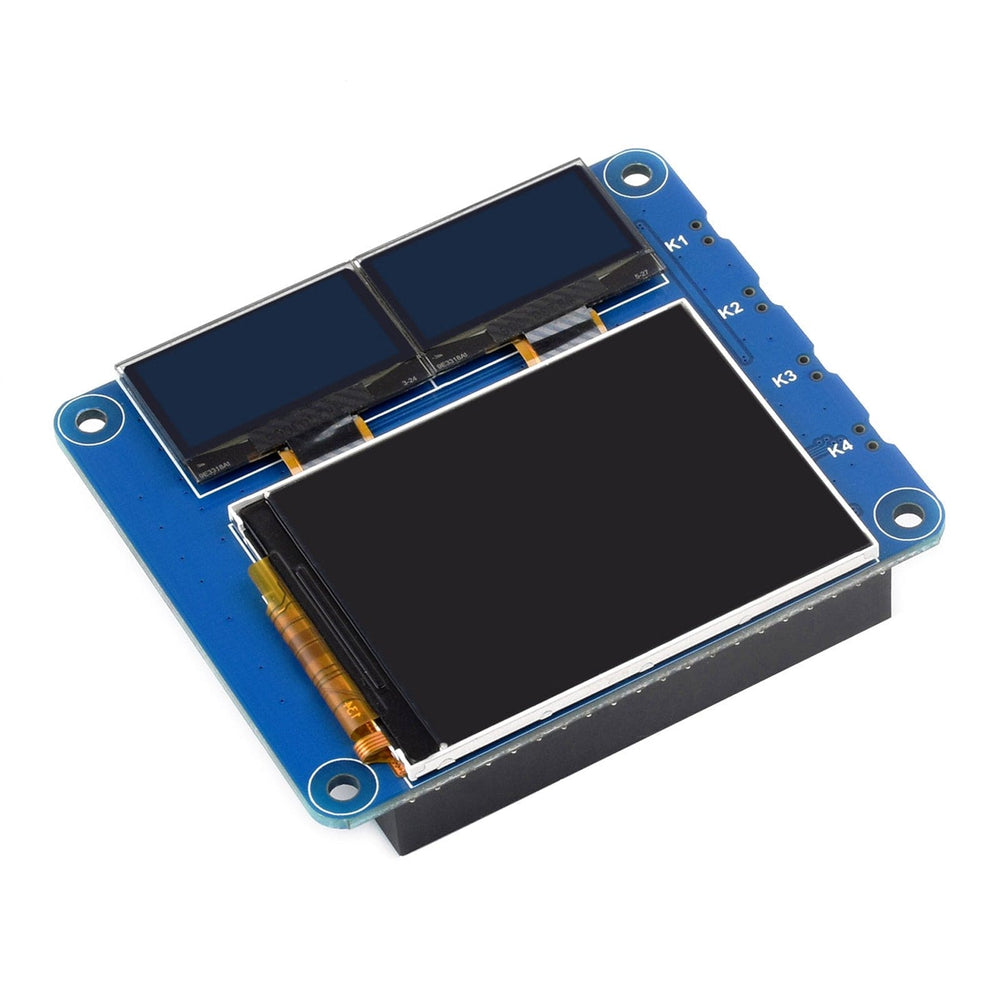

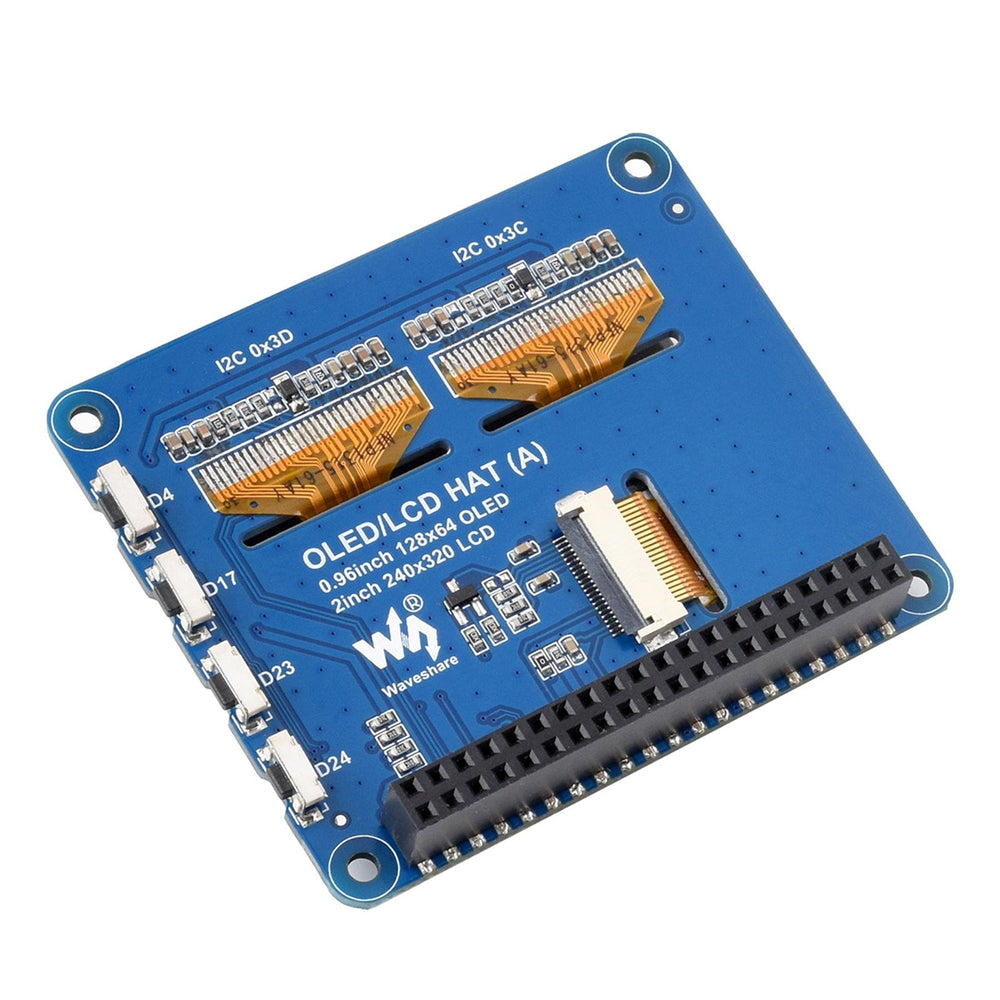

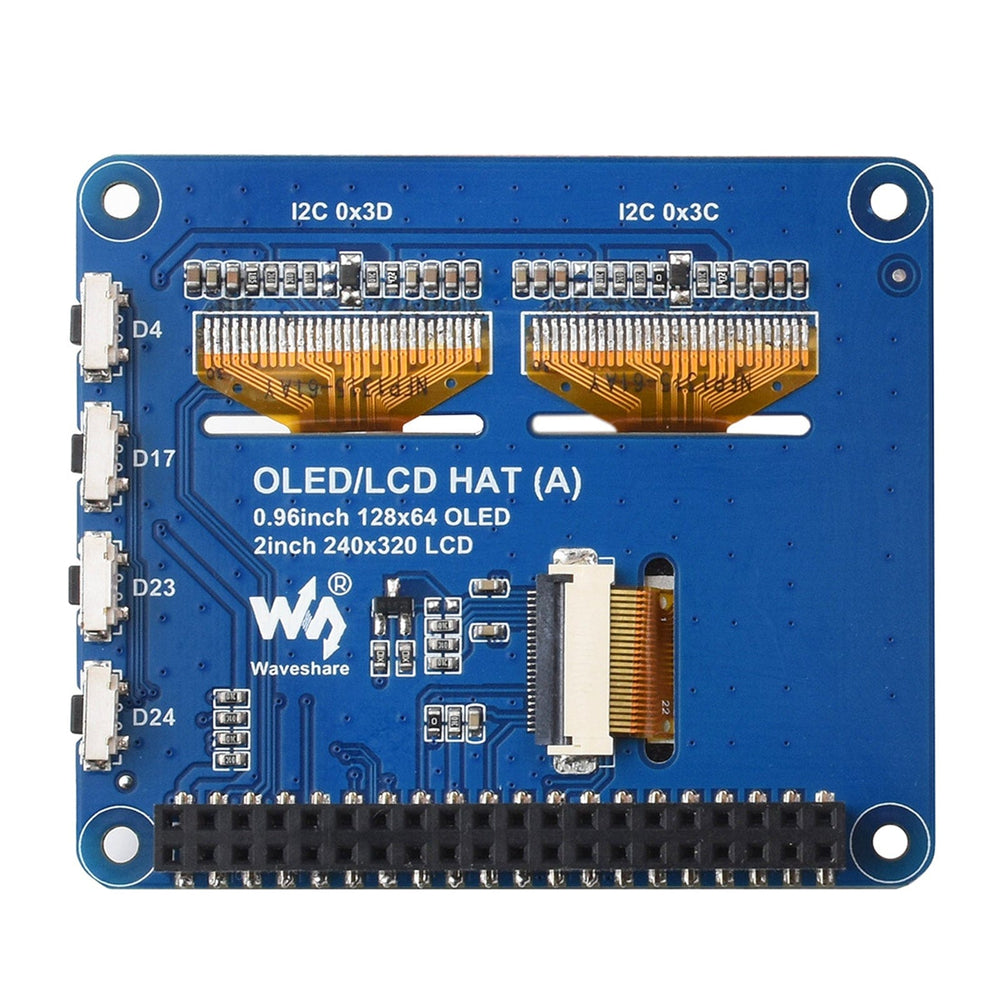

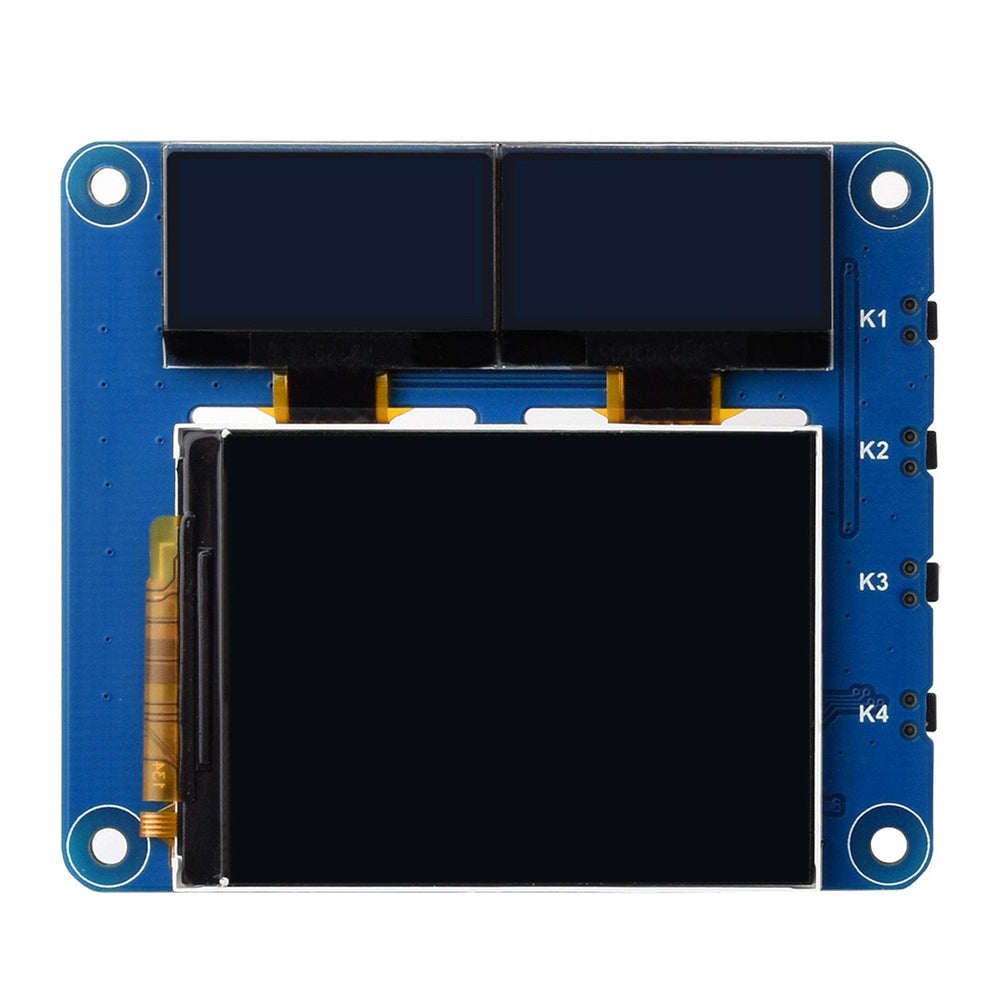

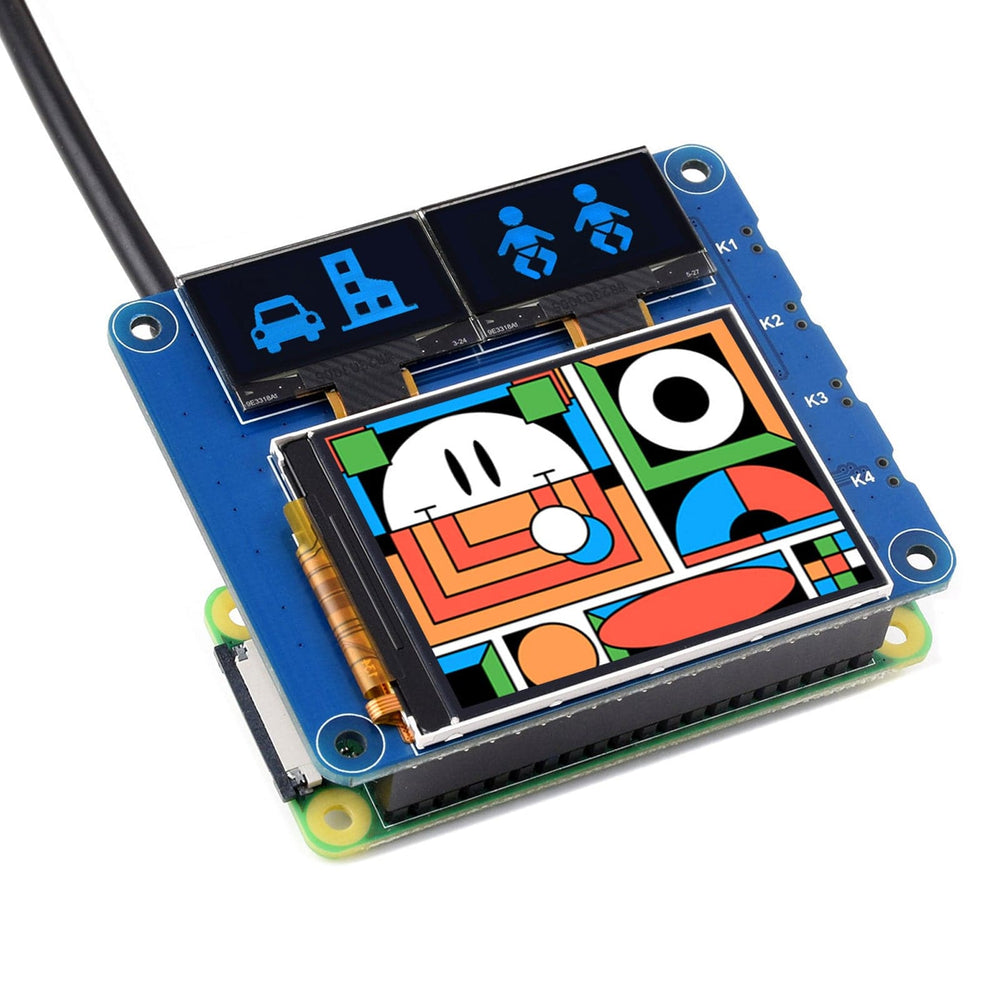

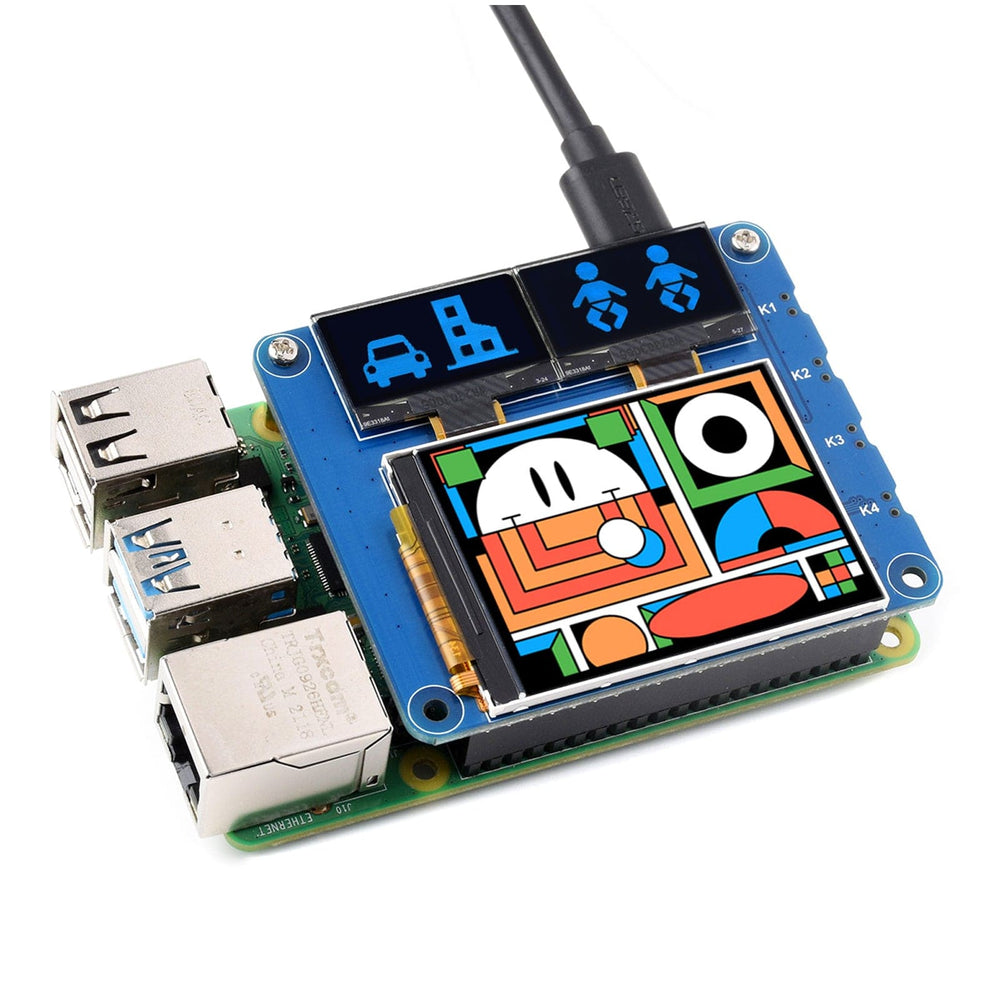

OLED/LCD Triple Screen HAT for Raspberry Pi

Designed to integrate with Raspberry Pi series boards, this HAT has a 2" IPS LCD main screen with a built-in ST7789VW driver chip. It offers a clear display with a resolution of 240 x 320. The screen uses an SPI interface for communication and boasts a wide viewing angle. It features a 262K colour display, making it ideal for vibrant and detailed visuals. Included with the main screen are two 0.96" OLED screens, each powered by an SSD1315 driver chip. These screens communicate via the I2C interface and feature a lovely blue display colour. With a resolution of 128 x 64, they are perfect for displaying key information, status indicators, or small graphics.

Note: The Raspberry Pi NOT included.

Features

• Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
• 2" IPS LCD Main Screen with built-in ST7789VW driver chip, SPI interface communication, wide viewing angle, supports 262K colour display, 240 x 320 resolution

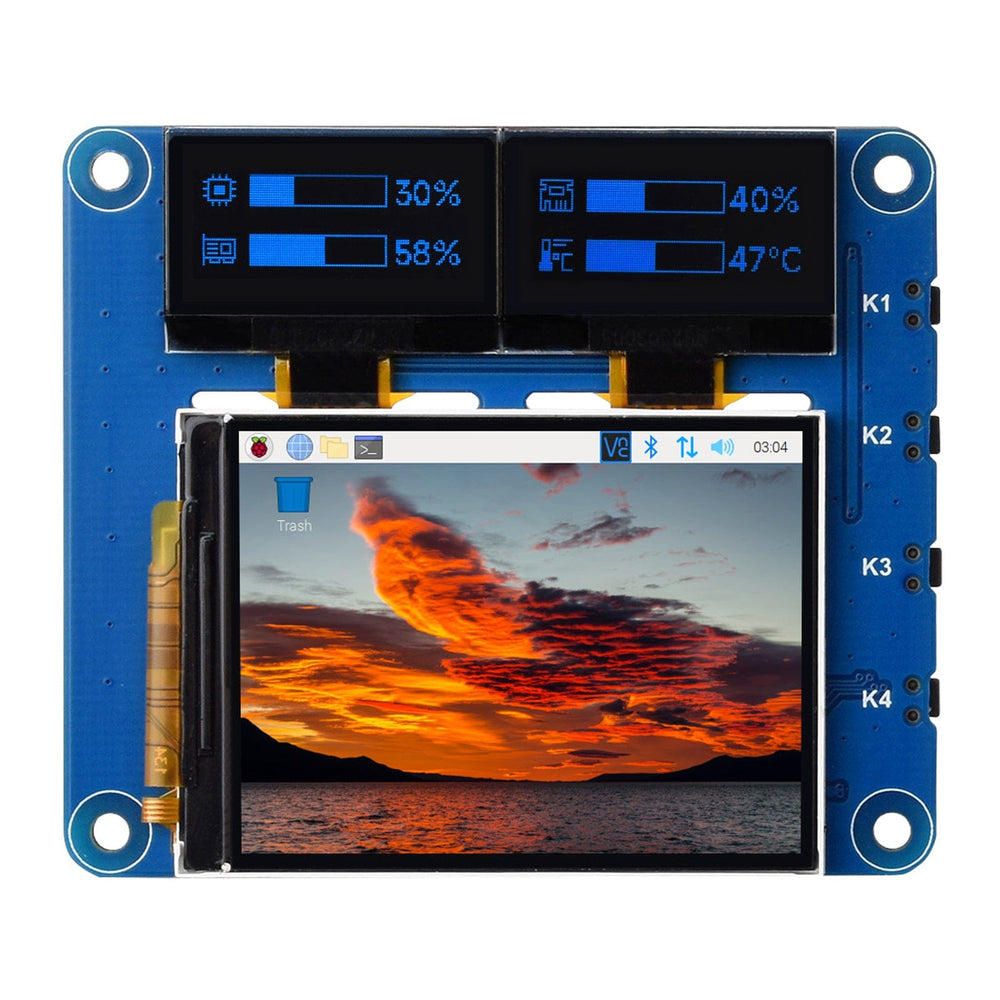

• Dual 0.96" OLED secondary screens with built-in SSD1315 driver chip, I2C interface communication, blue display colour, 128 x 64 resolution, can be used to display key information, status indicator messages or small graphics
• Onboard 4x user-defined keys for extended applications
• Comes with online development resources and manuals (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)

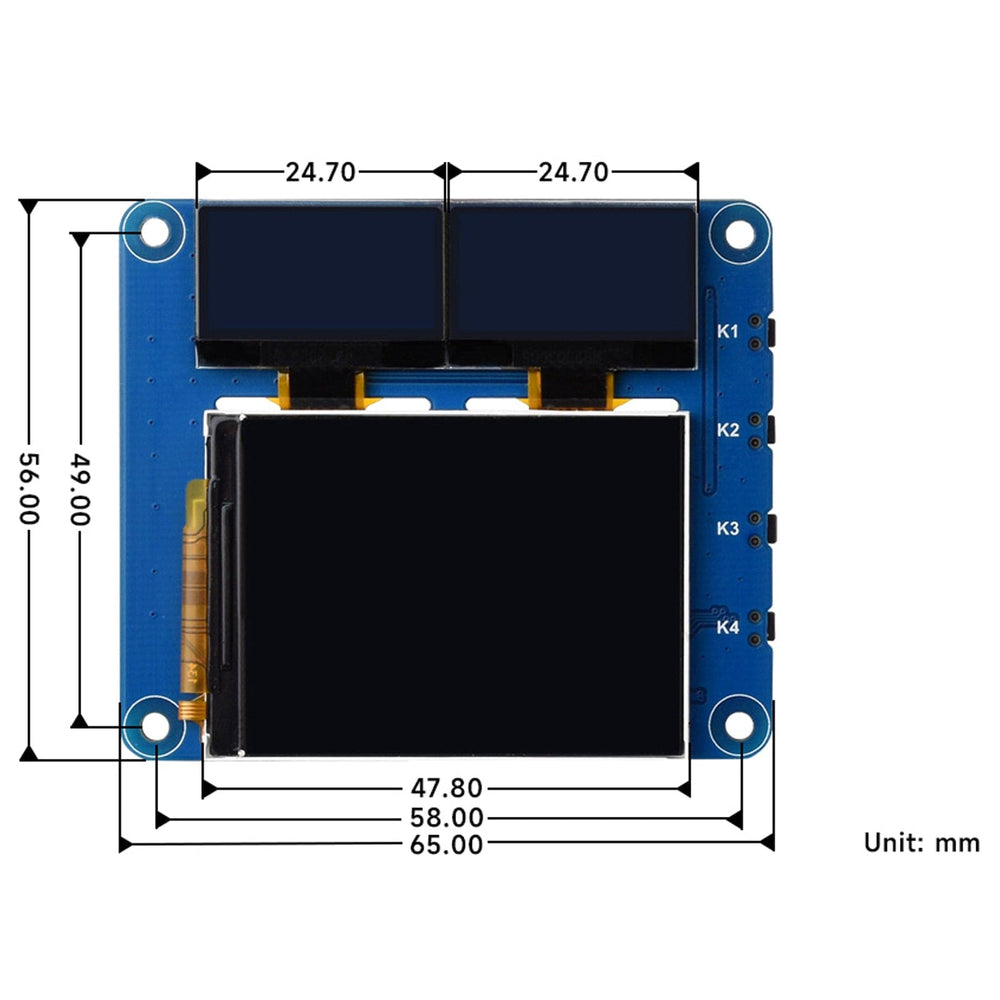

Specifications

Resources

• Product Wiki
• Schematic
• 2inch_LCD_Module-datasheet
• 0.96inch SSD1315 OLED Datasheet

Pinout

Package Contents

• 1x OLED/LCD HAT
• 1x Standoffs pack
