NEMA 11 Bipolar Stepper Motor: 200 Steps/Rev, 4.5V, 0.67 A/Phase

PololuSKU: POL-1206
Price:
Sale price £30.50
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

PololuA4988 Stepper Motor Driver Carrier - Black Edition
Sale price £14.50 incl. VAT excl. VAT

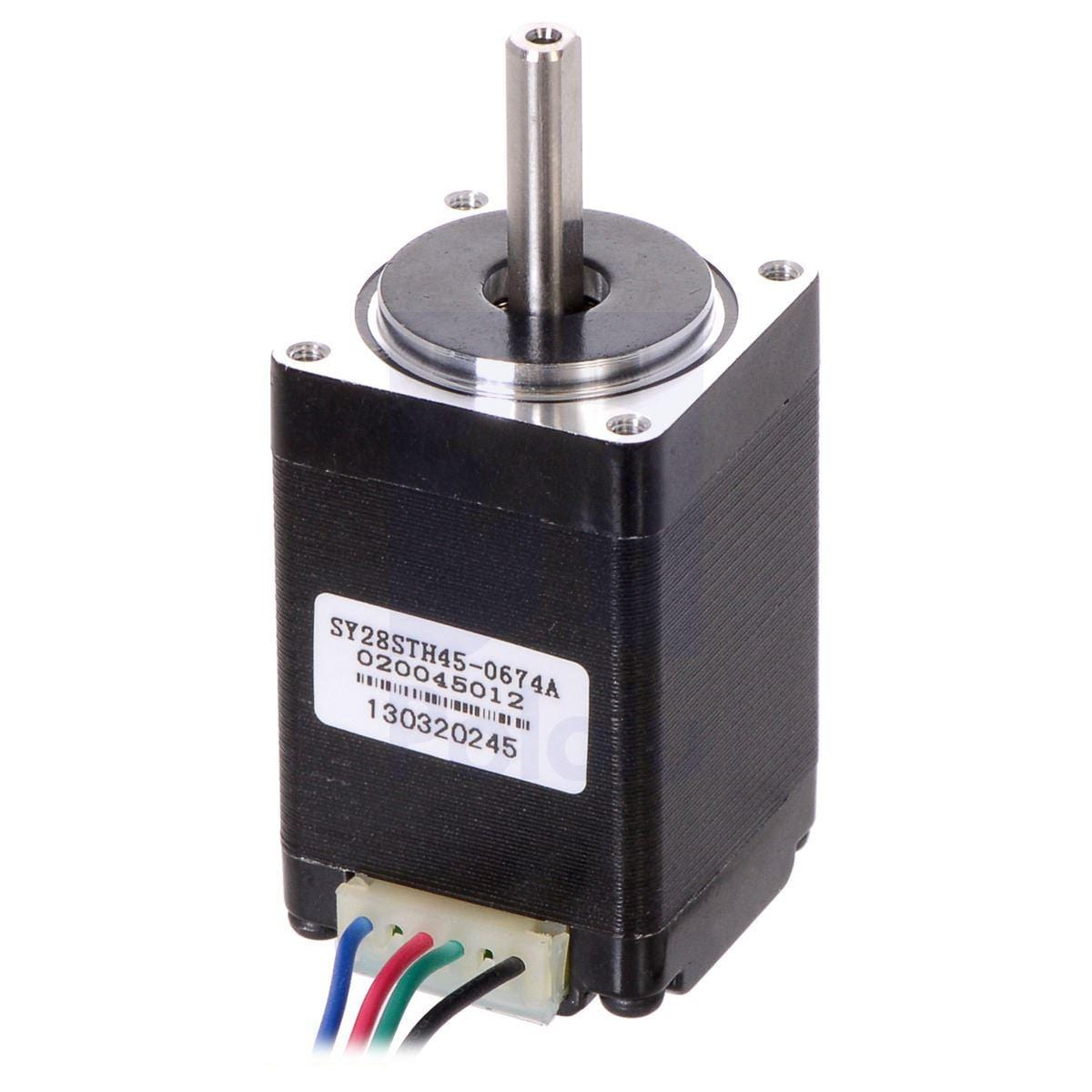

This NEMA 11-size hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 670 mA at 4.5 V, allowing for a holding torque of 950 g-cm (13 oz-in).

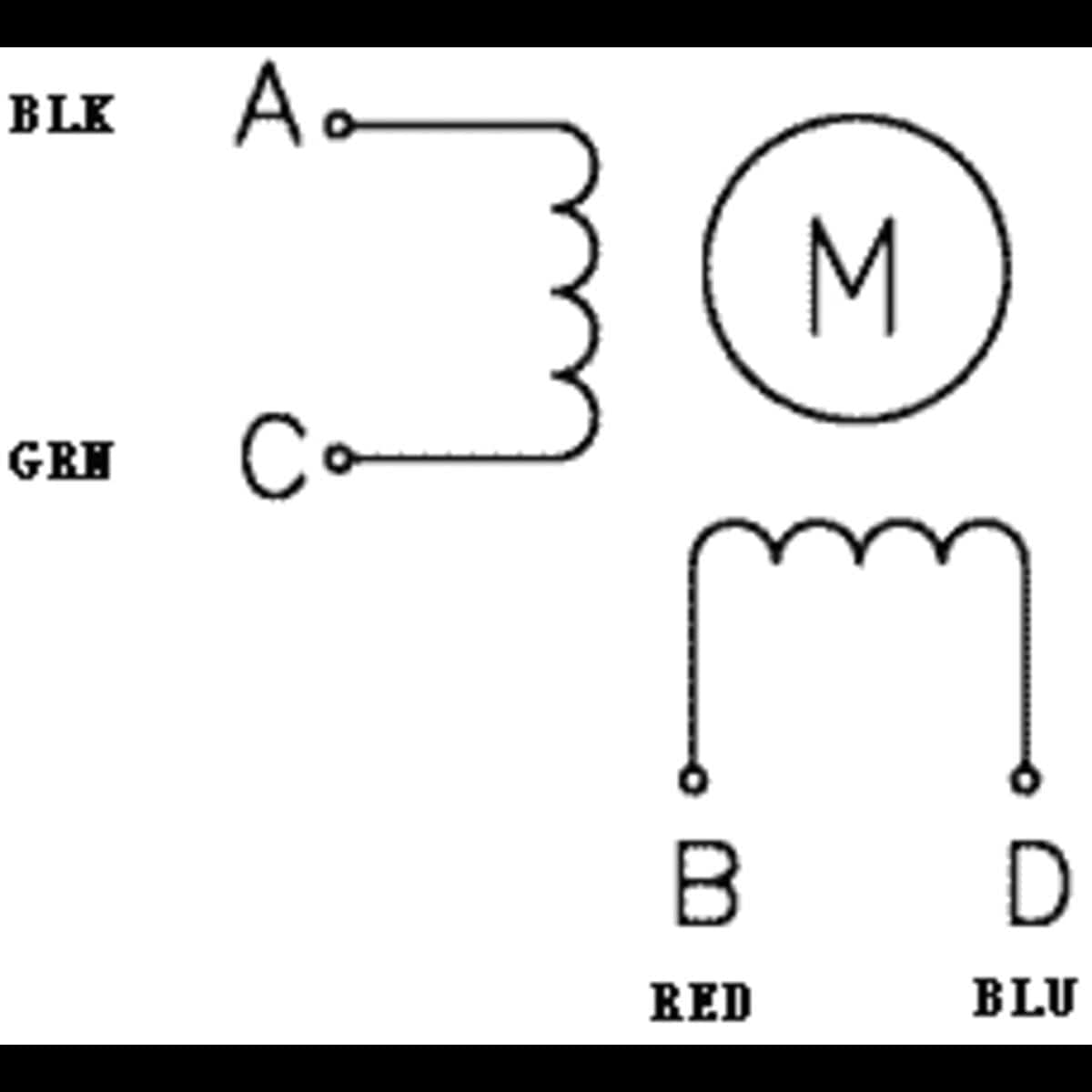

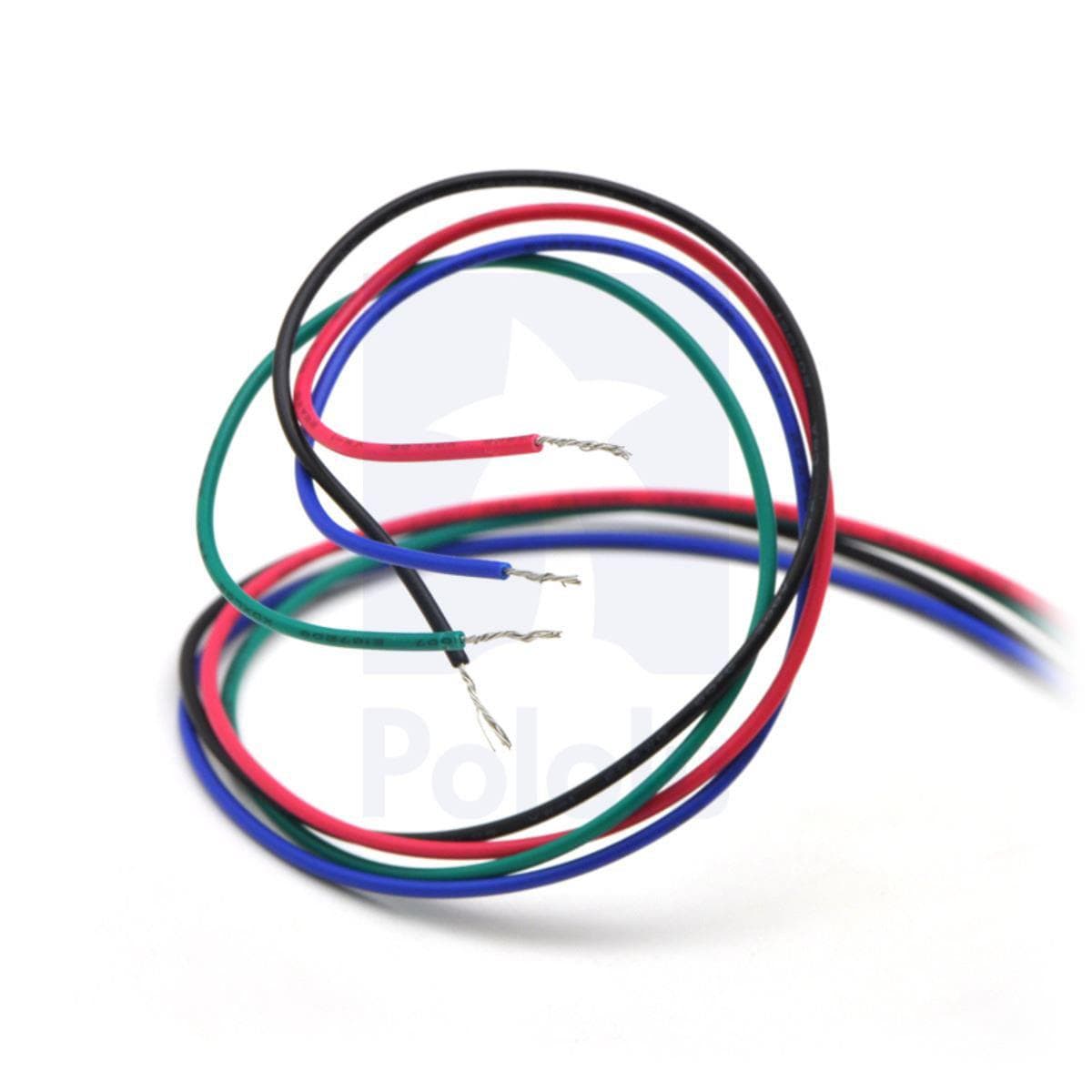

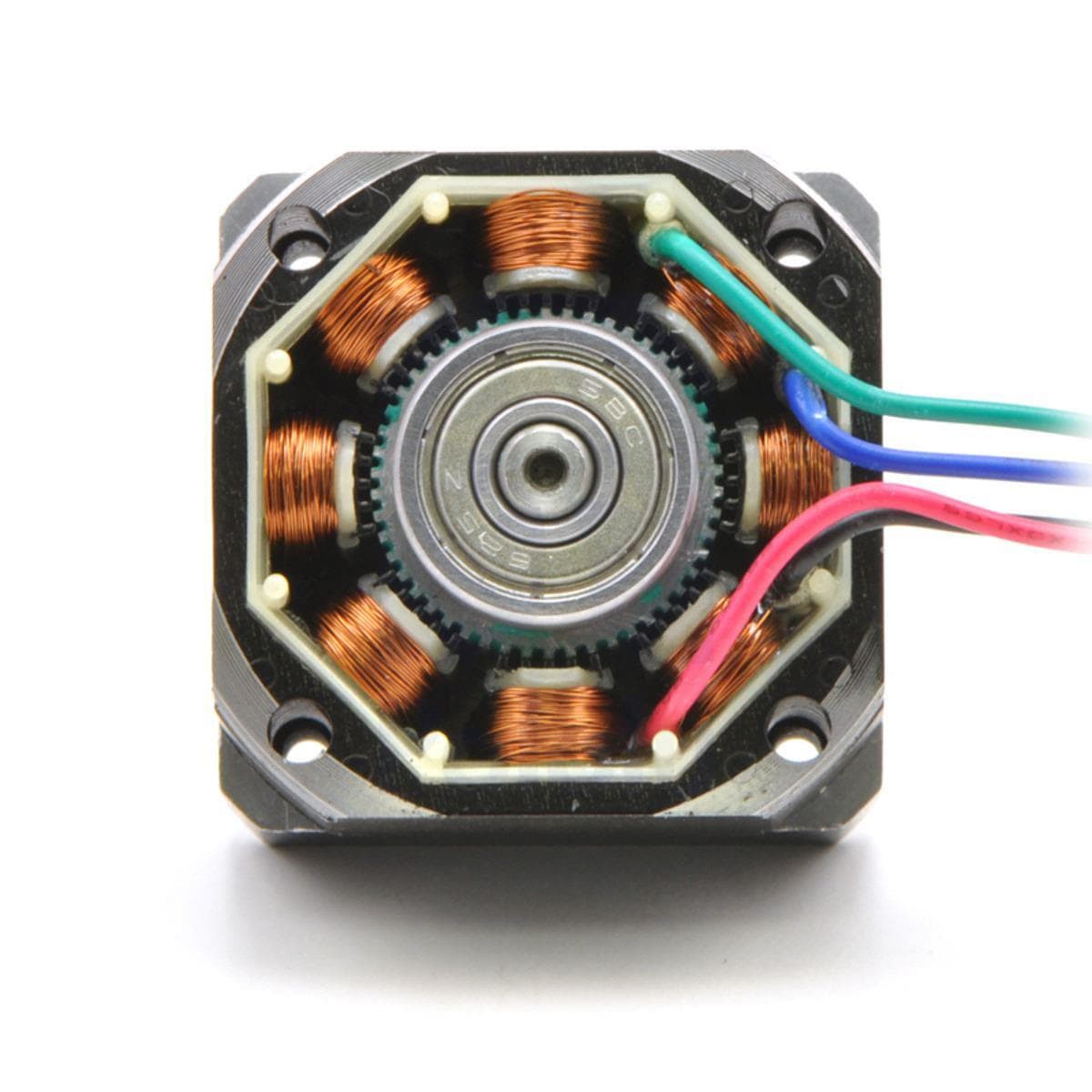

The motor has four colour-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but we recommend using a bipolar stepper motor driver.

Our 5 mm universal mounting hub can be used to mount objects on the stepper motor’s 5 mm-diameter output shaft.

Note: This stepper motor is SOYO part number SY28STH45-0674A.

Specifications

  • Size: 28 mm square × 45 mm, not including the shaft (NEMA 11)
  • Weight: 140 g (5 oz)
  • Shaft diameter: 5 mm “D”
  • Steps per revolution: 200
  • Current rating: 670 mA per coil
  • Voltage rating: 4.5 V
  • Resistance: 6.8 Ω per coil
  • Holding torque: 950 g-cm (13 oz-in)
  • Inductance: 4.9 mH per coil
  • Lead length: 30 cm (12″)
  • Output shaft supported by two ball bearings

More specifications are available in the datasheet (45k pdf).

Dimensions

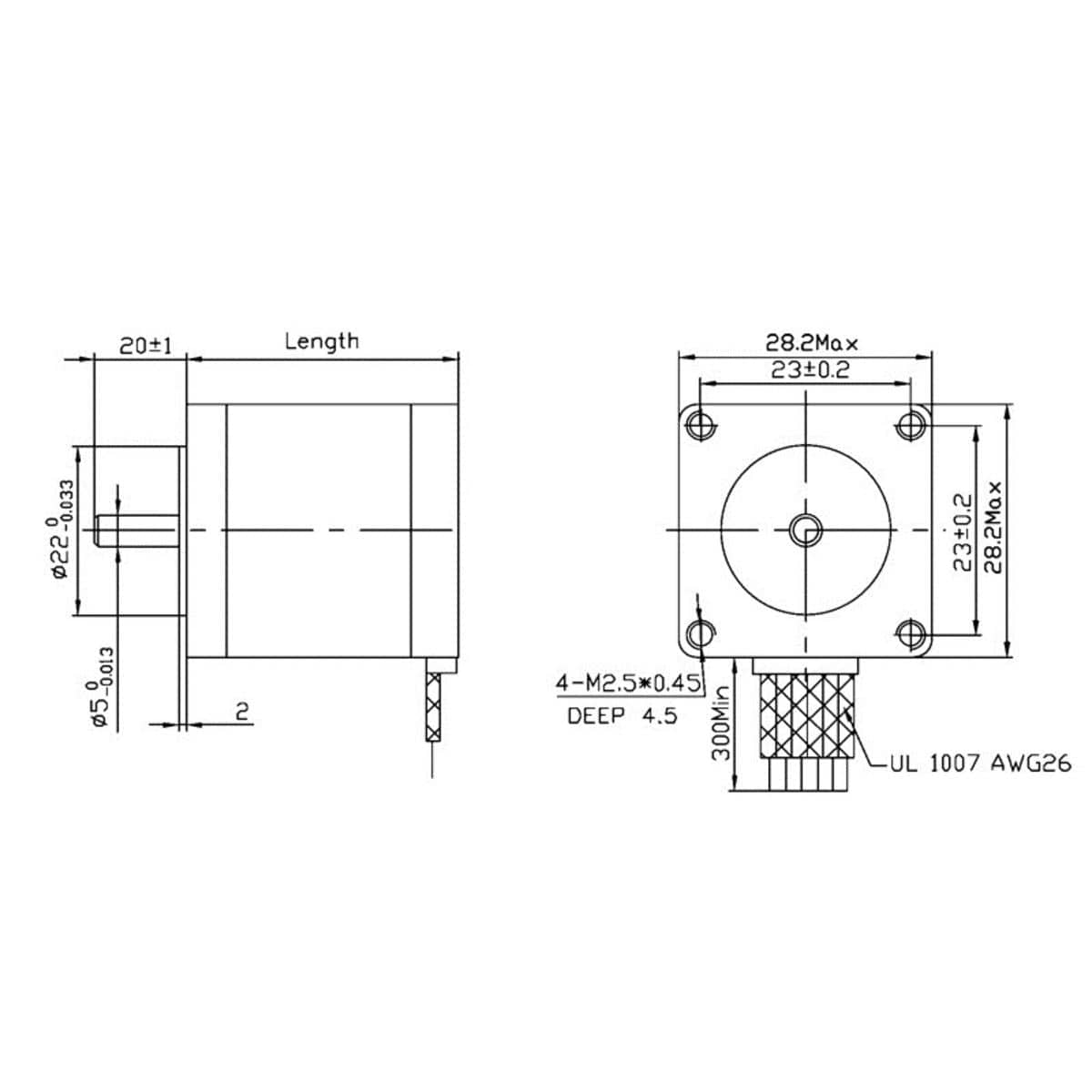

The product images show the stepper motor dimensions in mm. The dimension labelled “Length” is 45 mm. The output shaft has a length of 20 mm and a 5 mm diameter with a section that is flattened by 0.5 mm. This shaft works with our 5 mm universal mounting hub.

Stepper Motor Applications

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines (e.g. RepRap)
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives
