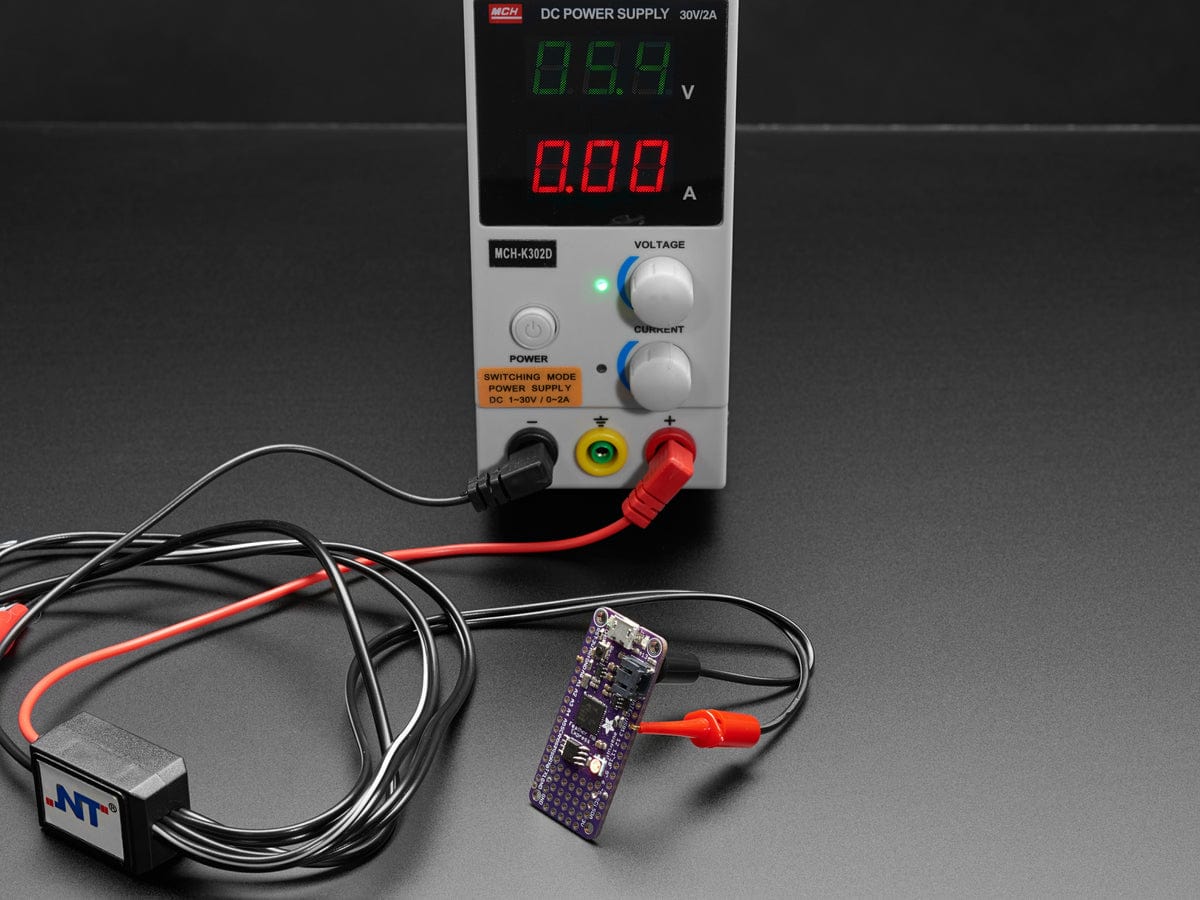

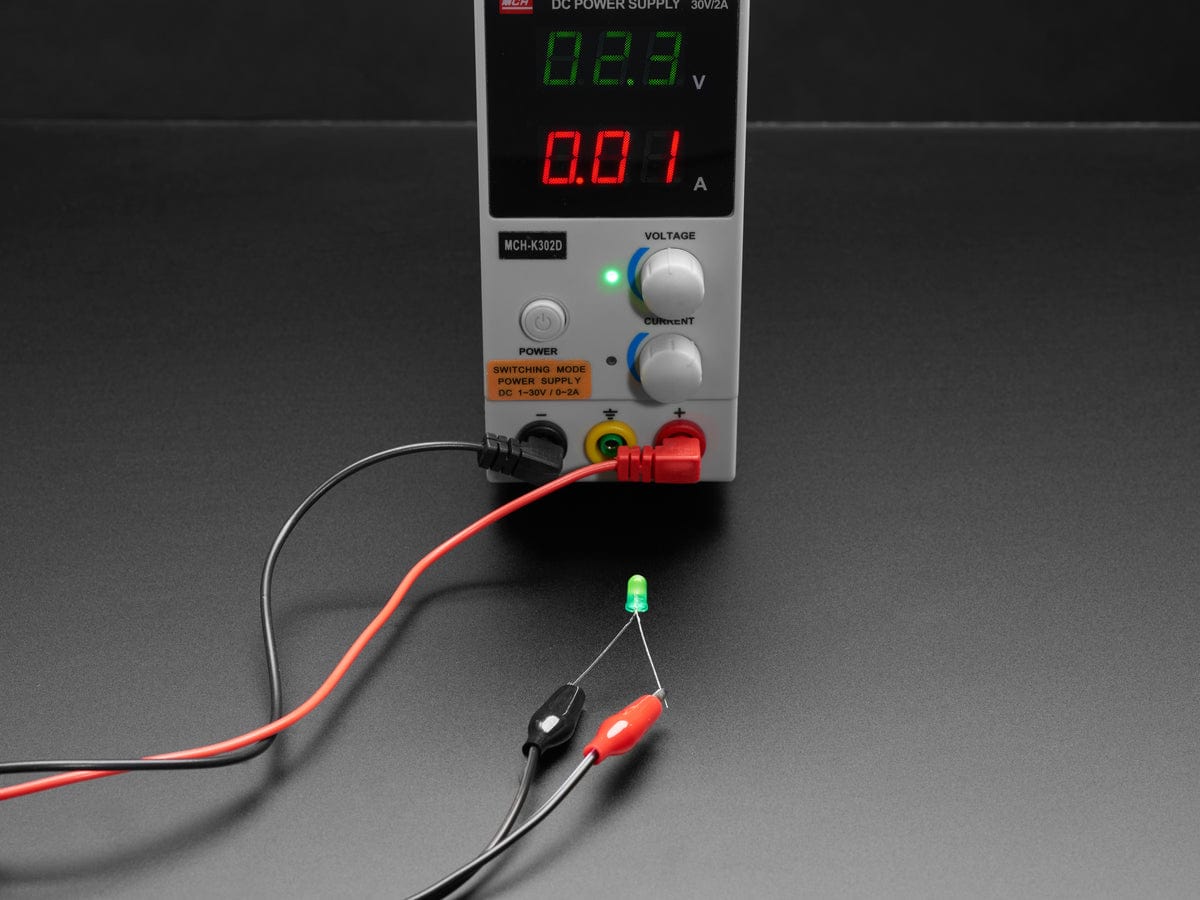

We're always digging around for various test lines to use with our power supply - whether we're checking current draw of our Feather, or trying out new LED samples. We picked up one of these and its so handy we use it all the time now. It's compact and has three of the most useful connectors on the end. Great for use with your bench top equipment or even a multimeter with banana jacks.

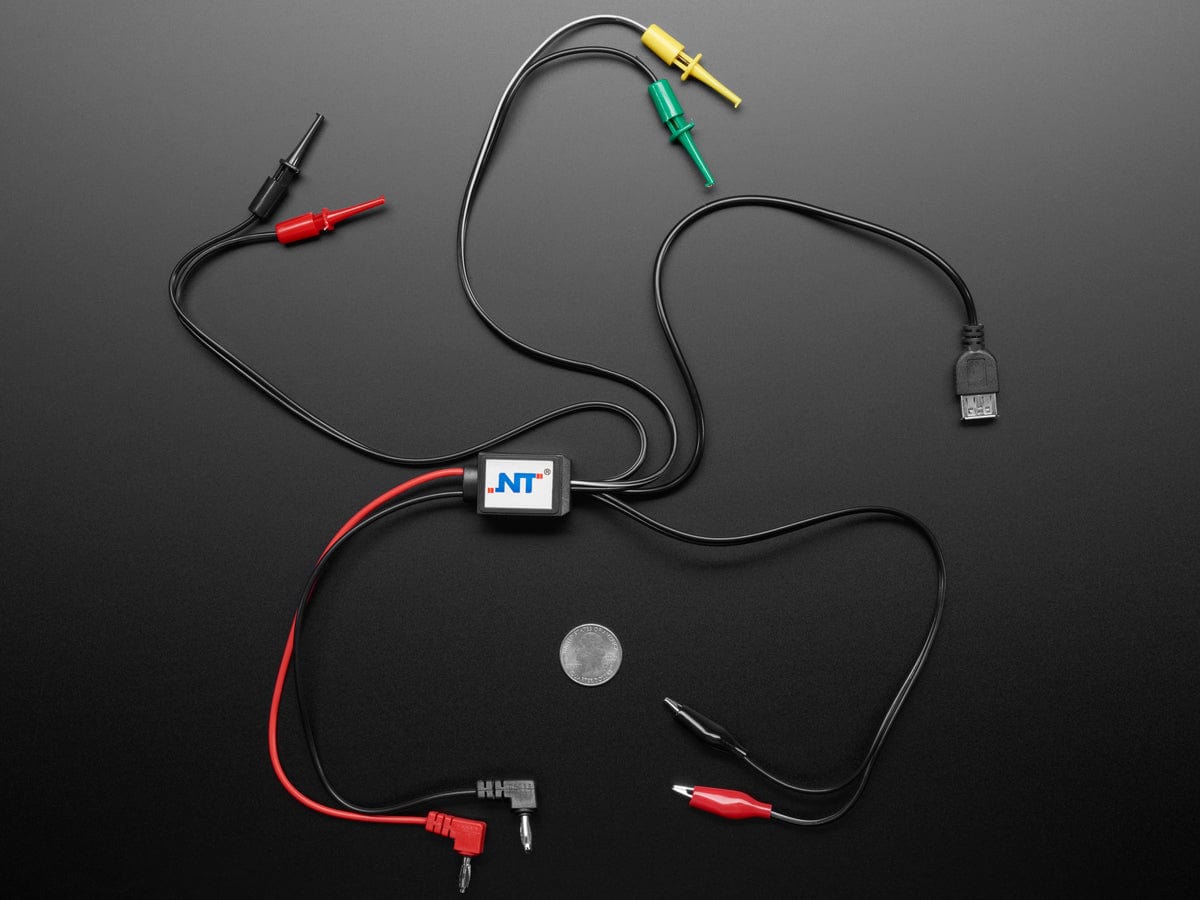

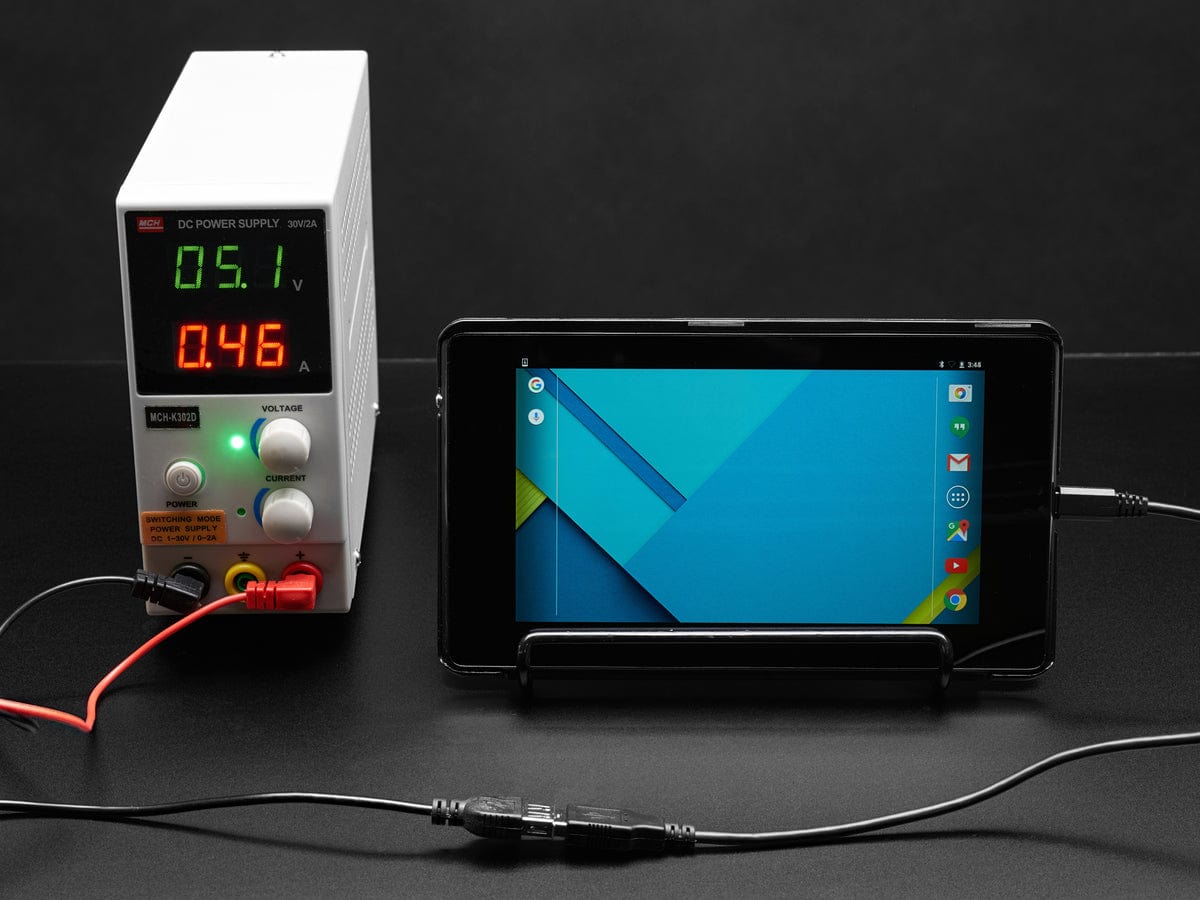

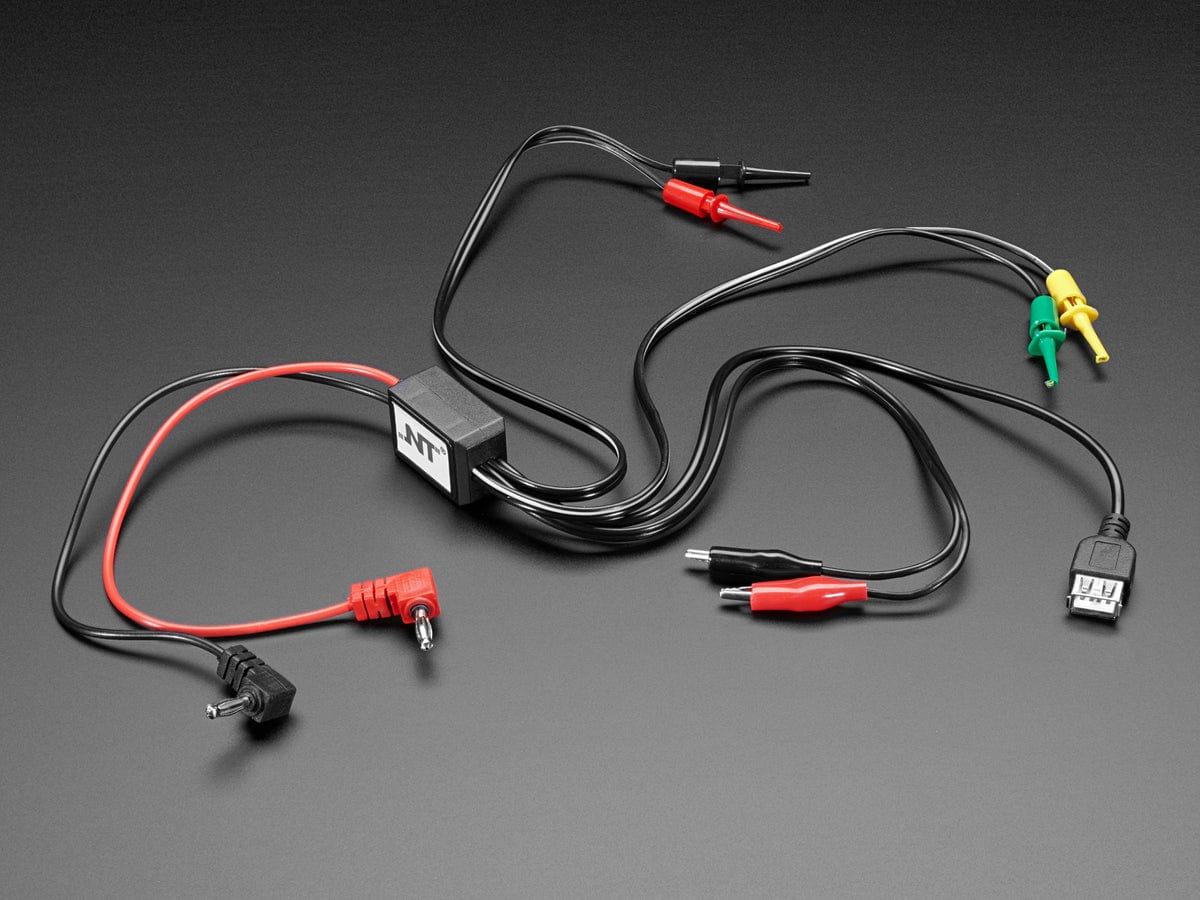

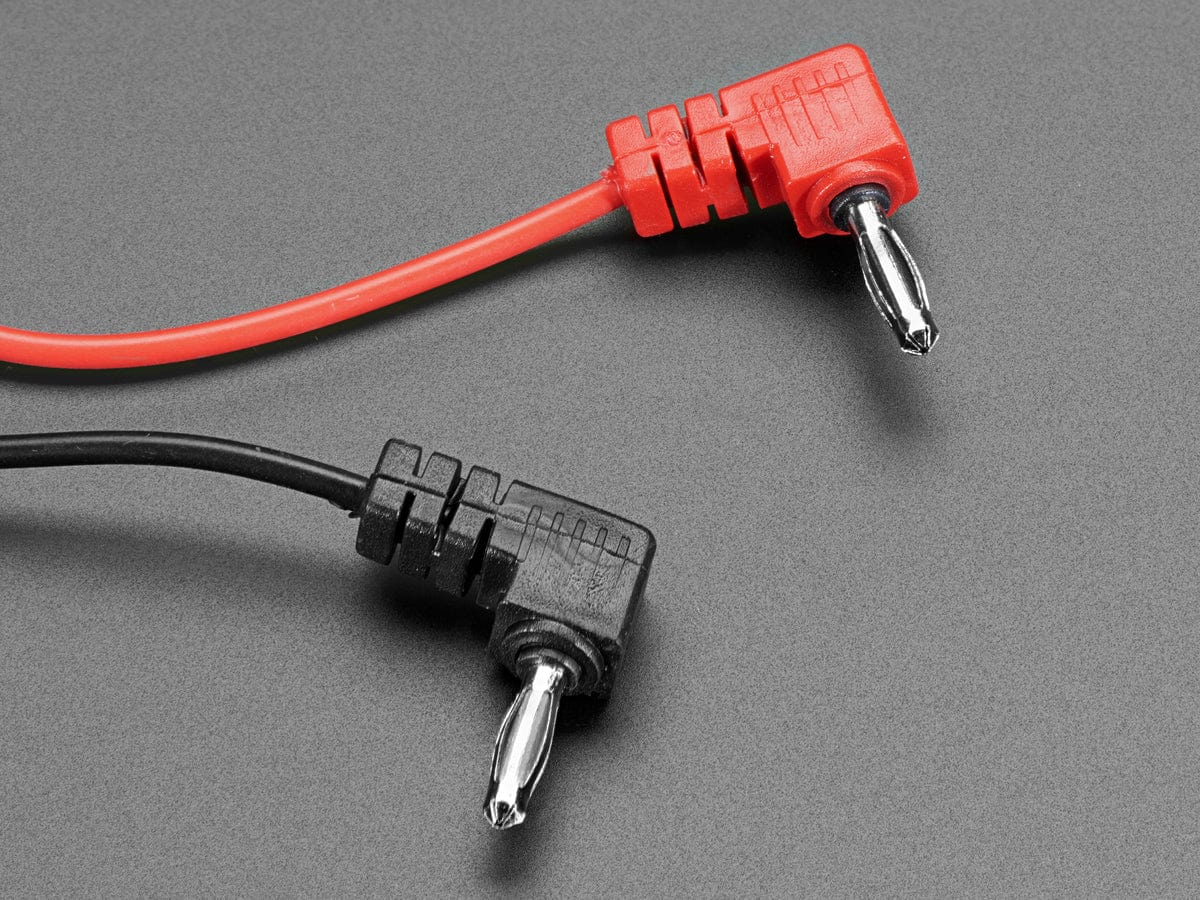

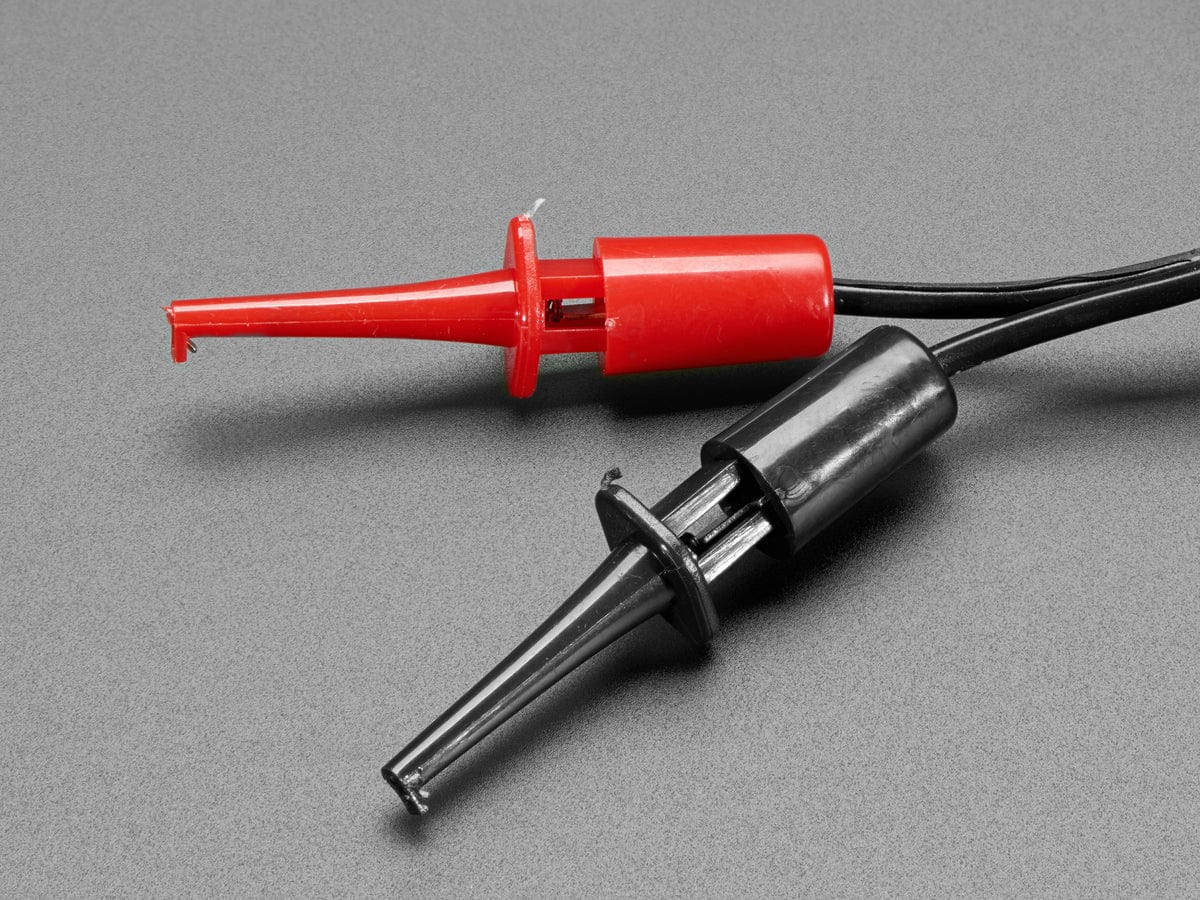

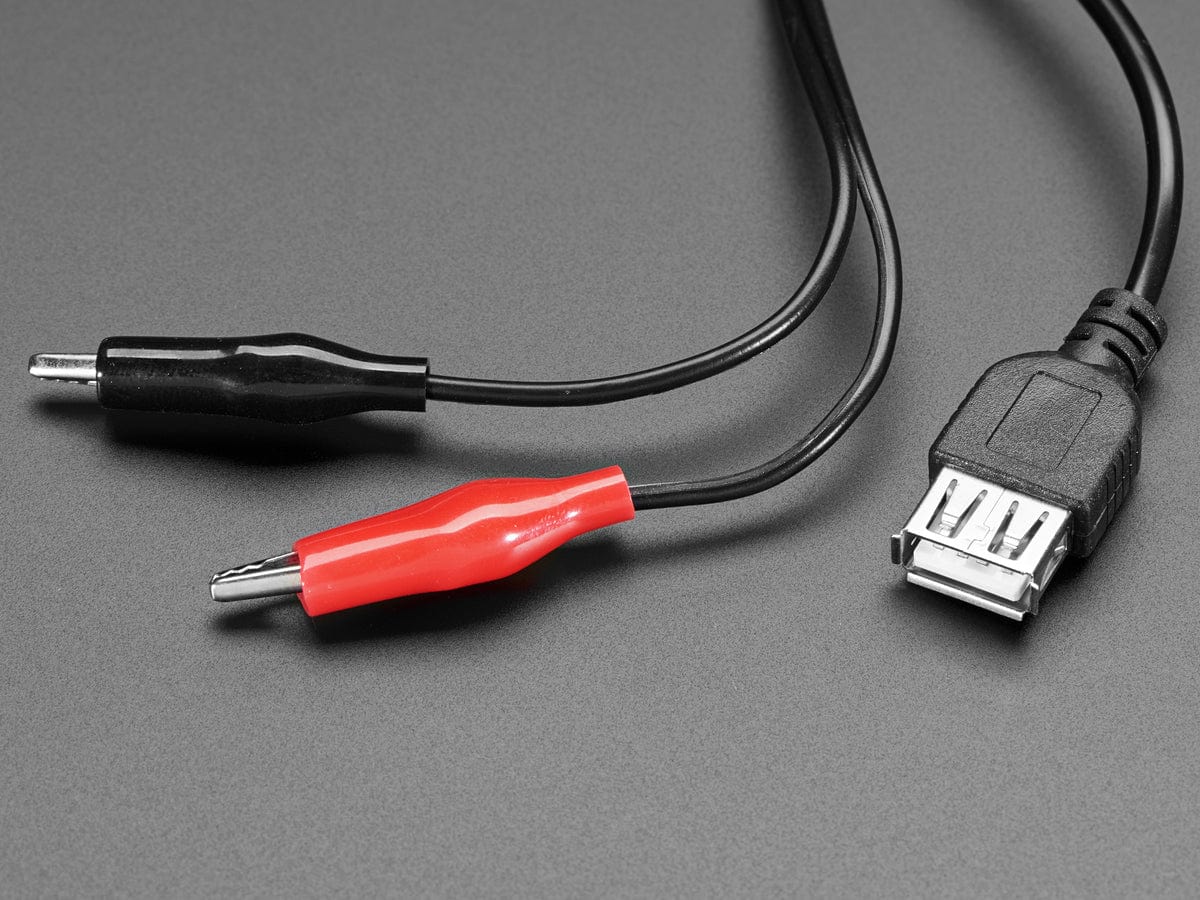

Each connector has two banana plugs that go into your power supply or multimeter, and on the other end three options: red and black alligator clips, red and black mini-grabbers and a USB A jack. That's a lot of options in one unit! There's also a yellow and green wire set that connect to the USB power pins (not data pins) - we're a little puzzled what they're for and we cut them off our set at home since they're a little confusing.
These test lines are not rated for temperature, voltage or current, so we recommend them for up to 12VDC and up to 2 Amps.
- Total end-to-end length: 24"
- Weight: 46.8g
