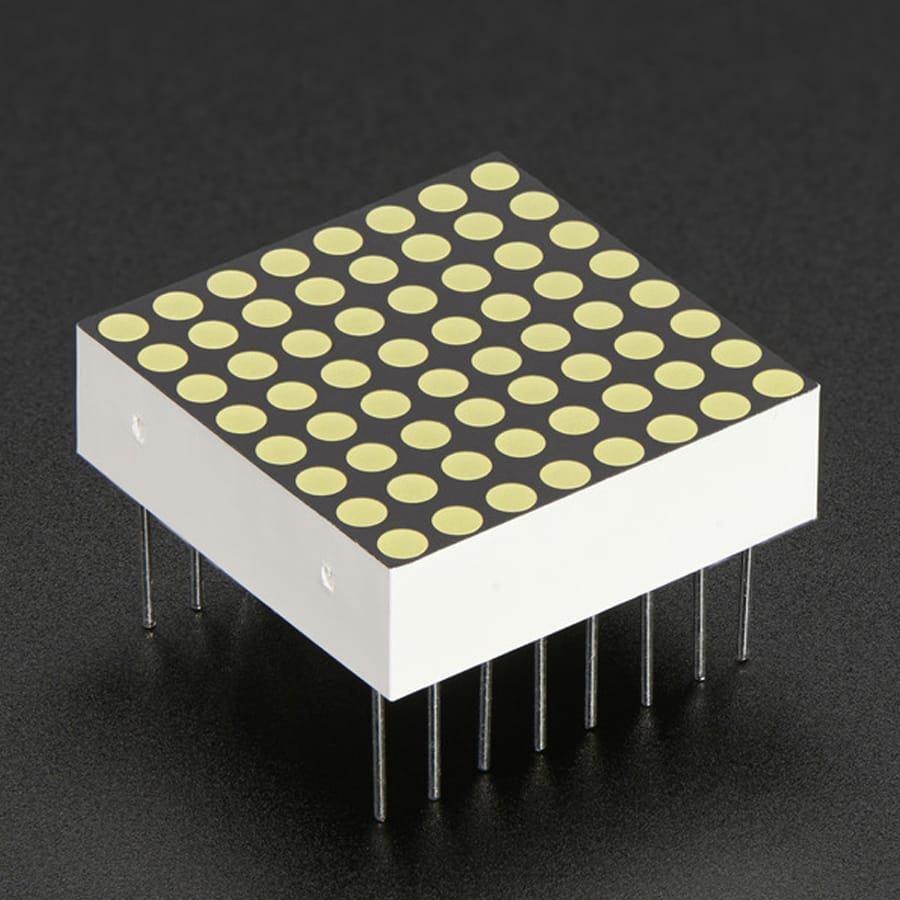

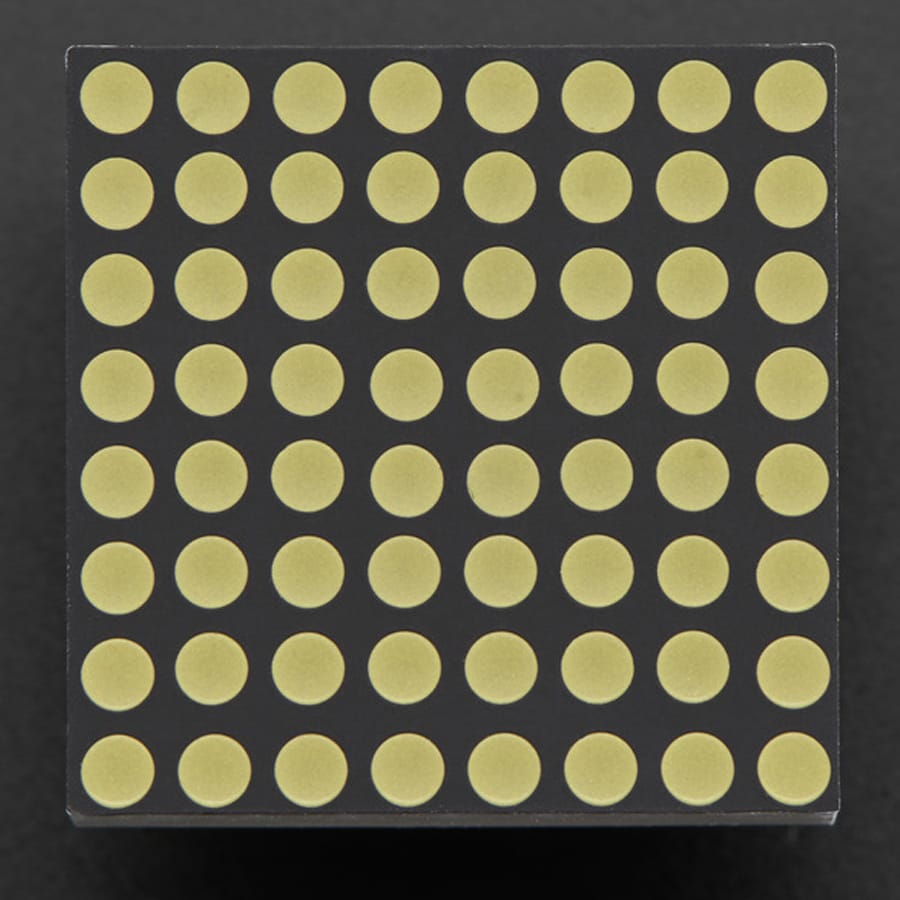

The Mini 8×8 White LED Matrix packs 64 bright LEDs into a compact 0.8" square display, making it ideal for icons, animations, scrolling text, and space-constrained breadboard projects.

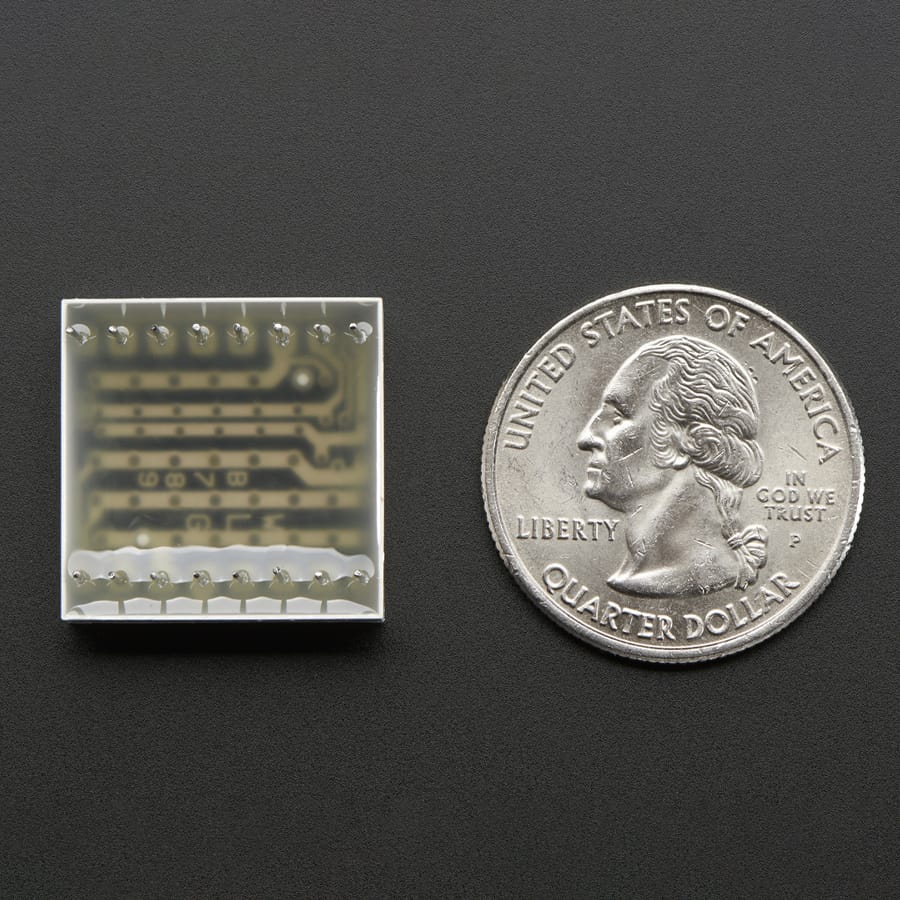

You will squeak with delight when you hold this adorable Adafruitminiature LED matrix. 0.8" square, its got everything a big LED matrix has, but bite-sized!

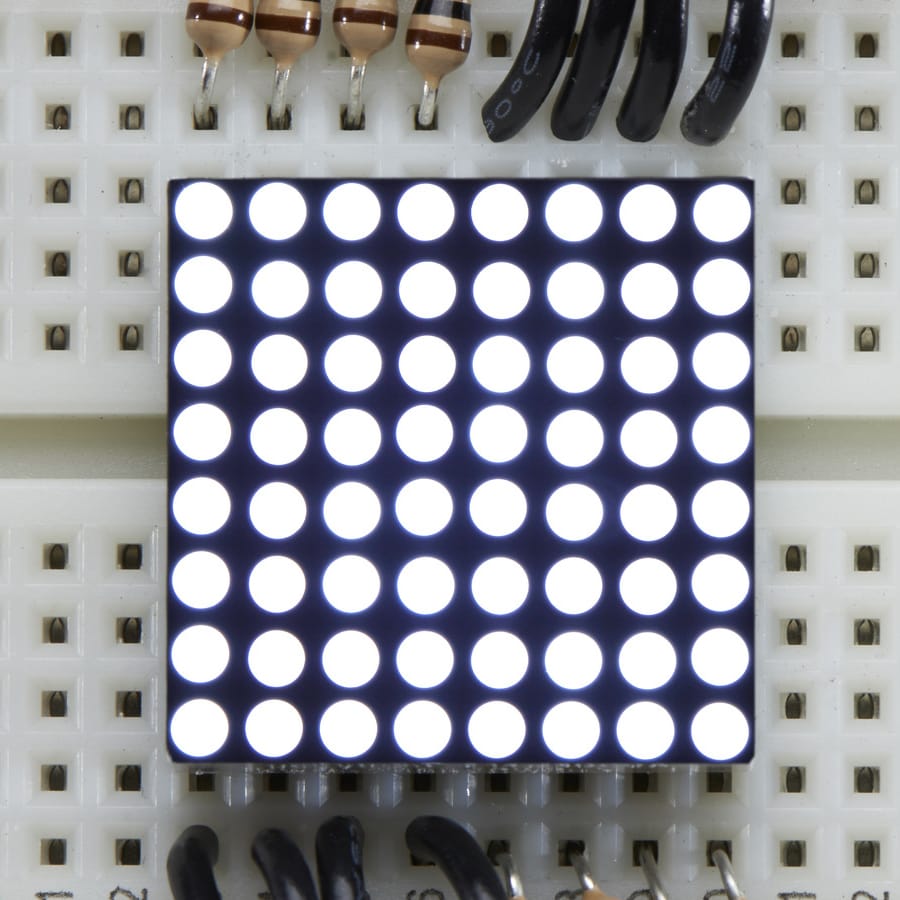

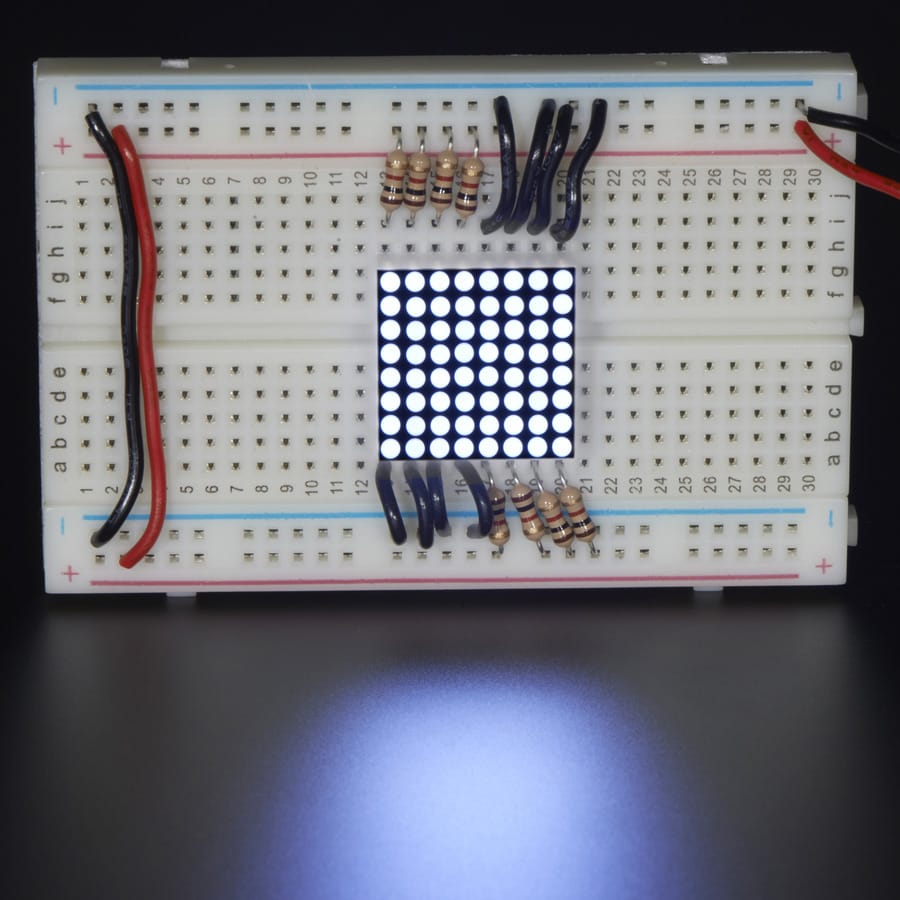

64 bright white LEDs are contained inside the plastic body, in an 8x8 matrix. There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space to wire it up
Since the display is in a grid, you'll need to 1:8 multiplex to control it. We suggest either using a 74HC595 and TPIC6B595 (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single MAX7219 which will do the multiplexing work for you.
Please note: Breadboard and wires not included.
Features
0.8" square miniature LED matrix display
64 bright white LEDs in 8x8 matrix configuration
16 pins total (8 pins each side) with 0.1" spacing
Compatible with breadboard integration
Requires 1:8 multiplexing control
Compatible with 74HC595 and TPIC6B595 shift registers
