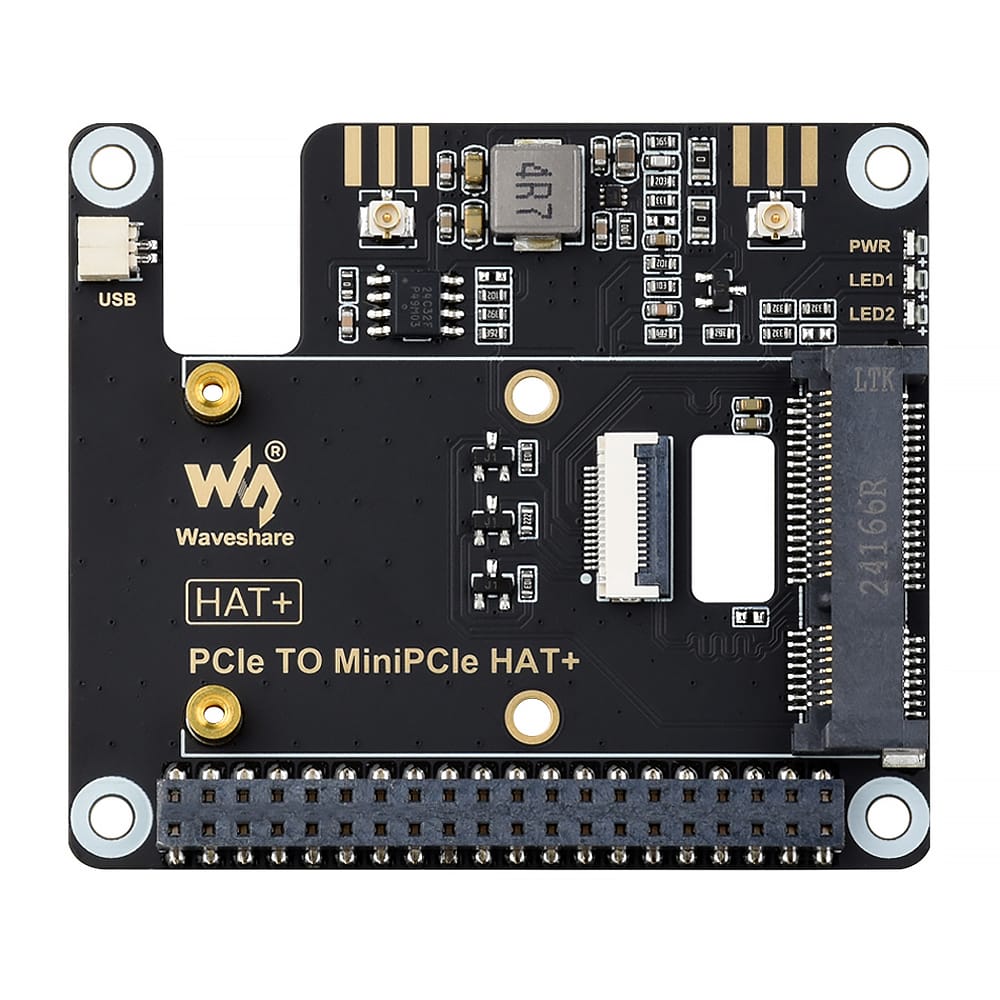

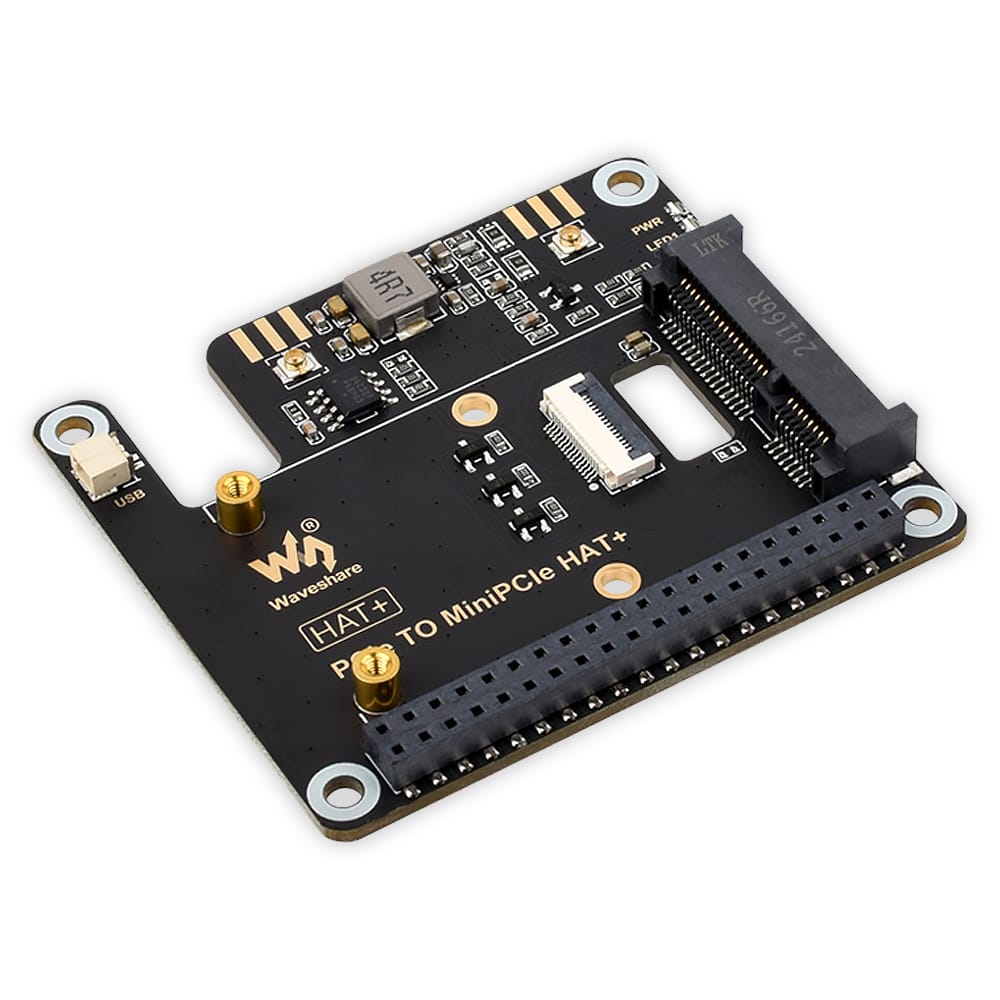

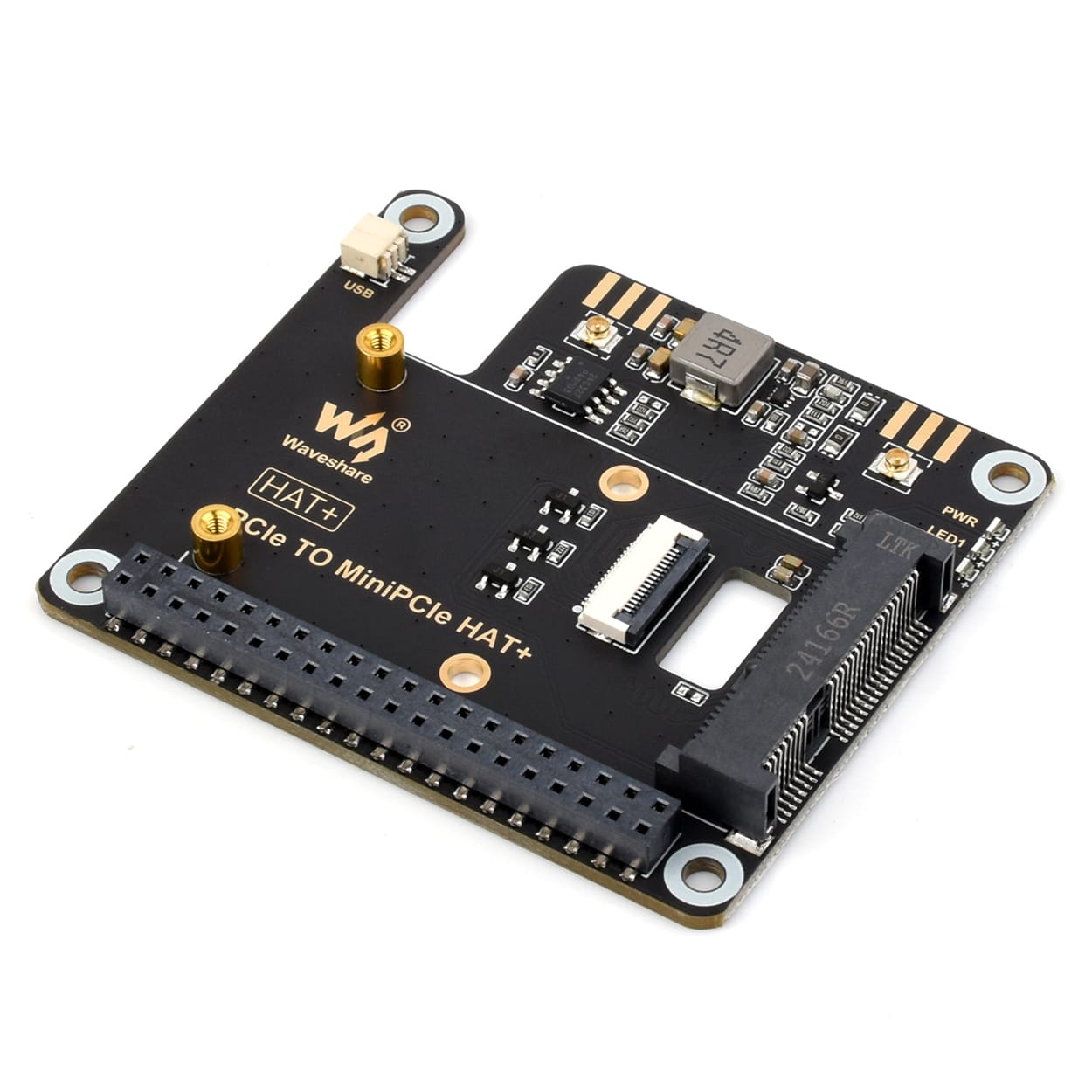

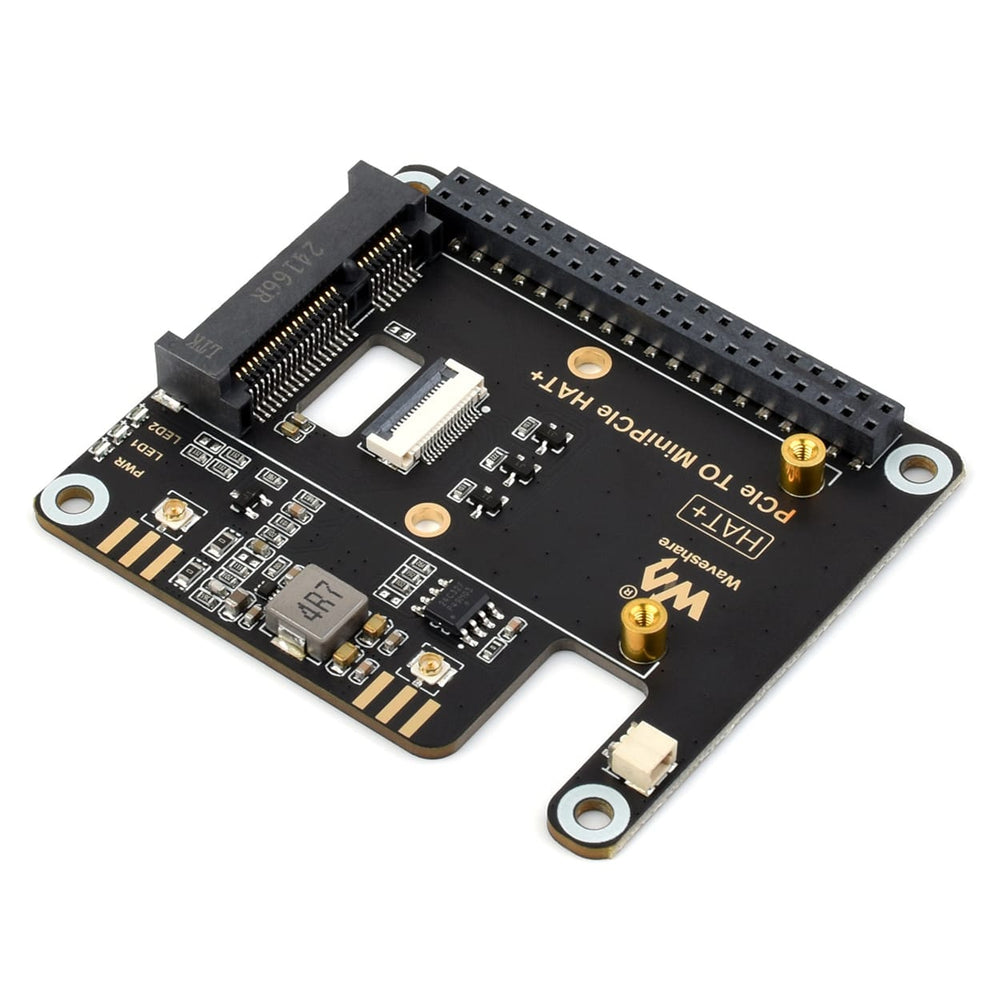

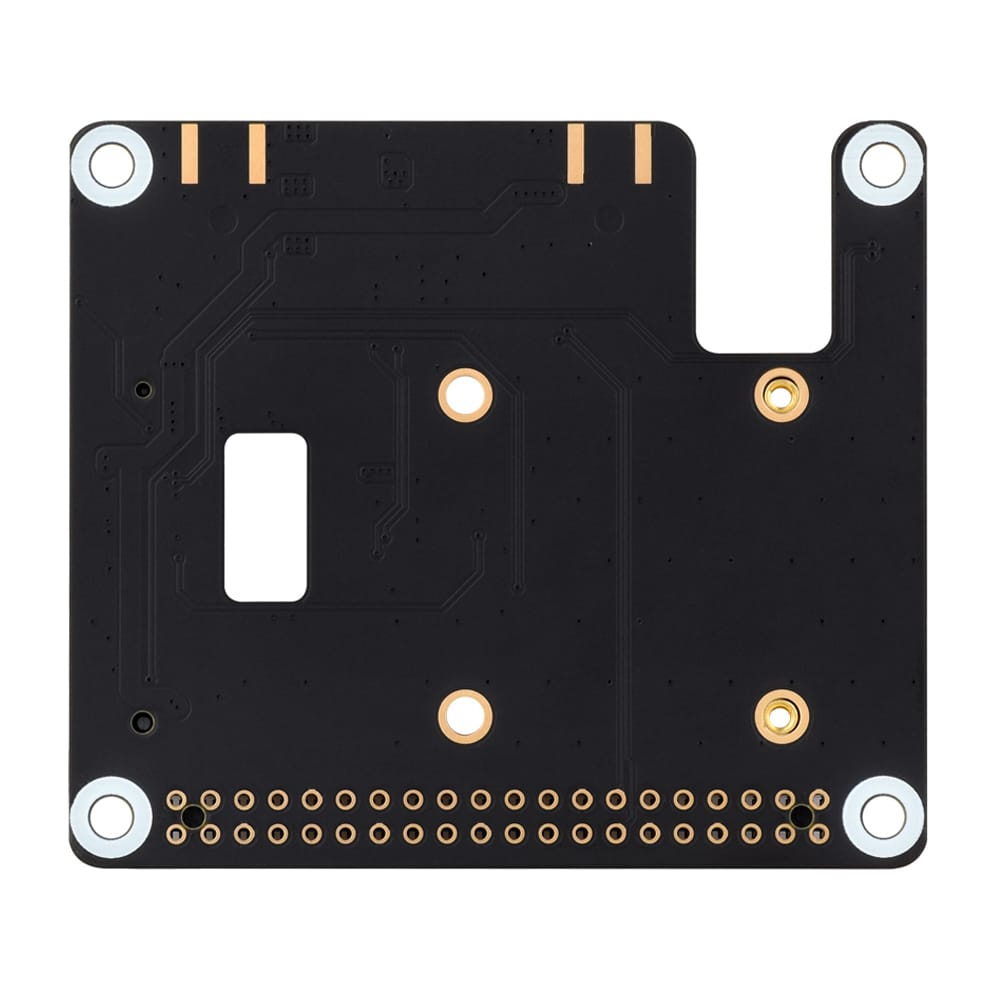

Mini PCIe HAT+ for Raspberry Pi 5

This Mini PCIe HAT+ from Waveshare allows you to use a Mini PCIe device, such as a network cards (NICs), with your Raspberry Pi 5.

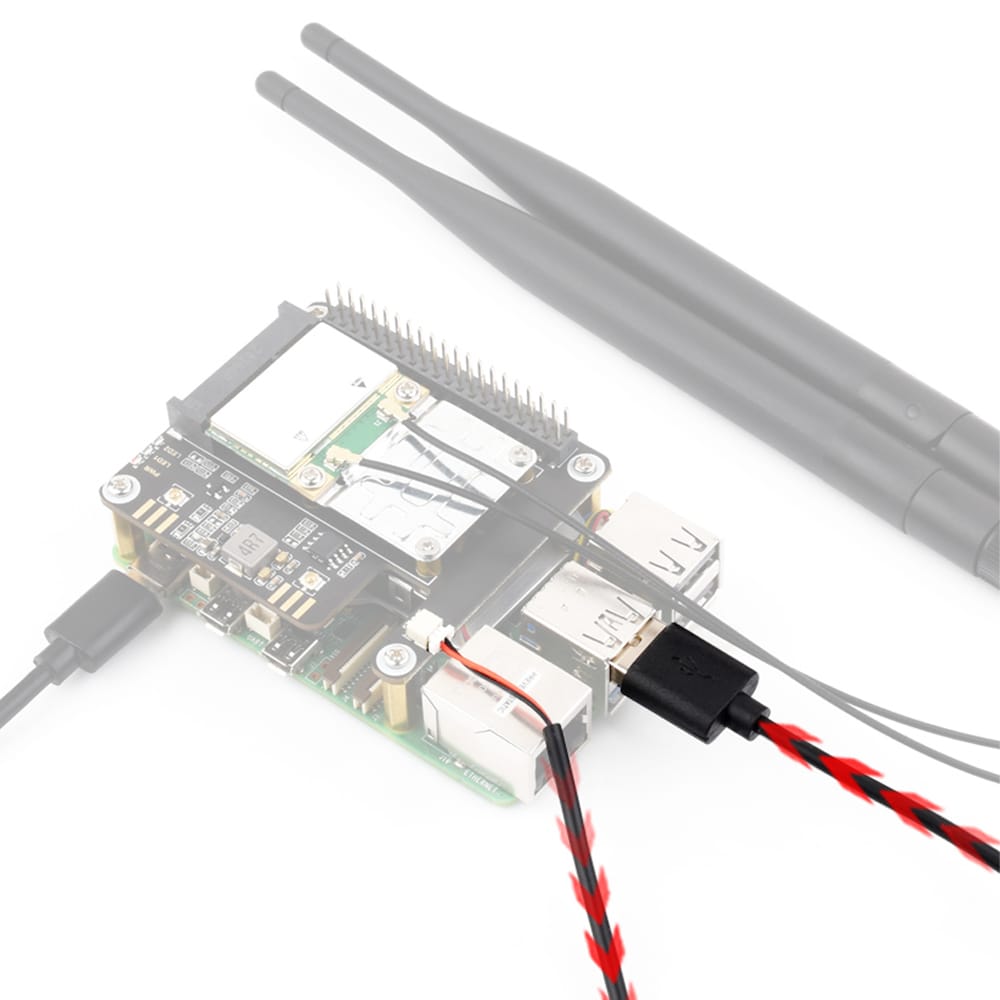

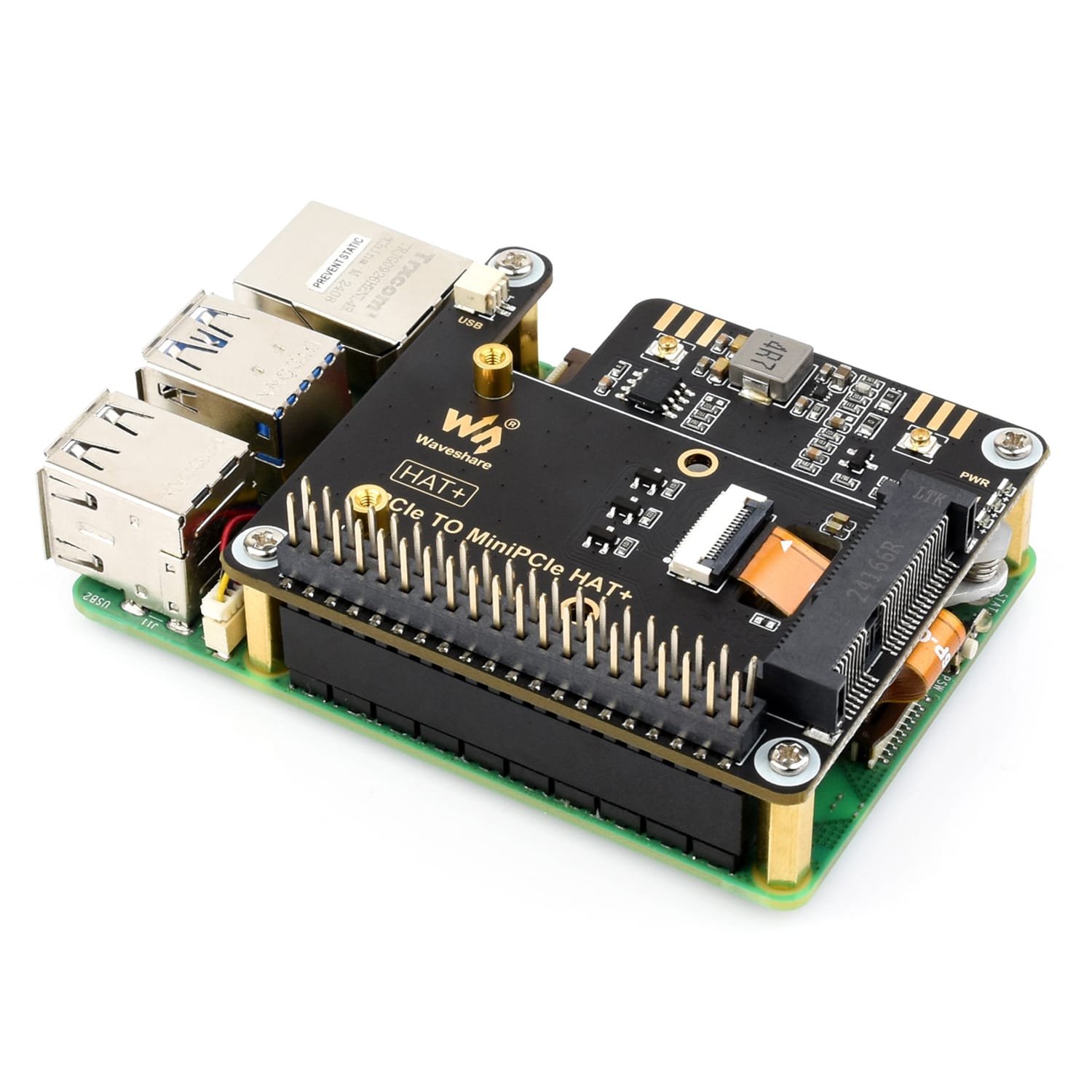

The HAT+ connects to your Pi 5 via the GPIO header and PCIe interface, providing high-speed communication to your Mini PCIe device. It supports network cards with two dedicated antenna connections, and supports USB Bluetooth connection to the Raspberry Pi via the USB header and included cable assembly.

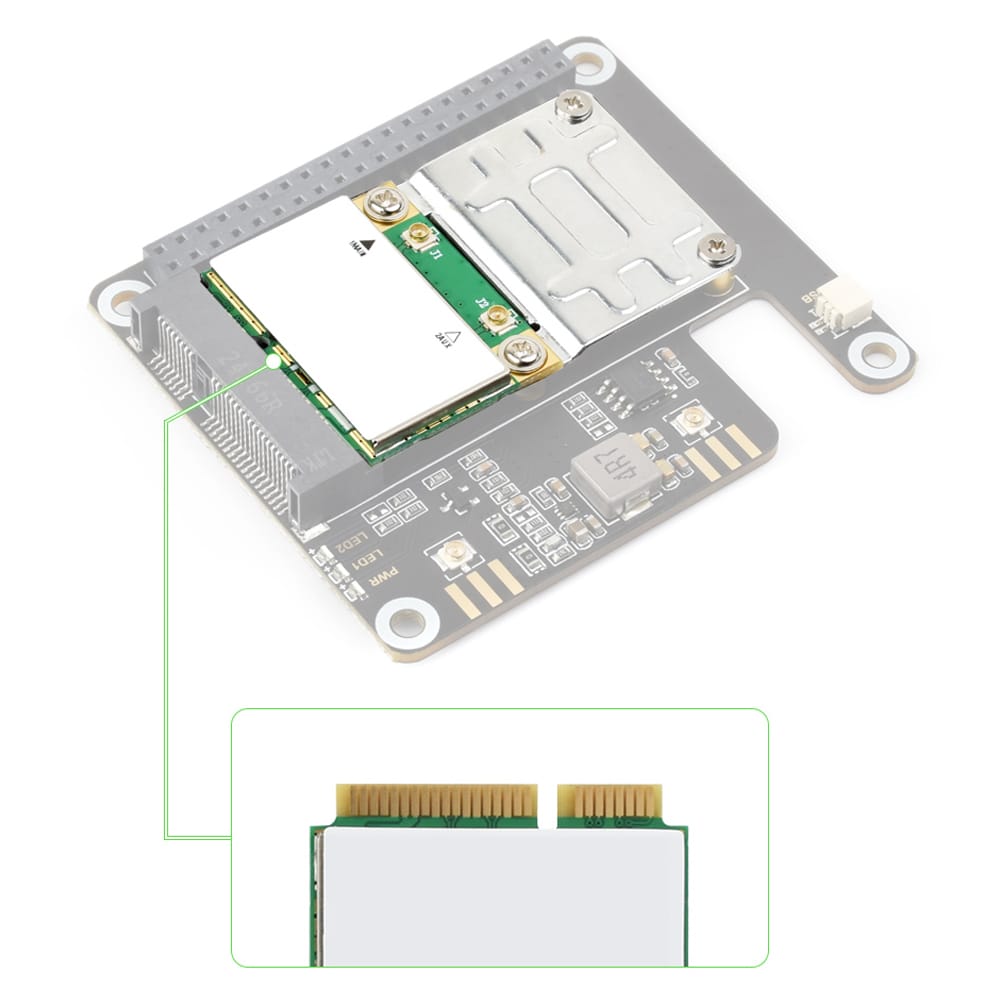

The HAT has been tested with the NICs listed on the Waveshare wiki, however other Mini PCIe cards (with Raspberry Pi OS/Linux support) are likely to work as well.

Mici PCIe device and Raspberry Pi not included.

Features

• Mini PCIe HAT+ for Raspberry Pi 5
• GPIO header and PCIe interface connection
• PCI-E×1 Gen2 or Gen3 mode
• Compatible with Mini PCIe devices
• 2x antenna connections
• USB Bluetooth connection via the USB header
• Onboard working indicator
  • PWR lights when powered on
  • ACT depends on whether the module supports it

Resources

• Product Wiki

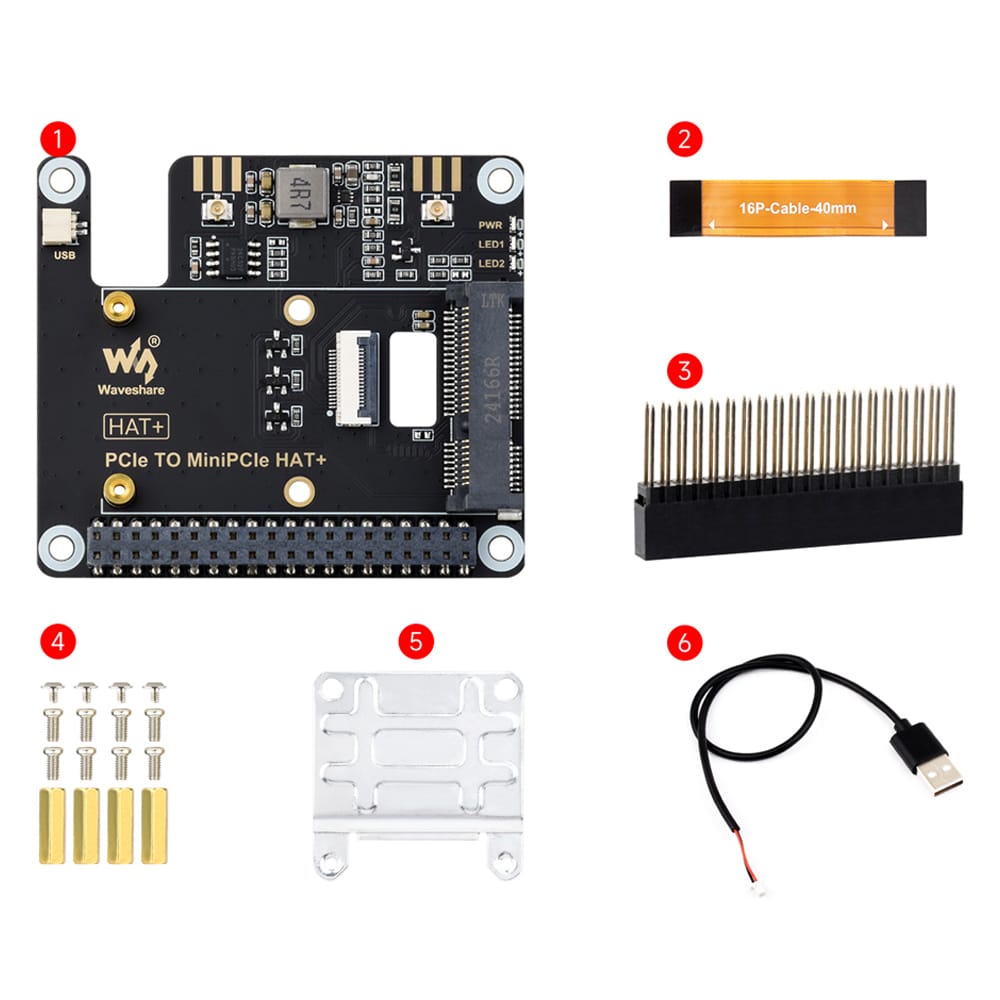

Package Contents

• 1x Mini PCIe HAT+ for Raspberry Pi 5
• 1x 40mm 16-pin PCIe cable
• 1x GPIO riser header
• 1x Mounting bracker for Mini PCIe cards
• 1x USB-A to SH1.0 2-pin cable
• 1x Fixings pack

Mici PCIe device and Raspberry Pi not included.
