Mini 2-Axis Analog Thumbstick

Name: Mini 2-Axis Analog Thumbstick
Brand: The Pi Hut
SKU: ADA2765
Price: 2.4 GBP
Availability: InStock
Rating: 4.63 (8 reviews)

The Pi HutSKU: ADA2765

£2.40

incl. VAT

excl. VAT

Only 6 units left

Sometimes a simple analog control device can be the perfect tactile solution for your project, but they can be surprisingly hard to come by. Luckily we've got a low cost, quality Mini 2-Axis Analog Thumbstick to fulfill your directional analog input needs!

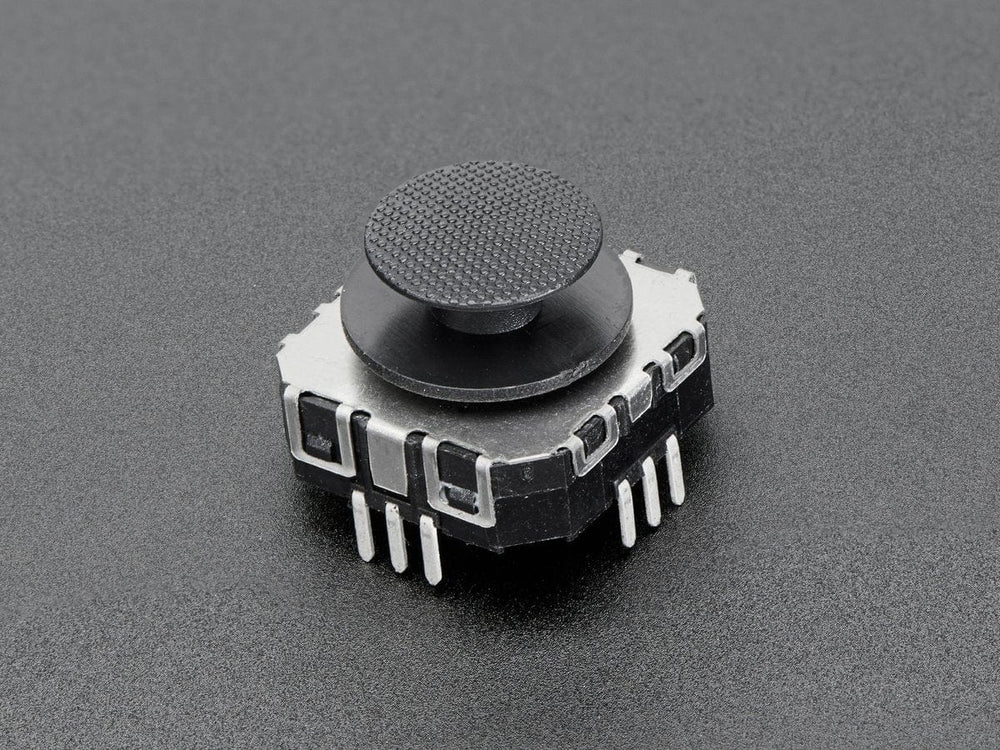

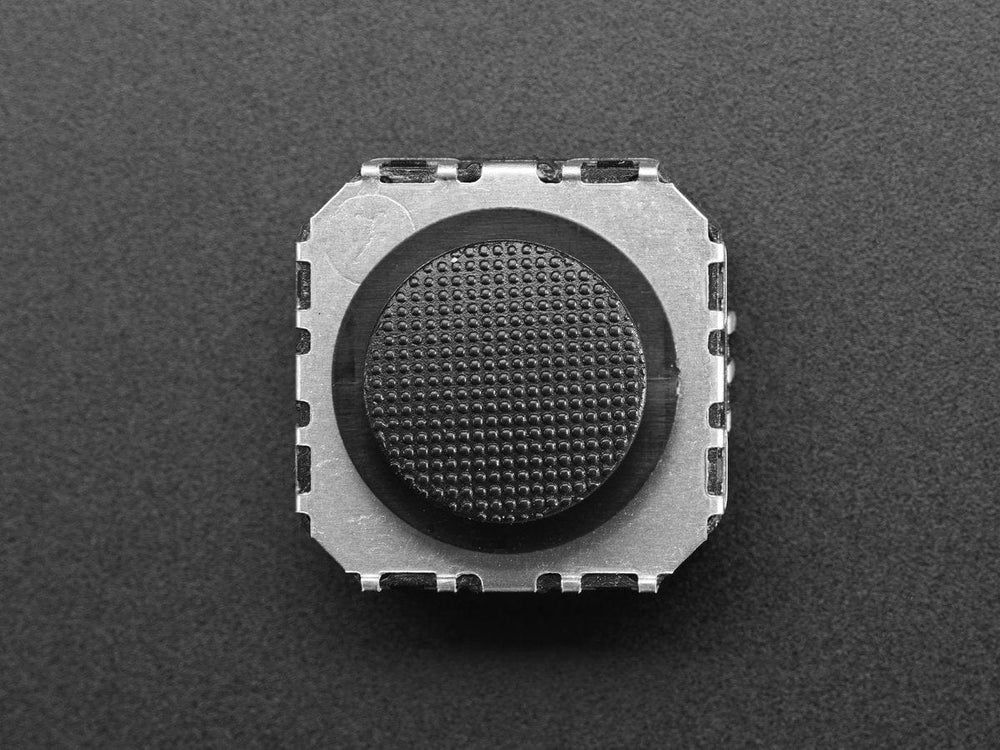

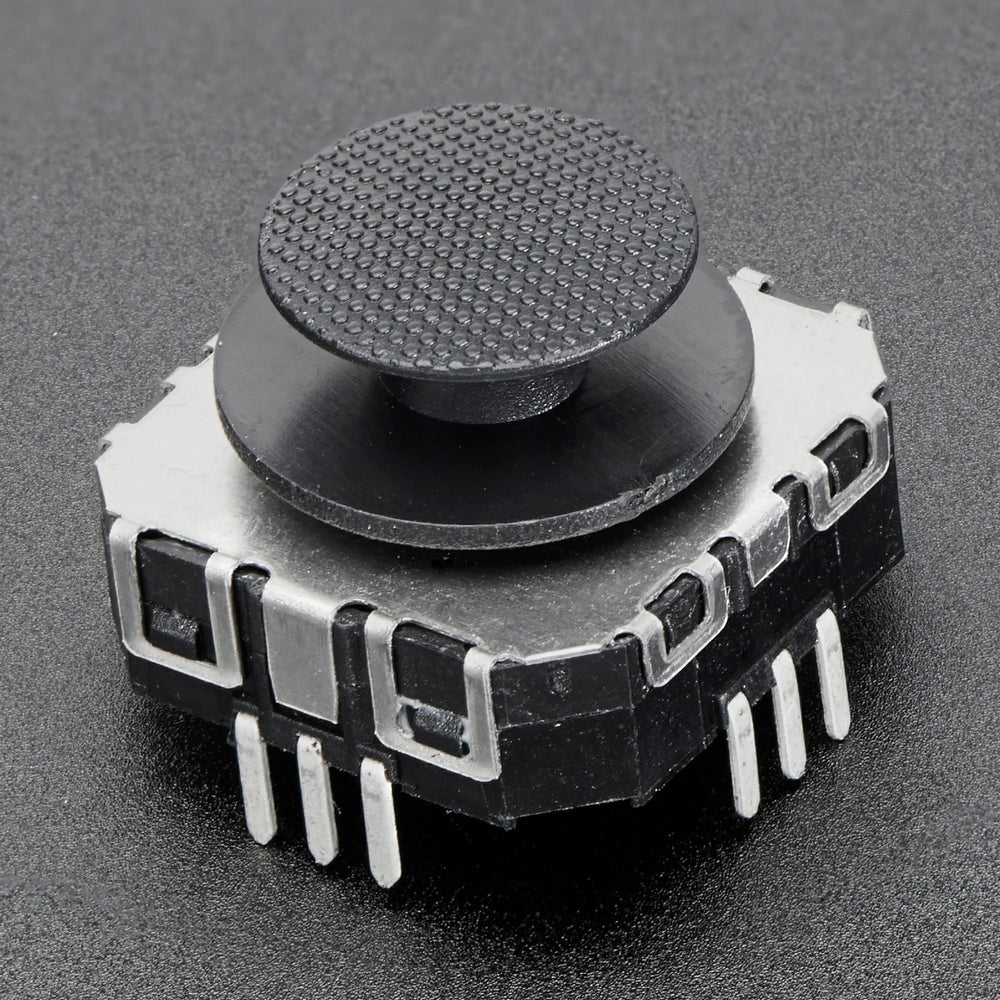

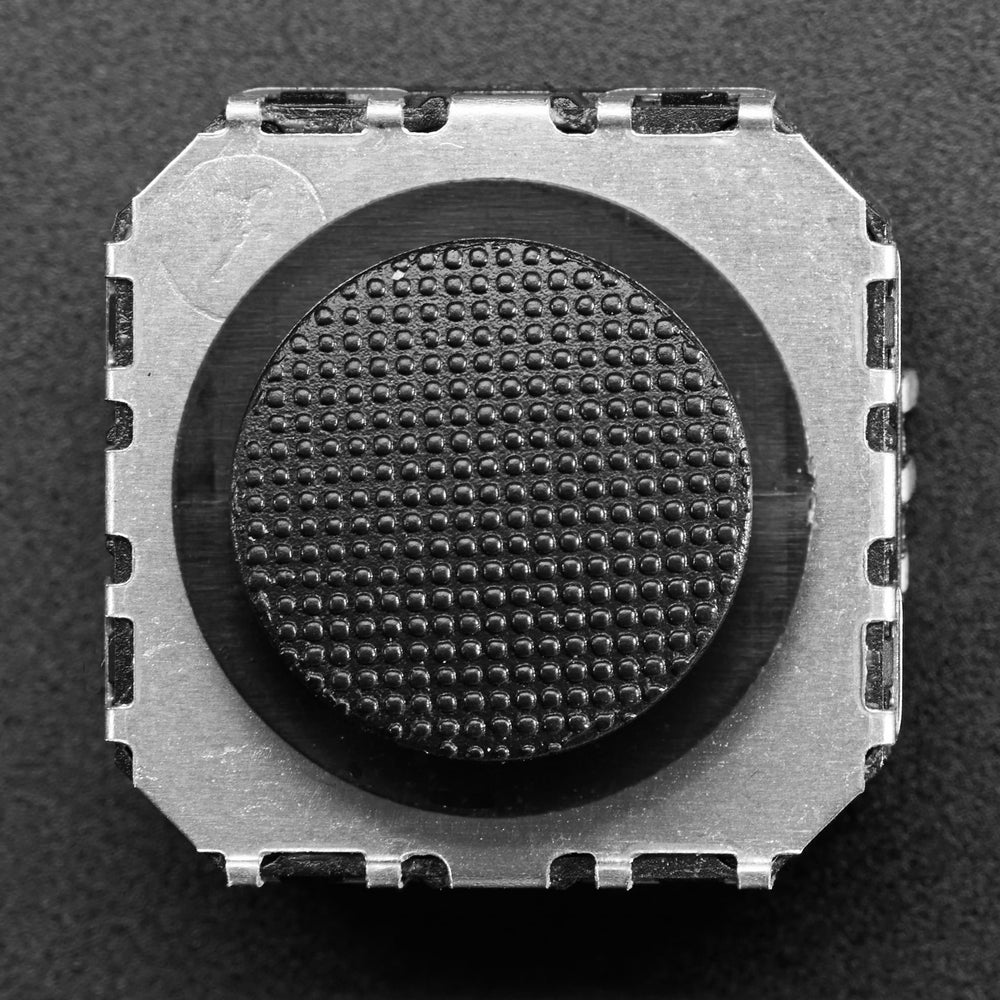

This is a small joystick with a black rocker cap, similar to the PSP joysticks. The joystick is a 'self-centering' analog-type. It is comprised of two 10KΩ potentiometers, one for up / down and another for left / right.

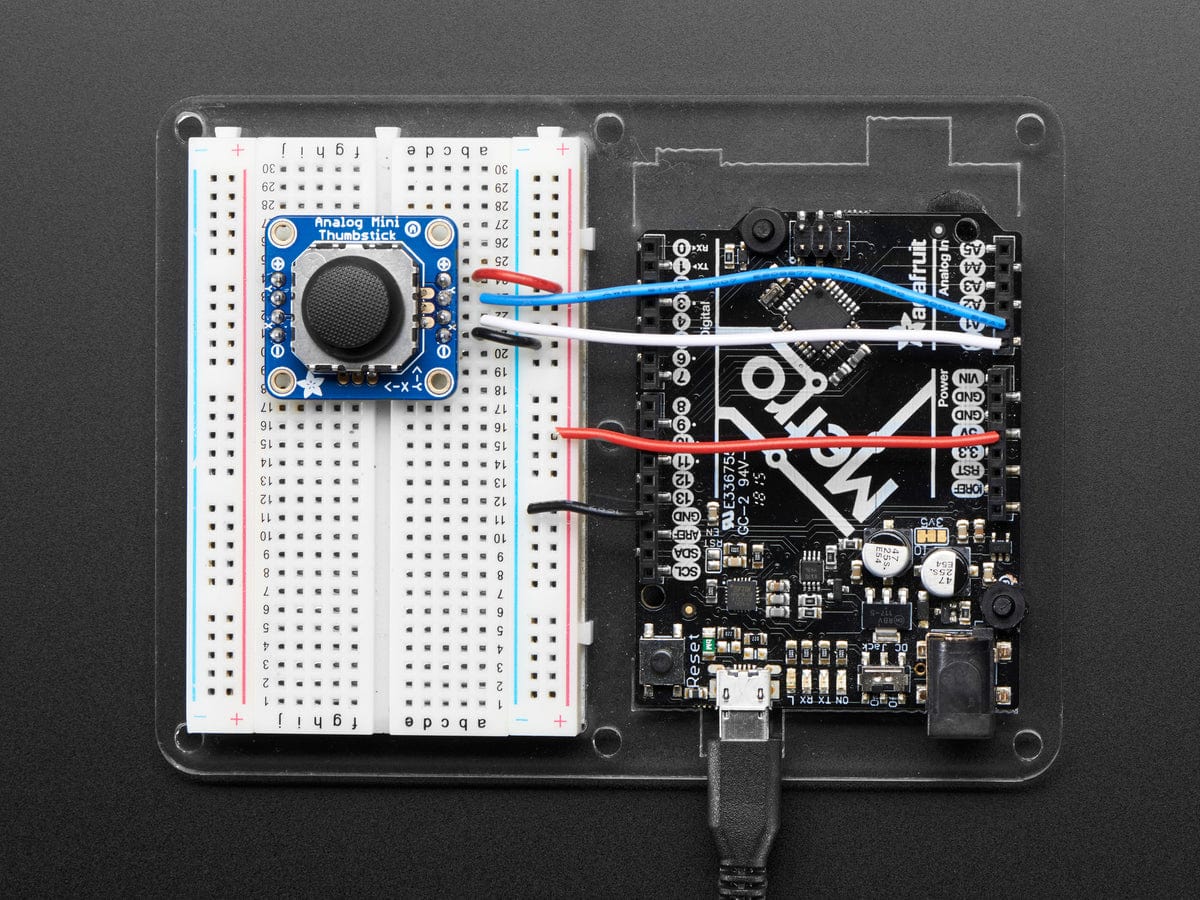

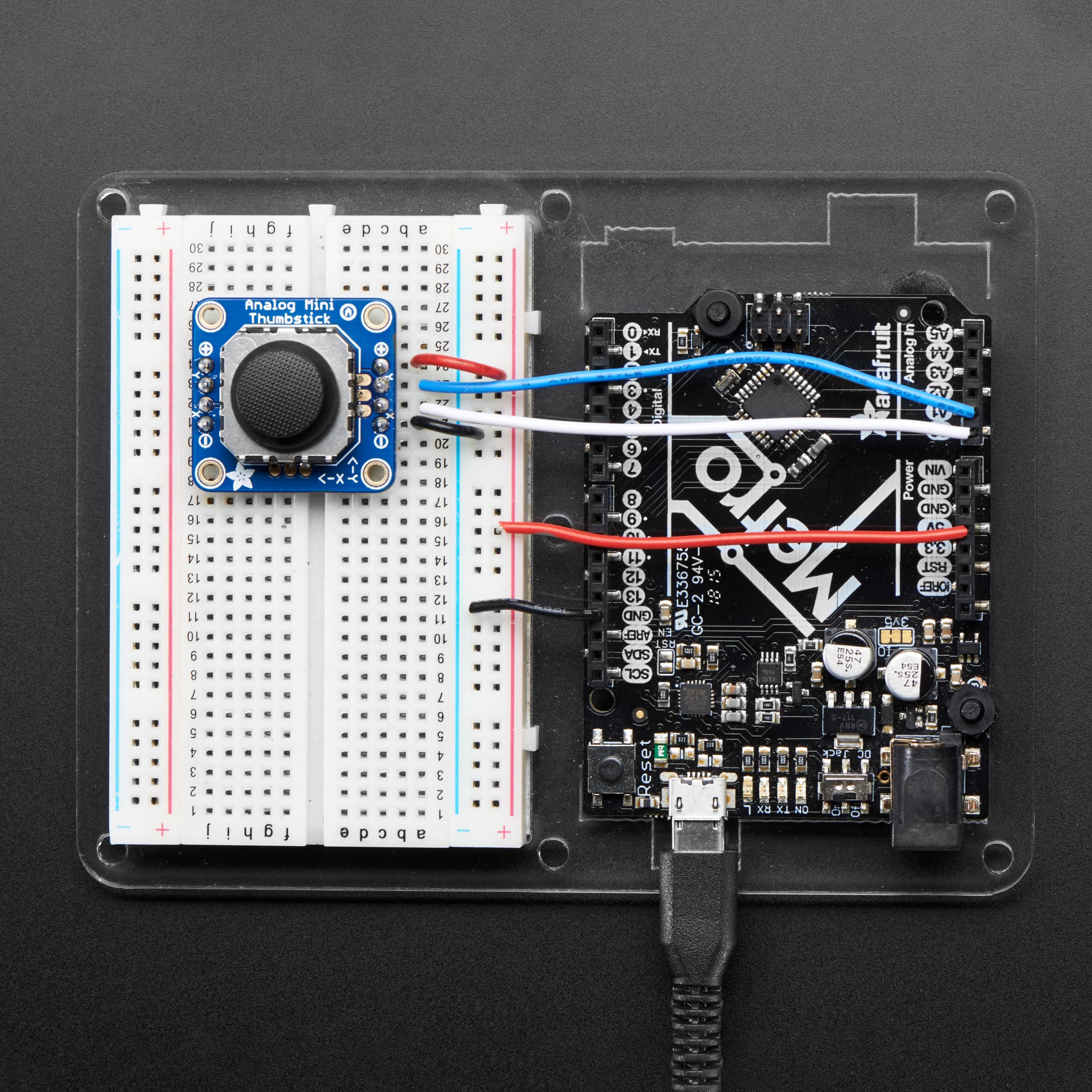

You can solder the potentiometer pins onto a custom breakout board if you so choose. We also offer our own Analog Mini Thumbstick PCB which will pair great with this little guy.

When fully assembled and functioning, the voltage will follow the motion of the thumbstick as it is moved around. When you release the thumbstick it will center itself. Great for robotics and other control interfaces!

Note: Breakout PCB is not included.

Technical Details

For a tutorial on how to read analog joysticks with Arduino check out this tutorial

For a tutorial on how to read analog joysticks with CircuitPython, our analog-input guide should be used - a joystick is just two potentiometers in one plastic case

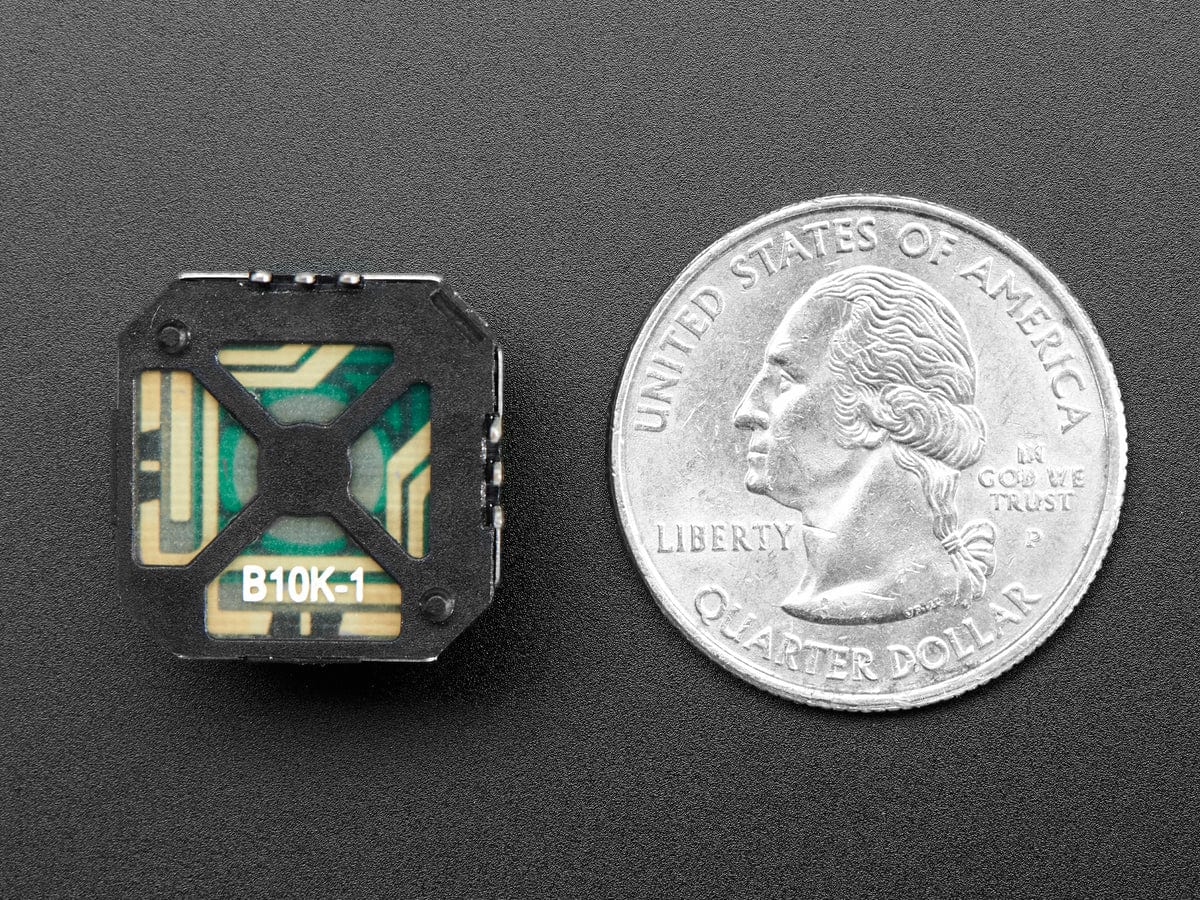

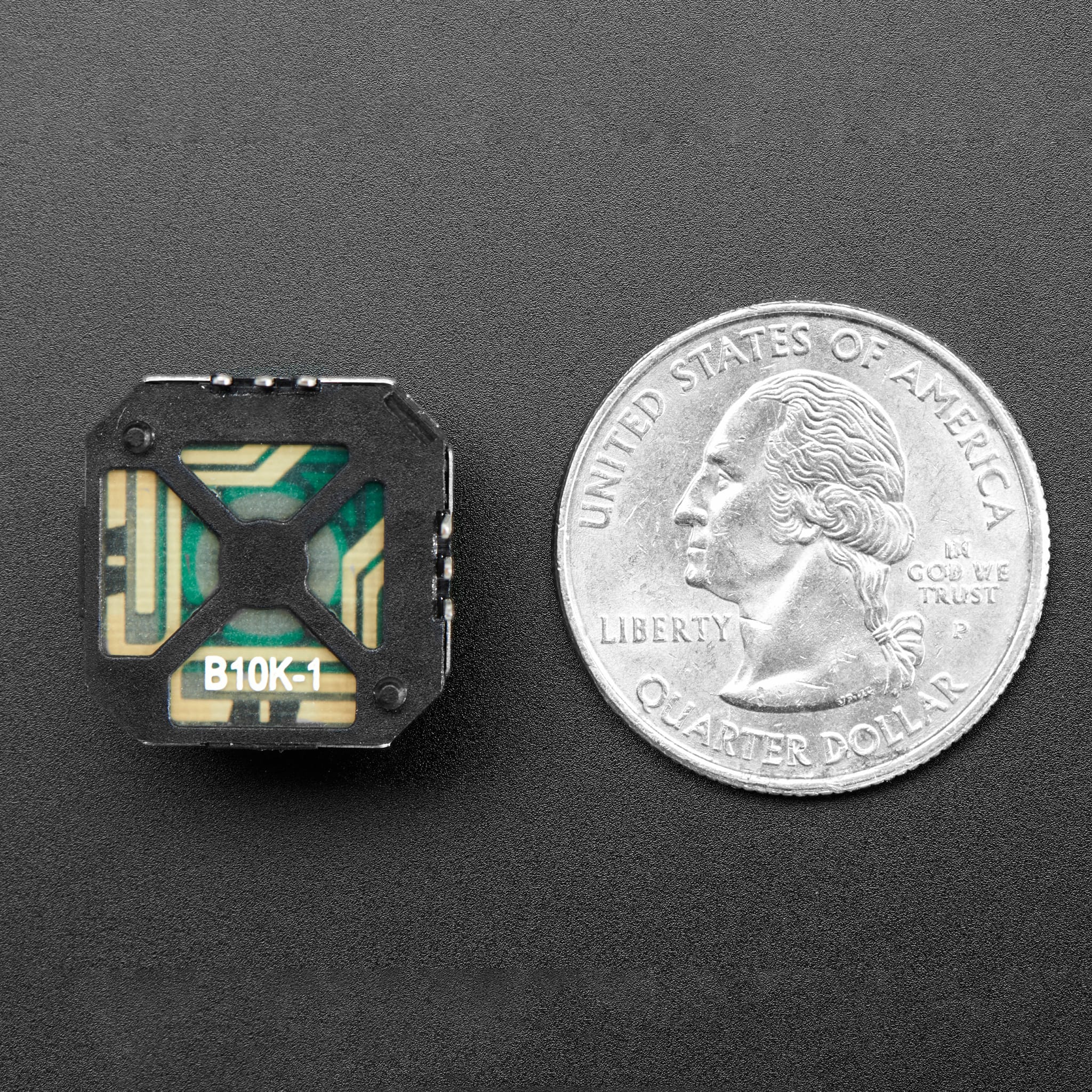

Product Dimensions: 17.5mm x 17.4mm x 12.0mm / 0.7" x 0.7" x 0.5"

Product Weight: 2.1g / 0.1oz

Diagram
