micro:bit Breadboard Kit

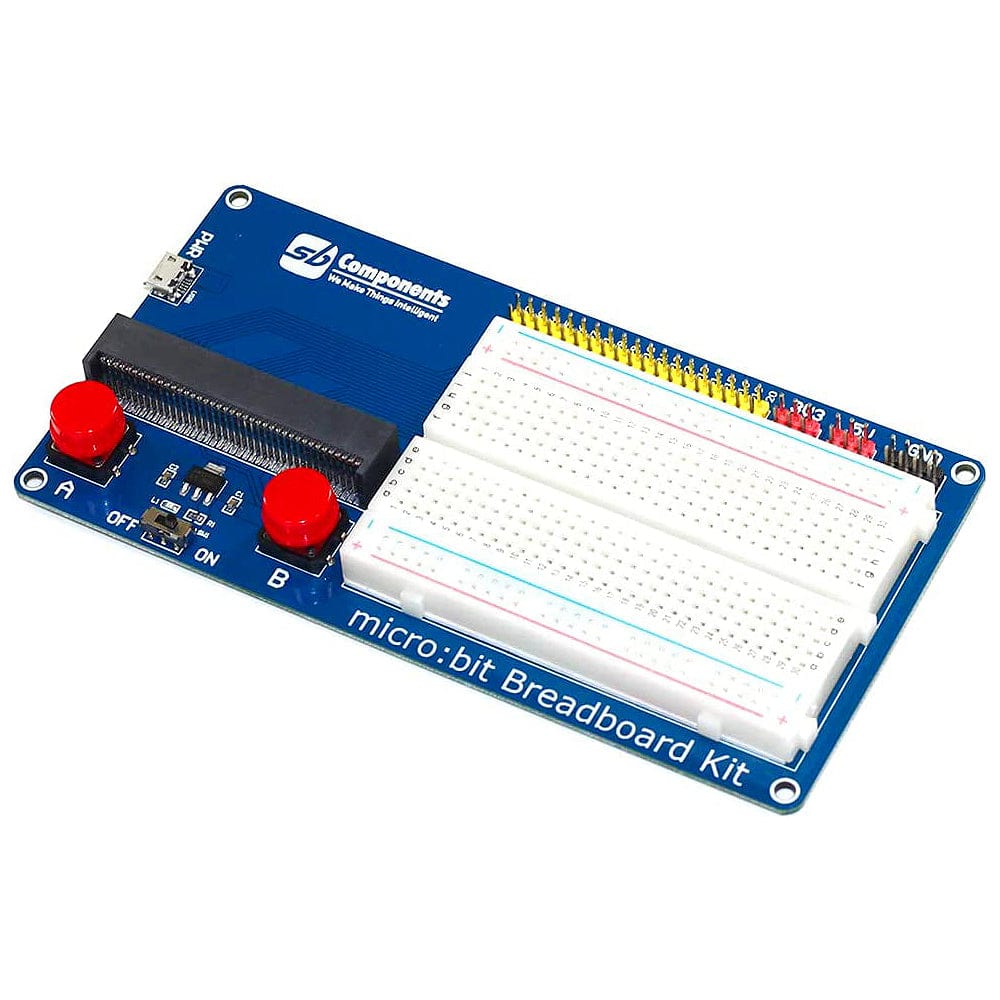

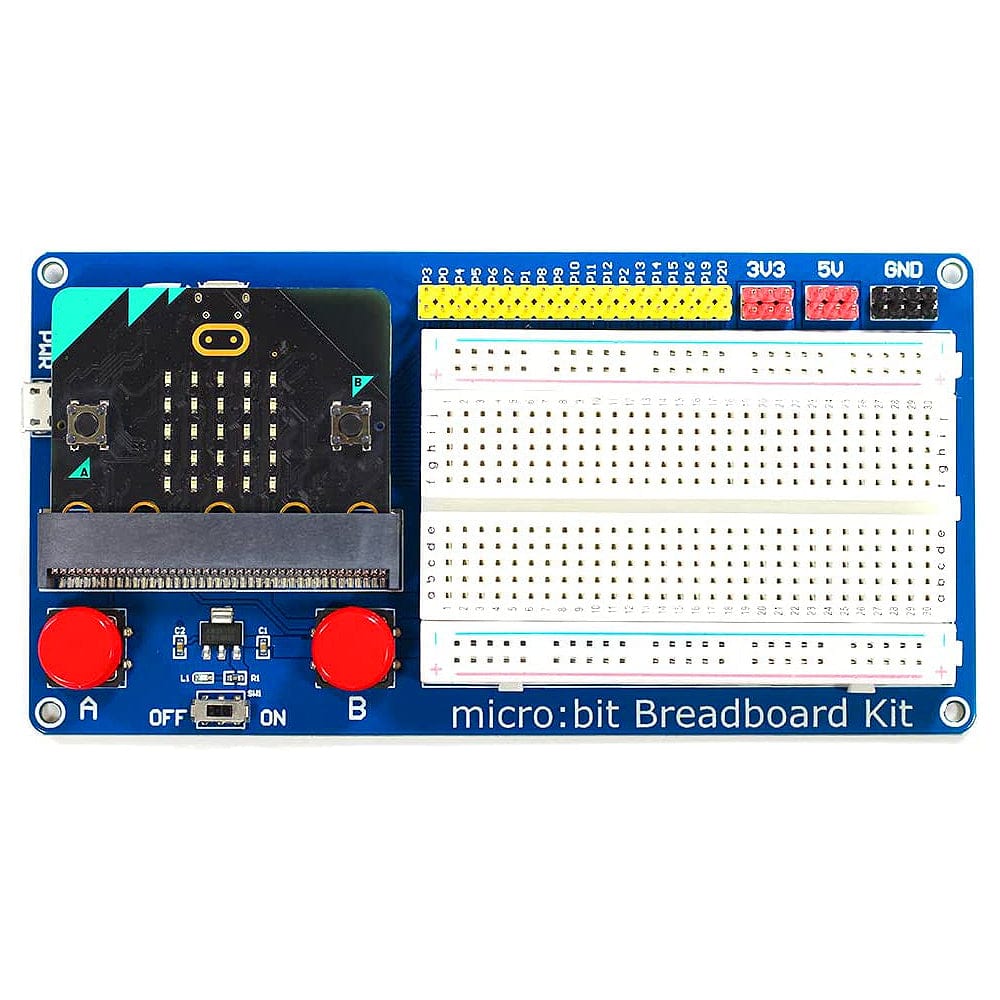

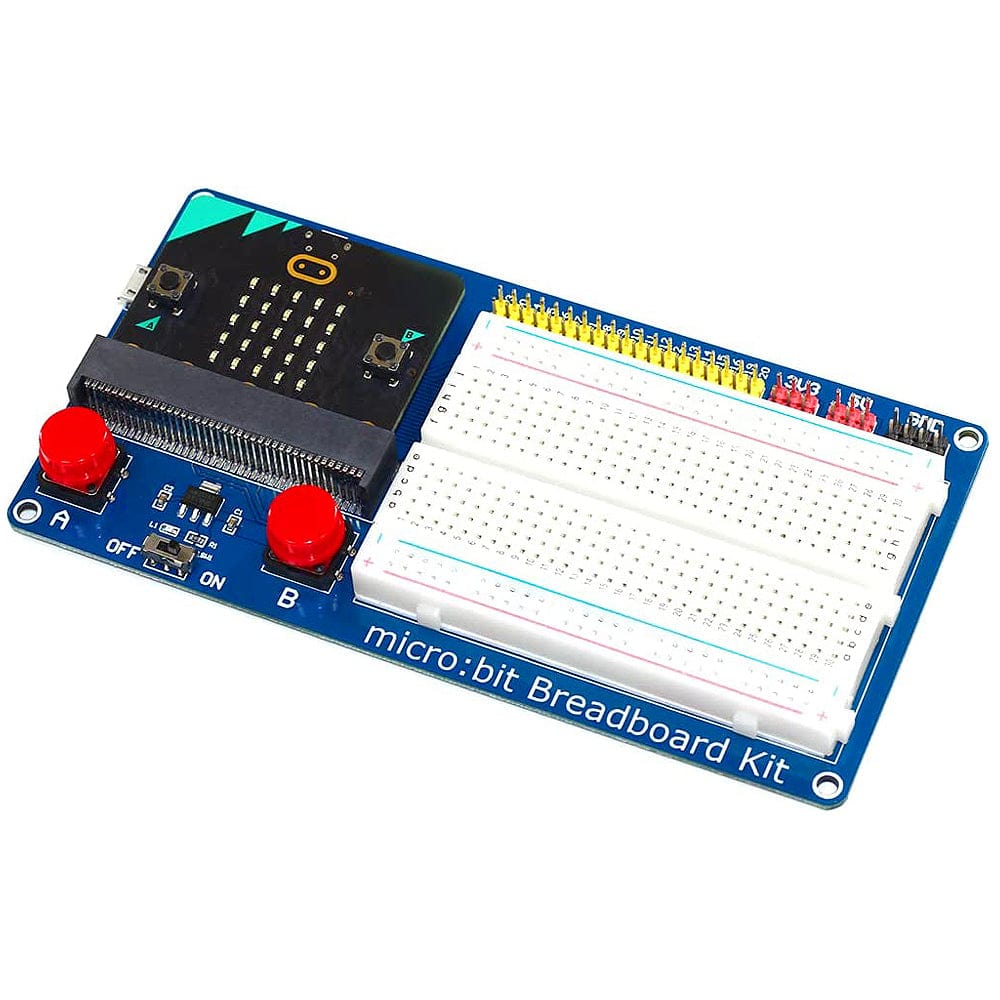

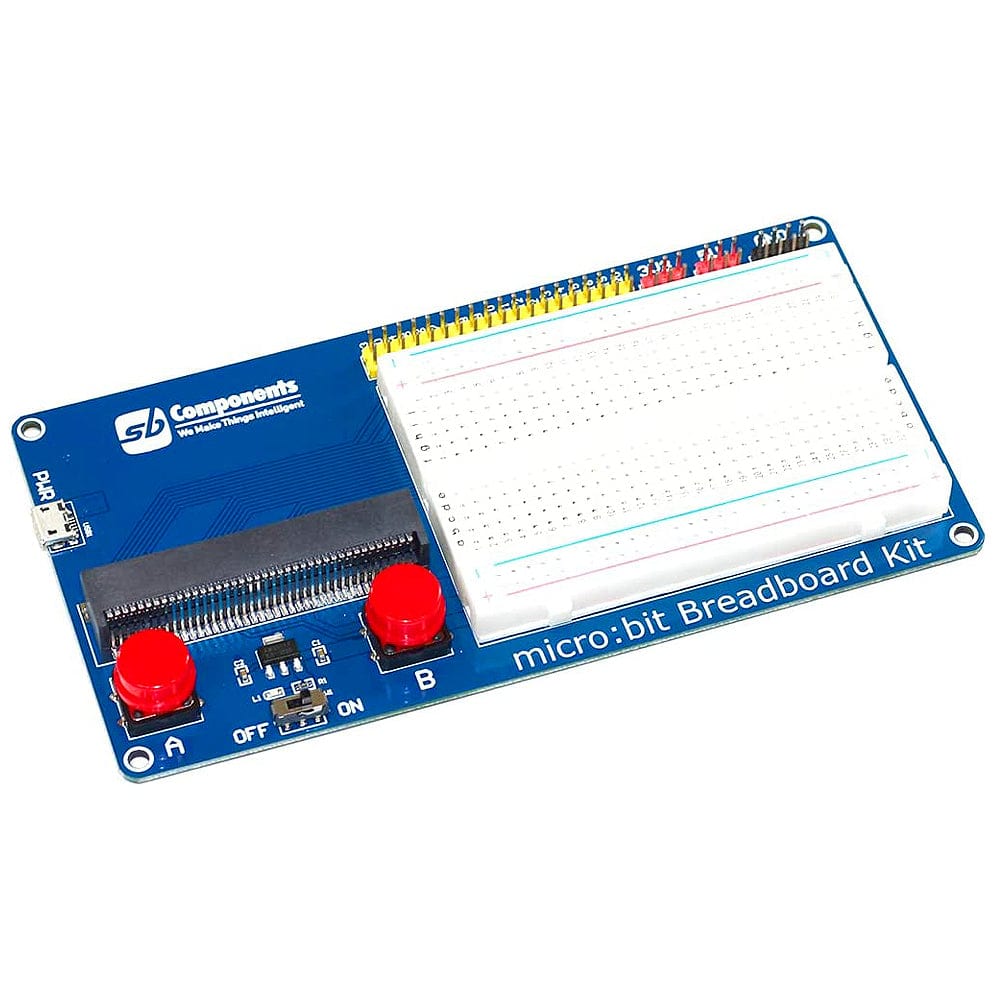

The micro:bit Breadboard Kit is a multi-purpose kit that consists of a 400-point half-size breadboard on top, a programmable buzzer, two user buttons, an on/off switch, a power status LED, a USB power port and dedicated 5V/3v3/GND pins along with a micro:bit stackable connector.

It helps the user to prototype their projects with micro:bit in an efficient way as there is no soldering or complicated wiring required.

NOTE: micro:bit not included. Click this link to purchase one

Features

• Power USB Port
• Two user buttons
• Compatible with micro:bit
• Dedicated 5V, 3v3, and GND pins

Specification

Package Contents

• 1 x micro:bit breadboard kit
• 5x Male to Male Jumper Wires
• 5x Female to Female Jumper Wires
• 5x Male to Female Jumper Wires

Resources

• STEP File
• Product Dimension
• 3D PDF File
• Schematic File
• GitHub
• WiKi
