Metal DC Geared Motor - 6V 191RPM 1Kg.cm

The Pi HutSKU: FIT0495-H
£9.50
incl. VAT
excl. VAT
Only 16 units left

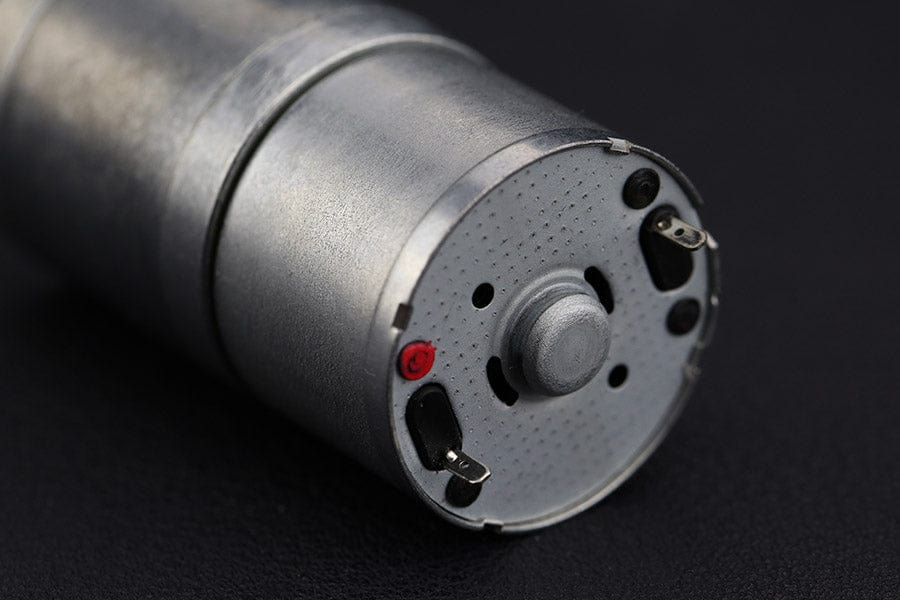

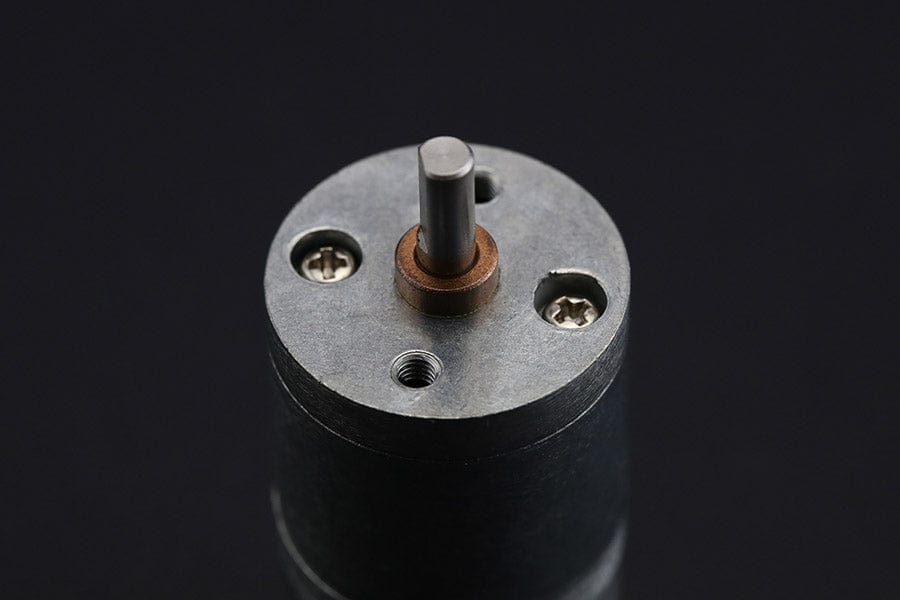

This is a metal DC geared motor, 34:1 metal reducer. It has a small size and large torque. The maximum torque could arrive 1 kg.cm. It is stable and durable!

  • Rated Voltage: 6 V
  • Operating Voltage Range 2~7.5V
  • Gear reduction ratio: 34:1
  • Gearbox length: 21 mm
  • "D" shape shaft diameter: 4 mm
  • No-load speed: 214 RPM @ 6V
  • No-load current: 50 mA
  • Locked-rotor torque: 1 Kg.cm
  • Locked-rotor current: 0.6 A
  • Operating Temperature: -20～60℃
  • Weight: 68g

    • Shipping List

  • Metal DC Geared Motor - 6V 191RPM 1Kg.cm x1
    •
