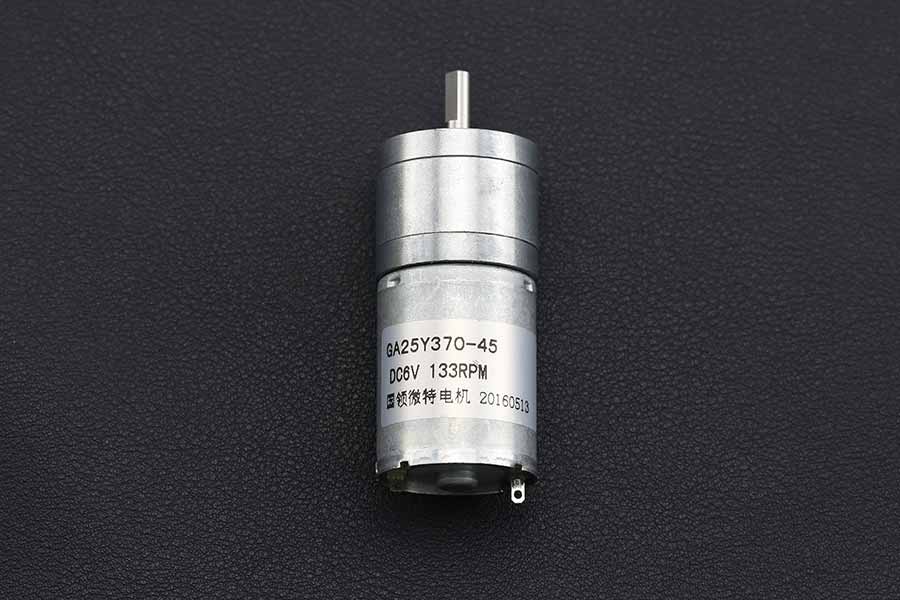

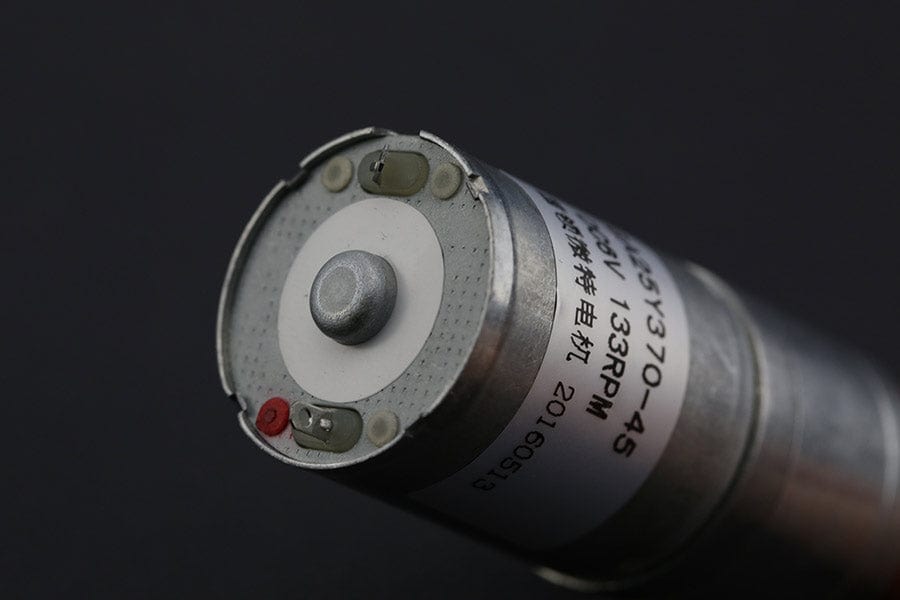

Metal DC Geared Motor - 6V 133RPM 4.5kg.cm

The Pi HutSKU: FIT0473
£15.30
incl. VAT
excl. VAT
Only 5 units left
This is a metal DC geared motor, 45:1 metal reducer. It has a small size and large torque. The maximum torque could arrive 4.5 kg.cm. It is stable and durable!

Specification

  • Rated Voltage: 6 V
  • Operating Voltage Range 2~7.5V
  • Gear reduction ratio: 45:1
  • D output shaft diameter: 4 mm
  • No-load speed: 133 RPM @ 6 v
  • No-load current: 0.13 A
  • Locked-rotor torque: 4.5 kg.cm
  • Locked-rotor current: 2.3 A
  • Operating Temperature: -20～60℃
  • Weight: 90 g

Documents

Shipping List

  • Metal DC Geared Motor - 6V 133RPM 4.5kg.cm x1
